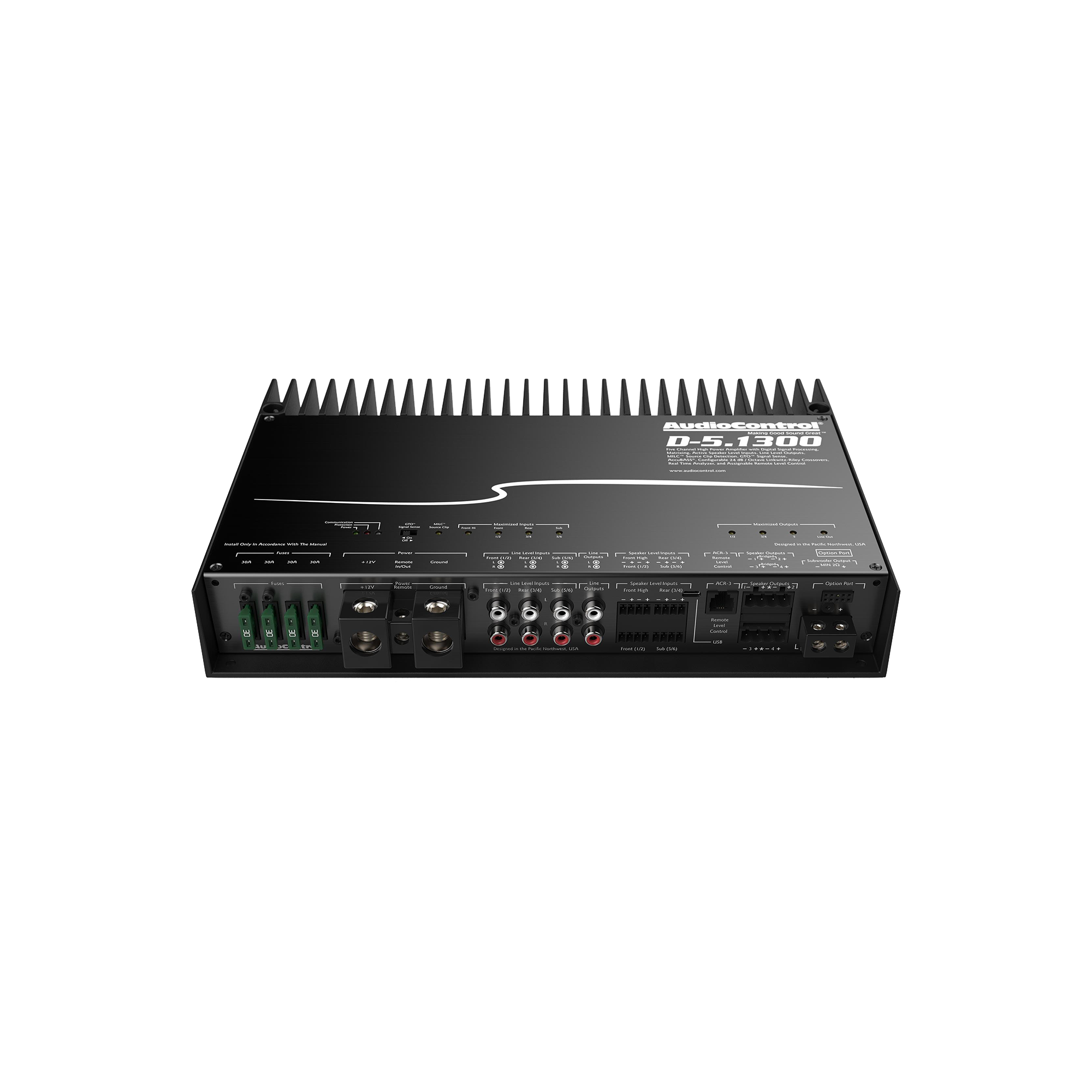

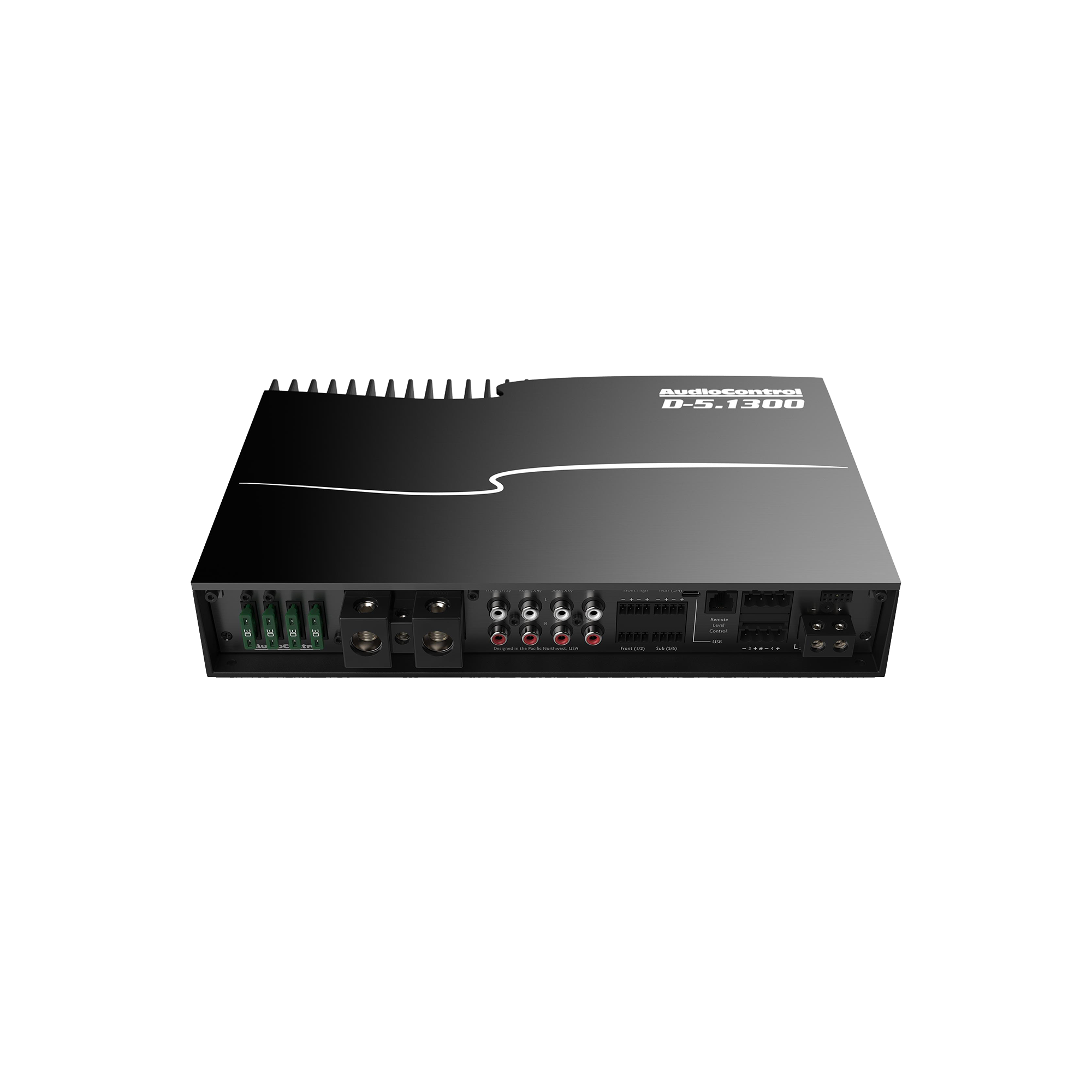

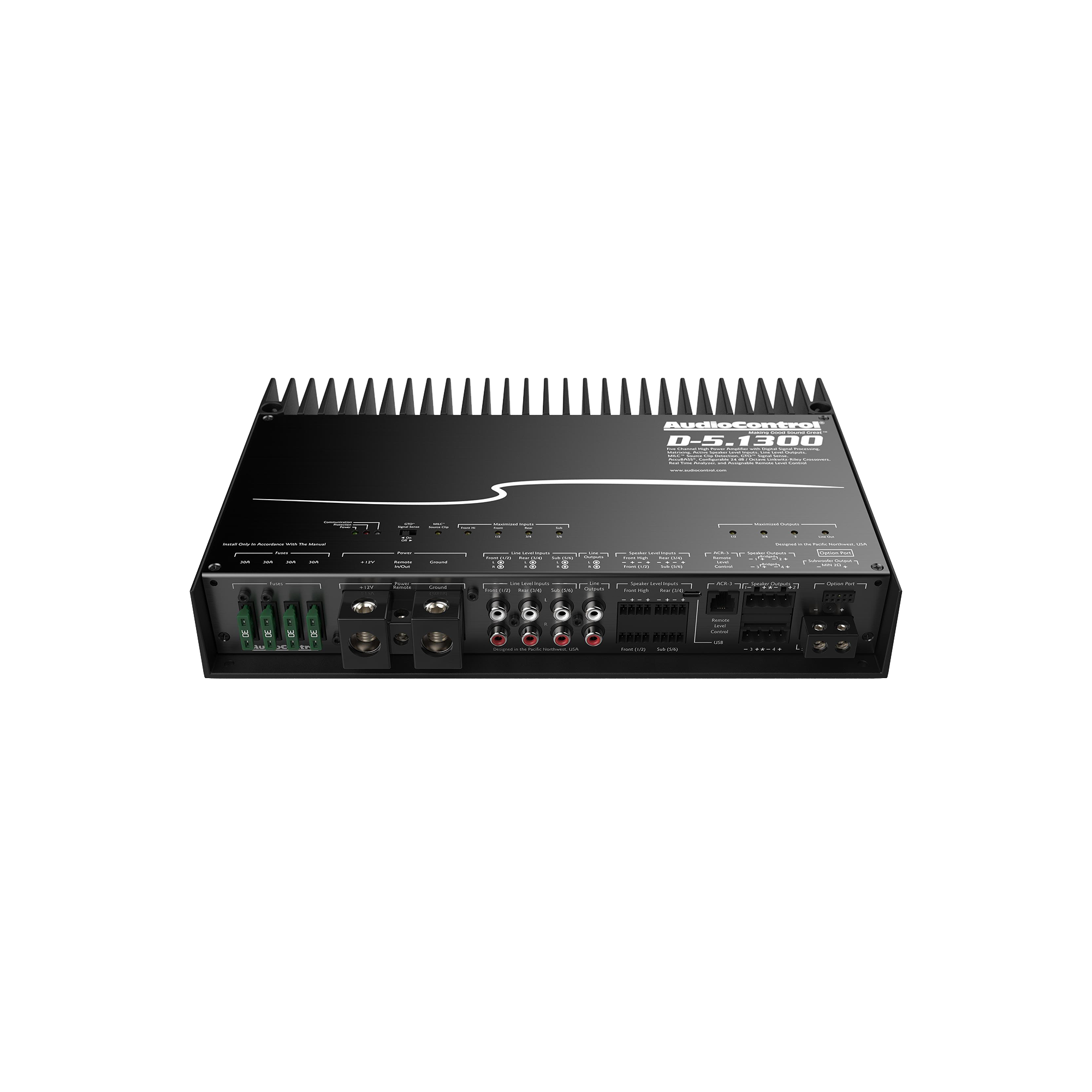

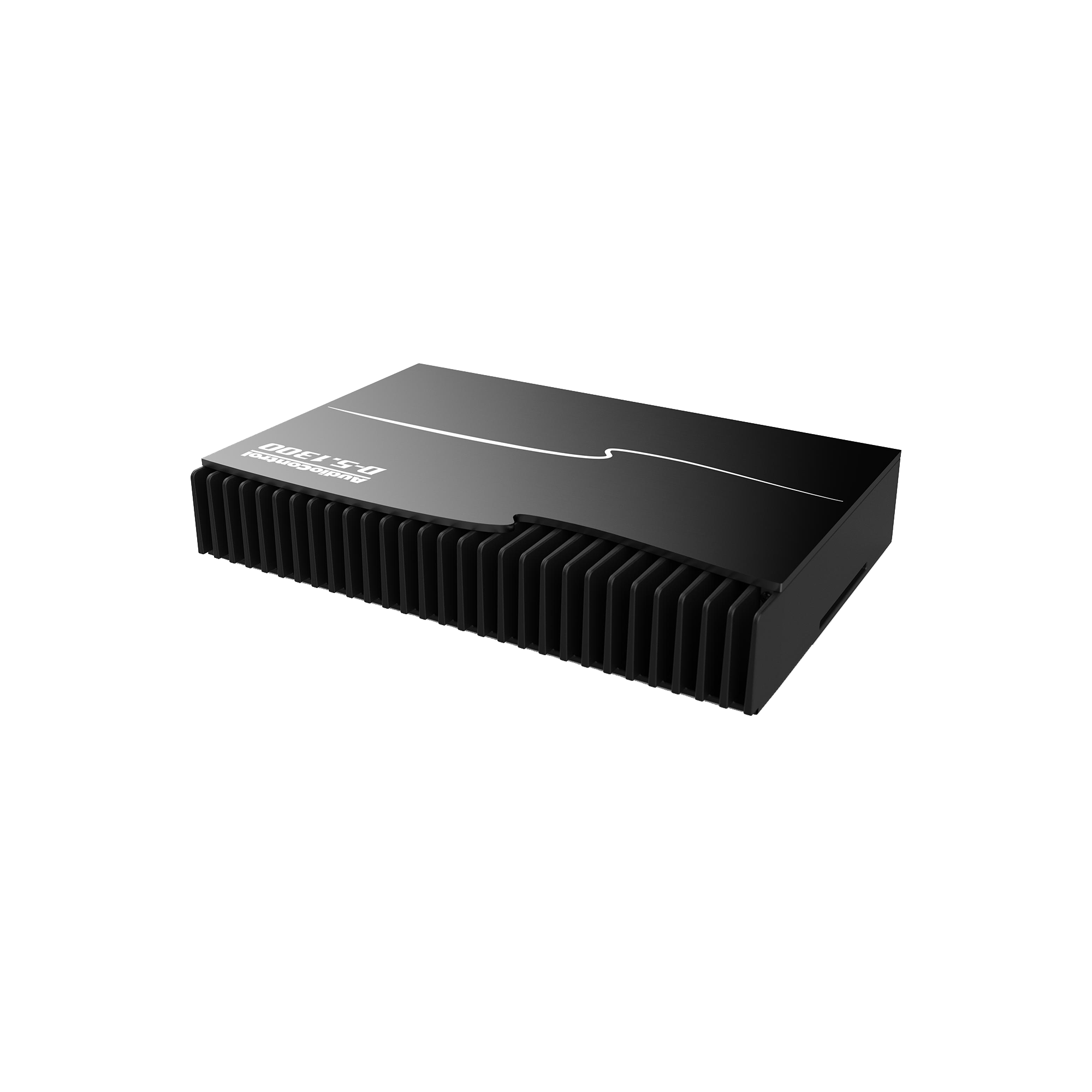

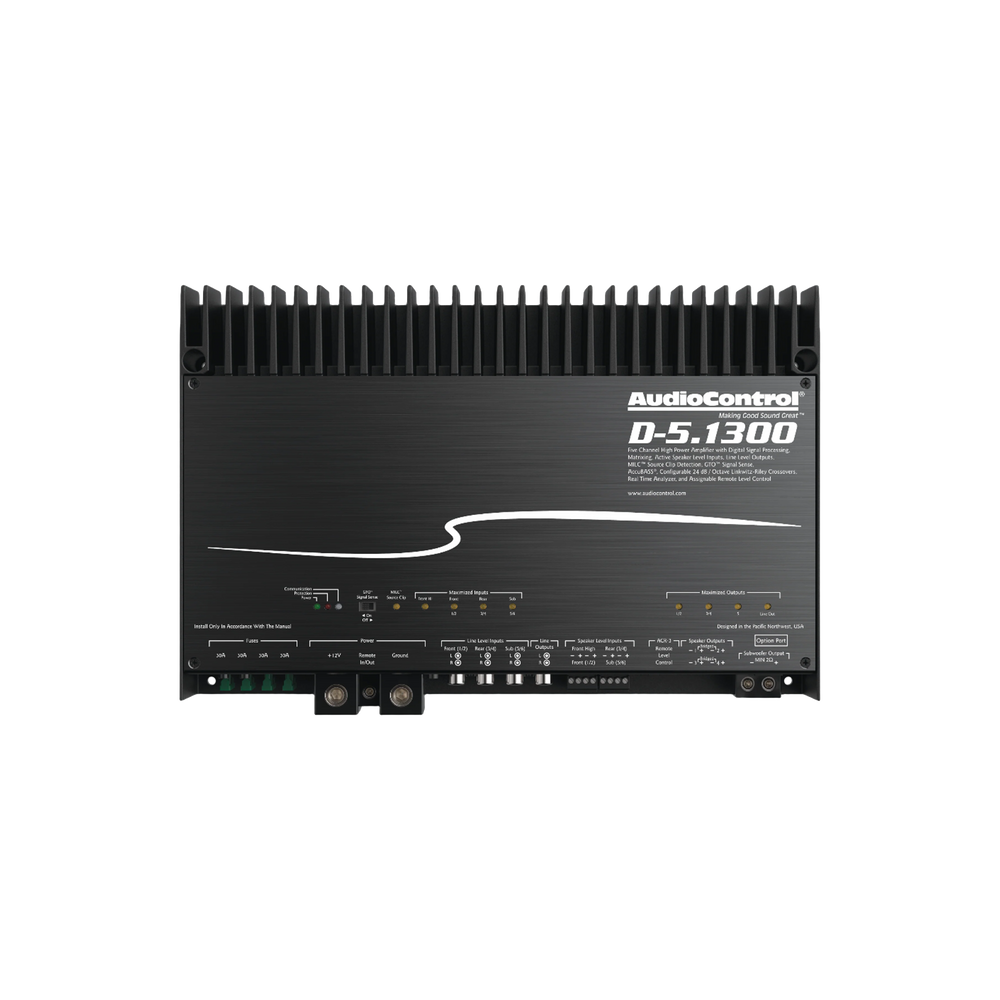

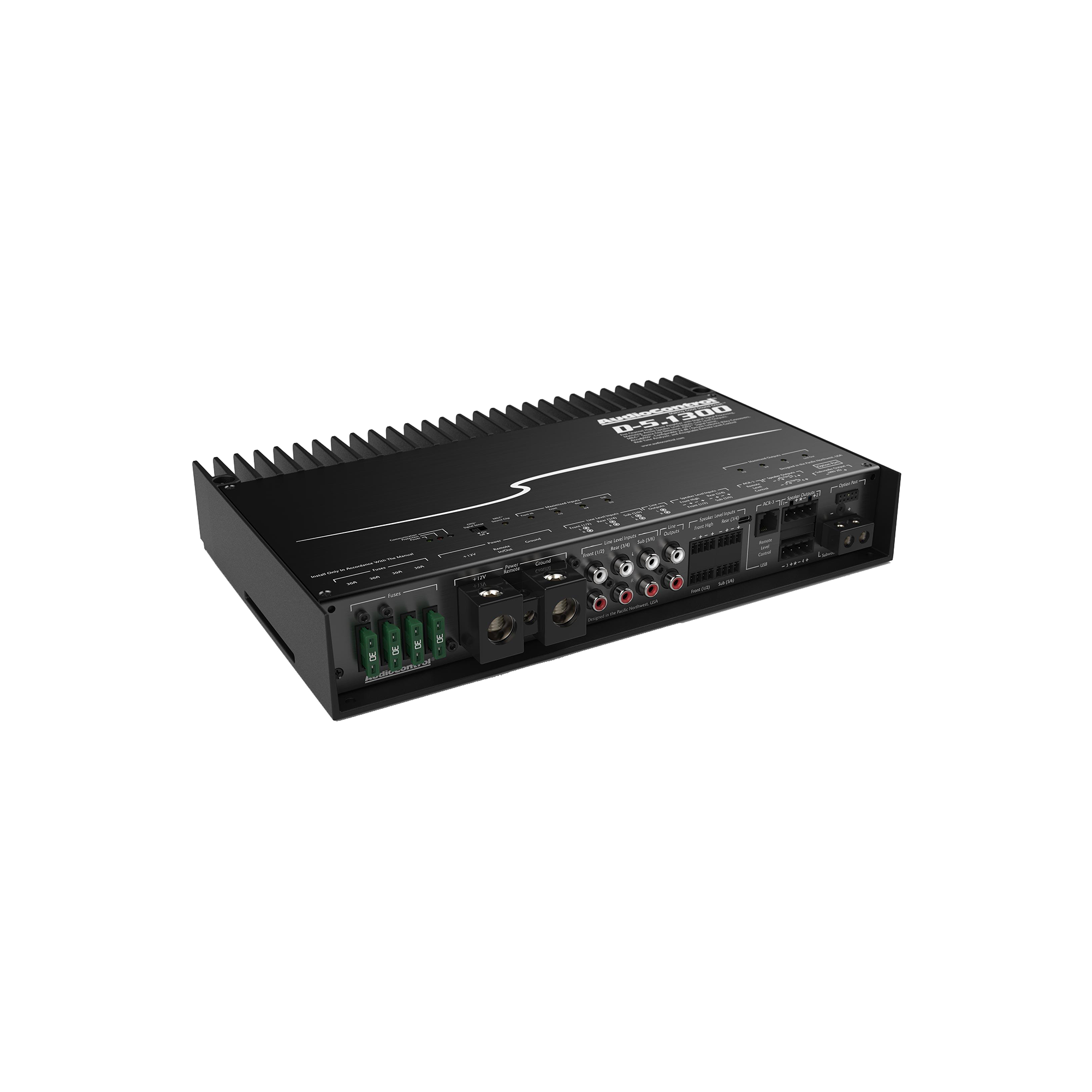

D-5.1300 High-Power 5-Channel DSP Matrix Amplifier w/AccuBass

$999.00

Experience unparalleled in-car audio performance with AudioControl's D-5.1300 5-Channel DSP Amplifier with AccuBASS. This innovative amplifier features cutting-edge Class D amp technology, MILC™ LED optimization, and clip indicators for maximum power and clarity.

The D-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the DSP-driven D-5.1300 features independent crossovers, 30 band EQ with auto EQ, signal summing, signal delay, built in RTAs, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-3 remote for level control.

DM Smart App

AudioControl’s multi-platform DM Smart DSP app allows complete control over all tuning features of the D-5.1300 including 30 bands of EQ, signal delay, phase correction, AccuBASS®, GTO Signal Sense, MILC Clip Detection, plus integrated input and output RTA’s. Access DM Smart DSP from your phone or tablet with the optional AC-BT24 Bluetooth® Streamer & Programmer and use the all new DM Control app for easy access to level adjustments and preset recall.

DM Smart App download for Mac & PC

DM Smart App via Appstore iOS & Android

(*Note: Uninstall old DM software firmware before updating to the new version)

User Manual

FEATURES

  • Built-in DSP
  • Configurable as 5 or 3 channel amplifier
  • 4 x 200 watts + 1 x 500 watts @ 2 ohms
  • 4 x 100 watts + 1 x 300 watts @ 4 ohms
  • 400 watts @ 4 ohms bridged
  • AccuBASS® Processing
  • MILCTM Maximum Input Level Control (Patent Pending)
  • GTOTM Signal Sense
  • Independent Linkwitz-Riley Alignment crossovers
  • Summable active speaker-level inputs (8 channels) for OEM integration
  • 6 preamp inputs
  • PFM Subsonic Filter
  • Solid One-Piece Aluminum Chassis
  • Input and Output RTA for precise and informed tuning
  • Input and Output Delay
  • 12 and 24 dB/octave Linkwitz-Riley crossovers
  • 30 band equalizer with auto EQ
  • Optional ACR-3 remote for preset recall and level control
  • Optional AC-BT24 Bluetooth Streamer/Programmer
  • DM Smart DSP app available in downloads for Mac/PC

SPECIFICATIONS

INPUTS

  • Preamp Inputs: 6 balanced
  • Preamp Input Voltage Range: 500 mV – 6 Vrms
  • Speaker Level Inputs: 8
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms

OUTPUTS

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 100 W x 4 + 300 W x 1
    • 2 Ω – 200 W x 4 + 500 W x 1
    • Bridged 4 Ω – 400 W RMS
  • Preamp Outputs: 2
  • Maximum Preamp Output: 8.5 V RMS

PERFORMANCE

  • Frequency Response: 20 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Power / Ground Wire Gauge: 8 to 3 AWG wire
  • Fuse Rating: 4 x 30 A

WEIGHTS & DIMENSIONS

  • Dimensions: 12.0″W x 8.0″D x 2.1″H
  • Weight: 7.2 lbs. (3.3 kg)

IN THE BOX: D-5.1300, Speaker Connectors, Fuses, Manual, Warranty

D-5.1300 High-Power 5-Channel DSP Matrix Amplifier w/AccuBass
D-5.1300 High-Power 5-Channel DSP Matrix Amplifier w/AccuBass
D-5.1300 High-Power 5-Channel DSP Matrix Amplifier w/AccuBass
D-5.1300 High-Power 5-Channel DSP Matrix Amplifier w/AccuBass
D-5.1300 High-Power 5-Channel DSP Matrix Amplifier w/AccuBass
D-5.1300 High-Power 5-Channel DSP Matrix Amplifier w/AccuBass

Shipping

In stock

Est. arrival October 05

Key features

Multi-Channel Flexibility

Configurable as 5 or 3 channel amplifier

DM Smart DSP

This app gives you full control over various sound processing features.

AccuBASS Processing

Bass roll-off correction

Maximum Input Level Control (MILC)

Input signal monitoring for proper Gain adjustment.

GTO Signal Sense

Turns on the amp when it detects an audio signal.

Connections

Connections for power, input/output, speaker level, remote control, USB, and optional Bluetooth module.

ACR-3 Remote (Optional)

Adjust output levels and recall memory presets from the driver's seat.

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Tune your audio with precision detail.

What's in the box

D-5.1300

5-Channel DSP amplifier, Four 30A ATO fuses (installed), 10' USB cable (type-A on one end / micro-B on other end), 2.5mm Allen key, User Guide

Specs & installation

Product specs

RMS Power 4x200W + 1x500W @ 2Ω; 4x100W + 1x300W @ 4Ω
Power Bridged 400W @ 4Ω bridged
Minimum Impedance 2 Ω
Frequency Response 20Hz-22k Hz
Signal-to-Noise Ratio 102 dB
THD 0.01%
Input Voltage 14.4v
Low/High Pass Frequency 25Hz-20kHz (DSP)

Dimensions

Width 11.94"
Height 2.13"
Depth 8.06"

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
