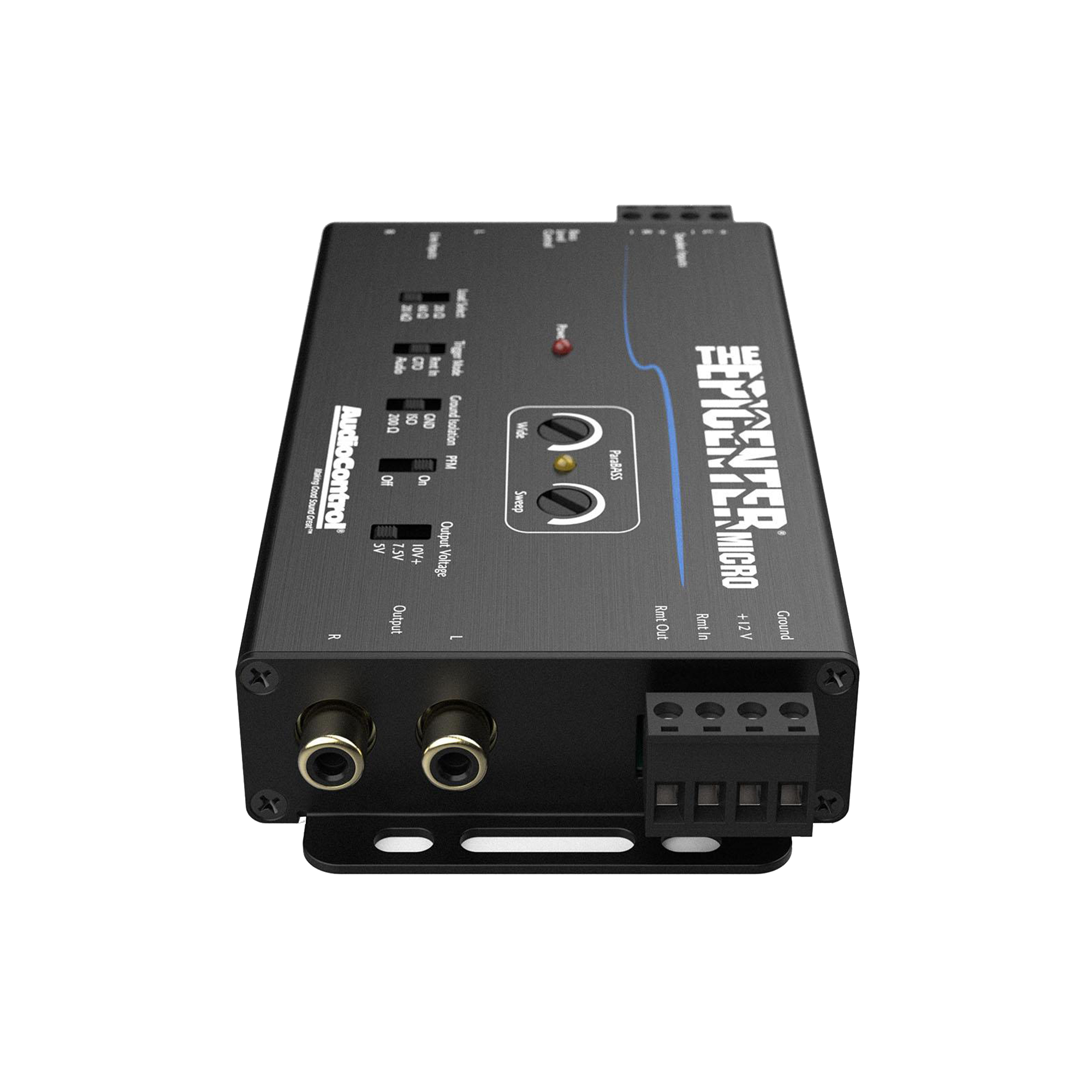

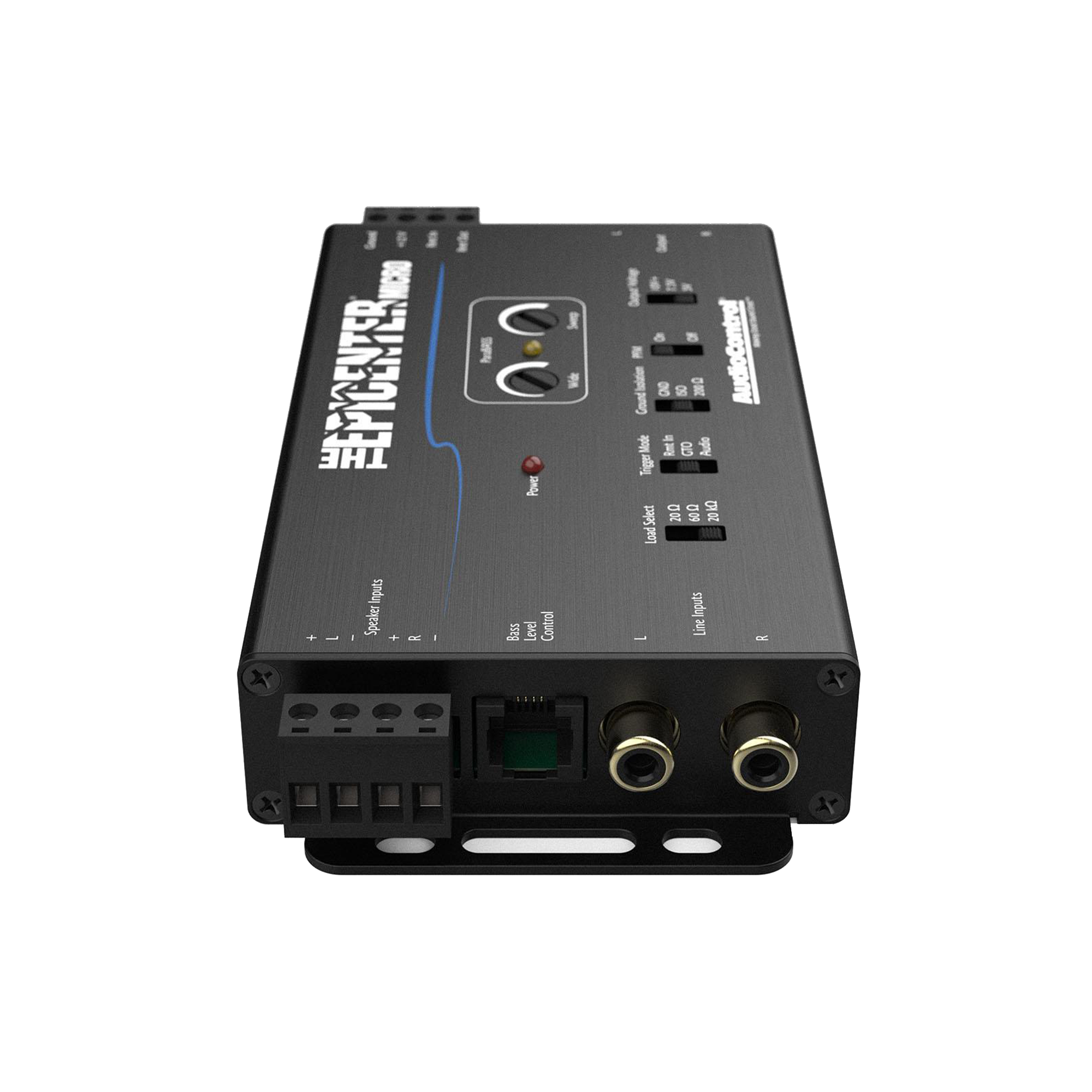

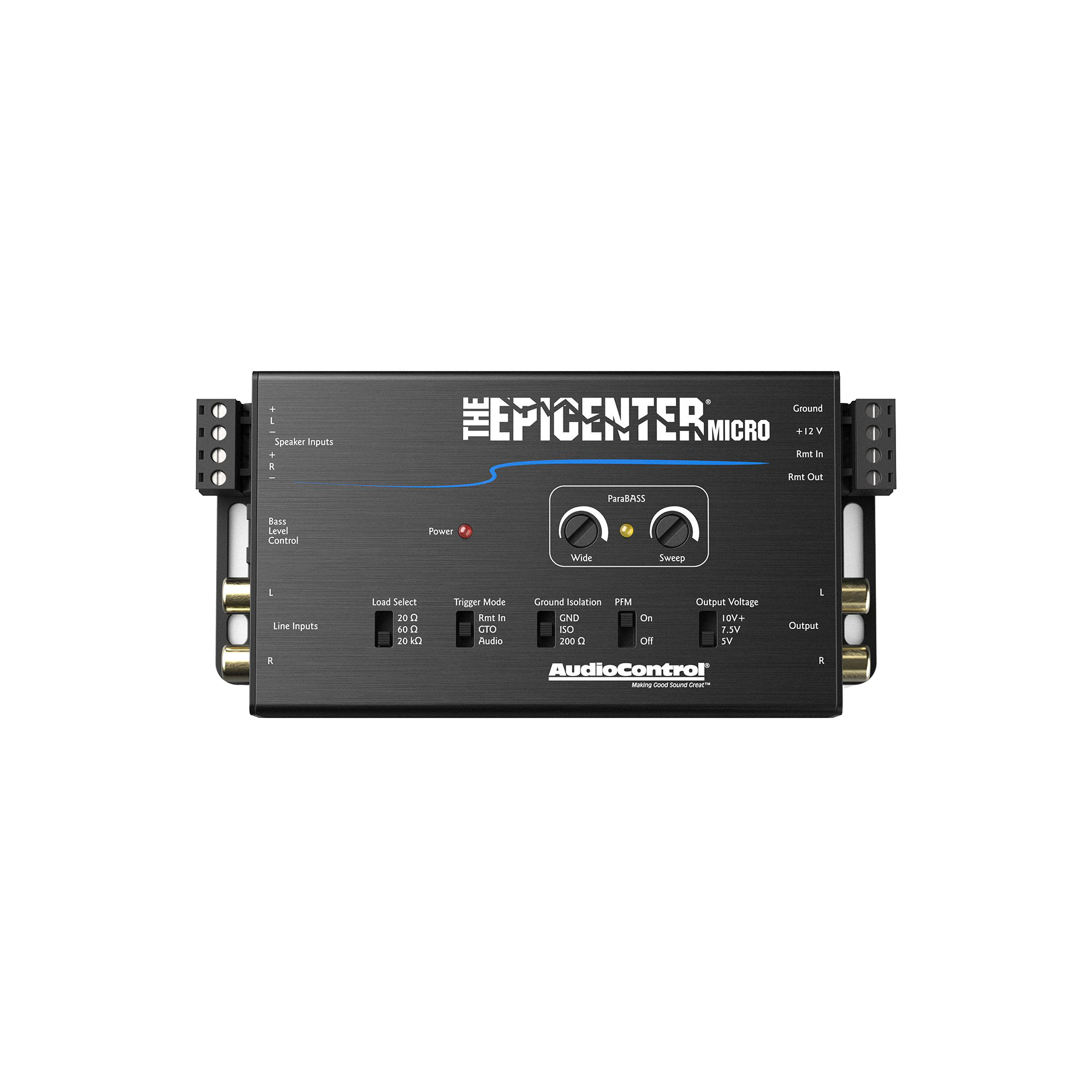

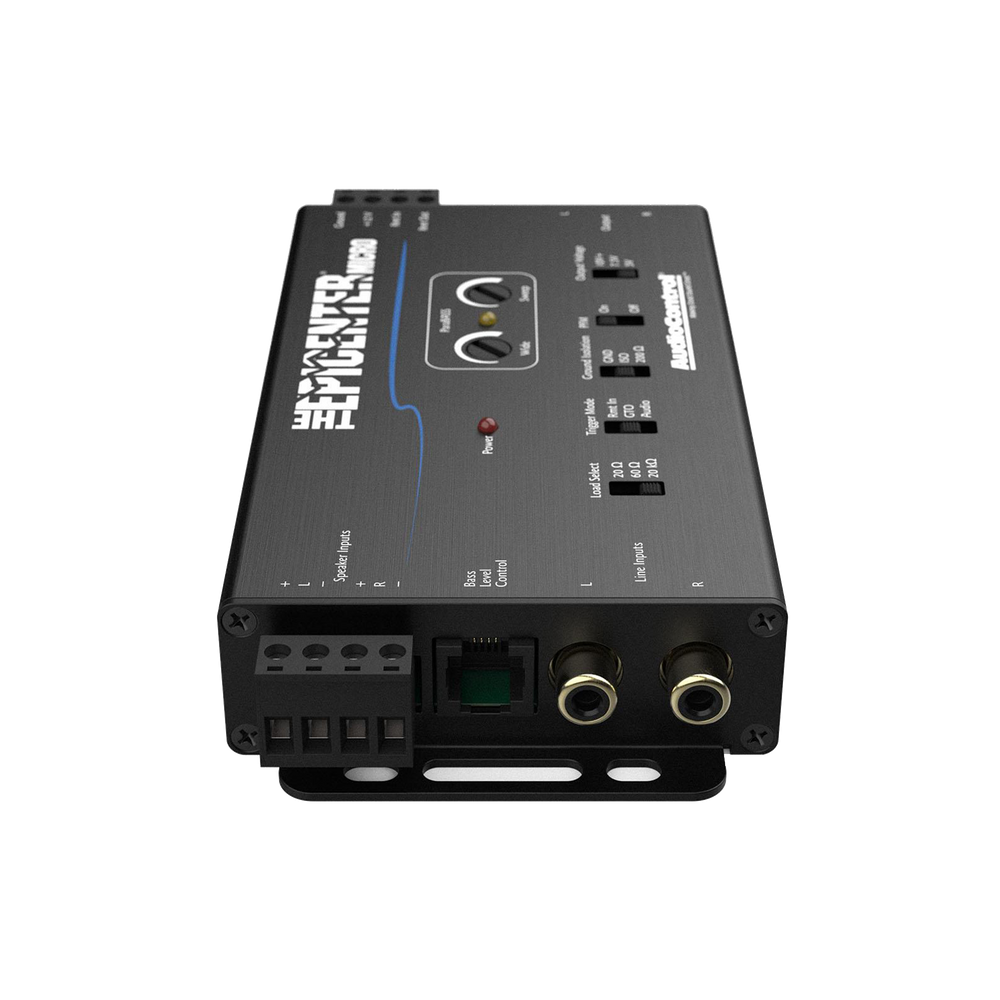

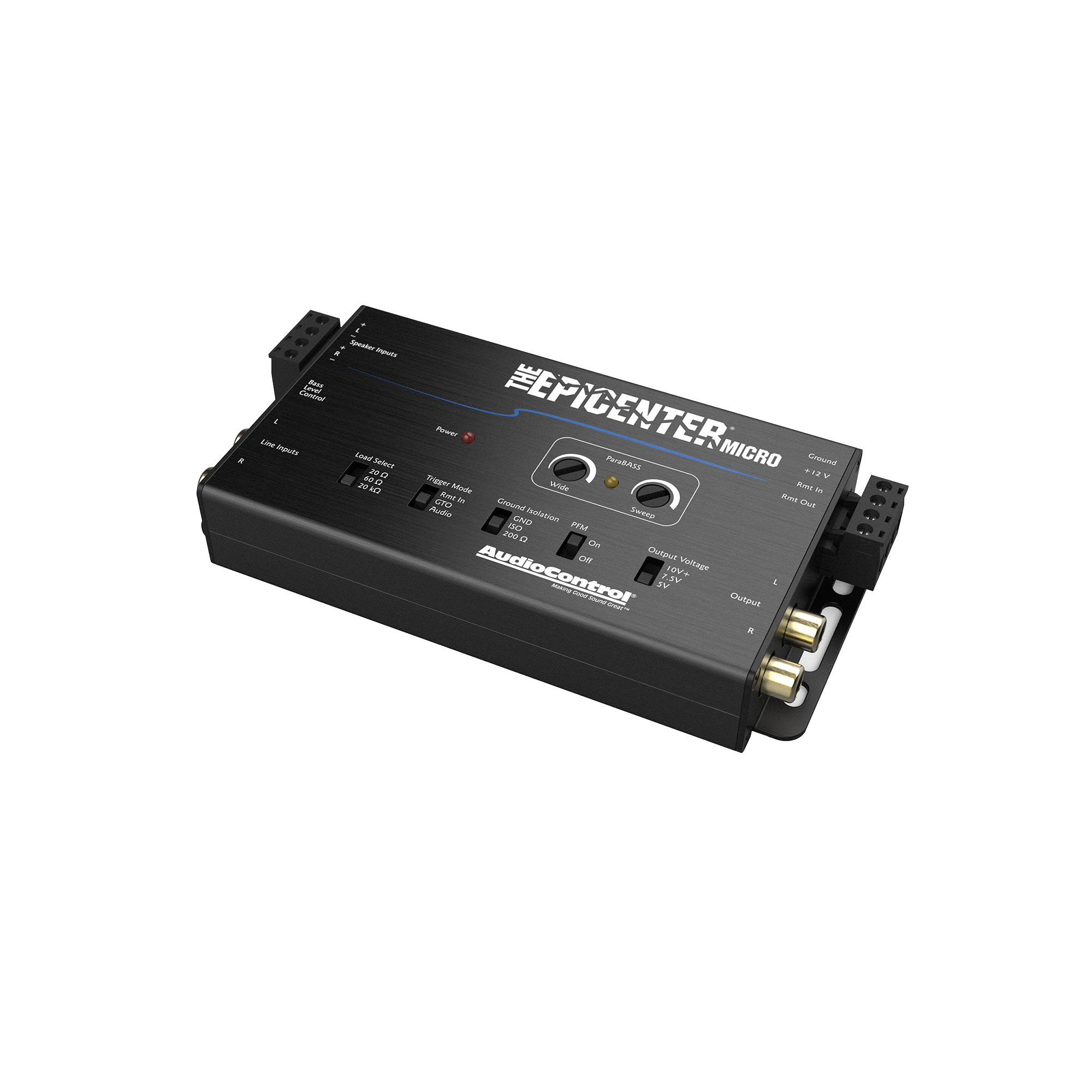

The EPICENTER Micro Bass Restoration Processor & Line Output Converter

$199.00

The EPICENTER Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The EPICENTER Micro brings out the best bass in any system.

The EPICENTER Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The EPICENTER Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.

FEATURES

  • Patented Digital Bass Restoration
  • ParaBASS® Bass Shaping
  • Speaker and Line Level Inputs
  • Load Matching Circuit
  • Multiple Trigger Modes
  • ACR-4 Dual Knob Dash Mount Control Included
  • Conformally Coated PCB for Increased Resistance to the Elements

SPECIFICATIONS

INPUTS

  • Speaker Level Input: 1 (2 channels)
  • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
  • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
  • Line Level Input: 1 (2 channels)
  • Line Level Input Impedance: 7kΩ

OUTPUTS

  • Preamp Outputs: 1 (2 channels)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.03%
  • Signal to Noise: >105 dB
  • Frequency Response: 10 Hz – 22 kHz ±1 dB

CONTROL

  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Current Draw: 300 mA
  • Recommended Fuse Rating: 1 A

WEIGHTS & DIMENSIONS

  • Dimensions: 5.9″L x 3″D x 1″H
  • Weight: 0.6 lbs. (0.27 kg)

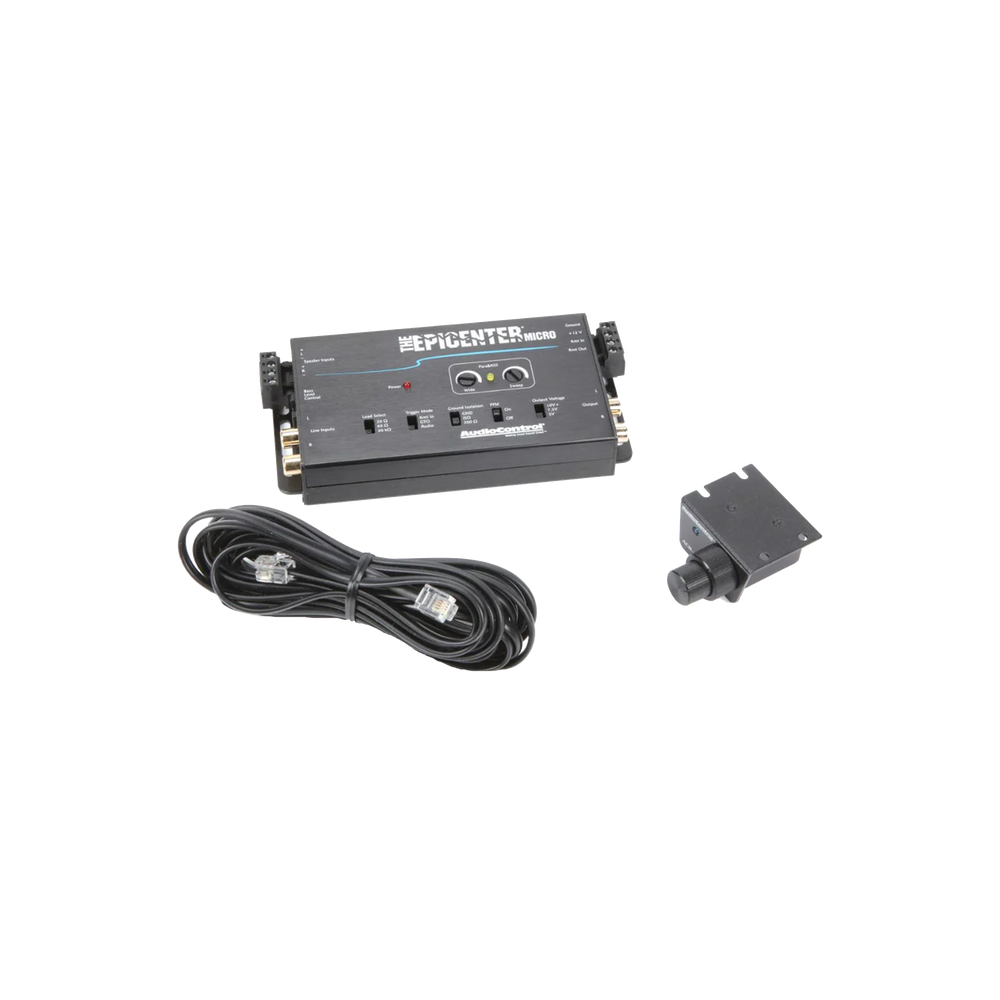

IN THE BOX: The Epicenter Micro, ACR-4, Remote Cable, Speaker and Power connectors, Manual, Warranty

The EPICENTER Micro Bass Restoration Processor & Line Output Converter
The EPICENTER Micro Bass Restoration Processor & Line Output Converter
The EPICENTER Micro Bass Restoration Processor & Line Output Converter
The EPICENTER Micro Bass Restoration Processor & Line Output Converter
The EPICENTER Micro Bass Restoration Processor & Line Output Converter

Shipping

In stock

Est. arrival October 05

Key features

Bass Enhancer

Restores low-end frequencies

Para-Bass

Parametric equalizer for the bass output

Line Out Converter

Speaker & line level inputs

Load Matching Circuit

Impedance matching

Trigger Modes

+12V remote in, GTO signal sense, audio sense

ACR-4 Dual Knob Controller

Included

Conformally Coated PCB

Increased durability

Small Form Factor

Discreet compact size

EPICENTER Link

Seamlessly connect to EPIC Amps

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Bass not hitting right? The EPICENTER is the OG Bass Enhancer.

Features

Bass in Your Face

The EPICENTER recreates missing bass tones and transmits this low-frequency information back into the signal path, letting your bass hit where you want it.

Car subwoofer with blue LED lighting and a visible brand EPICX logo.

Line Output Converter

The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities.

EPICENTER Link

Seamlessly connect any EPICENTER with an EPIC Monoblock/EPICFIVE/EPICBIGFOUR amplifier for an unbeatable bass experience.

ACR-4 Dual Knob Dash Mount Control

Independently adjust Epicenter bass restoration and subwoofer output levels.

What's in the box

Epicenter Micro

The Epicenter Micro, ACR-4, Remote Cable, Speaker and Power connectors, Manual, Warranty

Specs & installation

Product specs

Speaker Level Input 1 (2 channels)
Maximum Speaker Level Input 40 Vrms / 400 W (20kΩ setting)
Speaker Level Input Impedance (selectable) 20Ω, 60Ω, 20kΩ
Line Level Input 1 (2 channels)
Line Level Input Impedance 7kΩ
Preamp Outputs 1 (2 channels)
Maximum Output Level 9.5Vrms/13V peak
Output Impedance 150Ω
Total Harmonic Distortion 0.03%
Signal to Noise >105 dB
Frequency Response 10 Hz – 22 kHz ±1 dB
Current Draw 300 mA
Recommended Fuse Rating 1 A

Dimensions

Dimensions 5.9″L x 3″D x 1″H
Weight 0.6 lbs. (0.27 kg)

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
