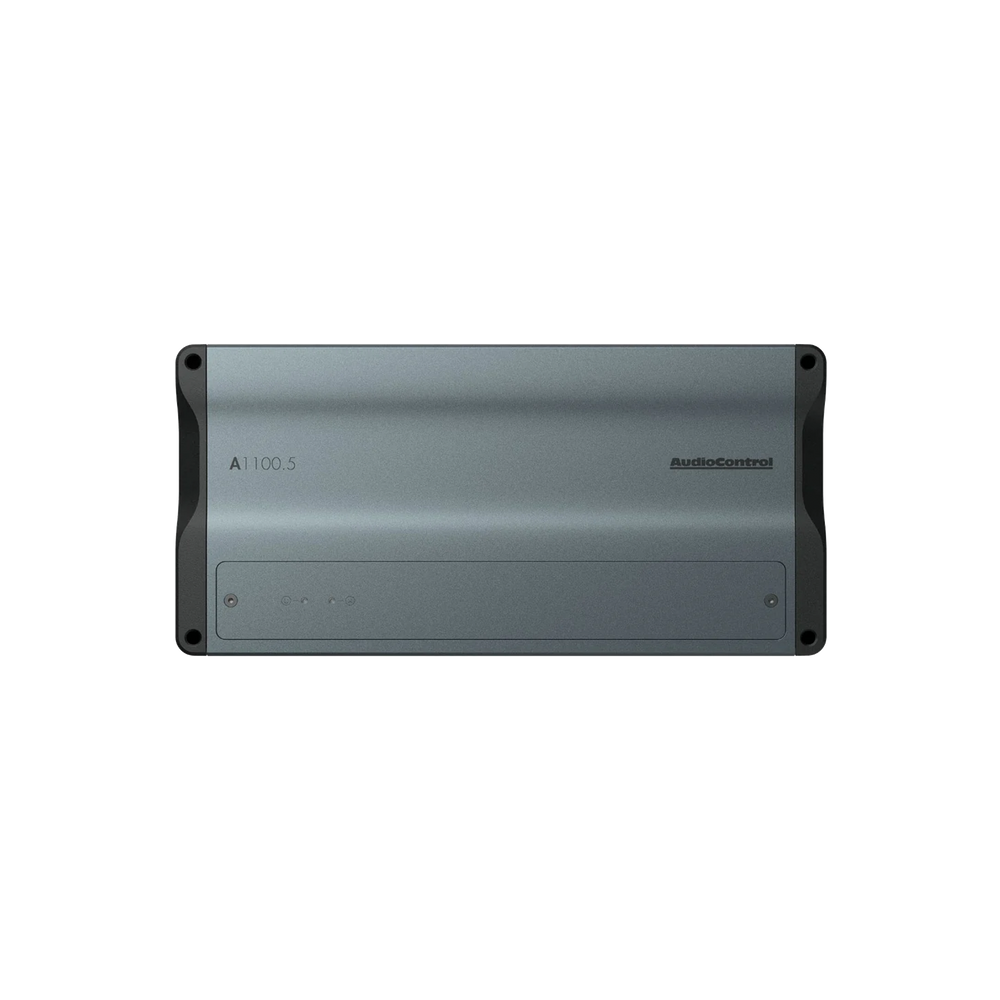

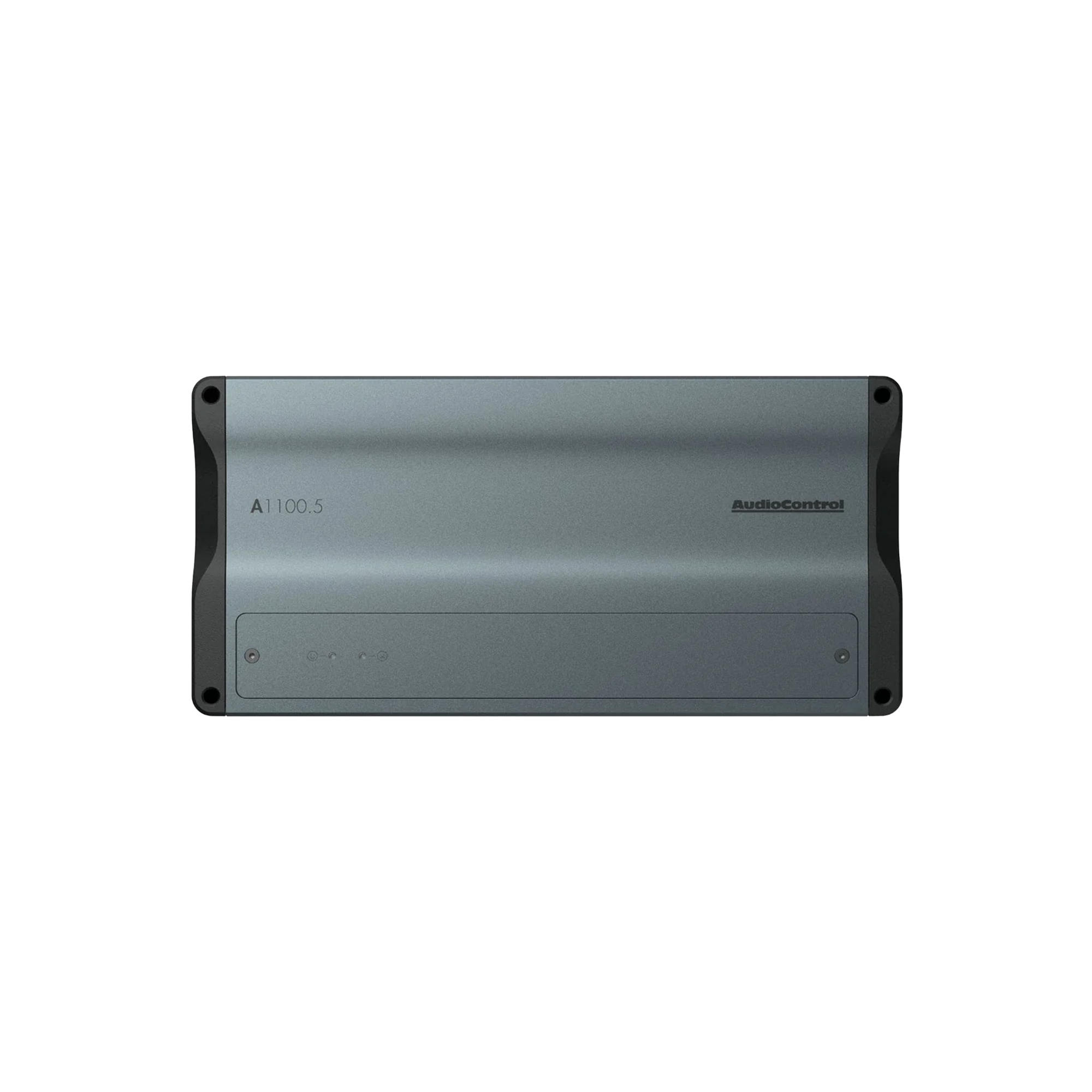

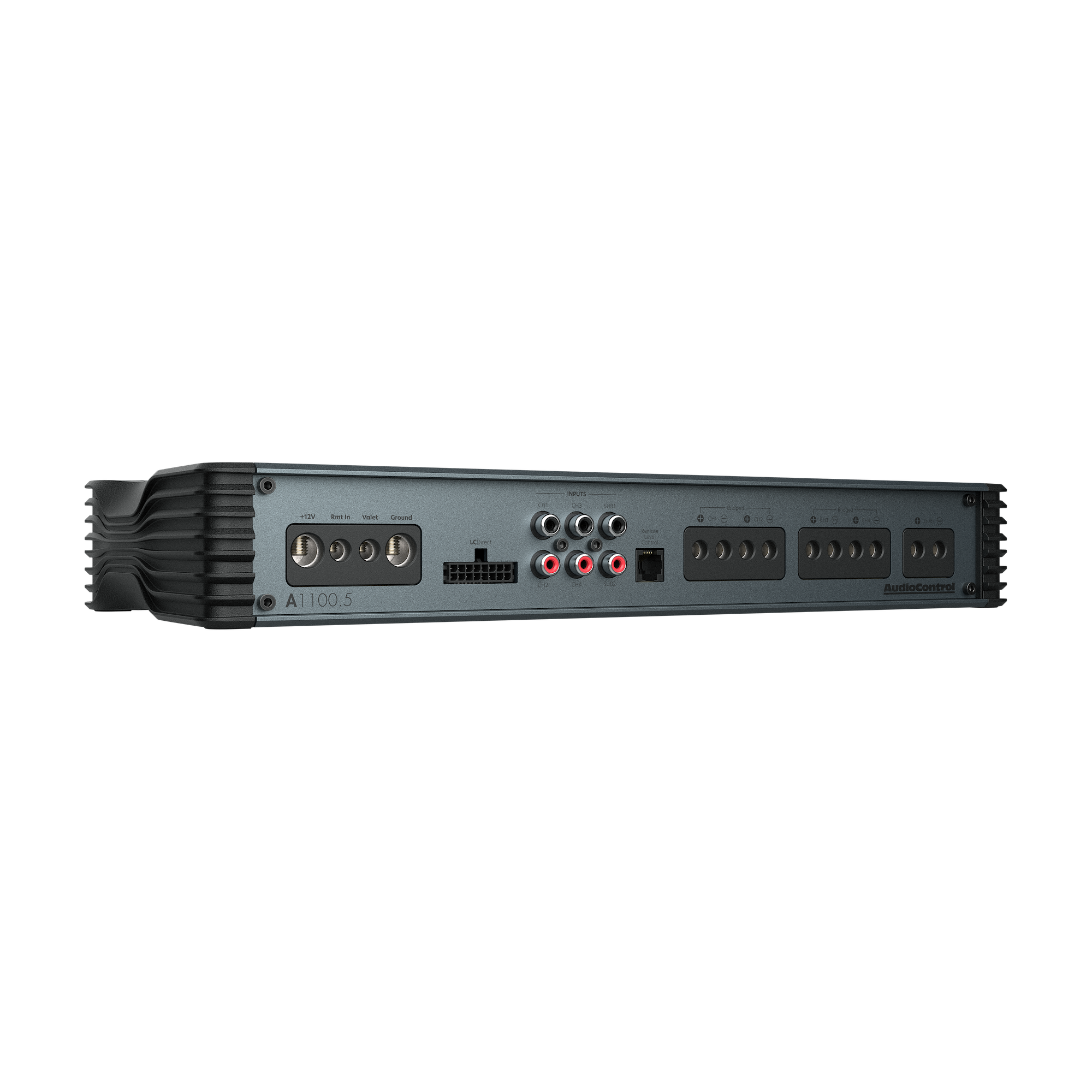

A1100.5 Altitude 5-Channel Amplifier, 1100W RMS

$579.00

Elevate your audio experience with AudioControl’s Altitude Amplifier Series, designed from the ground up to be sleek and modern with a minimalist aesthetic.

Elevate your audio experience with AudioControl’s Altitude Amplifier Series, designed from the ground up to be sleek and modern with a minimalist aesthetic. The anodized matte grey aluminum chassis provides superior thermal dissipation. Performing at the top of their class, these amplifiers offer robust power and exceptional quality.

Altitude amplifiers feature Valet Mode, which safeguards your system from unintended damage by limiting the maximum volume to 25% when activated. They are also compatible with start-stop systems and electric vehicles, ensuring outstanding performance in any vehicle.

Pair Altitude amplifiers with AudioControl’s PNW speakers and Space or Spike subwoofers. This combination creates a soundscape engineered to deliver the pure, uninterrupted power that AudioControl is known for.



  • The power supply circuitry adopts advanced pulse width modulator integrated circuits that are designed to offer improved performance and efficiency.
  • Designed with Advanced HEXFET® Power MOSFETs from International Rectifier that utilize advanced processing techniques to achieve extremely low on-resistance and reliable fast switching speed.
  • Premium Toroidal Transformer for optimal electrical efficiency and minimal signal distortion.
  • Premium Low ESR capacitors for minimal power loss and reduced internal heating.
  • Precision metal potentiometers for precise tuning and sturdy construction
  • Features 500V Class X2 capacitors with self-healing properties for high-frequency, high-current protection, ensuring low-loss AC peak surge and MOSFET protection.
  • High-efficiency Ferrite Core Inductor power output filters provide low current eddy losses over frequencies with high permeability.
  • High-performance class D intelligent driver IC with PWM modulator and protection with HEXFET Power MOSFET for abundant power and high efficiency.

FEATURES

  • High/Low Input Modes
  • GTO™ Signal Sense
  • Linkwitz-Riley Crossovers
  • Start-Stop Compliant
  • High Power Output in a Sleek Chassis
  • ParaBASS® Low Frequency Contouring
  • Valet Mode Option
  • Optional Remote Level Control (ACR-1)
  • EV Compliant up to 17V

SPECIFICATIONS

INPUTS

  • Preamp Inputs: 6
  • Line-Level Inputs: 6 V max
  • Speaker-Level Inputs: 20 V max

OUTPUTS

  • Rated Continuous (RMS) Power at 14.4V:
    • 90W x 4 @ 4Ω
    • 400W x1 @ 4Ω
    • 125W x 4 @ 2Ω
    • 600W x 1 @ 2Ω

Remote Level Control

  • ACR-1 (optional)

WEIGHTS & DIMENSIONS

  • DIMENSIONS: 14” W x 6.7” D x 2.1 H
  • WEIGHT: 7.95 lbs

PERFORMANCE

  • S/N Ratio (ref: rated power):
    • 95.1 dBA channels 1-4
    • 103.9 dBA channel 5
  • THD+N: <0.25% & <0.75%
  • Power / Ground Wire Gauge: 4 AWG
  • Recommended Fuse rating: 120A
  • Valet Mode: Yes
  • Subsonic Filter: Variable
  • Linkwitz-Riley X-Over:
    • Off
    • High Pass
    • Low Pass
    • Freq. Range: 50Hz -5K Hz
  • Bass Processing: ParaBASS®

IN THE BOX: A1100.5, Manual, Warranty

A1100.5 Altitude 5-Channel Amplifier, 1100W RMS
A1100.5 Altitude 5-Channel Amplifier, 1100W RMS
A1100.5 Altitude 5-Channel Amplifier, 1100W RMS

Shipping

In stock

Est. arrival October 05

Key features

High/Low Input Modes

Offers Greater Flexibility for Various Setups

GTO™ Signal Sense

Activates Automatically with an Audio Signal

Linkwitz-Riley Crossovers

High-pass & Low-pass Filters

High Power Output

Minimal Signal Distortion with Smooth Output

Sleek Chassis

Encased in a Premium Matte Aluminum Chassis

ParaBASS

Low Frequency Contouring

Valet Mode Option

Prevent Damage from Guest Drivers

ACR-1 Remote Level Control

Optional

EV Compliant (up to 17V)

Start-Stop Compliant with Electric Vehicles

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Take Your Audio to the Next Level .

Features

High Output, Minimal Distortion

The Altitude Series is designed for a premium experience where sound quality is the priority.

Car audio system with Altitude amplifiers installed

ParaBass

ParaBass is a parametric equalizer used to fine-tune bass response by allowing you to select a center frequency and adjust its width to sculpt the bass for your music and vehicle acoustics.

Engineered for Modern Vehicles

Designed to deliver consistent, high-quality sound in electric vehicles, setting it apart from other amplifiers.

Valet Mode

Restricts sound output to 25% of maximum level to prevent damage from guest drivers.

What's in the box

A1100.5

A1100.5 Amplifier, Manual, Warranty

Specs & installation

Product specs

Preamp Inputs 6
Line-Level Inputs 6 V max
Speaker-Level Inputs 20 V max
(RMS) Power at 14.4V 90W x 4 @ 4Ω + 400W x1 @ 4Ω; 125W x 4 @ 2Ω + 600W x 1 @ 2Ω

Dimensions

DIMENSIONS 14” W x 6.7” D x 2.1 H
WEIGHT 7.95 lbs

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
