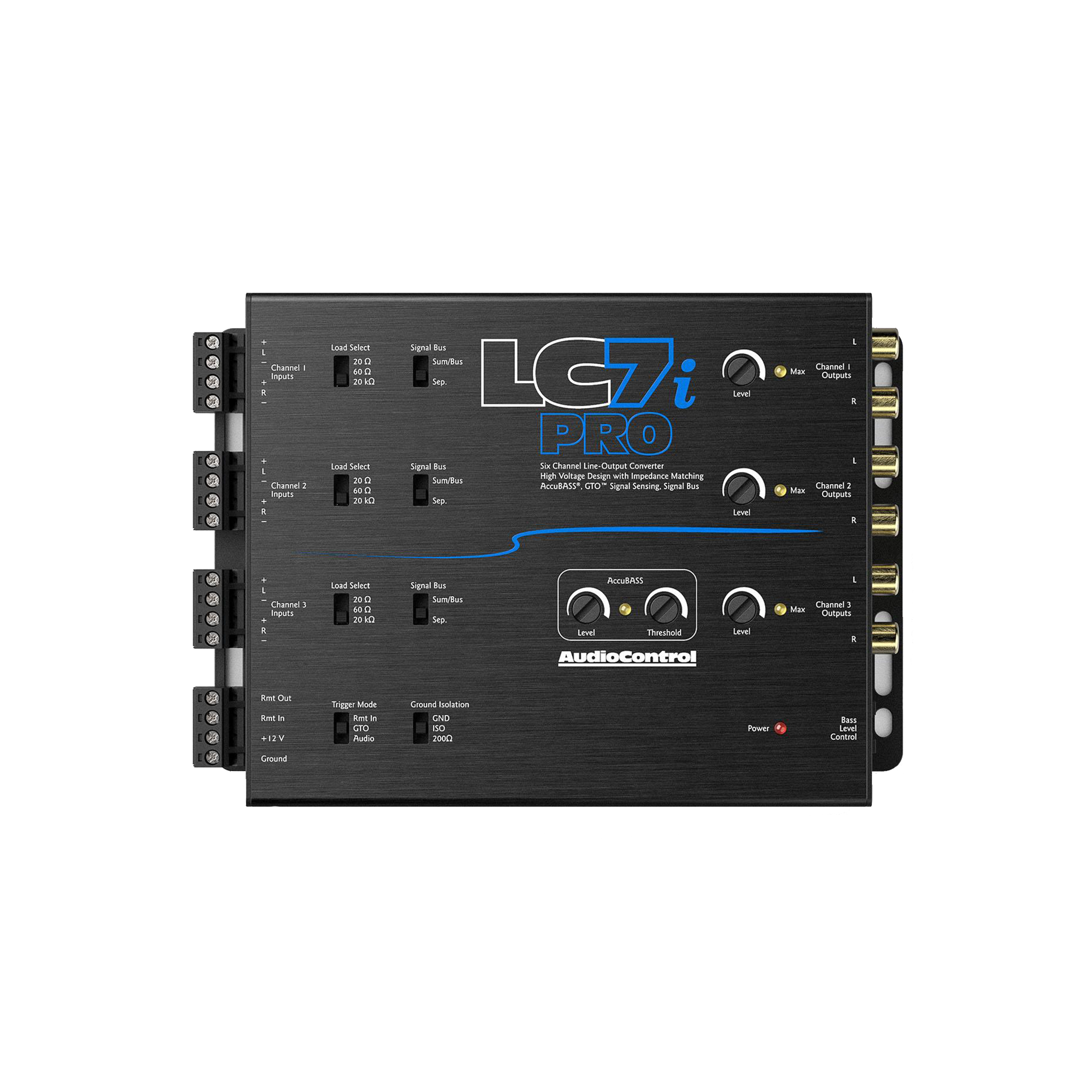

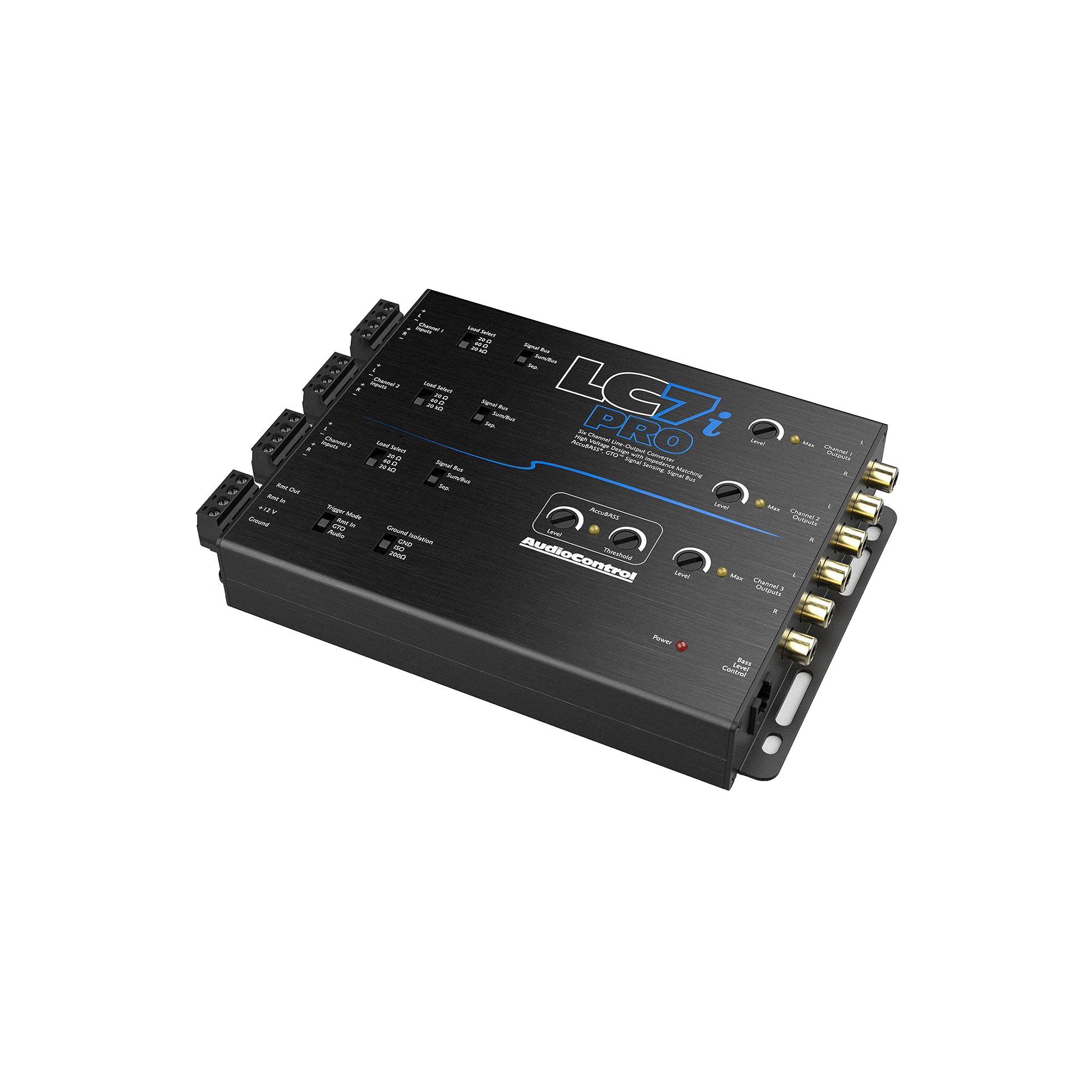

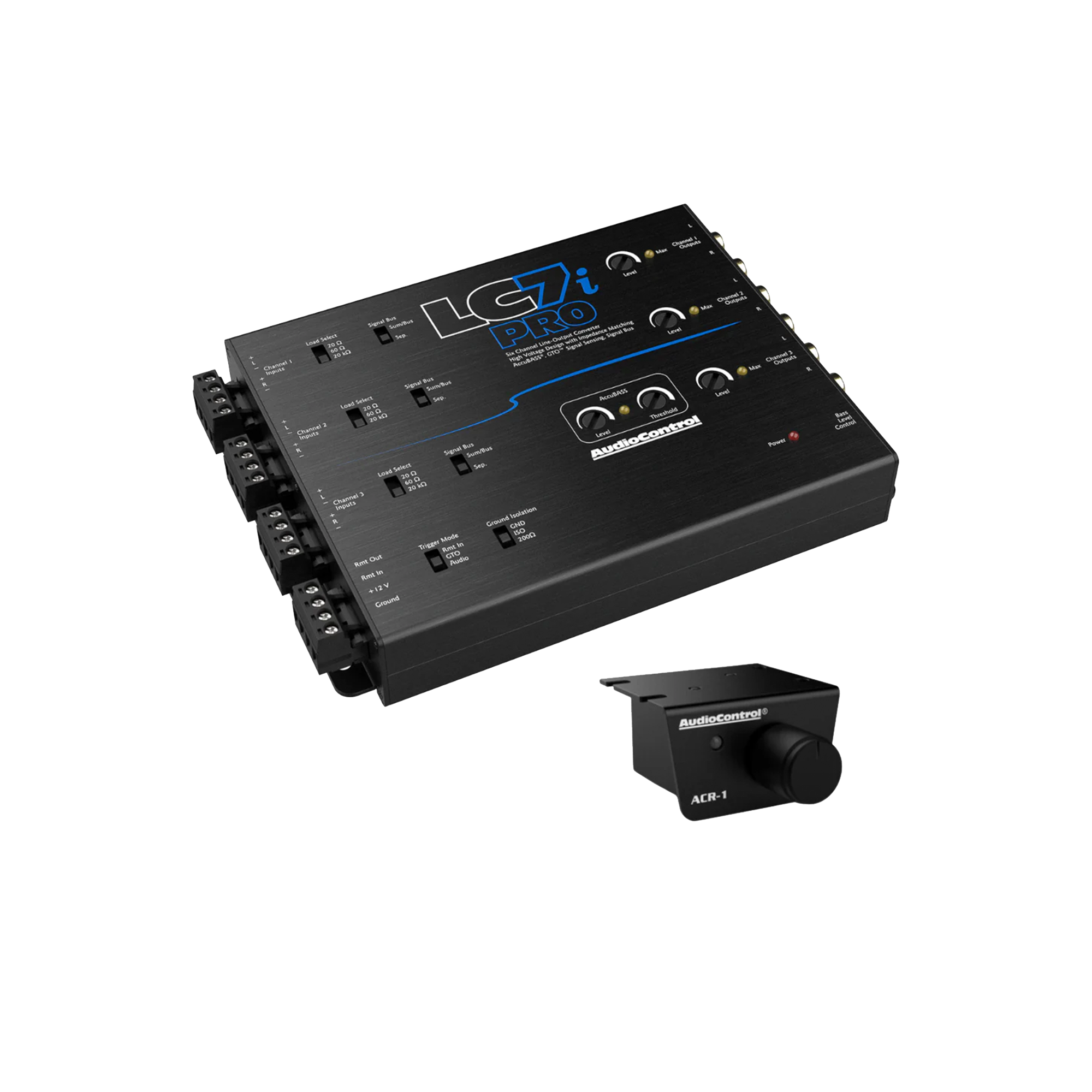

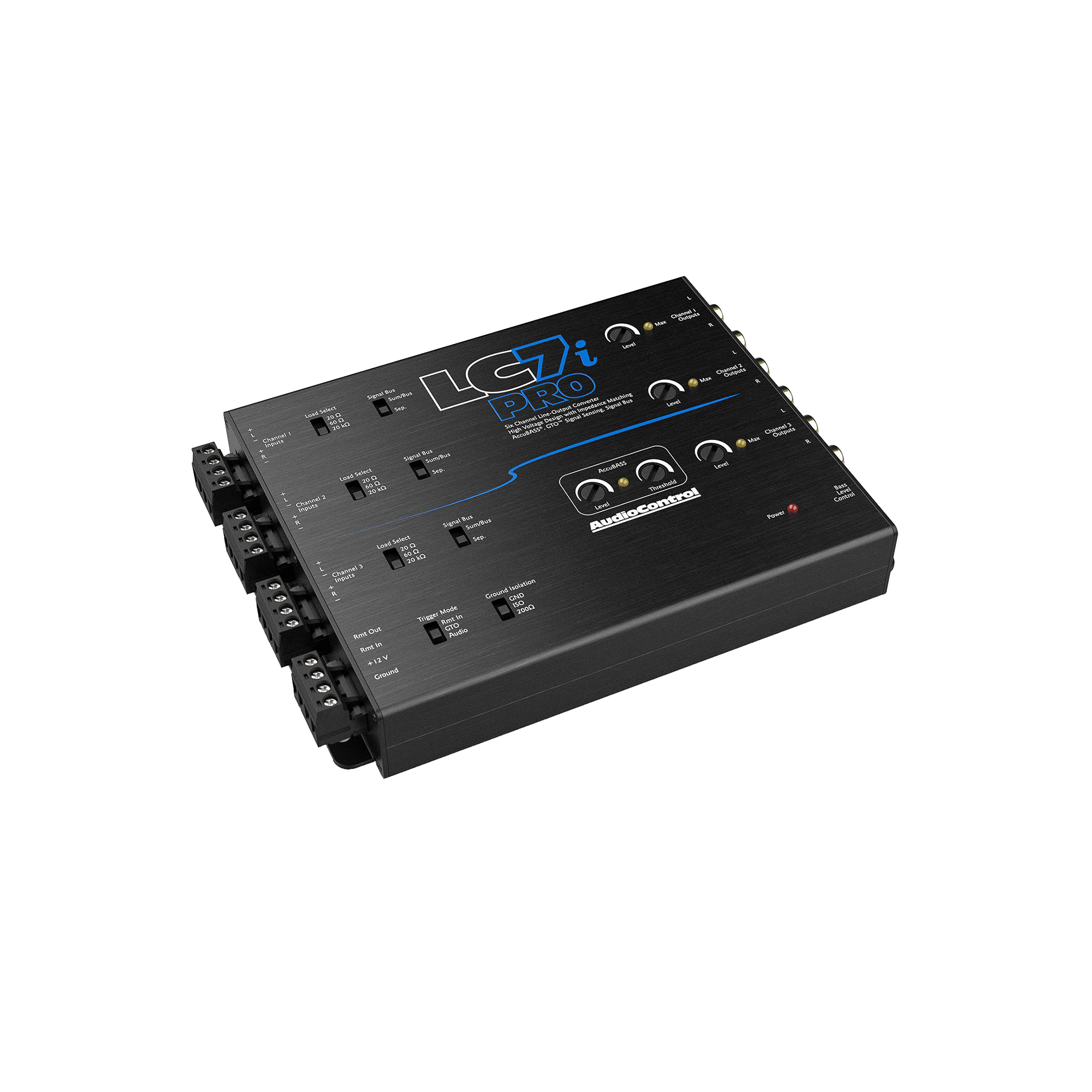

LC7iPRO 6-Channel Line Output Converter w/AccuBASS

$329.00

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound.

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound. Installer-friendly trigger modes offer flexibility and an expedited installation time since the units can be turned on via GTO™ Signal Sense (DC offset), audio signal sensing, or standard remote 12 volt input. All PRO series products feature AudioContol’s patented AccuBASS® for restoring low frequency output diminished by factory processing, and an ACR-1 level control is included to dial in the perfect level for your subwoofer right from the comfort of the driver’s seat. The Pro series ensures that you will start with the clean, powerful signal you need to take your system from sounding good to sounding great.

FEATURES

  • Six channels of active speaker-level inputs (up to 40V input handling)
  • Fixed and variable outputs with discrete-level controls
  • AccuBASS® processing for correction of bass roll-off
  • Load Selection Switch
  • GTOTM Signal Sensing
  • Ground Isolation Switch
  • ACR-1 dash remote included
  • Compact design

SPECIFICATIONS

INPUTS

  • Speaker Level Input: 3 (6 channels)
  • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
  • Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

OUTPUTS

  • Preamp Outputs: 6 (4 channels main, 2 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Gain: +/- 15 dB
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >124 dB
  • Frequency Response: 20 Hz – 20 kHz

CONTROL

  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Current Draw: 330 mA
  • Recommended Fuse Rating: 2 A

WEIGHTS & DIMENSIONS

  • Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors)
  • Weight: 1.15 lbs.

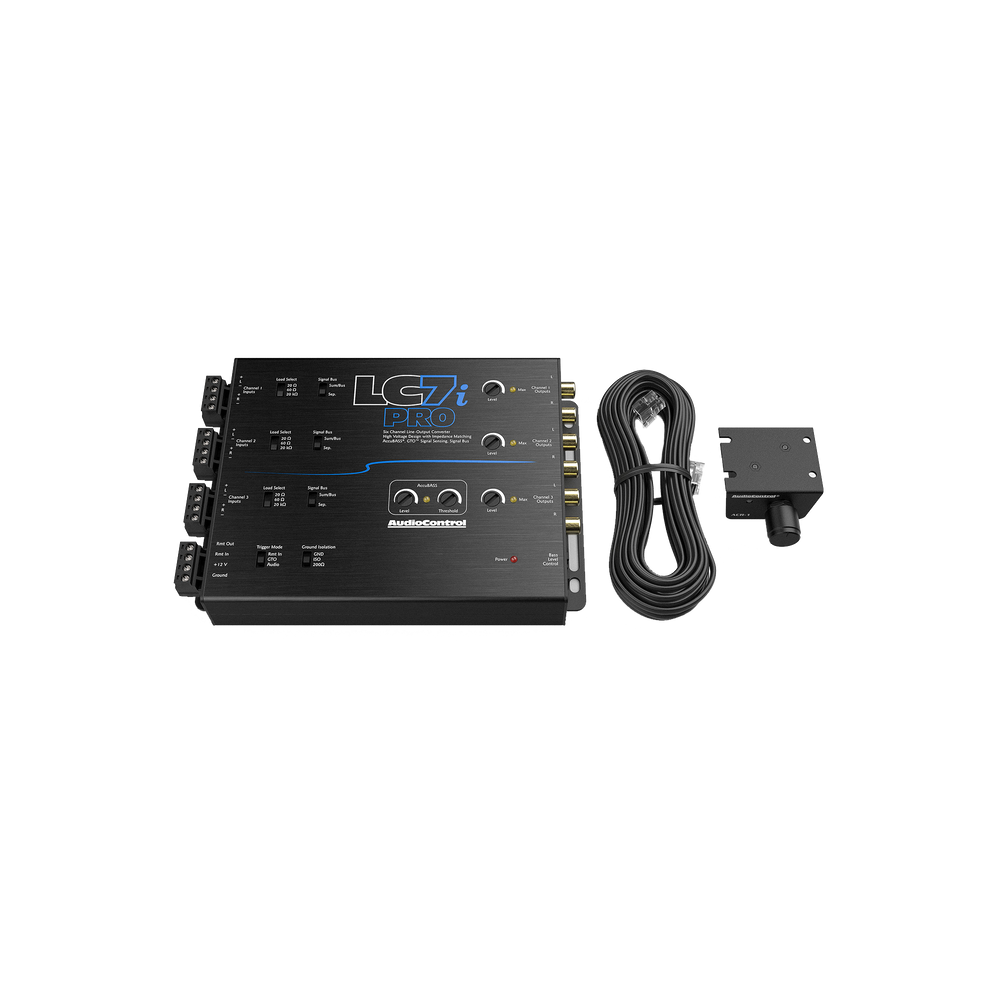

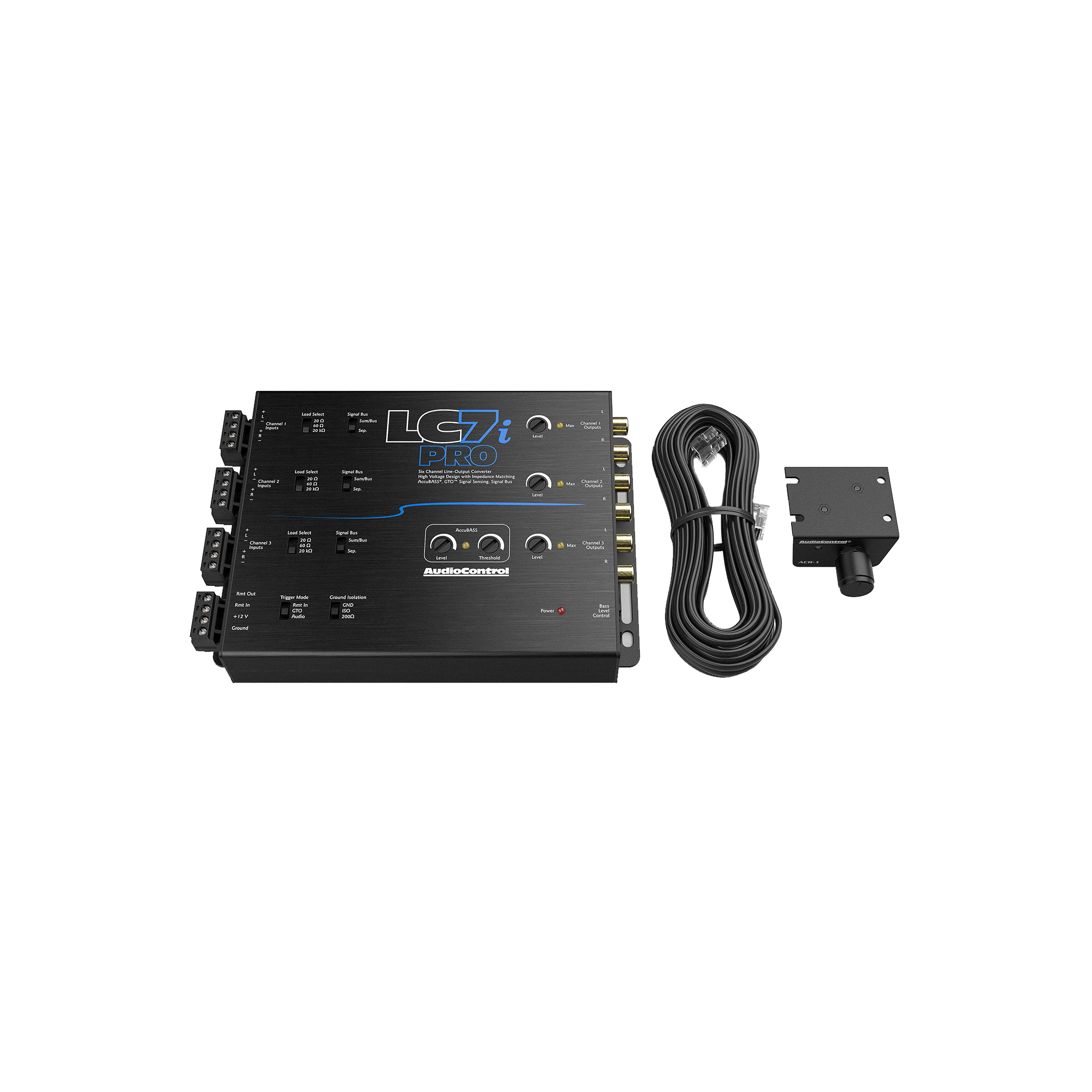

IN THE BOXLC7i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty

LC7iPRO 6-Channel Line Output Converter w/AccuBASS
LC7iPRO 6-Channel Line Output Converter w/AccuBASS
LC7iPRO 6-Channel Line Output Converter w/AccuBASS
LC7iPRO 6-Channel Line Output Converter w/AccuBASS
LC7iPRO 6-Channel Line Output Converter w/AccuBASS

Shipping

In stock

Est. arrival October 05

Key features

Speaker Level Inputs

6 Channels

AccuBASS

Bass roll-off correction

Fixed & Var Outputs

Preamp & bass

Trigger Modes

+12V rmt in, GTO, audio sense

Load Selection

Impedance matching

Ground Isolation

Eliminate noise

ACR-1 Remote Control

Included

Compact Design

Fits discreetly

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Easily Upgrade your factory system with the LC7i PRO.

Features

Path to an Elevated Audio Experience

Seamlessly upgrade your factory system with aftermarket audio components with AudioControl's line output converters.

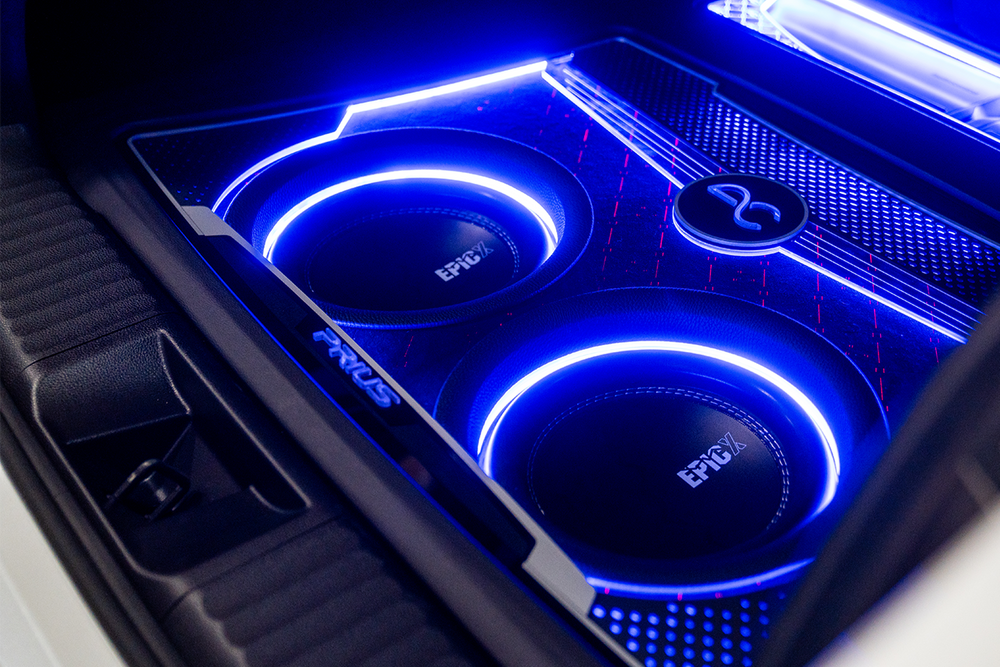

Car subwoofers with blue LED lighting and 'EPICX' branding.

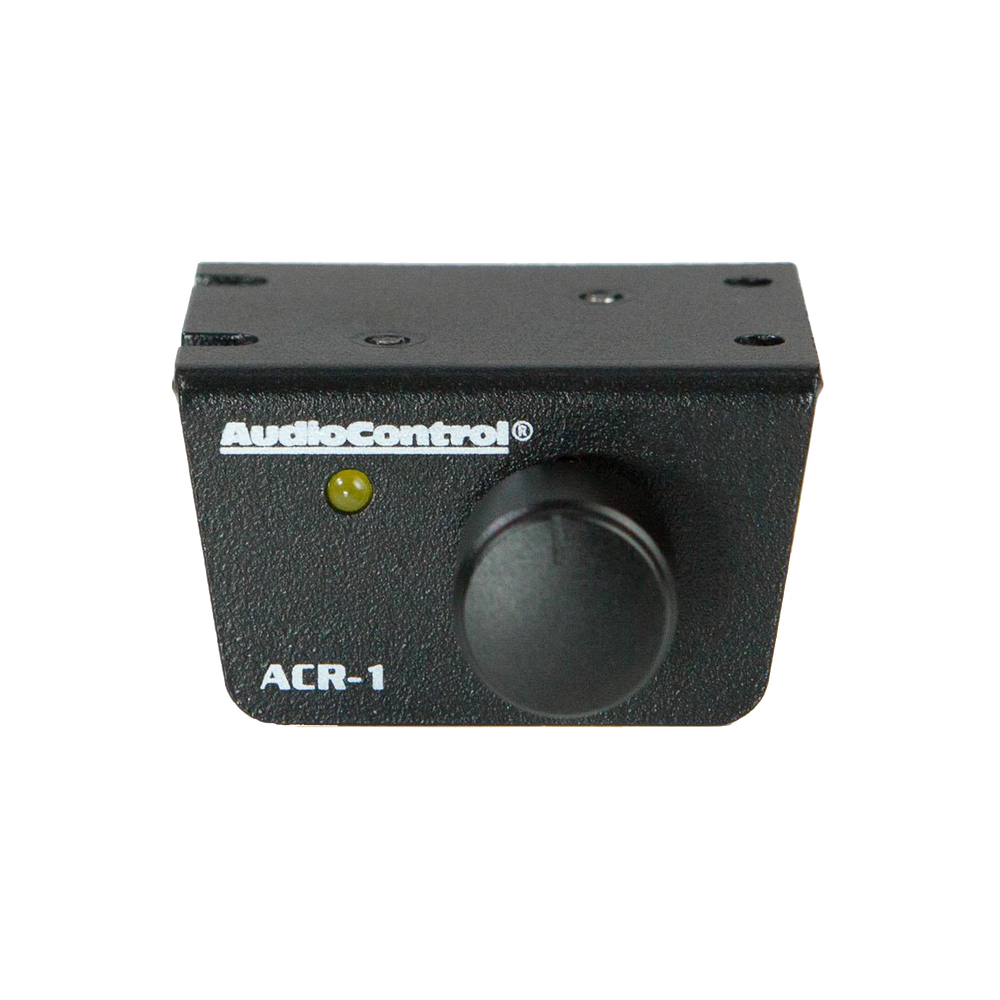

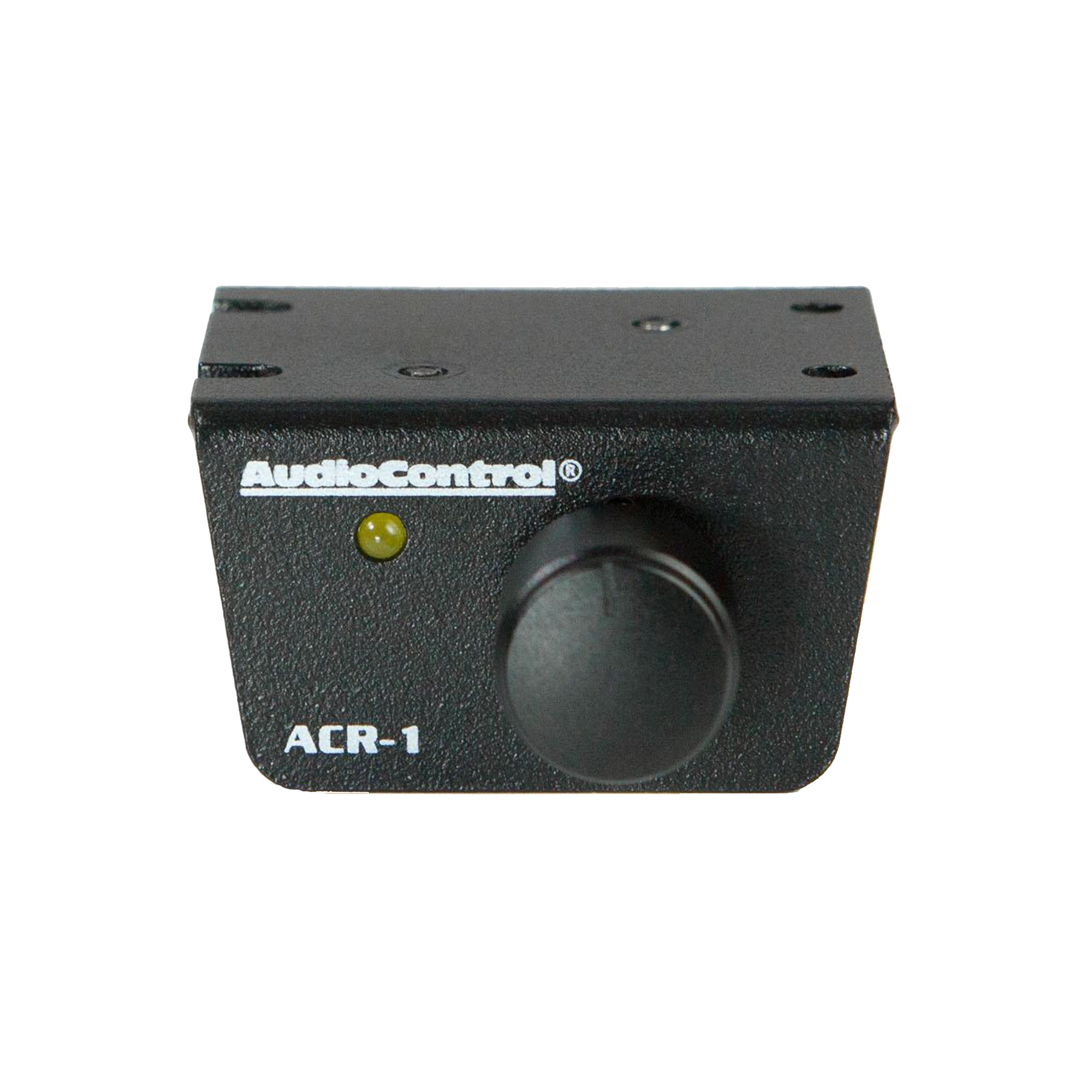

ACR-1 Dash Remote Control

Adjust the bass output from the comfort of your driver's seat.

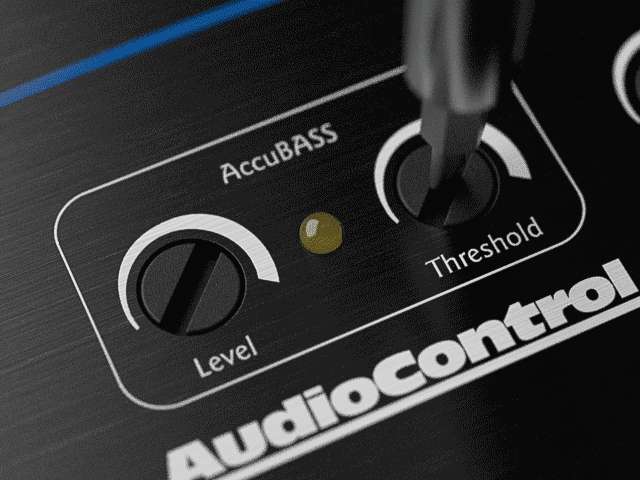

AccuBASS

Correct and maintain bass as volume increases for improved performance.

What's in the box

LC7i PRO

LC7i PRO, ACR-1, 20′ Cable, Speaker and Power connectors, Manual, Warranty

Specs & installation

Product specs

Speaker Level Input 3 (6 channels)
Maximum Speaker Level Input 40 Vrms / 400 W (20kΩ setting)
Input Impedance (selectable) 20Ω, 60Ω, 20kΩ
Preamp Outputs 6 (4 channels main, 2 channels bass)
Output Gain 9.5Vrms/13V peak
Output Impedance +/- 15 dB
Total Harmonic Distortion 150Ω
Signal to Noise 0.01%
Frequency Response >124 dB
Current Draw 20 Hz – 20 kHz
Recommended Fuse Rating 330 mA

Dimensions

Dimensions 7″L x 5.1″D x 1.14″H (including speaker connectors)
Weight 1.15 lbs.

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you

Reviews

No Reviews Found

No reviews found for this product.

See how it stacks up

LC7iPRO 6-Channel Line Output Converter w/AccuBASS

LC7iPRO 6-Channel Line Output Converter w/AccuBASS

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound.

$329.00

0

No reviews yet

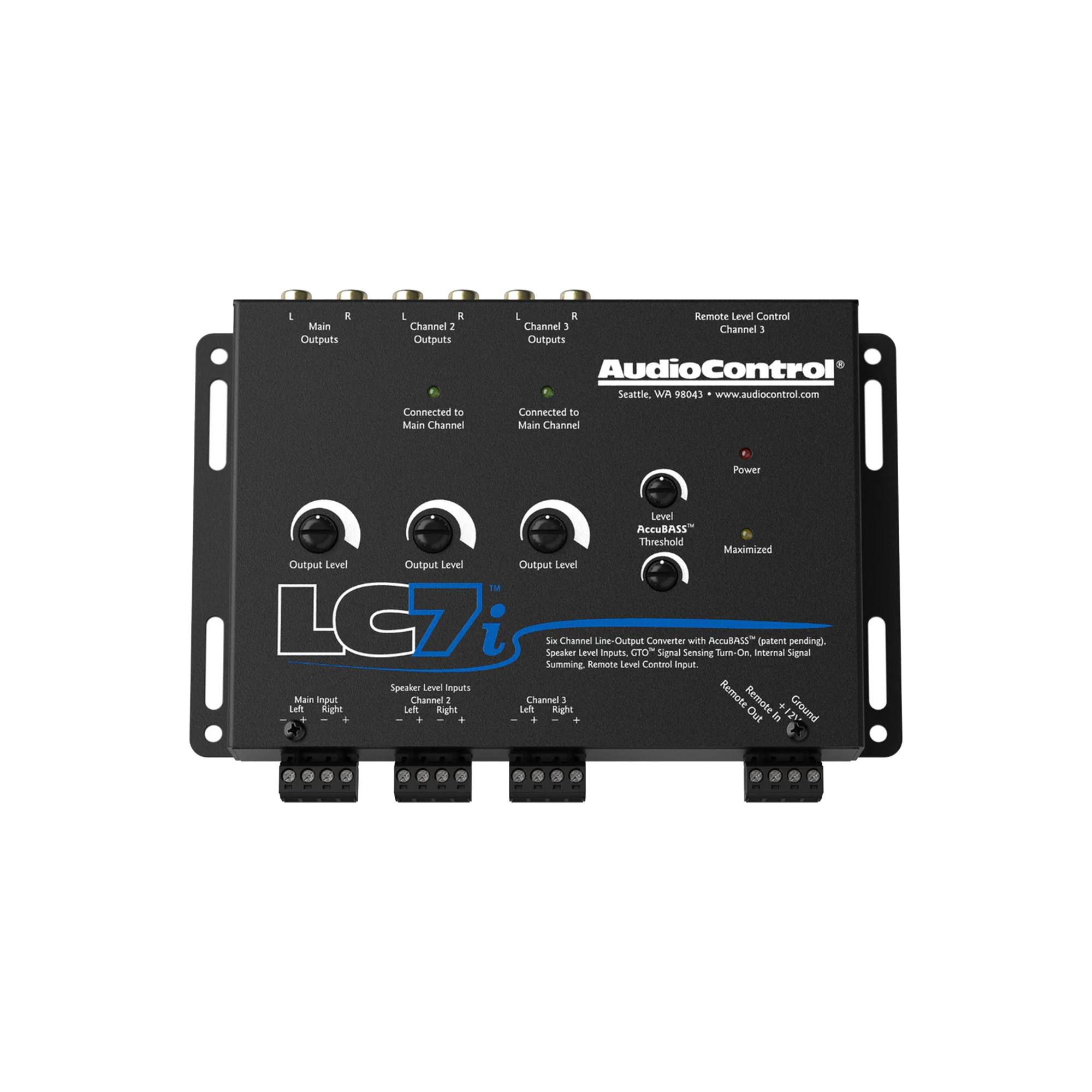

LC7i 6-Channel Line Output Converter w/AccuBASS

LC7i 6-Channel Line Output Converter w/AccuBASS

The AudioControl LC7i, six channel active line converter, allows all music lovers, who want a great in-car audio experience, to keep their factory installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today’s factory systems, weak BASS!

$139.00

0

No reviews yet

View product

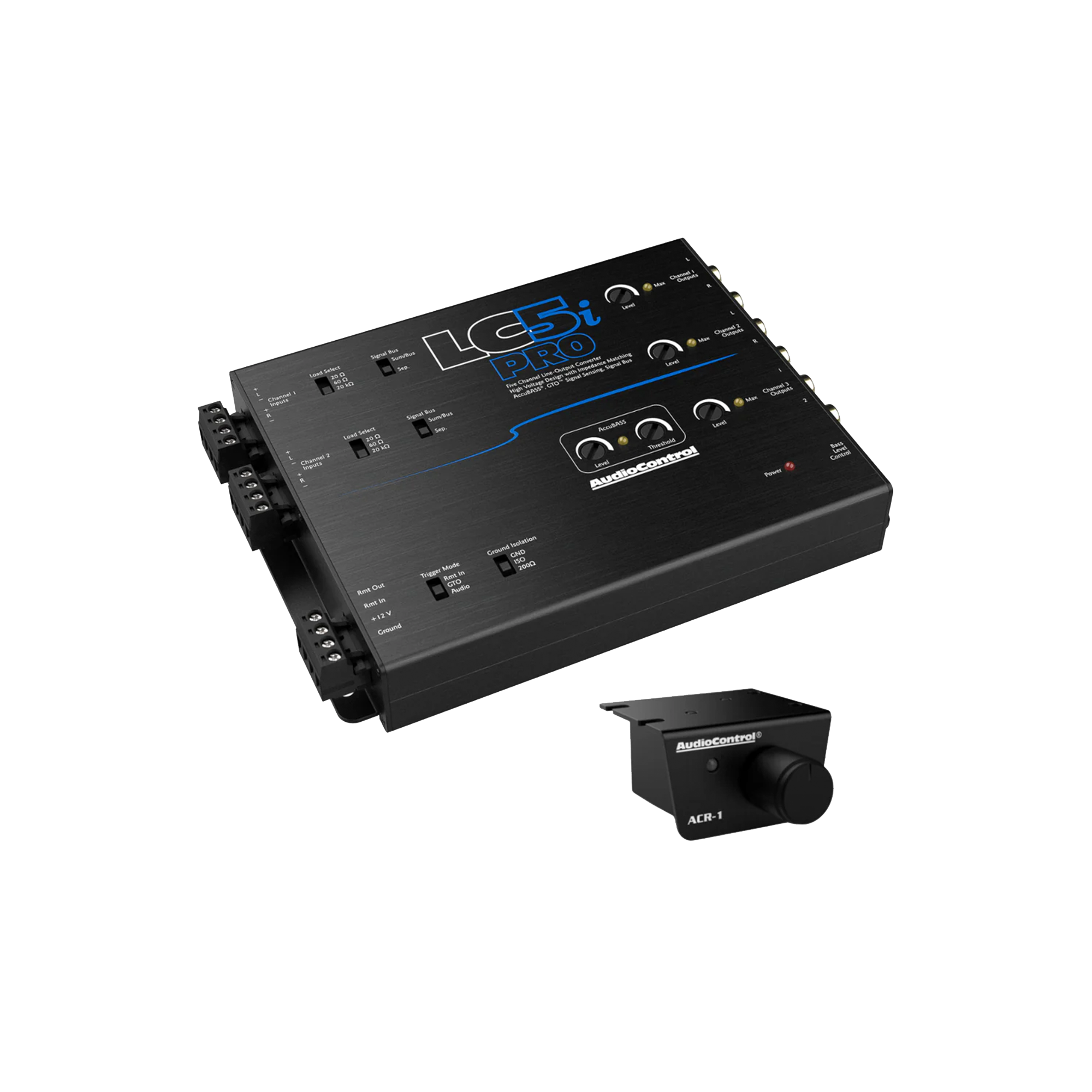

LC5iPRO 5-Channel Line Output Converter w/AccuBASS

LC5iPRO 5-Channel Line Output Converter w/AccuBASS

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound. The Pro series ensures that you will start with the clean, powerful signal you need to take your system from sounding good to sounding great.

$259.00

0

No reviews yet

View product

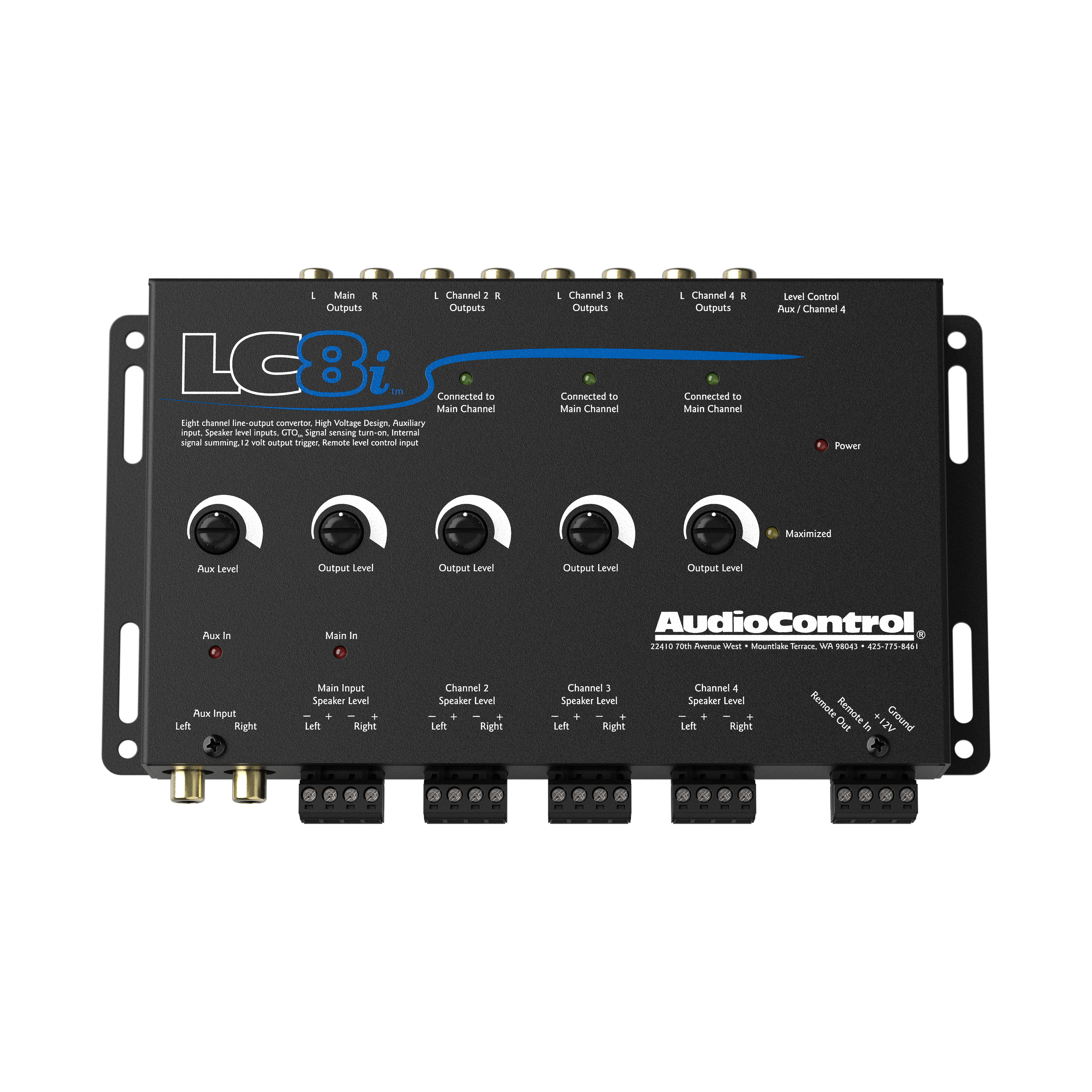

LC8i Black 8-Channel Line Output Converter with Auxiliary Input
