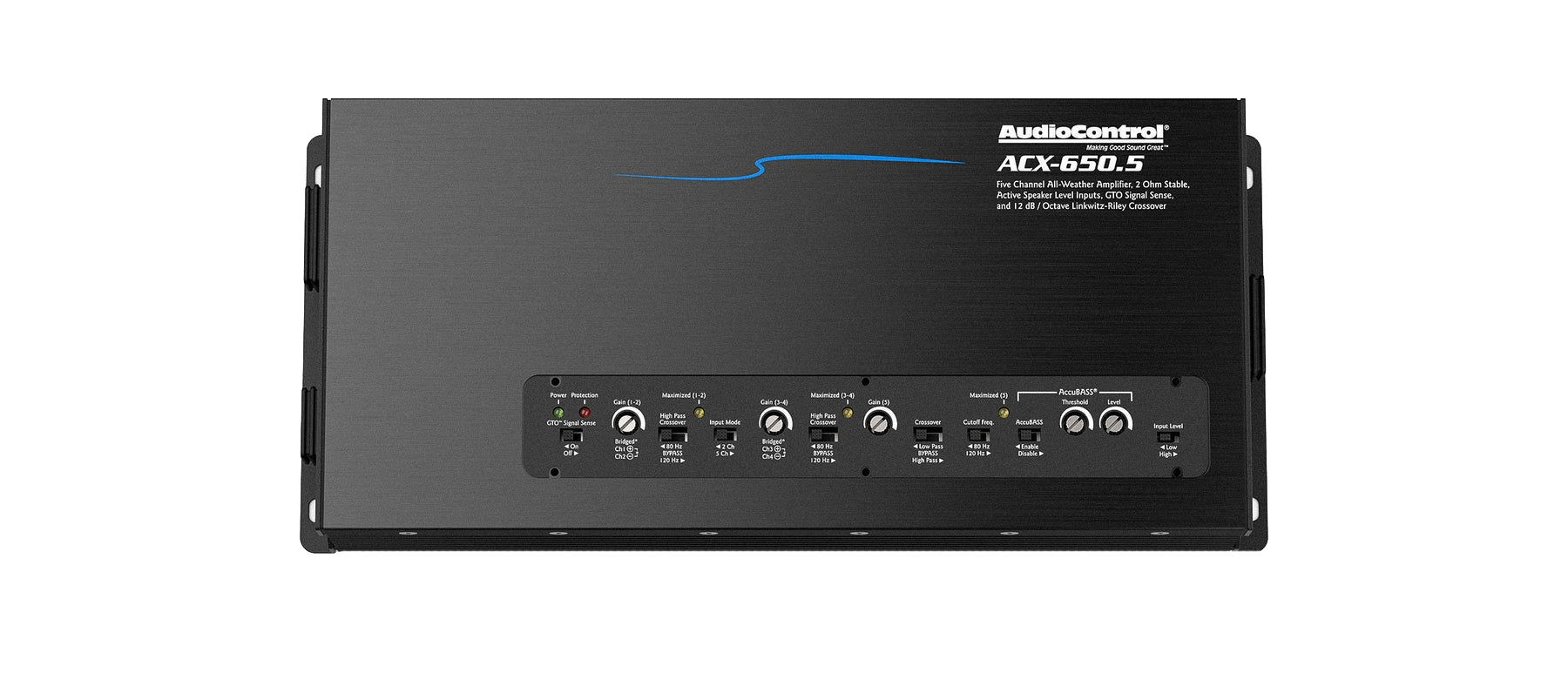

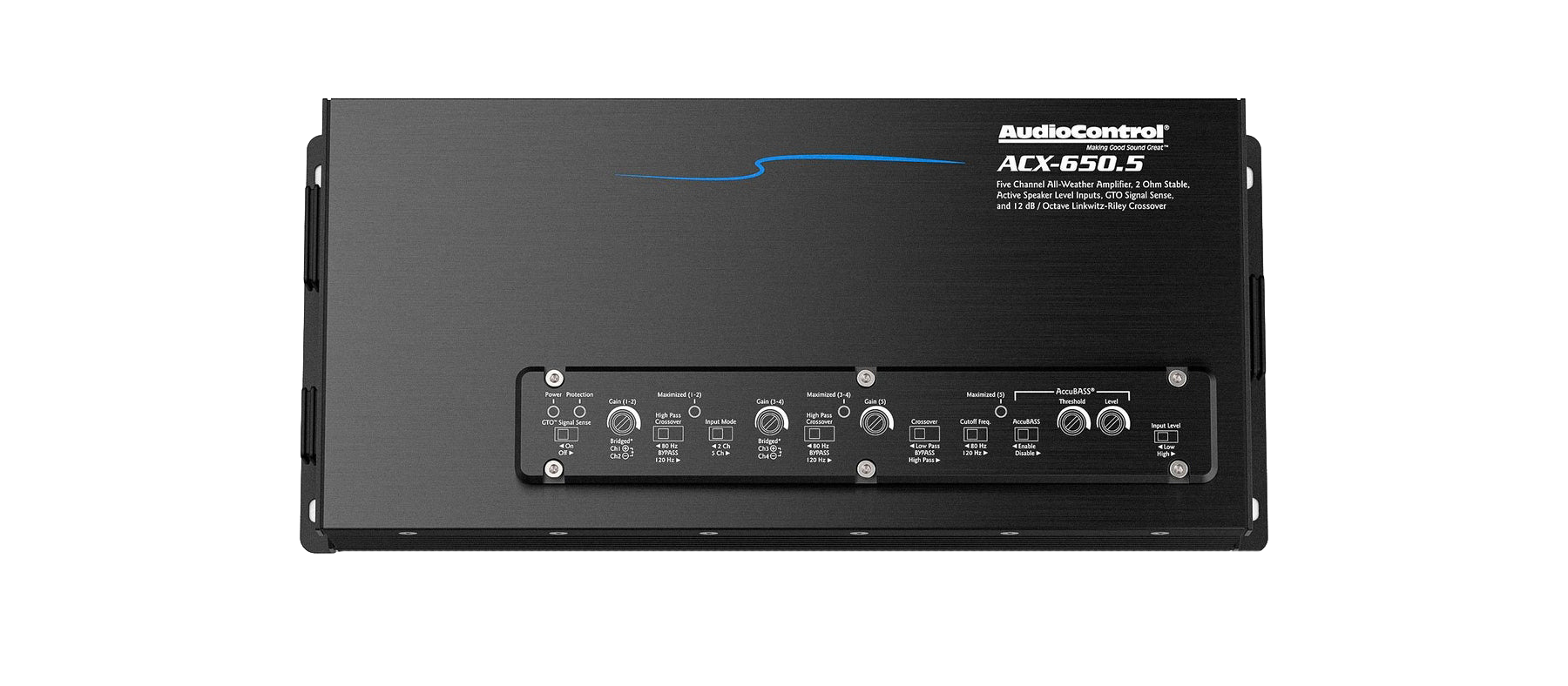

ACX-650.5 All-Weather 5-Channel Amplifier, 650W RMS

$599.99

AudioControl’s ACX All-Weather Amplifiers are rated IPX6 waterproof to withstand the harsh outdoor elements. They deliver honest power levels to the sound system in your boat, UTV, motorcycle, and more.


AudioControl’s ACX-650.5 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-650.5 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-650.5 all-weather amplifier the perfect solution for your next adventure.

FEATURES

  • 4 x 50 Watts @ 4 Ohms, 1 x 200 Watts @ 4 Ohms
  • 4 x 75 Watts @ 2 Ohms, 1 x 350 Watts @ 2 Ohms
  • 2 x 150 Watts @ 4 Ohms, Bridged Mono
  • IPX6 Rated
  • AccuBASS® bass management
  • GTOTM Signal Sense
  • High and low input modes
  • Linkwitz-Riley Crossover
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

SPECIFICATIONS

INPUTS

  • Preamp/Speaker Level Inputs: 6
  • Input Voltage Low: 500 mV – 6 Vrms
  • Input Voltage Range High: 1 Vrms – 12 Vrms

OUTPUTS

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 50 W x 4 + 200 W x 1
    • 2 Ω – 75 W x 4 + 350 W x 1
    • Bridged 4 Ω – 150 W x 2

PERFORMANCE

  • Frequency Response: 26 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.05%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • IP Rating: IPX6

GENERAL

  • Recommended Fuse Rating: 30A

WEIGHT & DIMENSIONS

  • Dimensions: 11.97″W x 5.31″D x 2.36″H
  • Weight: 5.8 lbs. (2.63 kg)

IN THE BOX: ACX-650.5, Manual, Warranty

ACX-650.5 All-Weather 5-Channel Amplifier, 650W RMS
ACX-650.5 All-Weather 5-Channel Amplifier, 650W RMS
ACX-650.5 All-Weather 5-Channel Amplifier, 650W RMS
ACX-650.5 All-Weather 5-Channel Amplifier, 650W RMS

Shipping

In stock

Est. arrival October 05

Key features

AccuBASS

corrects bass roll-off

High-/Low-Level Inputs

built-in 12" RCA inputs

Crossovers

includes two 12 dB/octave Linkwitz-Riley high-pass filters

Gain Maximized LEDs

maximized LED indicators show when the output signal reaches its best performance level

GTO (Great Turn On) Signal Sense

turns on the amp when an audio signal is detected and turn it off after a period of no signal input

All-Weather Construction

built to withstand outdoor environments and has an IPX6 waterproof rating

Mounting

built-in mounting flanges and pre-drilled holes offer versatile mounting options

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

ACX all weather amps are built tough .

Specs & installation

Product specs

Power RMS 4 x 50 W @ 4 Ohms, 1 x 200 W @ 4 Ohms; 4 x 75 W @ 2 Ohms, 1 x 350 W @ 2 Ohms
Power Bridged 2 x 150 W @ 4 Ohms, Bridged Mono

Dimensions

Dimensions 11.97″W x 5.31″D x 2.36″H
Weight 5.8 lbs. (2.63 kg)

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
