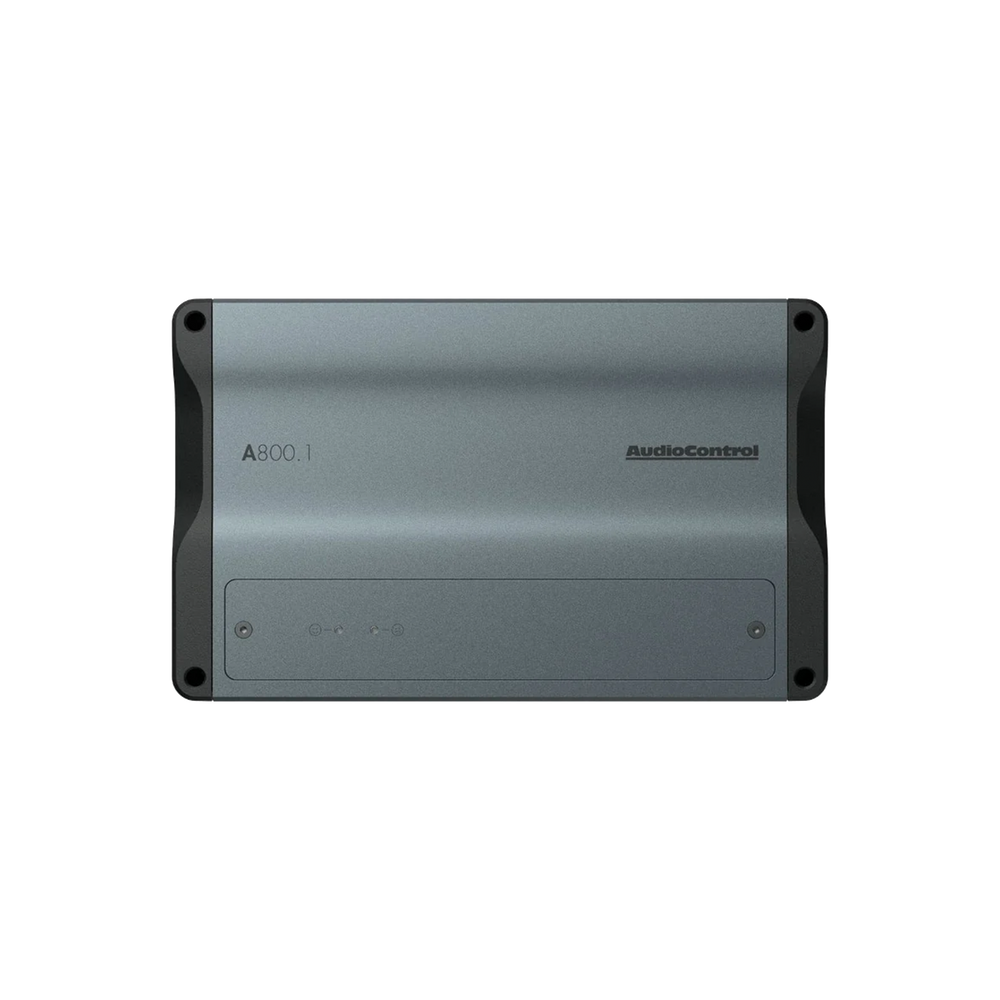

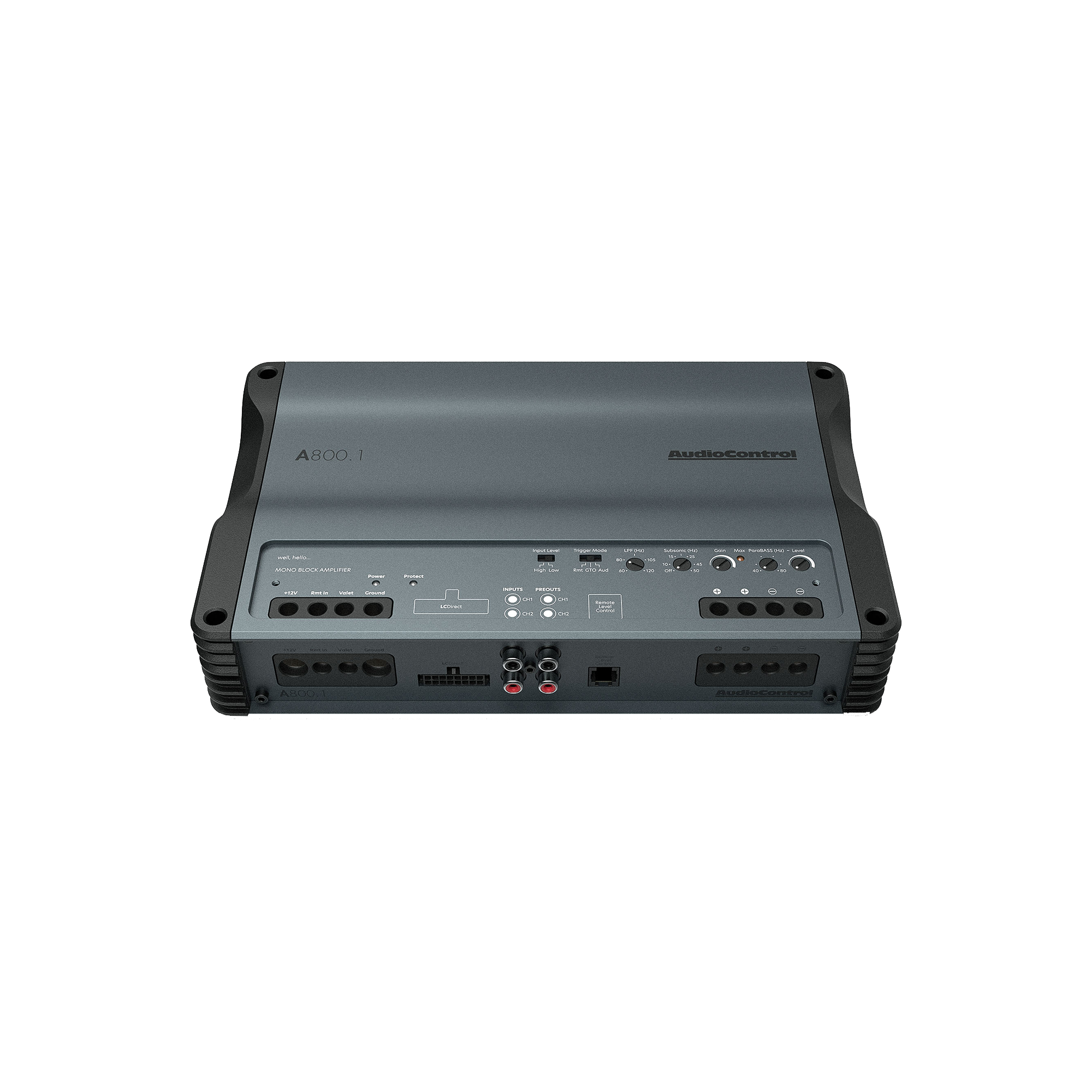

A800.1 Altitude Monoblock Amplifier, 800W RMS

$269.00

Elevate your audio experience with AudioControl’s Altitude Amplifier Series, designed from the ground up to be sleek and modern with a minimalist aesthetic.

Elevate your audio experience with AudioControl’s Altitude Amplifier Series, designed from the ground up to be sleek and modern with a minimalist aesthetic. The anodized matte grey aluminum chassis provides superior thermal dissipation. Performing at the top of their class, these amplifiers offer robust power and exceptional quality.

Altitude amplifiers feature Valet Mode, which safeguards your system from unintended damage by limiting the maximum volume to 25% when activated. They are also compatible with start-stop systems and electric vehicles, ensuring outstanding performance in any vehicle.

Pair Altitude amplifiers with AudioControl’s PNW speakers and Space or Spike subwoofers. This combination creates a
soundscape engineered to deliver the pure, uninterrupted power that AudioControl is known for.

Spike Mode allows you to connect three 4Ω subwoofers at 1.33Ω, unleashing even more power from your Altitude Series amplifier, designed to run cool at maximum output for extended periods of time.

With the ParaBASS control knobs you can fine-tune your bass for the ultimate audio experience. Customize your sound and feel the difference. Your bass, your way.

  • The power supply circuitry adopts advanced pulse width modulator integrated circuits that are designed to offer improved performance and efficiency.
  • Designed with Advanced HEXFET® Power MOSFETs from International Rectifier that utilize advanced processing techniques to achieve extremely low on-resistance and reliable fast switching speed.
  • Premium Toroidal Transformer for optimal electrical efficiency and minimal signal distortion.
  • Premium Low ESR capacitors for minimal power loss and reduced internal heating.
  • Precision metal potentiometers for precise tuning and sturdy construction
  • Features 500V Class X2 capacitors with self-healing properties for high-frequency, high-current protection, ensuring low-loss AC peak surge and MOSFET protection.
  • High-efficiency Ferrite Core Inductor power output filters provide low current eddy losses over frequencies with high permeability.
  • High-performance class D intelligent driver IC with PWM modulator and protection with HEXFET Power MOSFET for abundant power and high efficiency.

FEATURES

  • High/Low Input Modes
  • GTO™ Signal Sense
  • Linkwitz-Riley Crossovers
  • Start-Stop Compliant
  • High Power Output in a Sleek Chassis
  • ParaBASS® Low Frequency Contouring
  • Valet Mode Option
  • Optional Remote Level Control (ACR-1)
  • EV Compliant up to 17V
  • Spike Mode Enabled

SPECIFICATIONS

INPUTS

  • Preamp Inputs: 2
  • Line-Level Inputs: 6 V max
  • Speaker-Level Inputs: 20 V max

    OUTPUTS

    • Rated Continuous (RMS) Power at 14.4V:
      • 400W x 1 @ 4Ω
      • 600W X 1 @ 2Ω
      • 800W x 1 @ 1.33Ω

      Remote Level Control

      • ACR-1 (optional)

      WEIGHTS & DIMENSIONS

      • DIMENSIONS: 10.9” W x 6.7” D x 2.1” H
      • WEIGHT: 6.05 lbs

      PERFORMANCE

      • S/N Ratio (ref: rated power): 110.2 dBA
      • THD+N: <0.14%
      • Power / Ground Wire Gauge: 4 AWG
      • Recommended Fuse rating: 100A
      • Valet Mode: Yes
      • Subsonic Filter: Variable
      • Linkwitz-Riley X-Over:
        • Low Pass
        • Freq. Range: 60 Hz to 120 Hz
      • Bass Processing: ParaBASS®

        IN THE BOX: A800.1, Manual, Warranty

        A800.1 Altitude Monoblock Amplifier, 800W RMS
        A800.1 Altitude Monoblock Amplifier, 800W RMS
        A800.1 Altitude Monoblock Amplifier, 800W RMS

        Shipping

        In stock

        Est. arrival October 05

        Key features

        High/Low Input Modes

        Offers Greater Flexibility for Various Setups

        GTO™ Signal Sense

        Activates Automatically with an Audio Signal

        Linkwitz-Riley Crossovers

        High-pass & Low-pass Filters

        High Power Output

        Minimal Signal Distortion with Smooth Output

        Sleek Chassis

        Encased in a Premium Matte Aluminum Chassis

        ParaBASS

        Low Frequency Contouring

        Valet Mode Option

        Prevent Damage from Guest Drivers

        ACR-1 Remote Level Control

        Optional

        EV Compliant (up to 17V)

        Start-Stop Compliant with Electric Vehicles

        Spike Mode Enabled

        Connect Three 4Ω Subwoofers at 1.33Ω

        Installation

        Get help with your install

        Leave the installation to an authorized AudioControl expert.

        Find installers near you

        More info

        1 year manufacturer warranty

        Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

        About this product

        Take Your Audio to the Next Level .

        Features

        High Output, Minimal Distortion

        The Altitude Series is designed for a premium experience where sound quality is the priority.

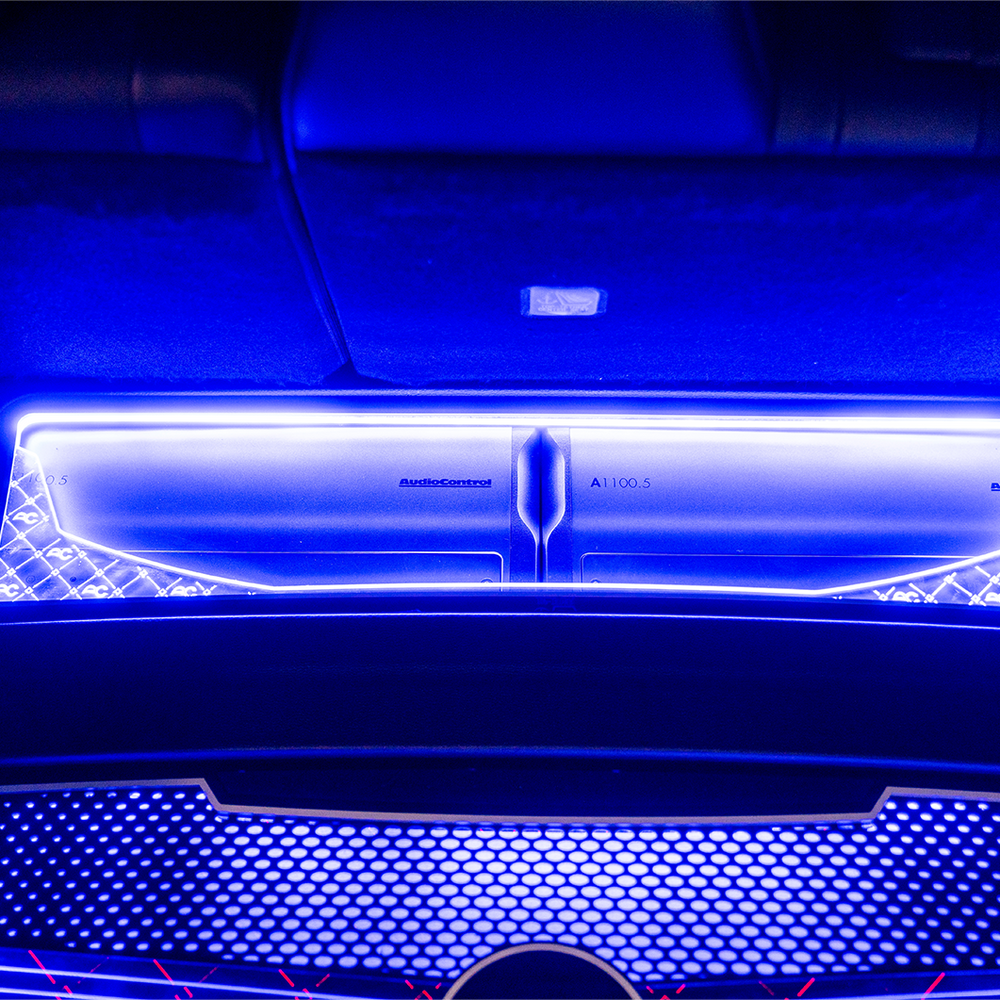

        Car audio system with Altitude amplifiers installed

        ParaBass

        ParaBass is a parametric equalizer used to fine-tune bass response by allowing you to select a center frequency and adjust its width to sculpt the bass for your music and vehicle acoustics.

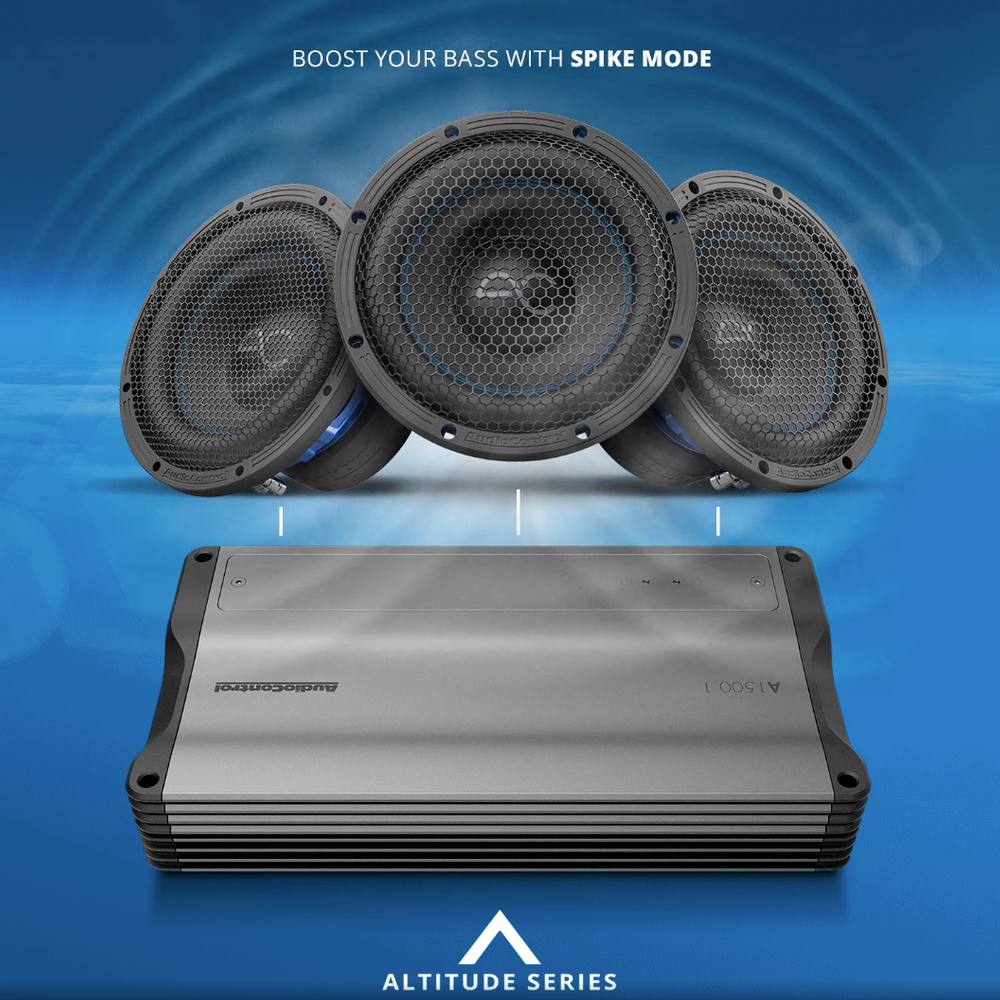

        Spike Mode

        Connect three 4Ω subwoofers at 1.33Ω, unleashing even more power from your Altitude Series amplifier.

        Valet Mode

        Restricts sound output to 25% of maximum level to prevent damage from guest drivers.

        What's in the box

        A800.1

        A800.1 Amplifier, Manual, Warranty

        Specs & installation

        Product specs

        Preamp Inputs 2
        Line-Level Inputs 6 V max
        Speaker-Level Inputs 20 V max
        Power (RMS) at 14.4V 400W x 1 @ 4Ω; 600W X 1 @ 2Ω; 800W x 1 @ 1.33Ω

        Dimensions

        DIMENSIONS 10.9” W x 6.7” D x 2.1” H
        WEIGHT 6.05 lbs

        User guide

        Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

        Download user guide

        Find an installer

        Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

        Find installers near you
