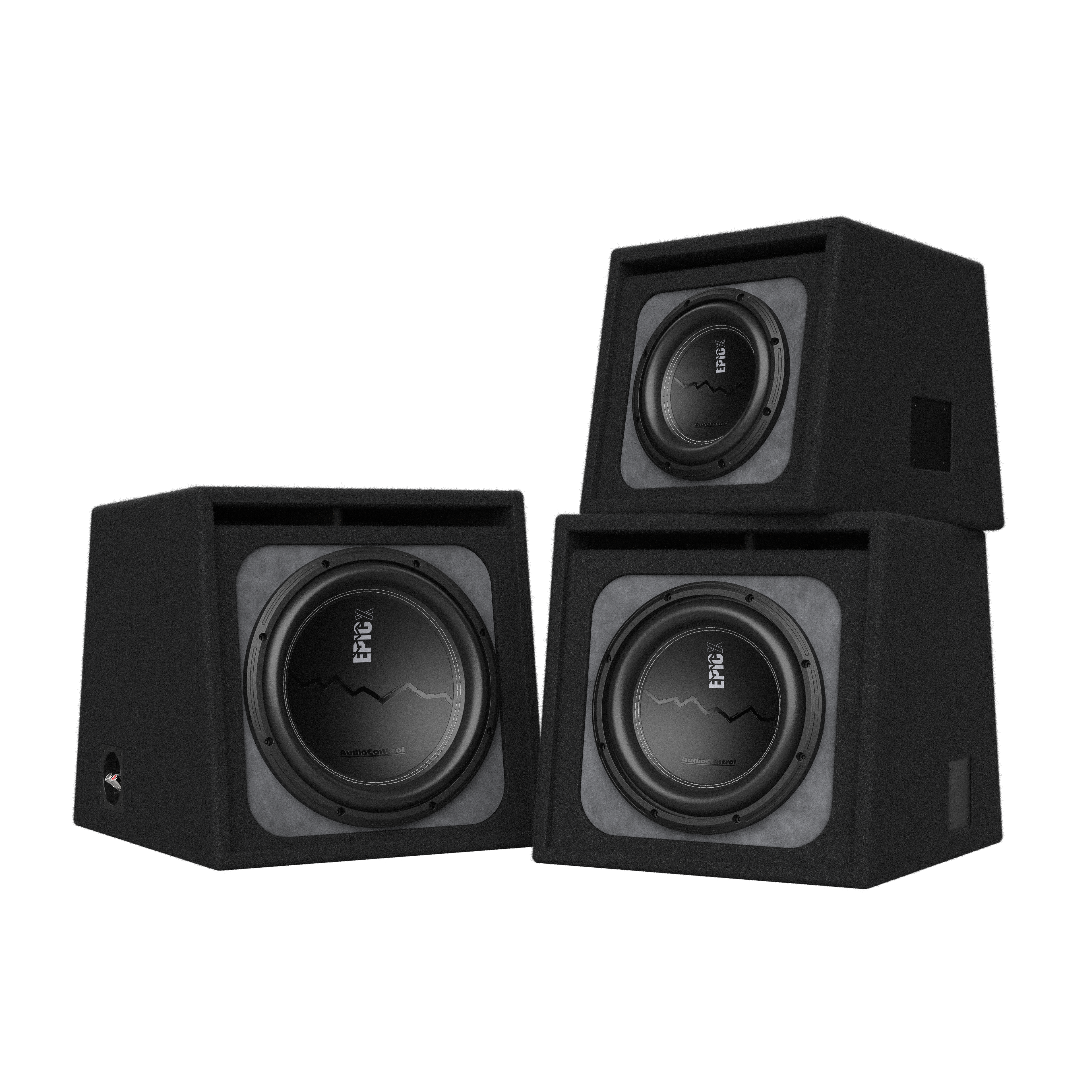

EPICX Series Loaded Vented Subwoofer Enclosure, 400W/500W RMS | 8" 10" 12"

$239.00

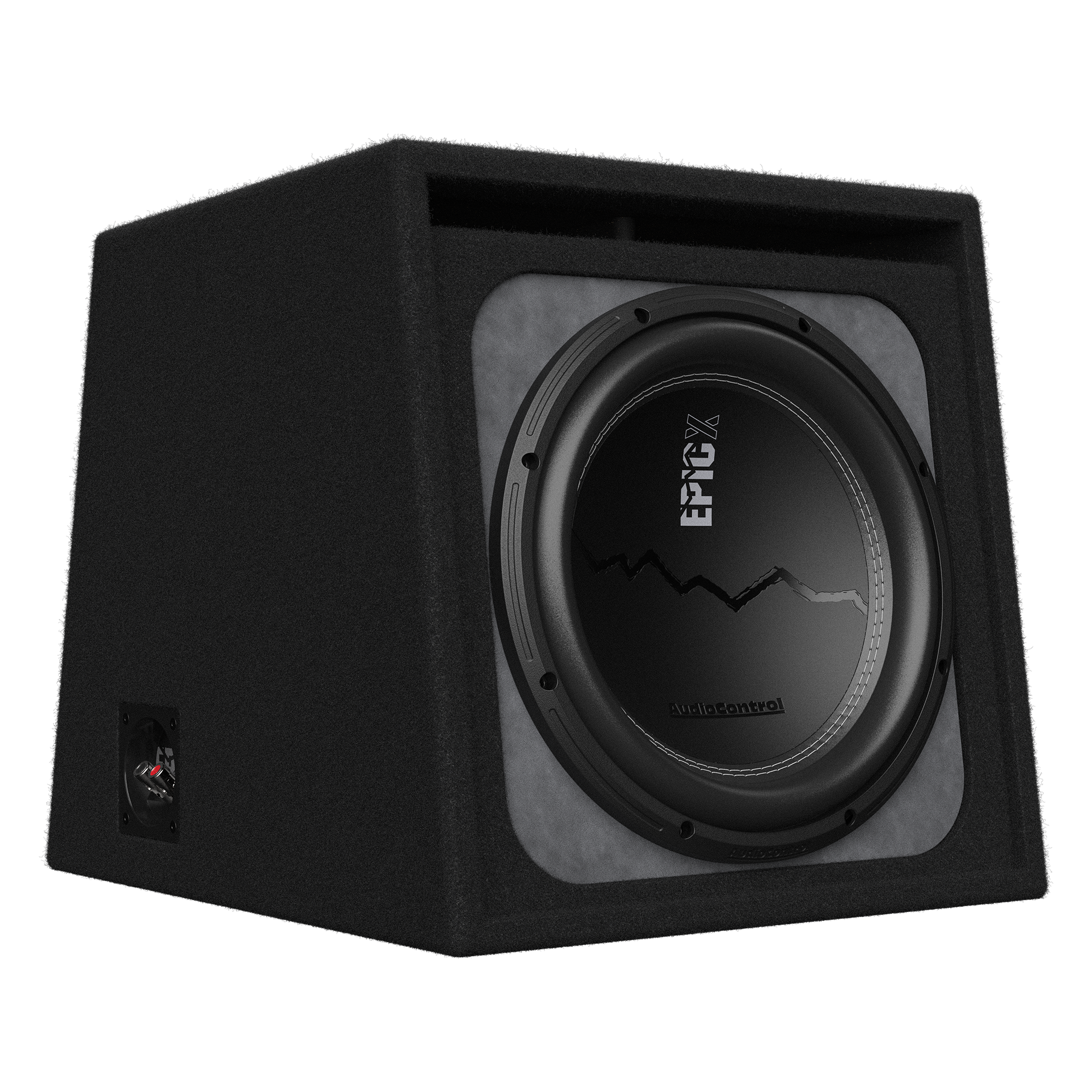

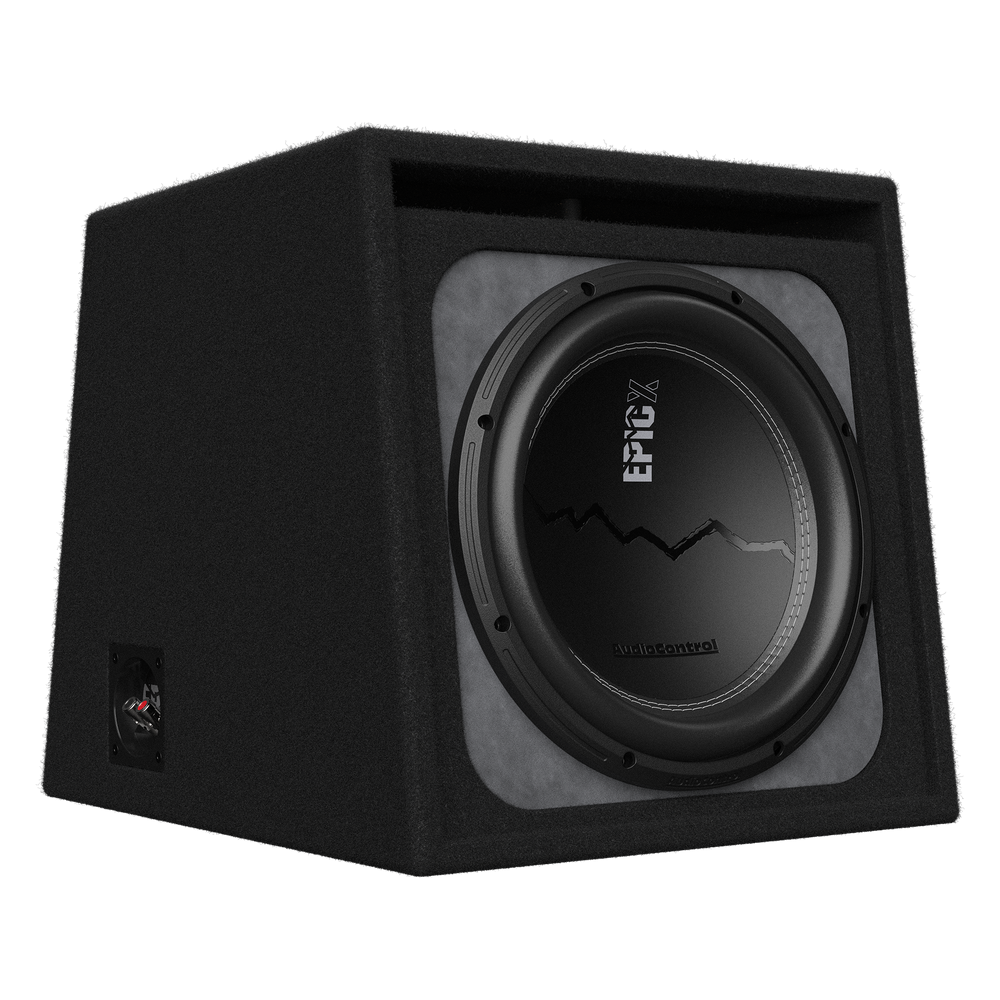

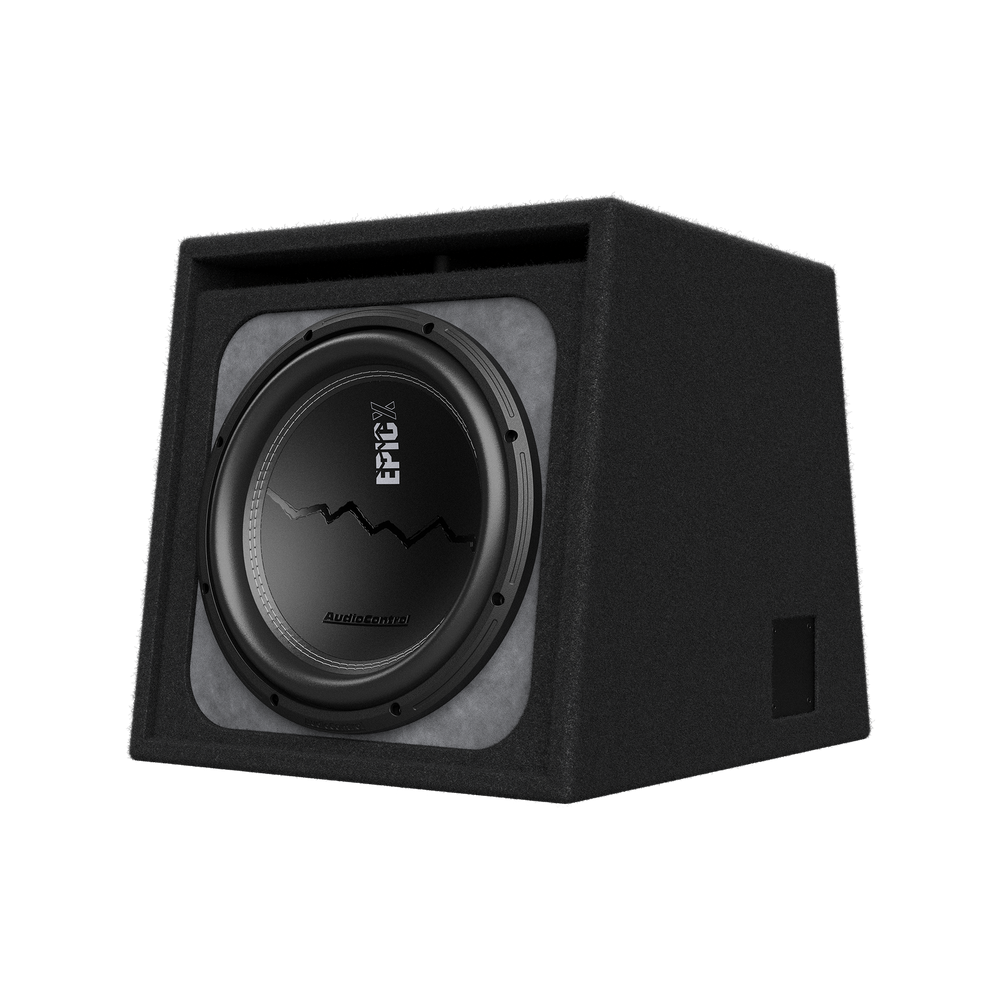

The EPICX subwoofer enclosures are engineered for performance and designed to deliver the deep, hard-hitting bass you crave.

Size

The EPICX subwoofer enclosures are engineered for performance and designed to deliver the deep, hard-hitting bass you crave. Each enclosure features a durable carpeted exterior for a clean look, along with a removable and customizable insert panel. An adaptive terminal cup enables the installer to choose which side of the enclosure the terminal is placed, for a more flexible and efficient installation, while large- gauge, quick-release black nickel terminals make connections simple and reliable.


The EPICX subwoofers feature composite foam surrounds and high-temperature, lightweight voice coils to ensure powerful, long-lasting performance. For the ultimate setup, pair your EPICX enclosure with the EPIC500 amplifier—the perfect power match for no blown subs, no muddy sound, just impactful and happy bass.


Turn every drive into an experience with the EPICX subwoofer enclosure. With low-end you can feel and a look that’s made to match your vibe, it’s the perfect blend of sound and style. With EPICX, your music doesn’t just play—it moves you.



FEATURES

  • Carpeted Exterior Finish: Provides durability and a seamless, factory-like appearance that blends easily with vehicle interiors.

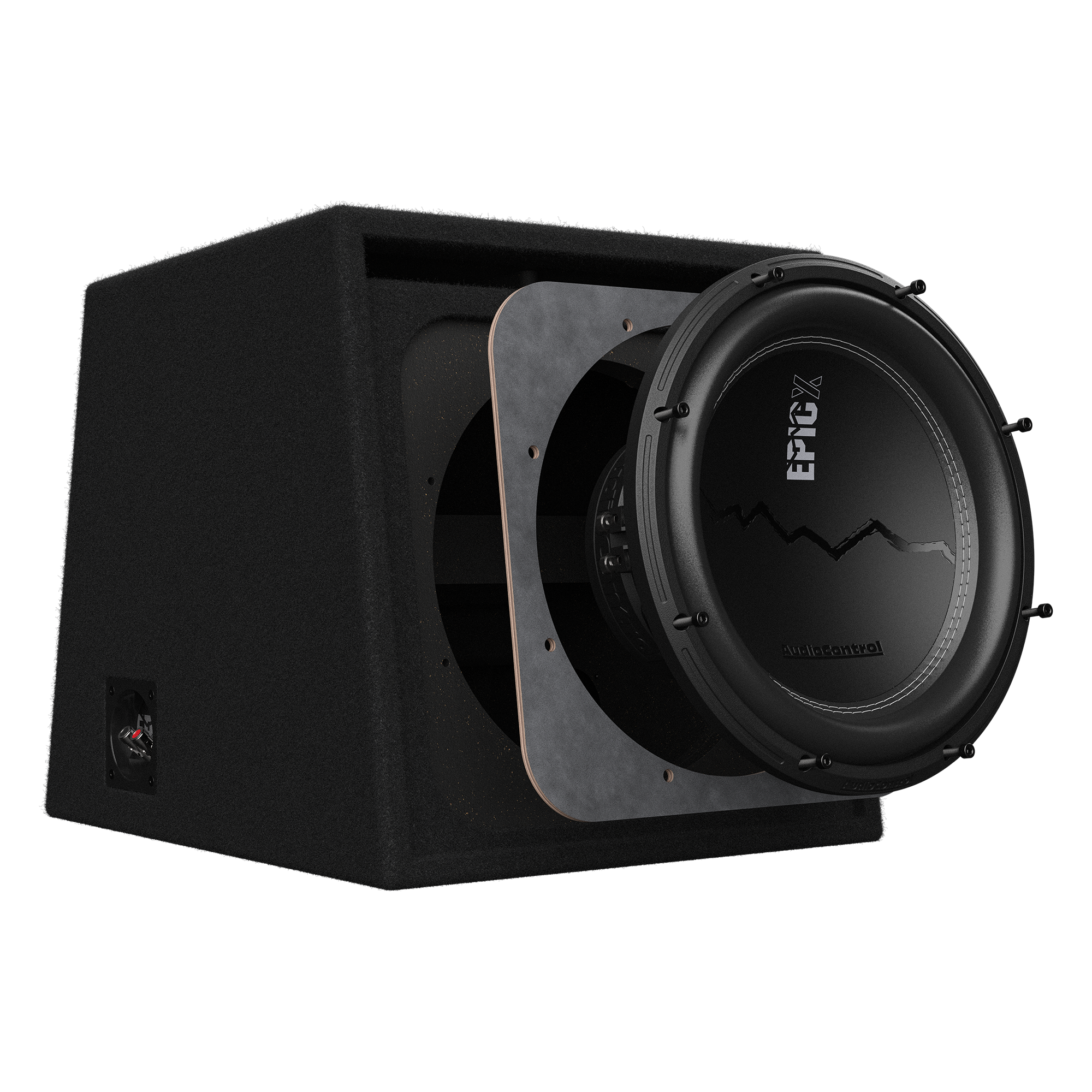

  • Customizable Insert Panel: Allows for personalized aesthetics so your system can look as EPIC as it sounds.

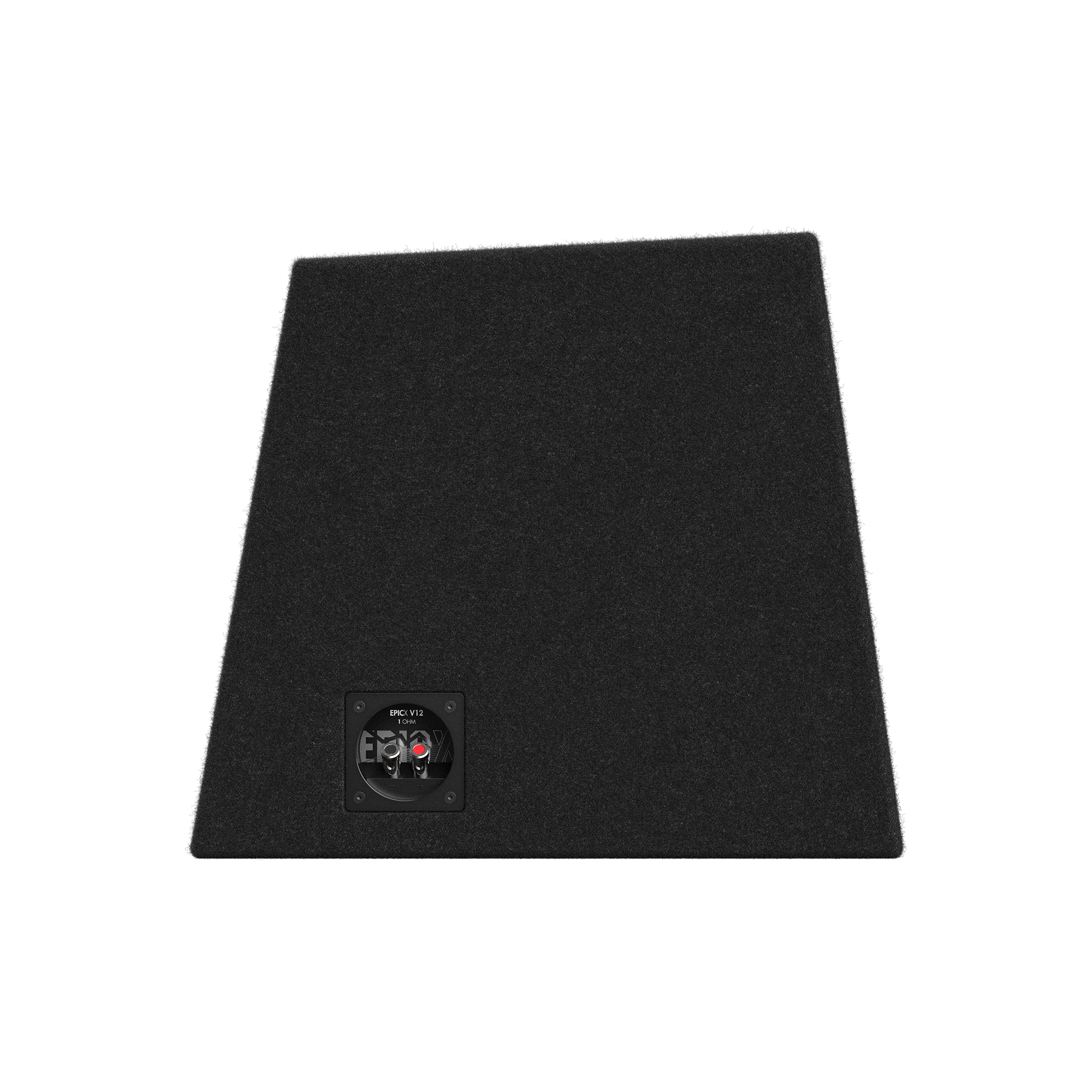

  • Adaptive Terminal Cup: Ensures an efficient, more customized installation by offering multiple wiring paths.
  • Performance-Oriented Design: Maximizes on efficiency and output, converting amplifier power directly into pure massive bass.
  • Composite Foam Surround: Delivers smooth controlled bass, ensuring a heart-pounding sound that doesn't compromise.
  • High-Temperature, Lightweight Voice Coil: Supplies lightning-fast, dynamic bass response and unwavering reliability under extreme power.

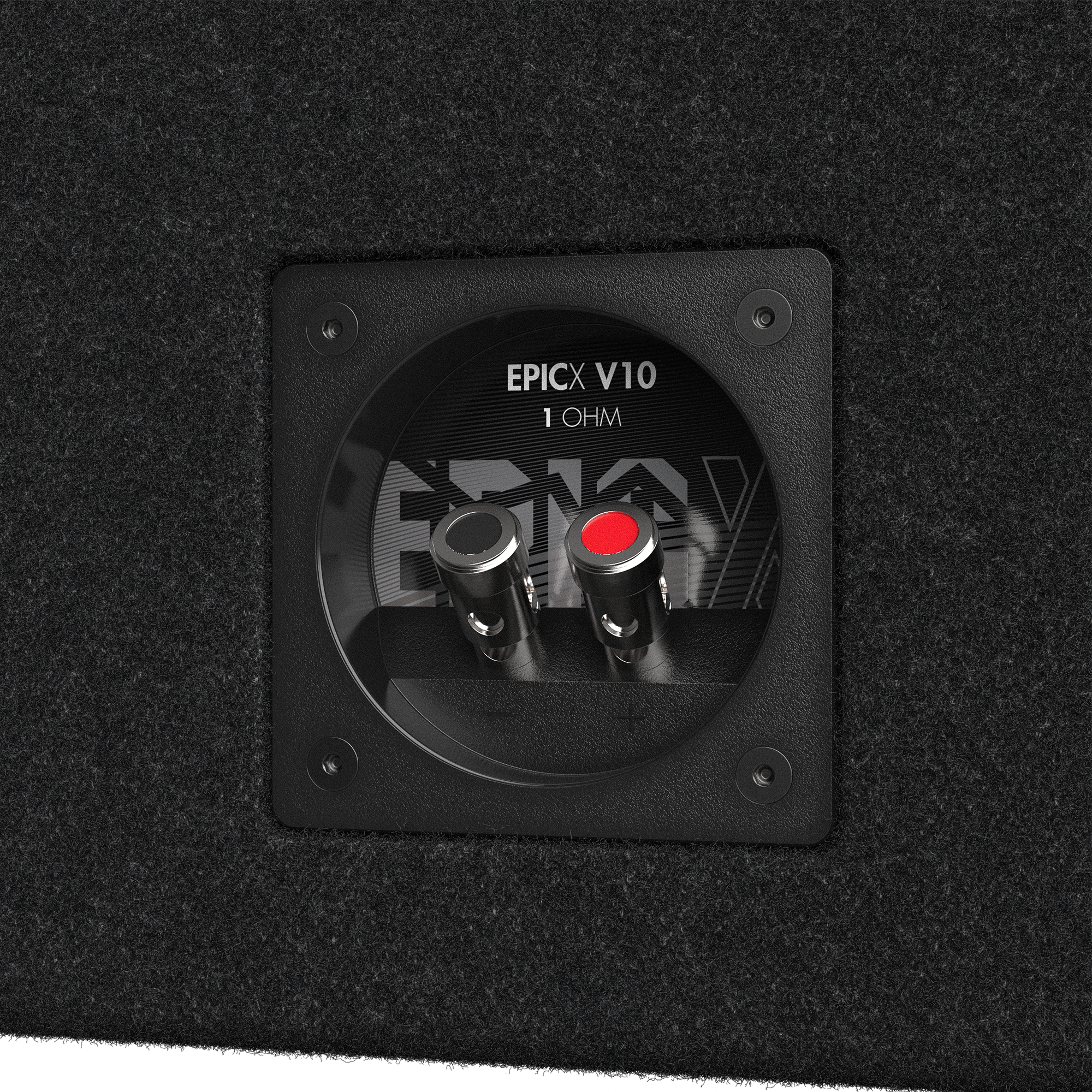

  • Large-Gauge, Quick-Release Black Nickel Terminals: Provides maximum conductivity and a rock-solid, vibration-proof connection for consistent power delivery.
  • Pair with The EPICENTER: Unleash unmatched bass, as the EPICX Series is engineered to seamlessly integrate with AudioControl's legendary bass restoration processor for mind-blowing low frequencies.

SPECIFICATIONS



EPICXV8

Speaker size .........................................................................................................8 in / 200 mm

Power .....................................................................................................400W RMS / 600W Max

Impedance.......................................................................................................................... 1 ohm

Voice Coil................................................................................................................. 2 in / 50 mm

Tuning Frequency............................................................................................................38 Hz

LPF..............................................................................................................................85 Hz

Suggested Amplifier...................................................................................................EPIC500



EPICXV10

Speaker size ...................................................................................................... 10 in / 250 mm

Power .....................................................................................................500W RMS / 750W Max

Impedance.......................................................................................................................... 1 ohm

Voice Coil. .......................................................................................................... 2.38 in / 60 mm

Tuning Frequency..............................................................................................................33 Hz

LPF...........................................................................................................................................80 Hz

Suggested Amplifier...................................................................................................EPIC500



EPICXV12

Speaker size ...................................................................................................... 12 in / 300 mm

Power .....................................................................................................500W RMS / 750W Max

Impedance.......................................................................................................................... 1 ohm

Voice Coil........................................................................................................... 2.38 in / 60 mm

Tuning Frequency..............................................................................................................31 Hz

LPF...........................................................................................................................................75 Hz

Suggested Amplifier...................................................................................................EPIC500



IN THE BOX: (1) EPICX 8"/10"/12" Loaded Subwoofer Enclosure, User Manual


DIMENSIONS

EPICXV8

Width (A). ....................................................................................................... 13.11in / 333 mm

Height (B)..................................................................................................... 12.44 in / 316 mm

Depth Top (C). ............................................................................................... 10.6 in / 269 mm

Depth Bottom (D). .................................................................................... 14.25 in / 362 mm

Weight...............................................................................................................27 lbs / 12.25 kg


EPICXV10

Width (A). ...................................................................................................... 15.43 in / 393 mm

Height (B).................................................................................................... 15.20 in / 386 mm

Depth Top (C). ......................................................................................... 12.44 in / 317.5 mm

Depth Bottom (D). ....................................................................................... 17 in / 431.8 mm

Weight...............................................................................................................39 lbs / 17.70 kg


EPICXV12

Width (A). ...................................................................................................... 16.30 in / 414 mm

Height (B).................................................................................................... 16.37 in / 416 mm

Depth Top (C). ............................................................................................... 13.5 in / 343 mm

Depth Bottom (D). .................................................................................... 18.38 in / 467 mm

Weight...............................................................................................................45 lbs / 20.40 kg


Reviews

5/5

Based on 1 reviews

Shipping

In stock

Est. arrival October 28

Key features

Carpeted Exterior Finish

Provides durability and a seamless, factory-like appearance

Customizable Insert Panel

Allows for personalized aesthetics

Adaptive Terminal Cup

Ensures an efficient, more customized installation

Performance-Oriented Design

Maximizes efficiency & output

Composite Foam Surround

Delivers smooth bass

Lightweight Voice Coil

Provides dynamic bass response

Large-Gauge Terminals

Supplies maximum conductivity

Pair w/ The EPICENTER

Seamlessly integrates with The EPICENTER

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Hear the bass slam with EPICX.

Features

Bass in Your Face

A High-Precision Motor Assembly maximizes efficiency and output, converting amplifier power into pure, impactful bass.

Feel the Rush

A High-Temperature Lightweight Voice Coil enables lightning-fast bass response and reliability under extreme power to match your thrill-seeking lifestyle.

EPIC-lifestyle-jdm-tokyo-night

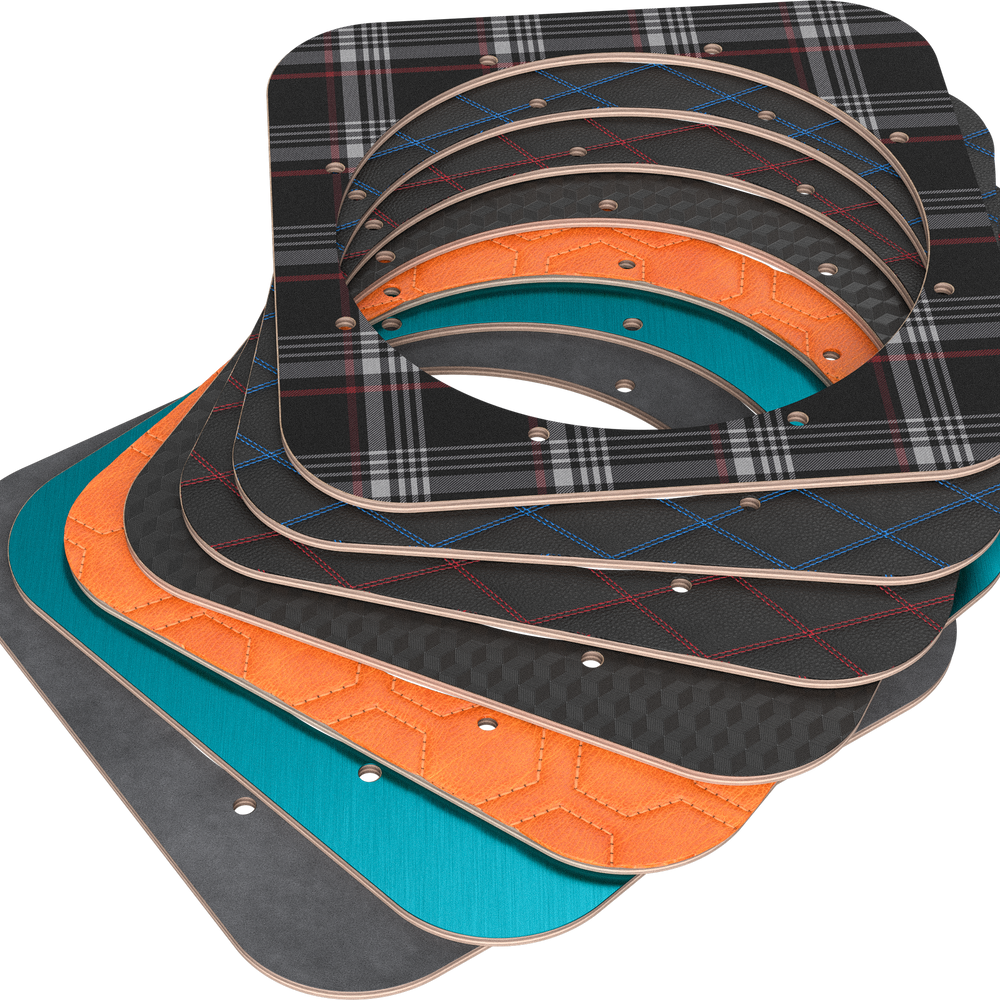

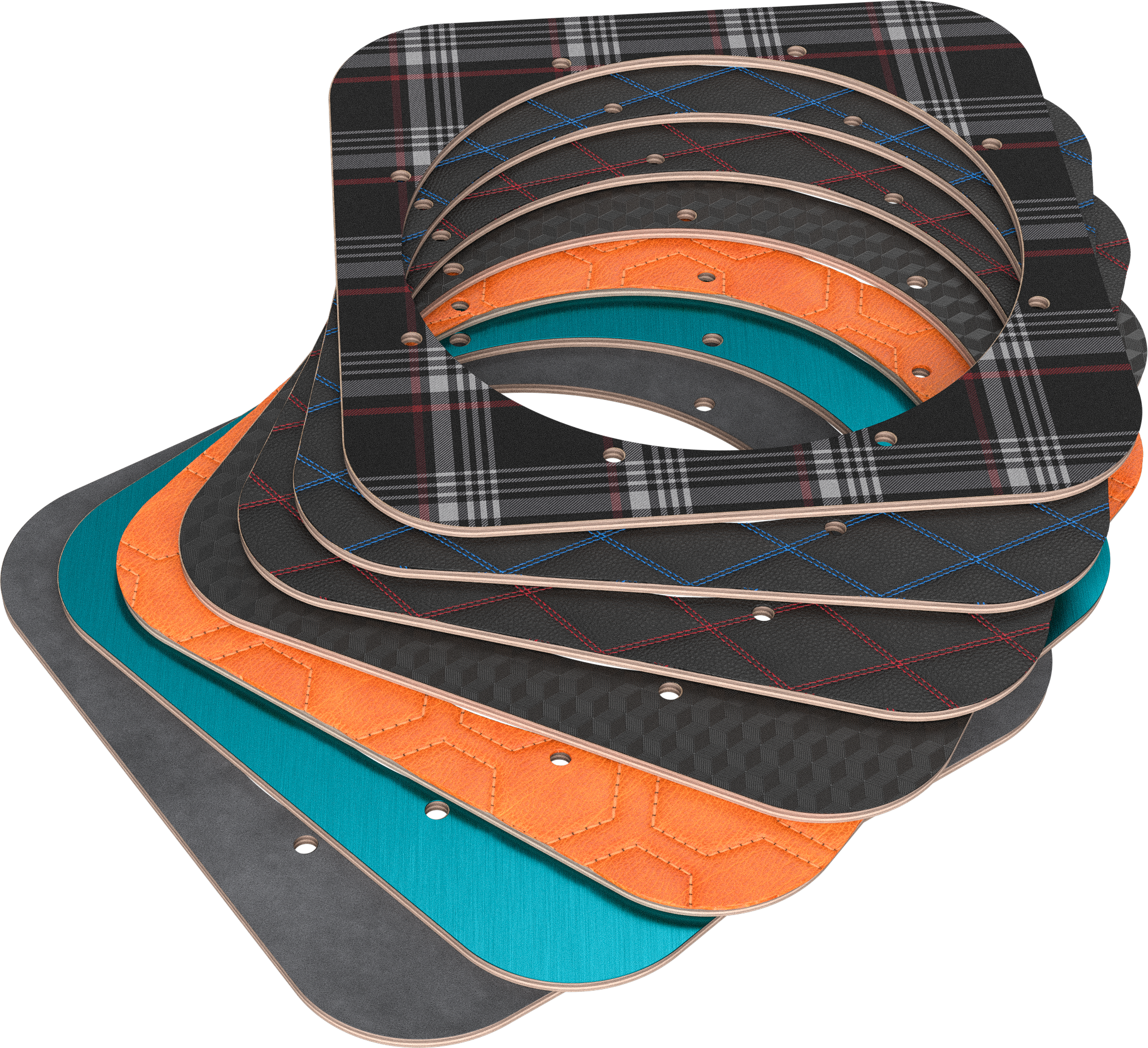

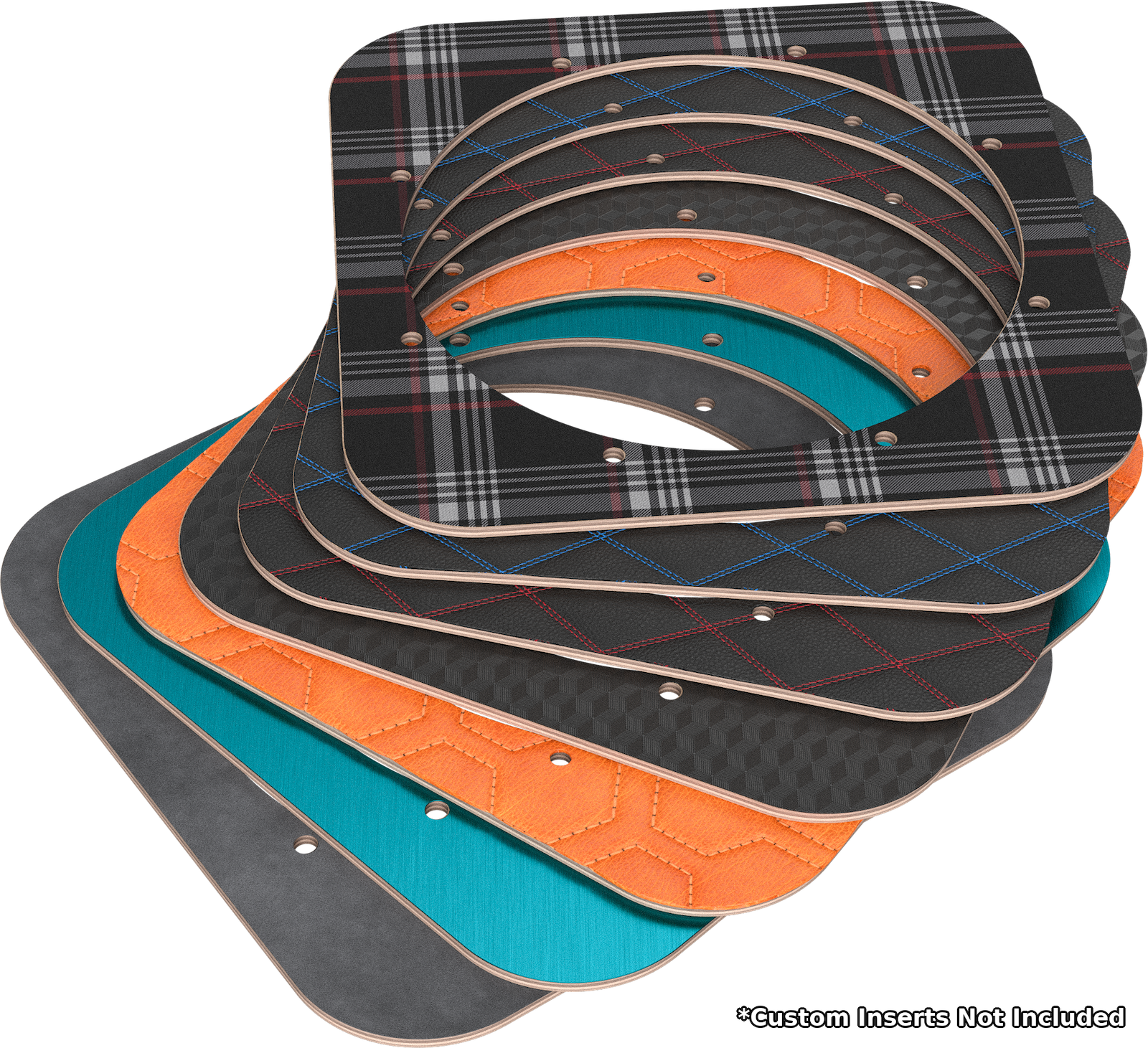

Customize Your Enclosure

Personalize the enclosure panel to match your vehicle's aesthetics.

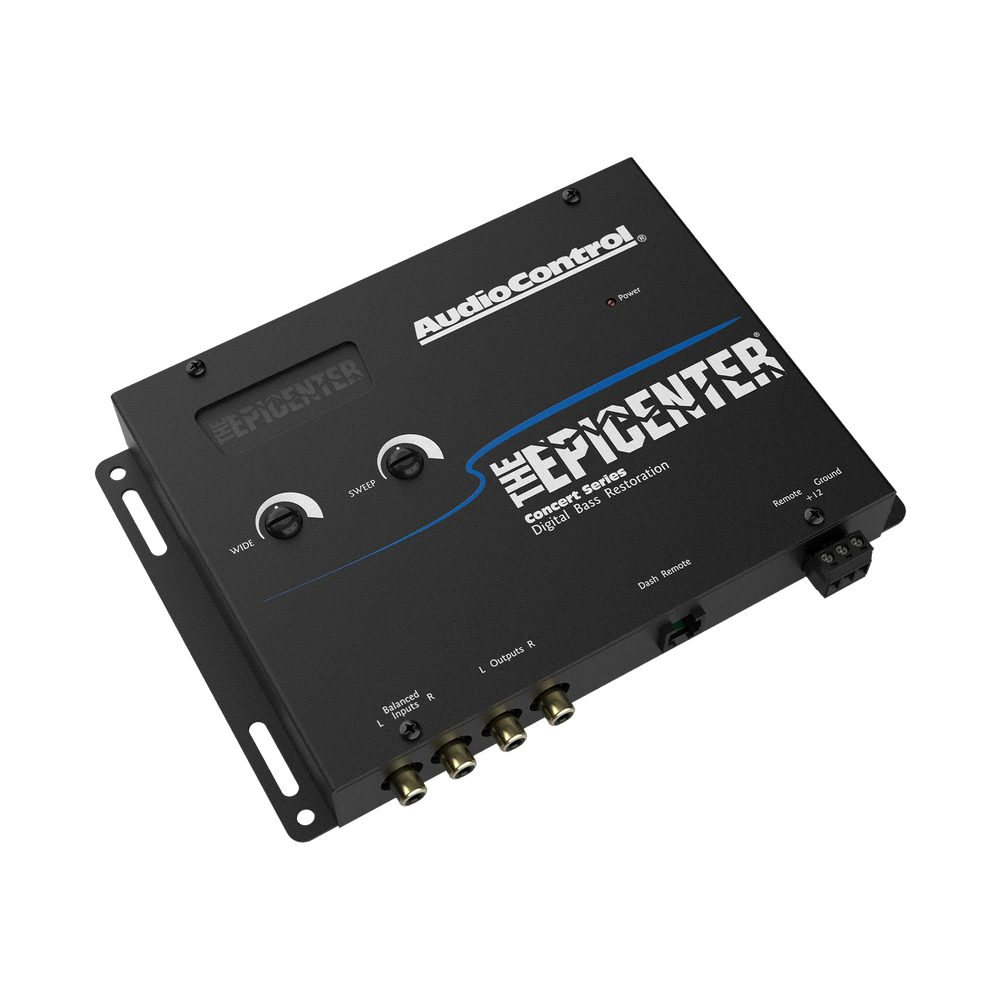

Pair with The EPICENTER

Unleash unmatched bass, as the EPICX Series is engineered to seamlessly integrate with AudioControl's legendary bass restoration processor for mind-blowing low frequencies.

What's in the box

EPICX V

(1) EPICX V Loaded Enclosure, User Manual

Specs & installation

Product specs

Speaker Size 8"
Impedance 1 Ohm
Power 400W RMS / 600W Max
Voice Coil 2 in / 50 mm
Tuning Frequency 38 Hz
Low Pass Filter 85 Hz
Speaker Size 10"
Impedance 1 Ohm
Power 500W RMS / 750W Max
Voice Coil 2.38 in / 60 mm
Tuning Frequency 33 Hz
Low Pass Filter 80 Hz
Speaker Size 12"
Impedance 1 Ohm
Power 500W RMS / 750W Max
Voice Coil 2.38 in / 60 mm
Tuning Frequency 31 Hz
Low Pass Filter 75 Hz

Dimensions

(8")Width, Height 13.11 in, 12.44 in
(8")Depth Top, Depth Bottom 10.6 in, 14.25 in
(8")Weight 27 lbs
(10")Width, Height 15.43 in, 15.2 in
(10")Depth Top, Depth Bottom 12.44 in, 17 in
(10")Weight 39 lbs
(12")Width, Height 16.3 in, 16.37 in
(12")Depth Top, Depth Bottom 13.5 in, 18.38 in
(12")Weight 45 lbs

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
