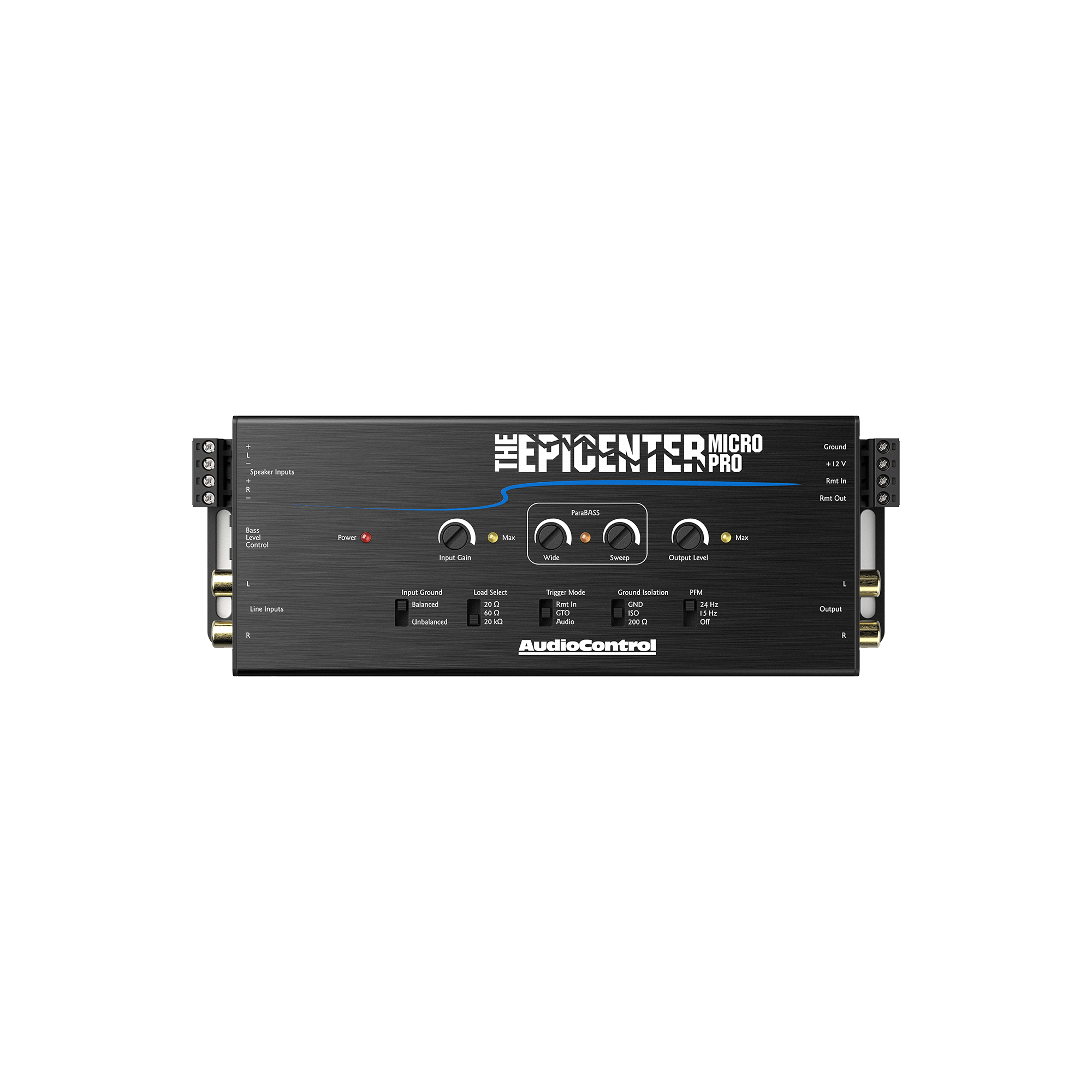

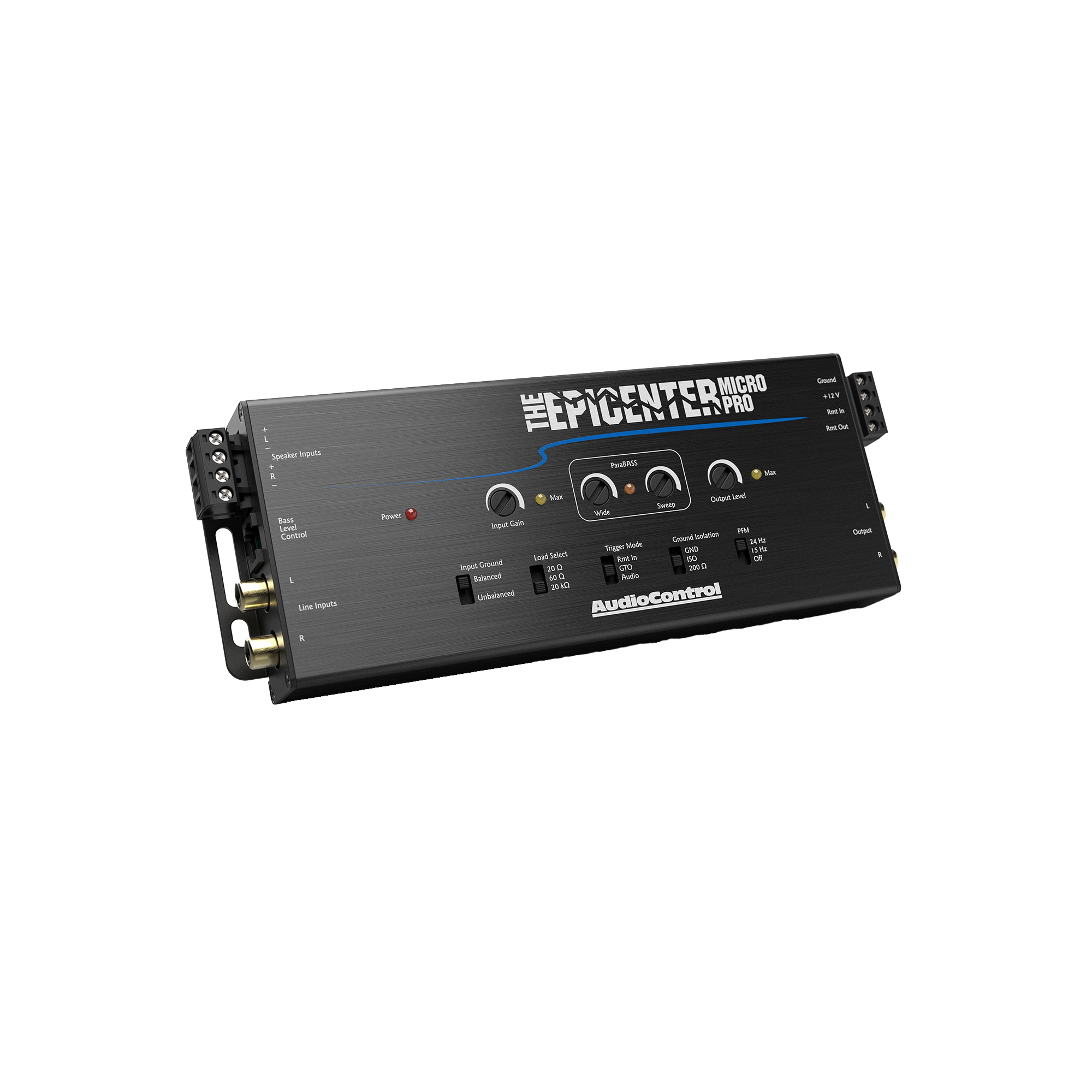

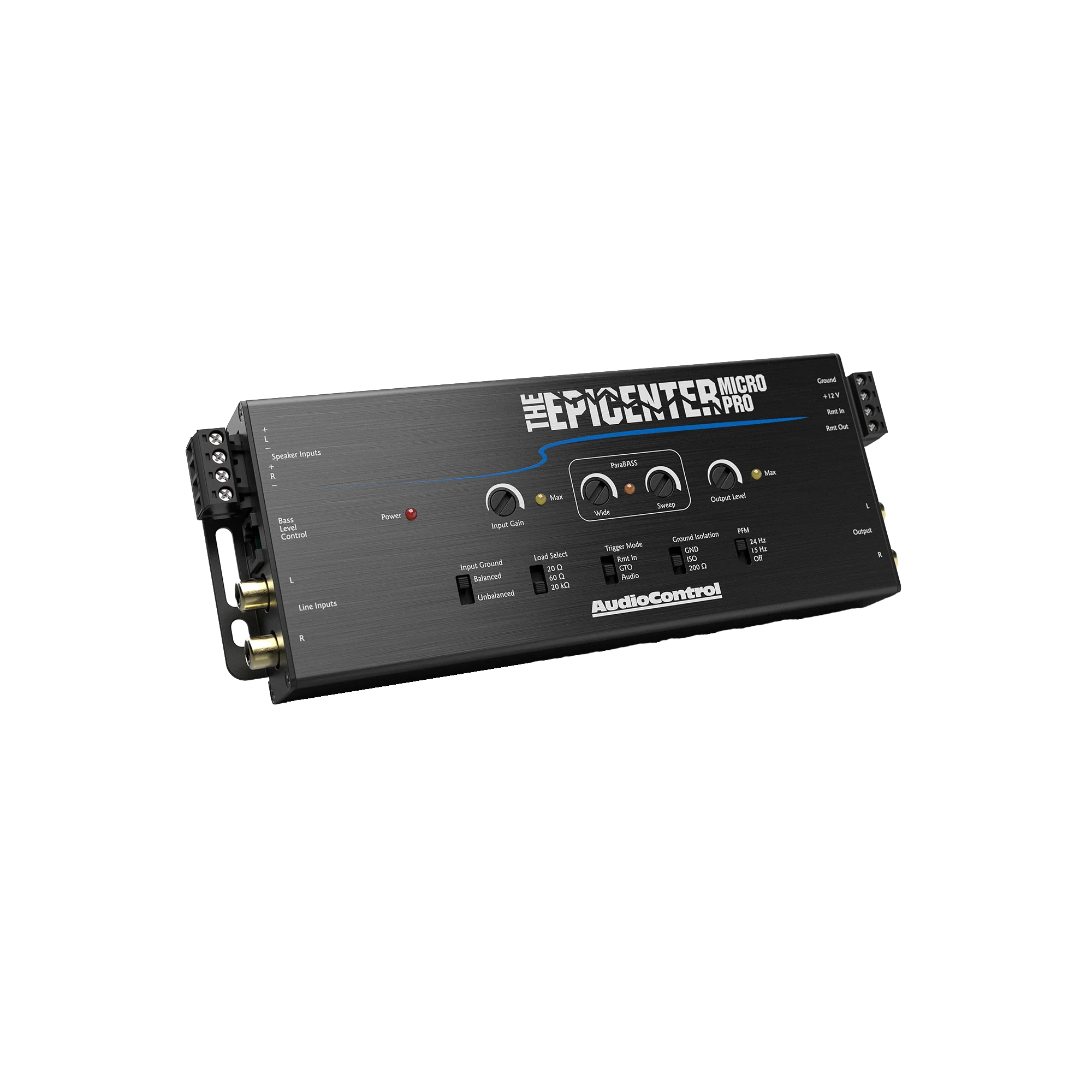

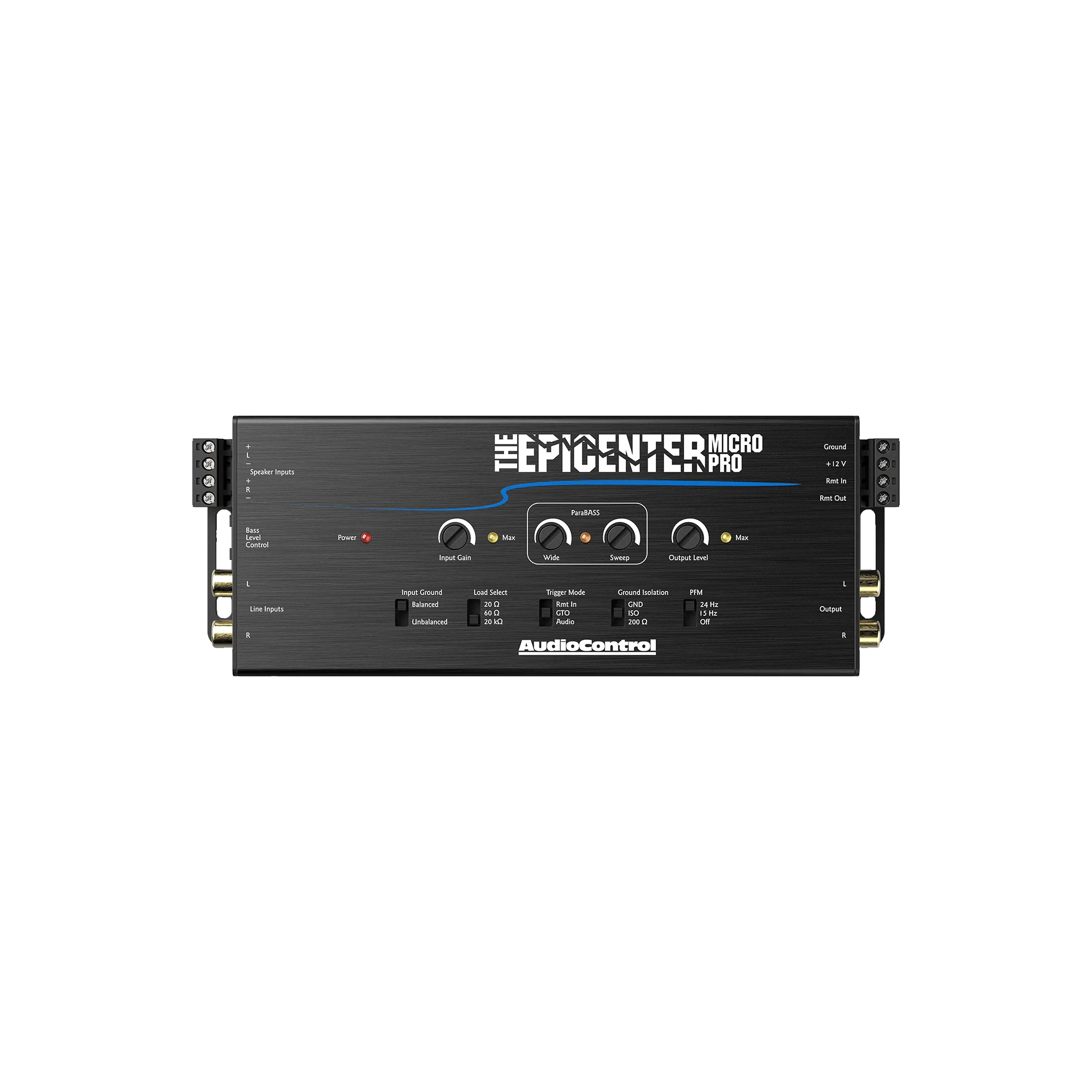

The EPICENTER Micro PRO Bass Restoration Processor & Line Output Converter

$229.00

Building on the powerful features of The EPICENTER Micro and everything you have come to know and love about AudioControl’s legendary bass processing, The EPICENTER Micro PRO adds more control and tuning potential for those who wish to push even further into the unexplored outer realms of extreme bass performance.

Building on the powerful features of The EPICENTER Micro and everything you have come to know and love about AudioControl’s legendary bass processing, The EPICENTER Micro PRO adds more control and tuning potential for those who wish to push even further into the unexplored outer realms of extreme bass performance.

Bass Maximizer – The EPICENTER Micro PRO is designed to reproduce low frequency information by looking at the upper frequency ranges and detecting musical harmonics. These harmonics then allow The EPICENTER Micro PRO to drop down a few octaves and reproduce the “missing” bass notes.

Line Output Converter - Beyond maximizing bass, The EPICENTER Micro PRO is a line output converter packed with premier

OEM integration features like AudioControl’s Load Matching Circuit (LMC) with Load Select, multiple Trigger Modes, and selectable Ground Isolation. For power-users, the PFM Subsonic Filter can be selected or bypassed and Output Voltage can be configured for up to 10 Volts!

FEATURES

• AudioControl’s Original Digital Bass Restoration Circuit: Restore missing low notes and transform flat audio into rich, powerful bass you can truly feel.
• ParaBASS® Controls for Bass Shaping:
Precisely sculpt and fine-tune your bass to perfectly match your music, vehicle, and personal preference.
• Selectable PFM Subsonic Filter with Bypass:
Protect your speakers and ensure tighter, more controlled bass by filtering out inaudible, power-wasting frequencies.
• Built-in Line Driver for Optimal Output Voltage:
 Boosts your audio signal for a strong, clean path to your amplifiers, minimizing noise and maximizing sound quality.

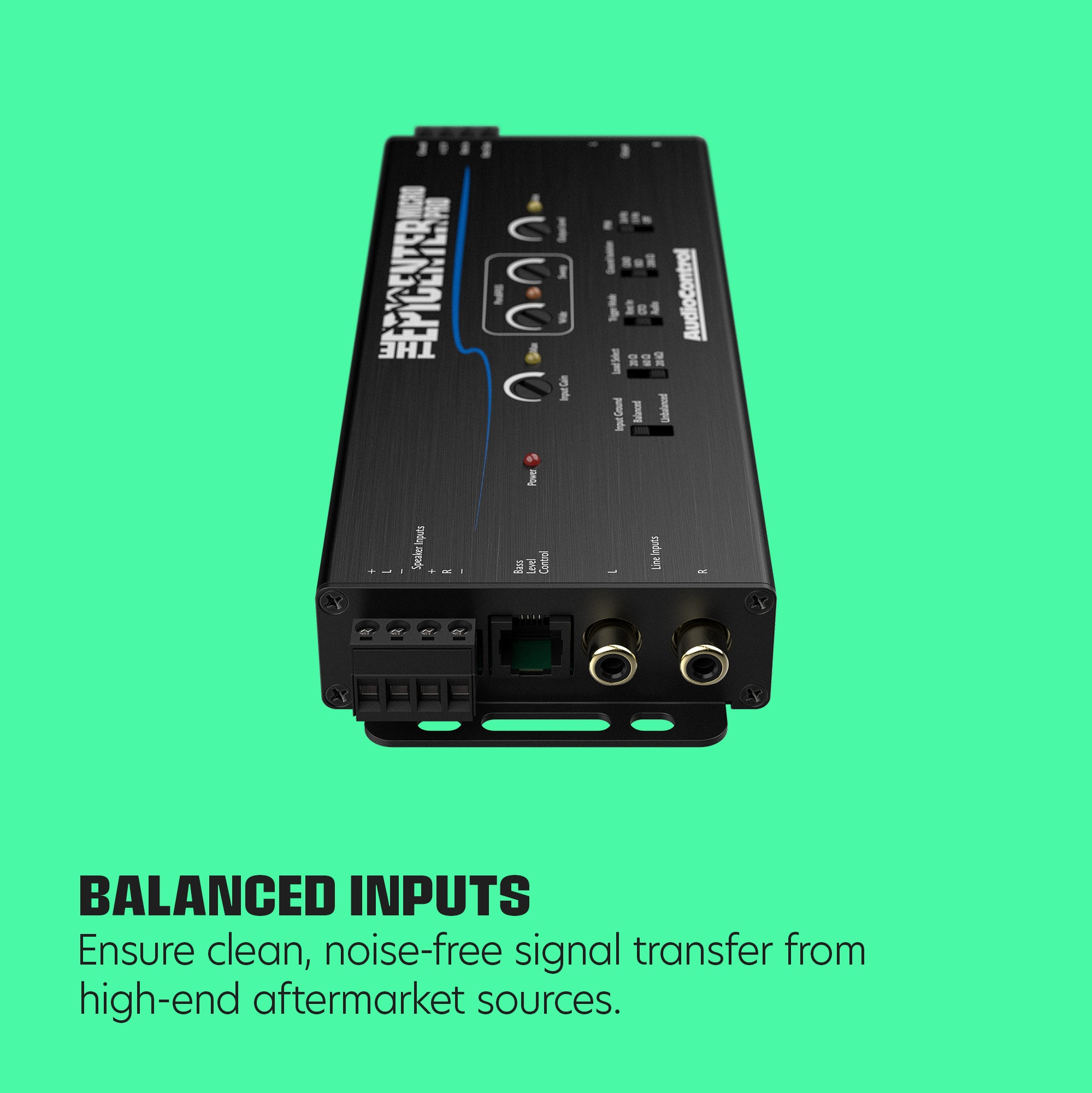

• Balanced Line Level Inputs:
Helps eliminate electrical interference and hum, delivering crystal-clear sound even in noisy car environments.
• Speaker-Level Inputs:
Seamlessly integrate a factory stereo without needing RCA outputs, saving money and simplifying upgrades.
• Load Selection Switch:
Ensures perfect compatibility with modern factory stereos, preventing issues and guaranteeing a smooth upgrade.
• GTO and Audio Sense Turn On:
Automatically powers up the unit when your stereo is active, making installation simpler and operation seamless.

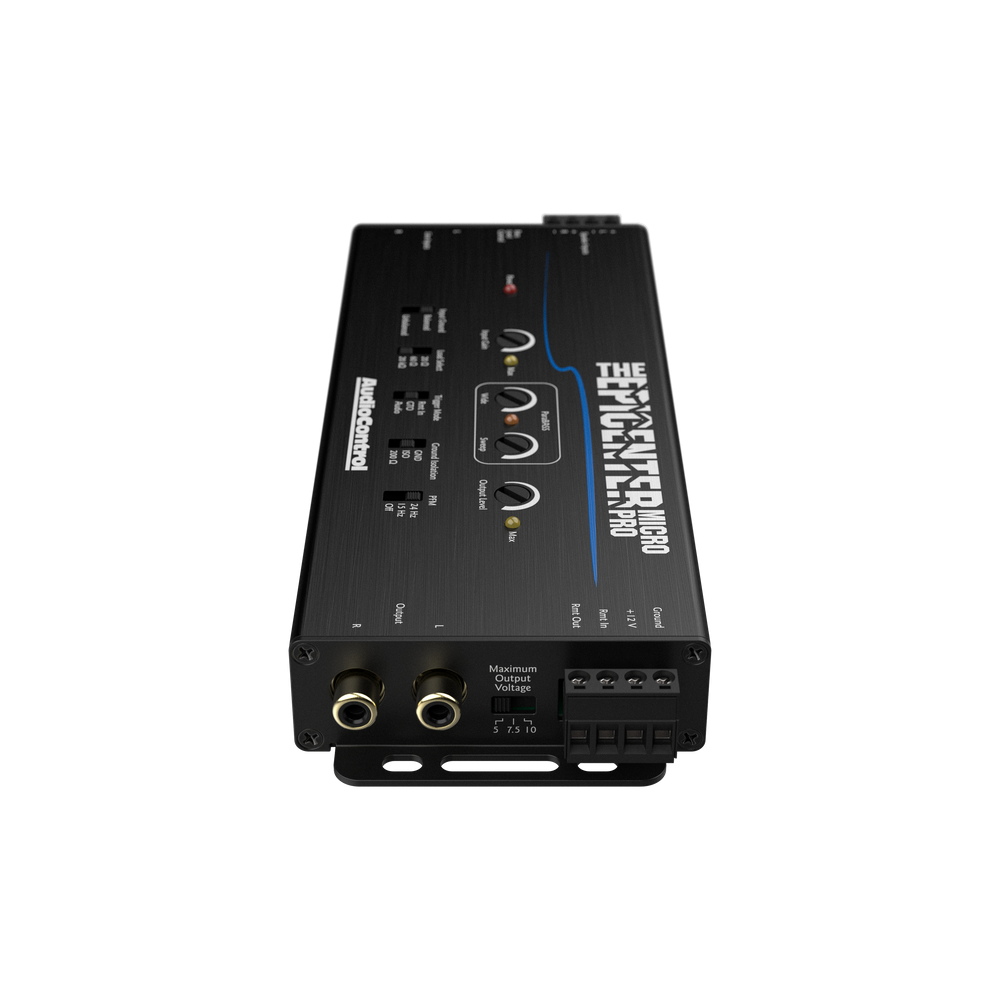

• 10 Volt Maximum Output Level:
Sends a strong, clean signal to your amplifier, unleashing maximum power and dynamic impact.
• Conformally Coated PCB:
A protective layer against moisture, dust, and temperature swings, improving the durability and reliability of The Epicenter Micro PRO.
• ACR-4 Dual-Knob Remote Level Control Included:
Command your bass instantly from the driver's seat, fine-tuning levels and bass restoration on the fly.

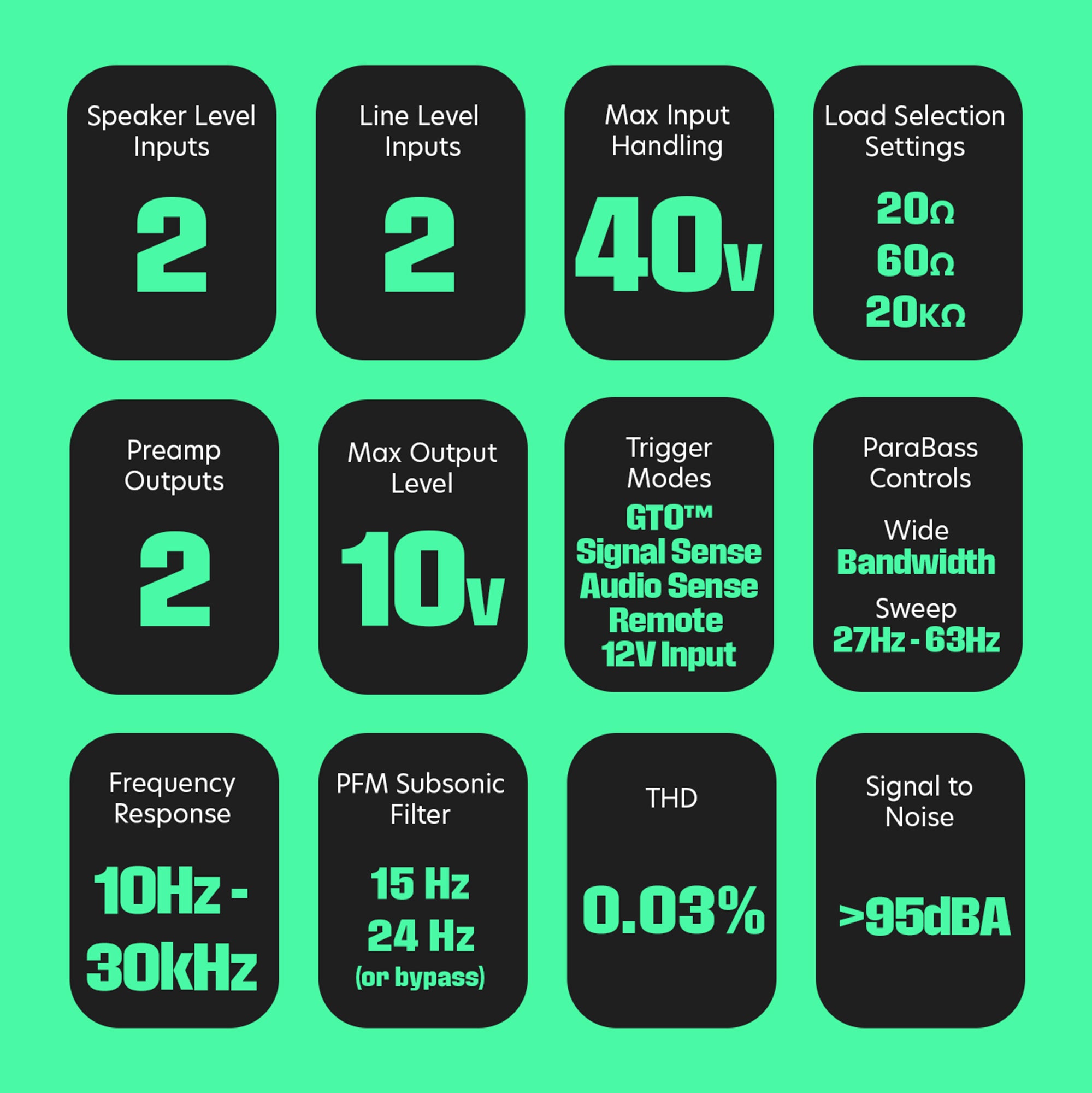

SPECIFICATIONS

INPUTS

  • Maximum Line Level Input: 10Vrms
  • Maximum Speaker Level Input: 40V / 400W (20kΩ setting)
  • Line Level Input Impedance: 7kΩ
  • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

OUTPUTS

  • Maximum Output Level (THD<1%): 9Vrms, 13V peak
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.03%
  • Signal to Noise: >105 dB
  • Frequency Response: 10 Hz – 22 kHz ±1 dB
  • PFM Filter (High Pass): Selectable 24 Hz, 15 Hz, or Bypass

CONTROL

  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Power Supply: High Headroom PWM Switching
  • Current Draw: 300 mA
  • Recommended Fuse Rating: 1 A

WEIGHTS & DIMENSIONS

  • Dimensions: 8″L x 3″D x 1″H
  • Weight: 0.9 lbs

IN THE BOXThe Epicenter Micro PRO, ACR-4, Remote Cable, Speaker and Power connectors, User Manual

The EPICENTER Micro PRO Bass Restoration Processor & Line Output Converter
The EPICENTER Micro PRO Bass Restoration Processor & Line Output Converter
The EPICENTER Micro PRO Bass Restoration Processor & Line Output Converter
The EPICENTER Micro PRO Bass Restoration Processor & Line Output Converter
The EPICENTER Micro PRO Bass Restoration Processor & Line Output Converter
The EPICENTER Micro PRO Bass Restoration Processor & Line Output Converter
The EPICENTER Micro PRO Bass Restoration Processor & Line Output Converter

Shipping

In stock

Est. arrival October 05

Key features

Bass Enhancer

Restores low-end frequencies

Para-Bass

Parametric equalizer for the bass output

Line Out Converter

Speaker & line level inputs

Line Driver

Boosts signal strength

Load Selection

Factory stereo compatibility

Subsonic Filter

Protect your speakers

Trigger Modes

+12V remote in, GTO signal sense, audio sense

ACR-4 Dual Knob Controller

Included

Conformally Coated PCB

Increased durability

Small Form Factor

Discreet compact size

EPICENTER Link

Seamlessly connect to EPIC Amps

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Bass not hitting right? The EPICENTER is the OG Bass Enhancer.

Features

Bass in Your Face

The EPICENTER recreates missing bass tones and transmits this low-frequency information back into the signal path, letting your bass hit where you want it.

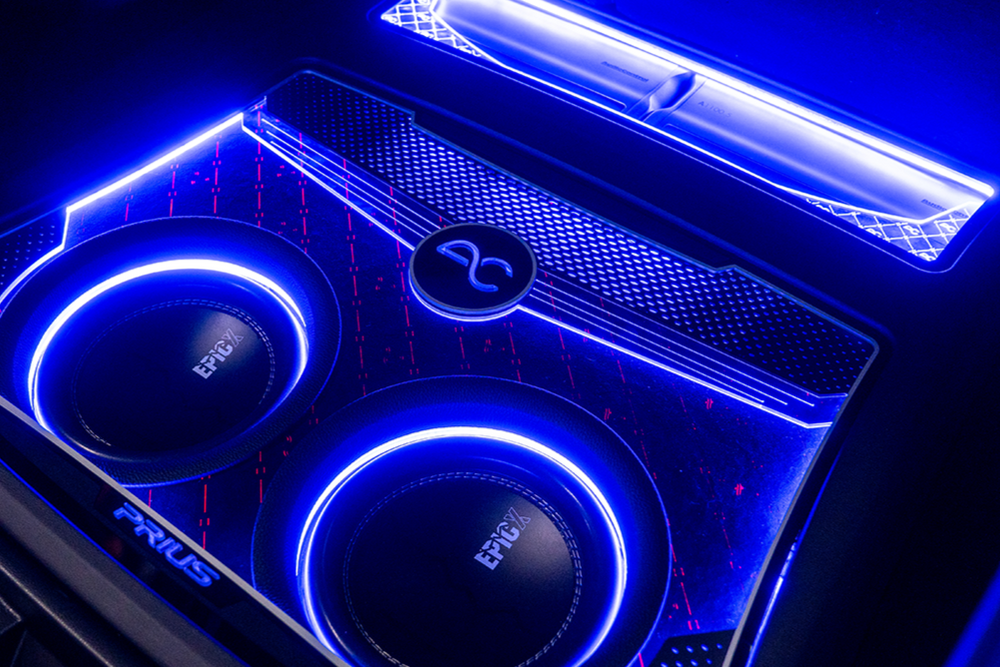

Car subwoofer with blue LED lighting and a visible brand EPICX logo.

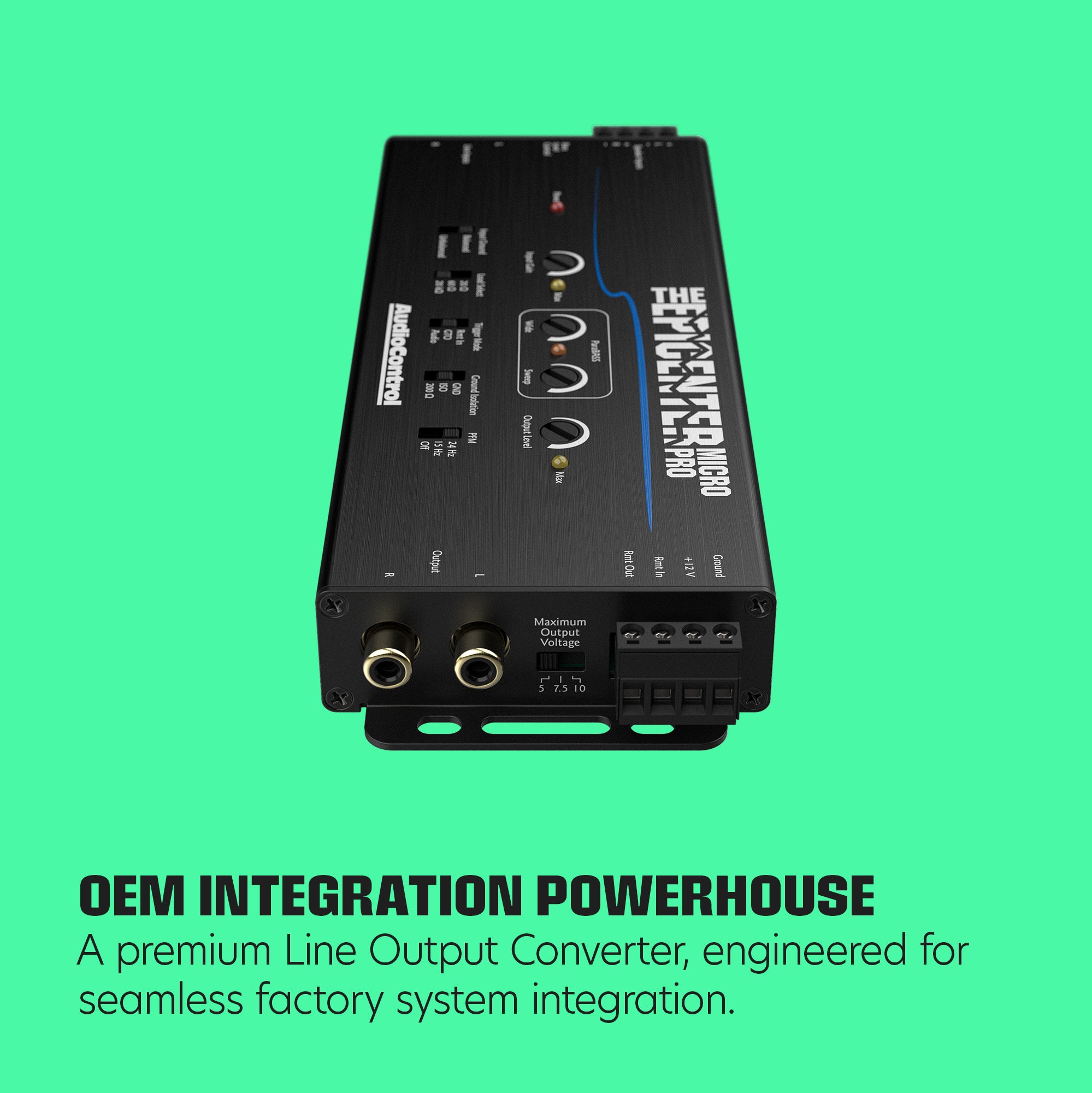

Line Output Converter

The Epicenter Micro PRO combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities.

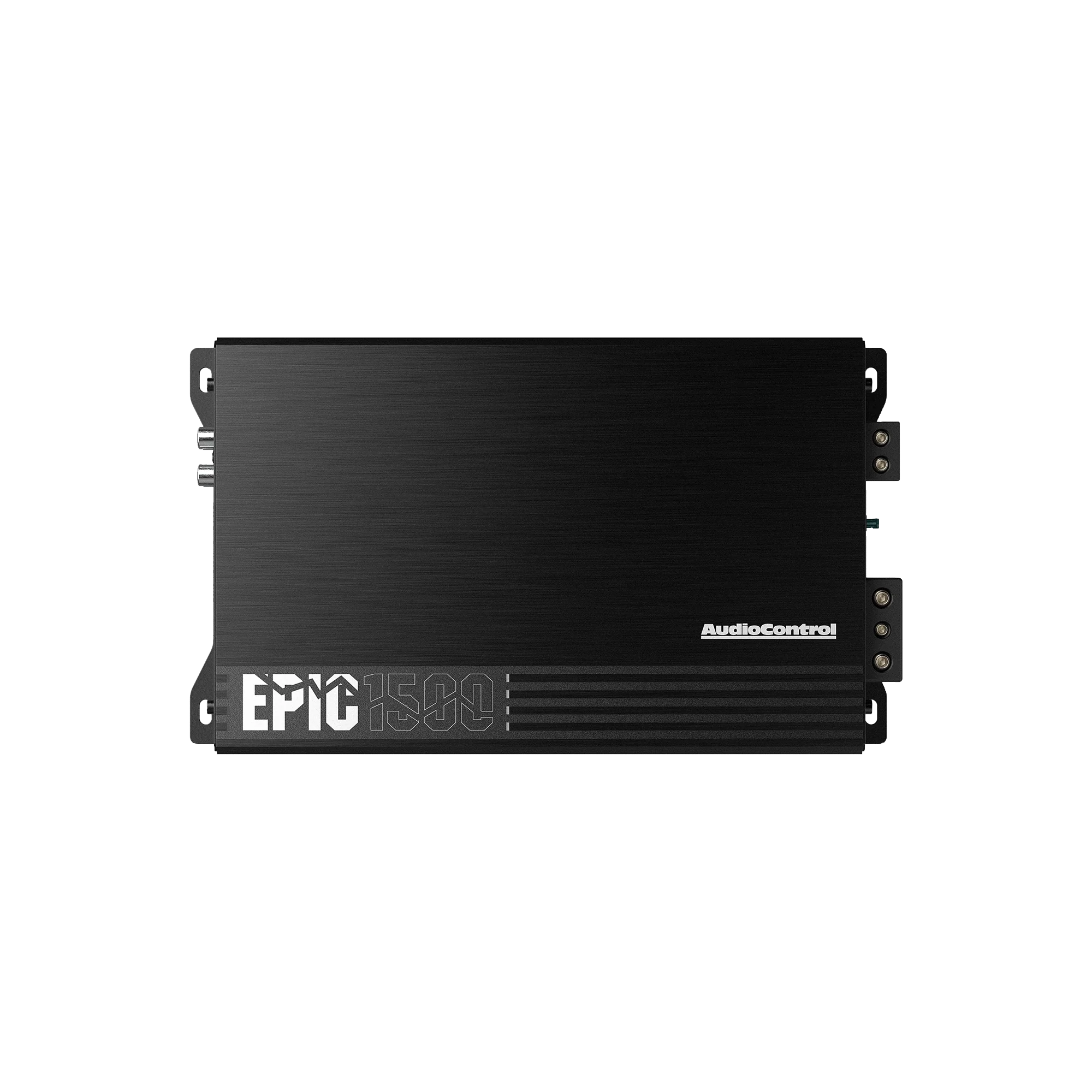

EPICENTER Link

Seamlessly connect any EPICENTER with an EPIC Monoblock/EPICFIVE/EPICBIGFOUR amplifier for an unbeatable bass experience.

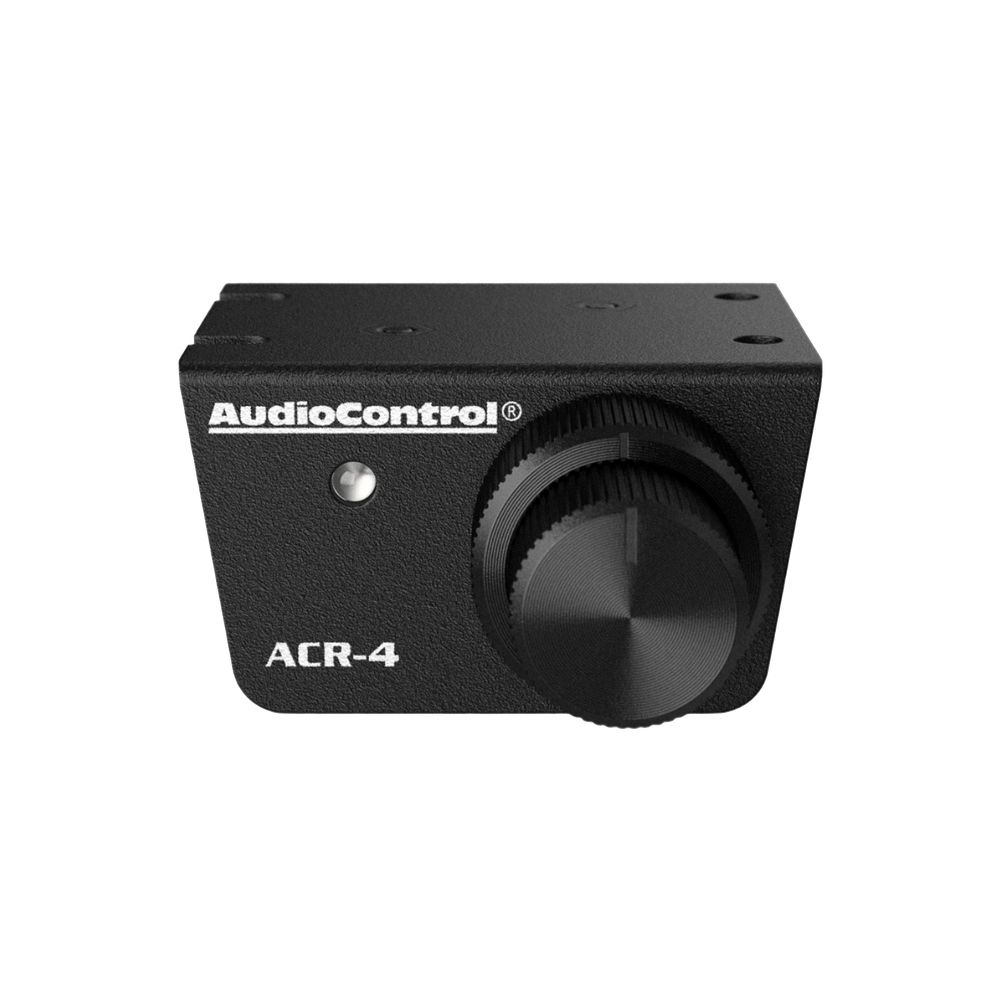

ACR-4 Dual Knob Dash Mount Control

Independently adjust Epicenter bass restoration and subwoofer output levels.

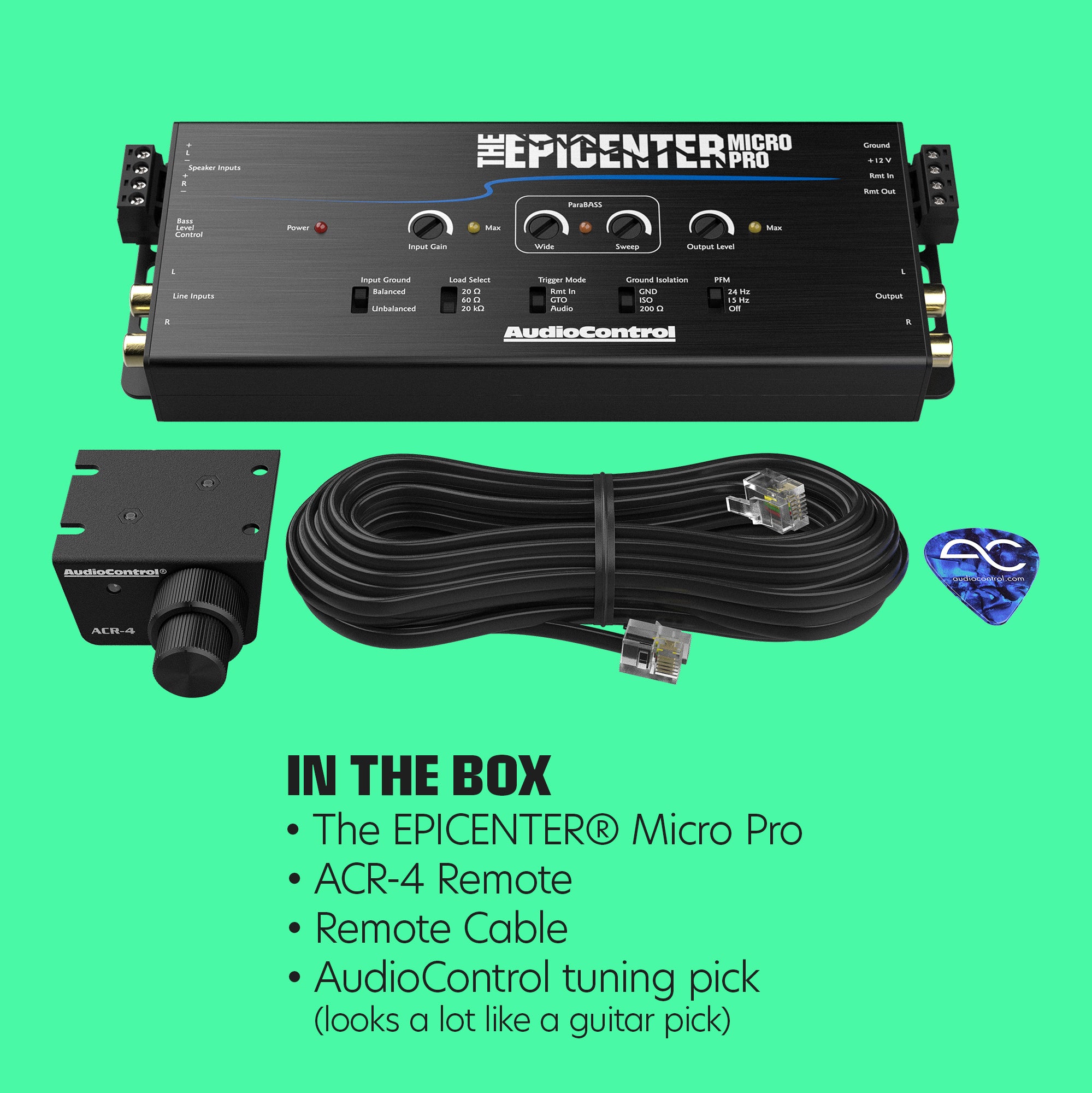

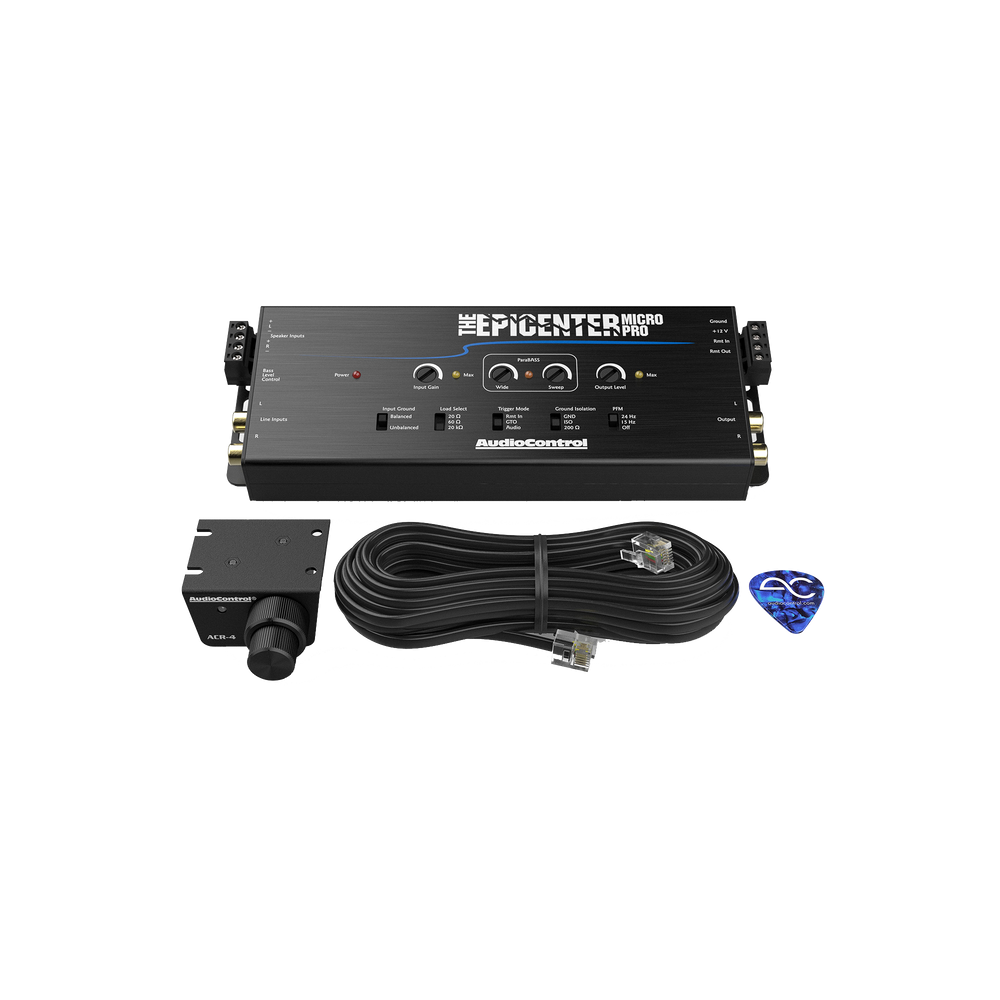

What's in the box

The Epicenter Micro PRO

The Epicenter Micro PRO, ACR-4, Remote Cable, Speaker and Power connectors, User Manual

Specs & installation

Product specs

Maximum Line Level Input 10Vrms
Maximum Speaker Level Input 40V / 400W (20kΩ setting)
Line Level Input Impedance 7kΩ
Speaker Level Input Impedance (selectable) 20Ω, 60Ω, 20kΩ
Maximum Output Level (THD<1%) 9Vrms, 13V peak
Output Impedance 150Ω
Total Harmonic Distortion 0.03%
Signal to Noise 105 dB
Frequency Response 10 Hz – 22 kHz ±1 dB
PFM Filter (High Pass) Selectable 24 Hz, 15 Hz, or Bypass
Power Supply High Headroom PWM Switching
Current Draw 300 mA
Recommended Fuse Rating 1 A

Dimensions

Dimensions 8″L x 3″D x 1″H
Weight 0.9 lbs

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
