DM-RTA-PRO KIT

$1,199.00

Real-Time Analyzer and Multi-Test Tool Kit

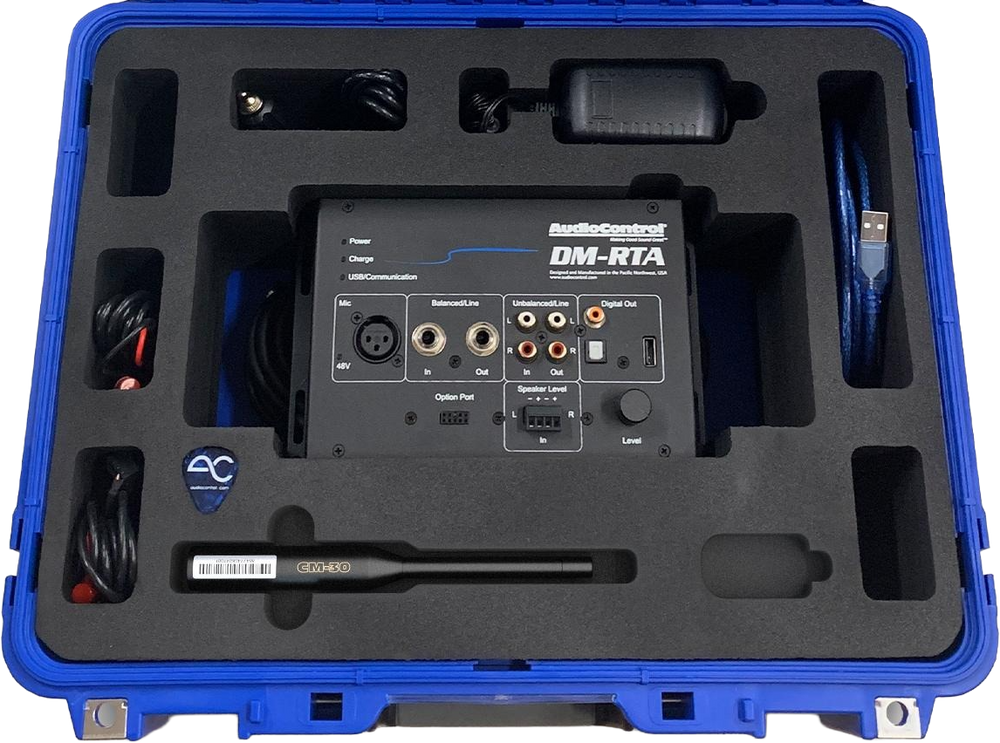

The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution. Nestled snuggly in the fetching blue hard case, you will find a DM-RTA, AC power supply, all of the required interconnects, and custom test leads for line-level and speaker-level measurements.

The RTA (real-time analyzer) takes electrical and acoustical measurements. This will let you know how much equalization is needed to smooth out the frequency response of a vehicle.

The sound pressure level (SPL) is used to show how loud the audio system can perform. This is something every customer would love to know and a way to test the before and after performance of a system.

Testing speaker polarity is very important. All the tuning and setup means nothing if all the speakers aren't in phase.

The oscilloscope measurement will give you a graphical representation of audio or electrical signals so that you can determine if these signals are distorted (clipped) or clean and their amplitude. This is extremely valuable when setting input and output gains on audio products.



Included in Kit:

  • DM-RTA Real Time Analyzer
  • 110V AC power supply/charging adapter
  • USB A to B cable
  • USB A to A cable

  • CM-30 measurement microphone
  • XLR microphone cable
  • Speaker input to spring-loaded test leads cable
  • RCA input to spring-loaded test leads cable
  • AudioControl tuning pick (looks a lot like a guitar pick)
  • Blue hard case with laser-cut foam




DM-RTA

Inputs
1 x Balanced (Input Impedance 3.24kΩ)
1 x Unbalanced (Input Impedance 3.24kΩ)
1 x Microphone (Input Impedance 10kΩ)
1 x Speaker Level (Input Impedance 16.24kΩ)
Max Low-Level Input Voltage: 8 Vrms
Max High-Level Input Voltage: 40 Vrms

Outputs
1 x Balanced (Output Impedance: 51Ω)
1 x Unbalanced (Output Impedance: 51Ω)
1 x Coax Digital (Output Impedance: 75Ω)
1 x Toslink
1 x USB
Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

General
Power Supply:
Battery Life: ~5 Hours
weights & dimensions
Dimensions: 8”W x 4.8”D x 2.4”H
Weight: 2.6lbs (1.2kg)

What's in the box: DM-RTA, USB Cables, Power Supply, Microphone & Cable, Tuning Pick, Speaker & Line-Level Test Leads, Hard Case, Manual, Warranty

DM-RTA APP: for PC & MAC

Hard Case Weight & Dimensions

Dimensions: 16.5”W x 16”D x 7”H
Weight (with the included product): 13.0 lbs. (5.9 kg)

Shipping

In stock

Est. arrival March 14

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

What's in the box

DM-RTA-PRO-KIT

DM-RTA, USB Cables, Power Supply, Microphone & Cable, Tuning Pick, Speaker & Line-Level Test Leads, Hard Case, Manual, Warranty

Specs & installation

Product specs

1 x Balanced Input Impedance 3.24kΩ
1 x Unbalanced Input Impedance 3.24kΩ
1 x Microphone Input Impedance 10kΩ
1 x Speaker Level Input Impedance 16.24kΩ
Max Low-Level Input Voltage 8 Vrms
Max High-Level Input Voltage 40 Vrms
1 x Balanced Output Impedance 51Ω
1 x Unbalanced Output Impedance 51Ω
1 x Coax Digital Output Impedance 75Ω
Max Output Voltage from Signal Generator 5 Vrms / 7 V Peak
1 x Toslink
1 x USB

Dimensions

Dimensions 16.5”W x 16”D x 7”H
Weight (with the included product) 13.0 lbs. (5.9 kg)
