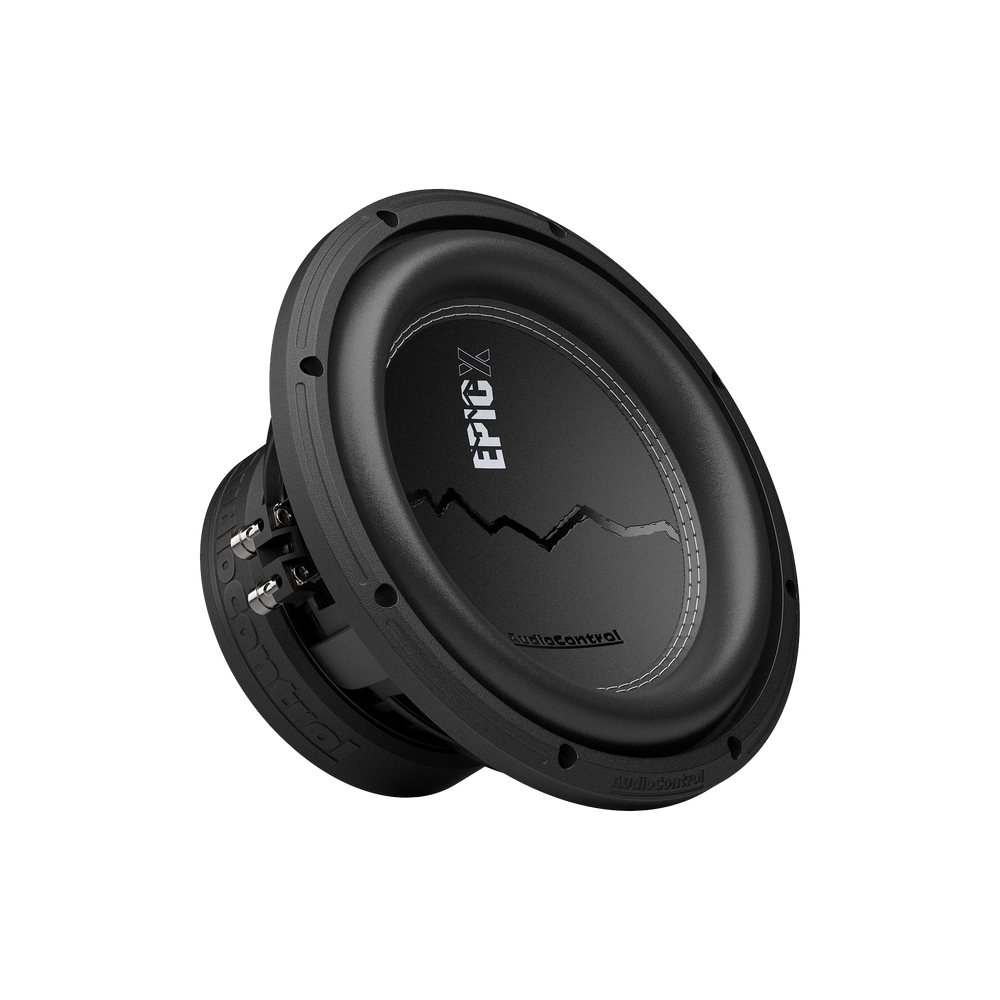

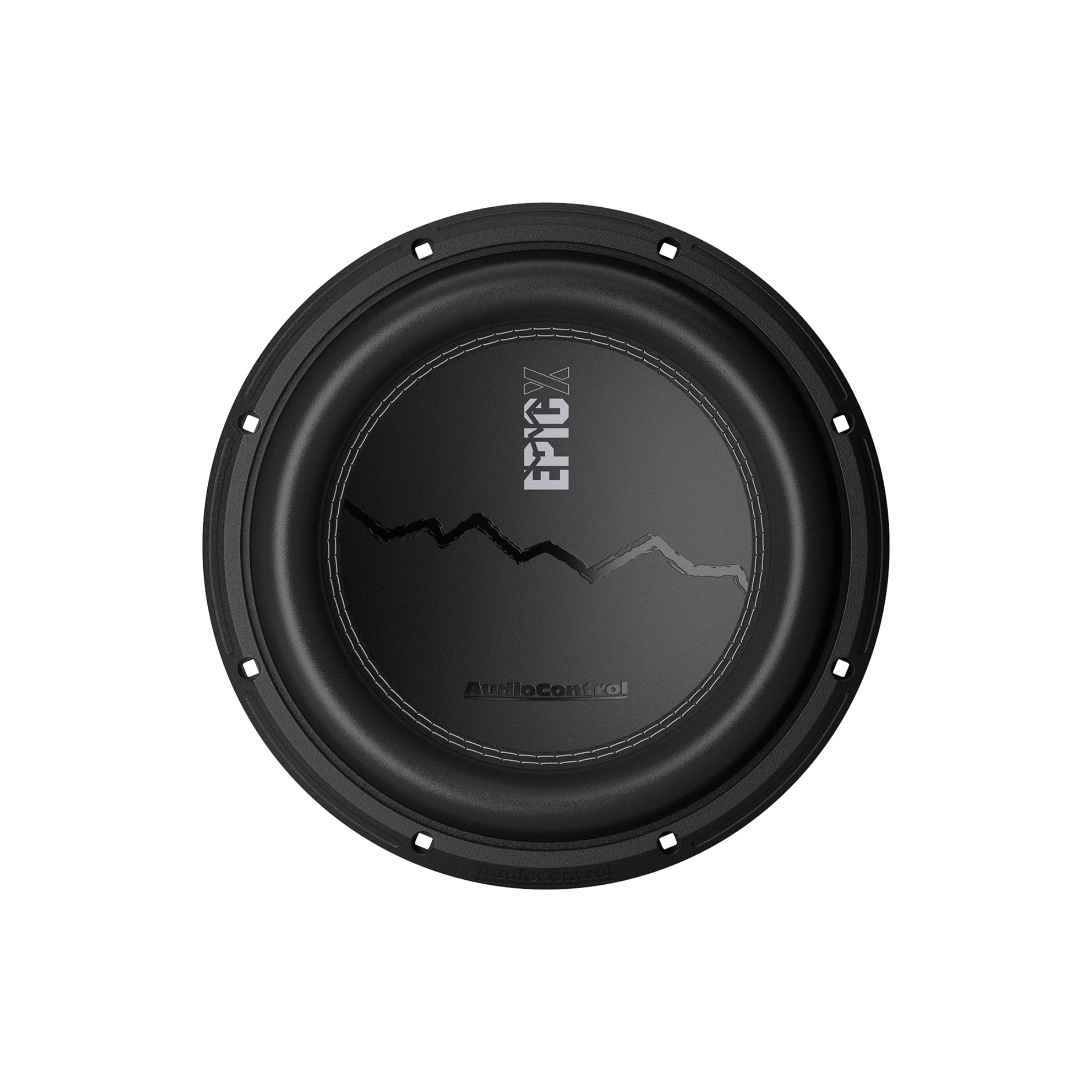

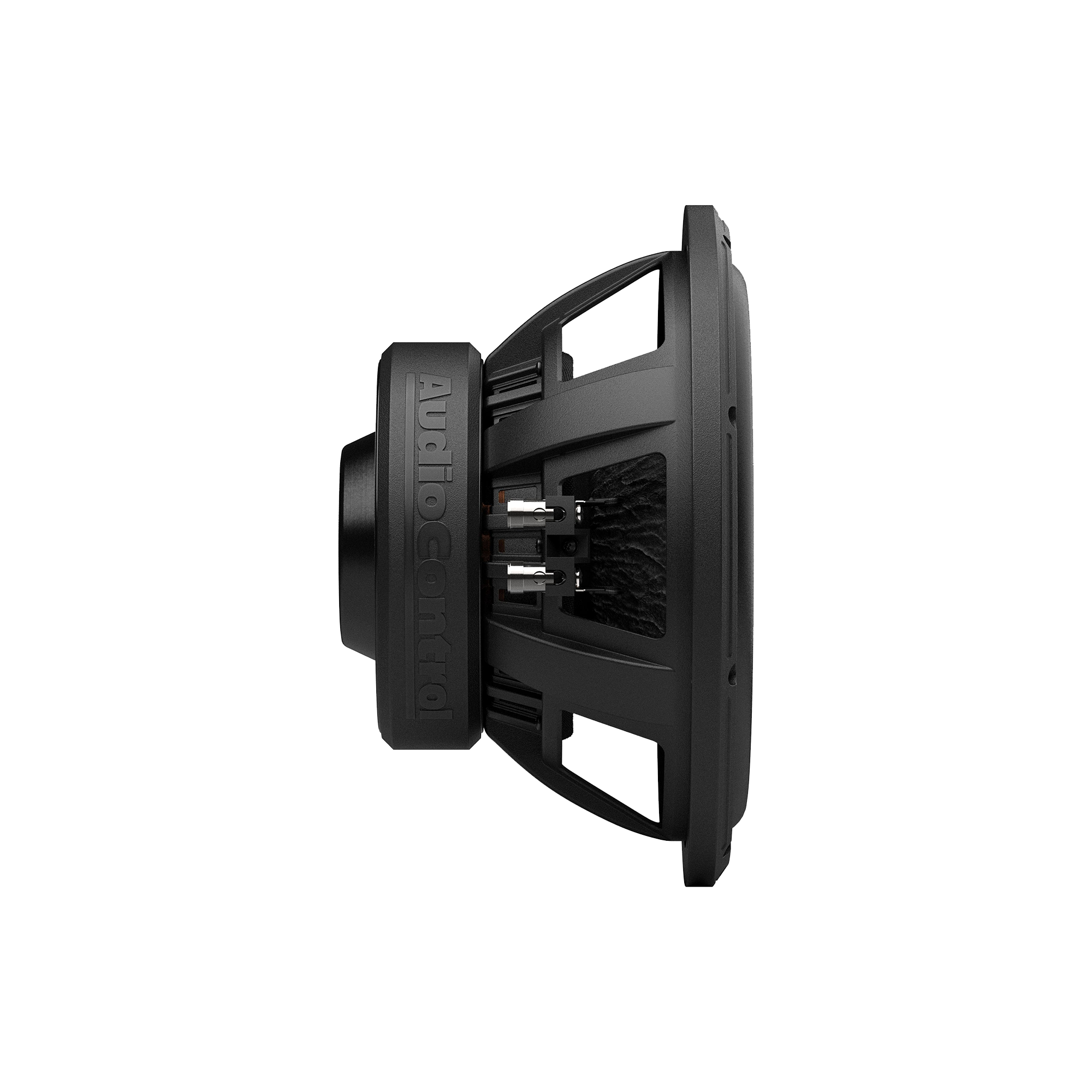

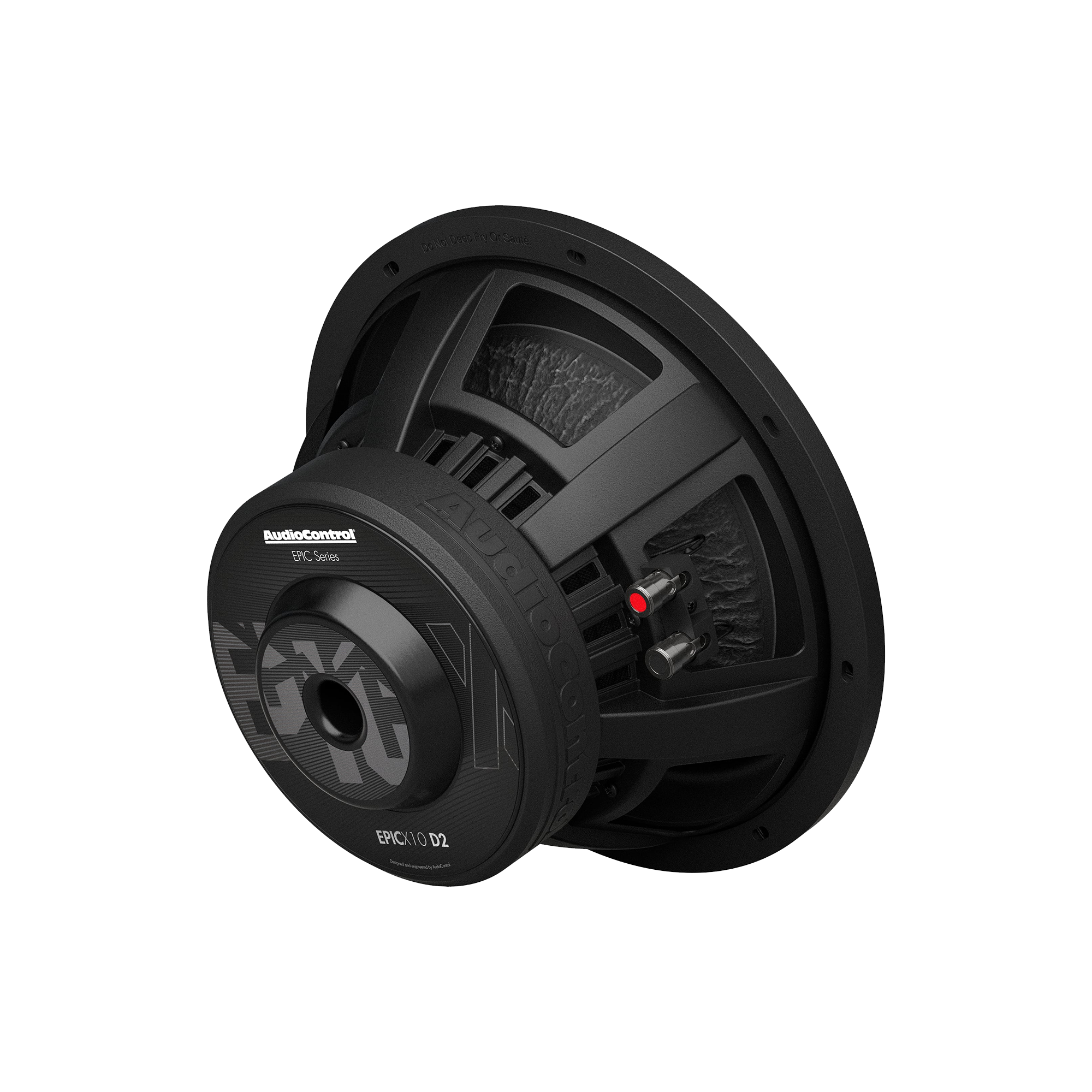

EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms

$149.00

Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.

Size

Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.

Precision-engineered from the ground up, these subwoofers feature non-pressed paper cones, heavy-duty motor structures, and high-quality components that withstand heavy demand. Every element is optimized for output, efficiency, and durability, producing a sub that overachieves at every level!

If you’re pushing the limits in competition or want a system that dominates on the street, EPICX Series is made for you. These subs handle power without breaking a sweat, delivering the kind of deep, aggressive bass that turns heads.

Crafted with AudioControl’s legacy of build quality and innovative design at its core, the EPICX Series brings performance without sacrificing clarity. Built for those who love loud. No gimmicks — just raw, responsive performance you can count on.

FEATURES

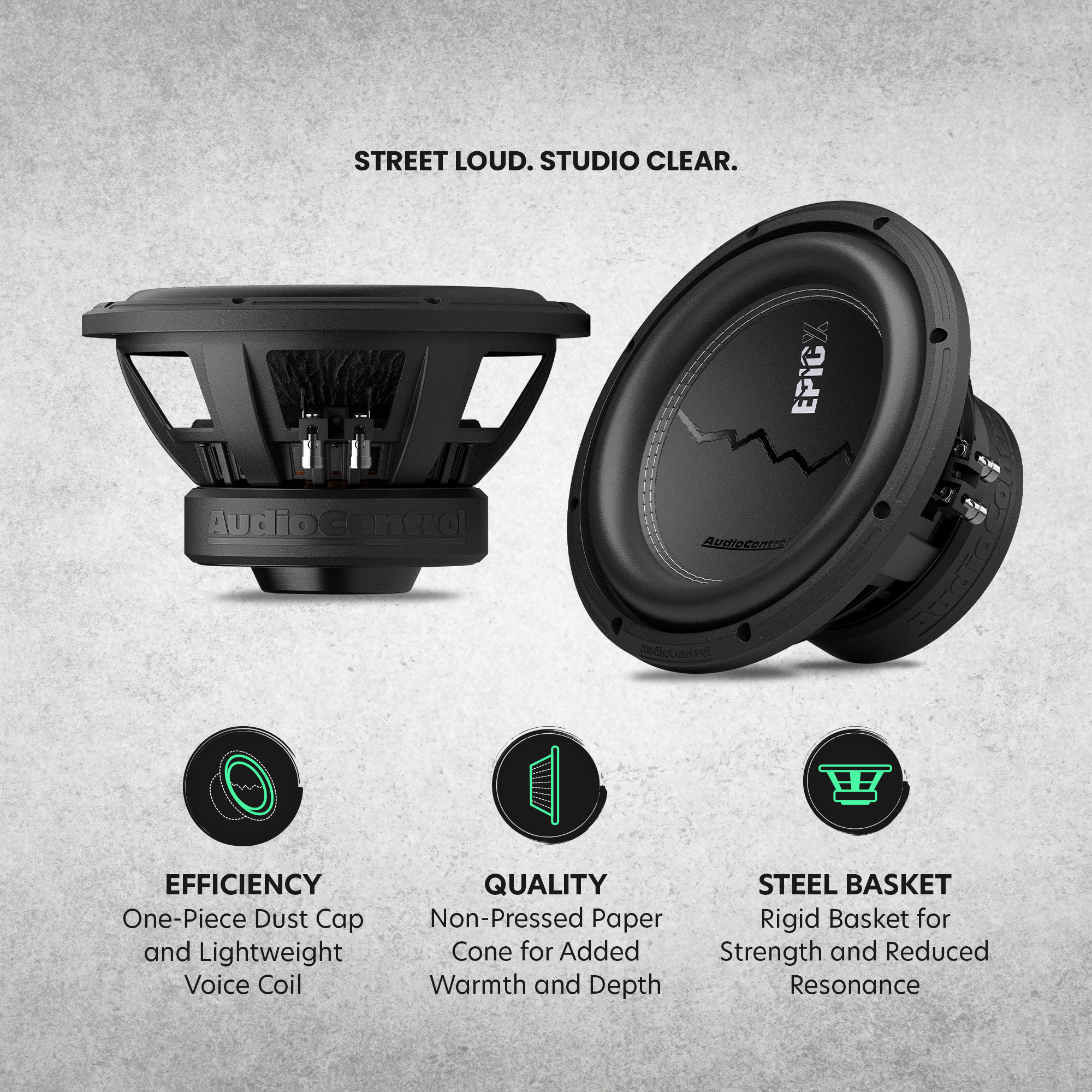

  • Composite Foam Surround: Delivers smooth controlled bass, ensuring a heart-pounding sound that doesn't compromise.
  • High-Precision Motor Assembly: Maximizes efficiency and output, converting amplifier power into pure, impactful bass.
  • Rigid Steel Basket: Provides unwavering strength and eliminates resonance for tighter bass and clearer sound.
  • High-Temperature, Lightweight Voice Coil: Ensures lightning-fast, dynamic bass response and unwavering reliability under extreme power.
  • One-Piece Dust Cap Design: Enhances cone rigidity for consistent, accurate, distortion-free bass reproduction.
  • Non-Pressed Paper Cone: Delivers organic warmth, natural depth, and rich low-end character to your bass.
  • Large-Gauge, Quick-Release Black Nickel Terminals: Ensures maximum conductivity and a rock-solid, vibration-proof connection for consistent power delivery.
  • Pair with The EPICENTER: Unleash unmatched bass, as the EPICX Series is engineered to seamlessly integrate with AudioControl's legendary bass restoration processor for mind-blowing low frequencies.

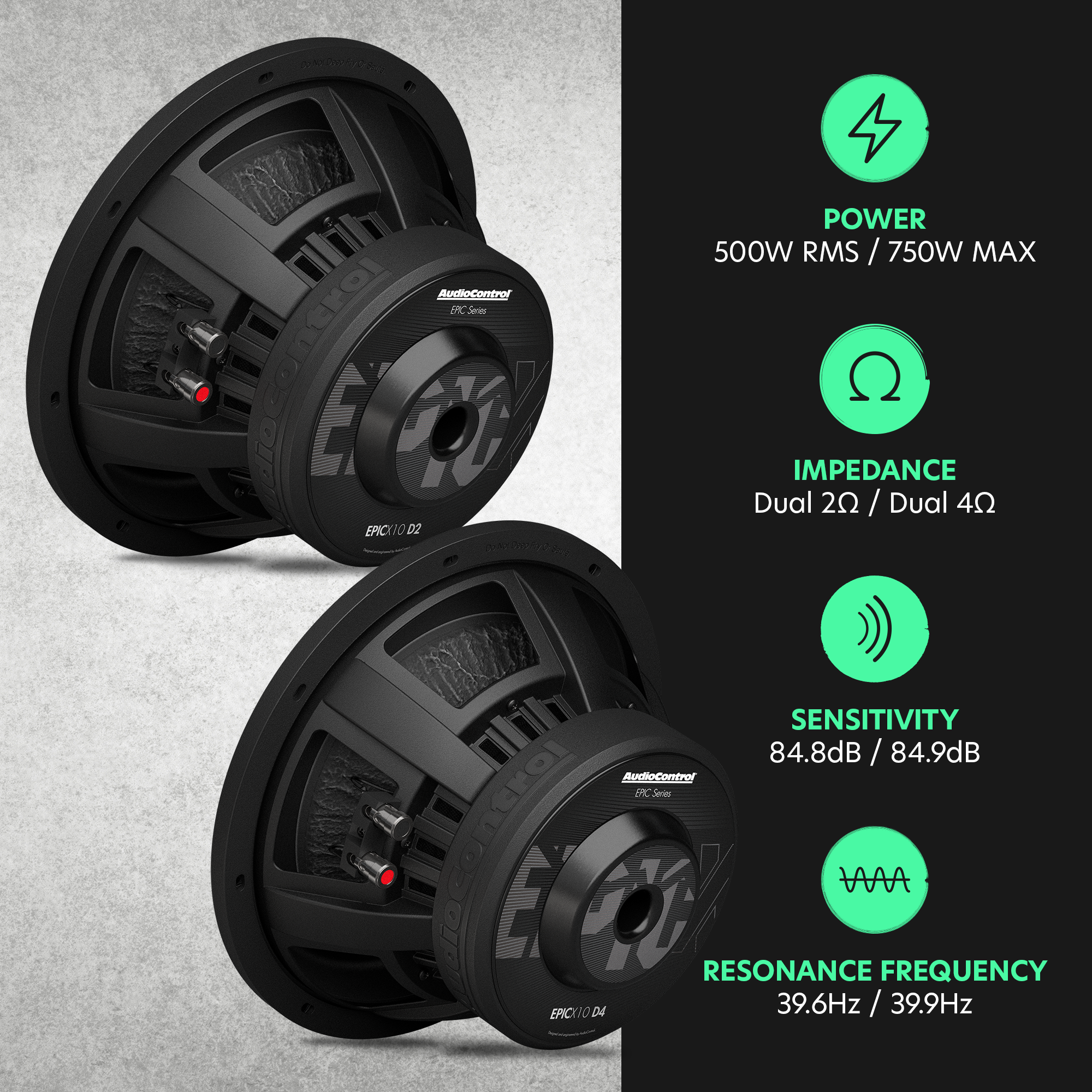

SPECIFICATIONS

Speaker Size                                10 in / 250 mm

Power                                               500W RMS / 750W Max

Impedance                                   2 or 4 ohms

Voice Coil                                      2.38 in

Resonance Frequency            39.8 Hz

Efficiency                                      84.8 dB

Magnet Dimensions                6.14 x 2.95 x 0.98 in / 156 x 75 x 25 mm





IN THE BOX: (1) EPICX10D2 or EPICX10D4 Subwoofer, User Guide

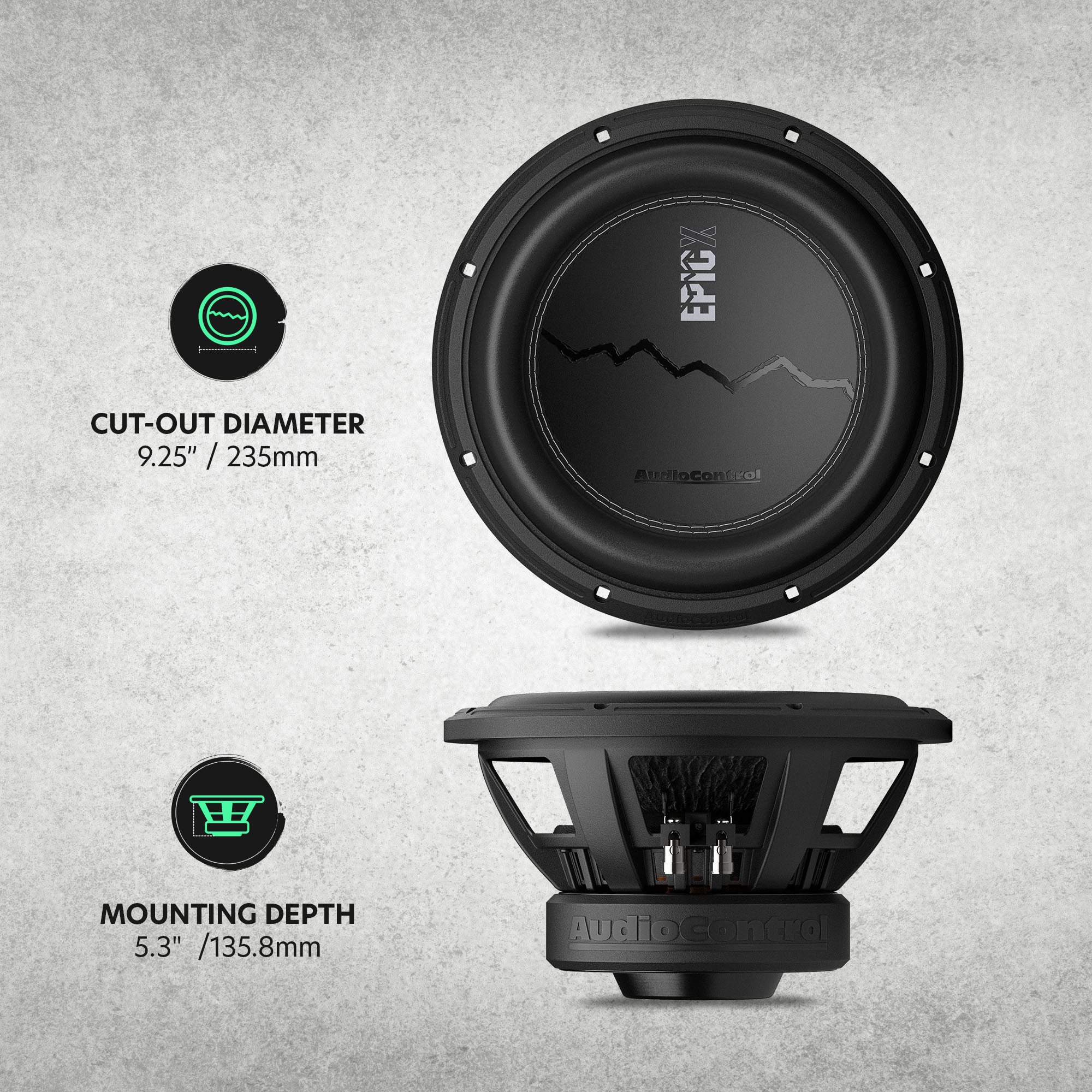

DIMENSIONS

  • Overall Diameter: 10.5 in / 269 mm
  • Cut Out Diameter: 9.25 in / 235 mm
  • Mounting Depth: 5.3 in / 135.8 mm
  • Mounting Height: 1 in / 24 mm
  • Motor Diameter (w/ Cover): 6.4 in / 162 mm

PORTED ENCLOSURE

  • External Dimensions: 20.5″ W × 13.5″ H × 11.5″ D
  • Net Internal Volume:  1.25 ft3
  • Exterior Volume:  1.84 ft3
  • Material Thickness: 0.75 in
  • Port Area: 15 sq in
  • Port Inlet: 1.25″ W × 12″H
  • Port Length: 23 in
  • Tuning Frequency:  35 Hz

SEALED ENCLOSURE (Ideal)

  • External Dimensions: 14″ W × 12.75″ H × 11″ D
  • Internal Volume: 0.625 ft3
  • Material Thickness: 0.75 in
EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms
EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms
EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms
EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms
EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms
EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms
EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms
EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms

Shipping

In stock

Est. arrival October 05

Key features

Foam Surround

Delivers smooth bass

High-Precision Motor

Maximizes efficiency

Rigid Steel Basket

Provides unwavering strength

Lightweight Voice Coil

Ensures dynamic bass response

One-Piece Dust Cap

Enhances cone rigidity

Non-Pressed Paper Cone

Delivers organic low-end bass

Large-Gauge Terminals

Ensures maximum conductivity

Pair w/ The EPICENTER

Seamlessly integrates with The EPICENTER

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

10" EPICX Subwoofer for Maximum Bass

Features

Bass in Your Face

A High-Precision Motor Assembly maximizes efficiency and output, converting amplifier power into pure, impactful bass.

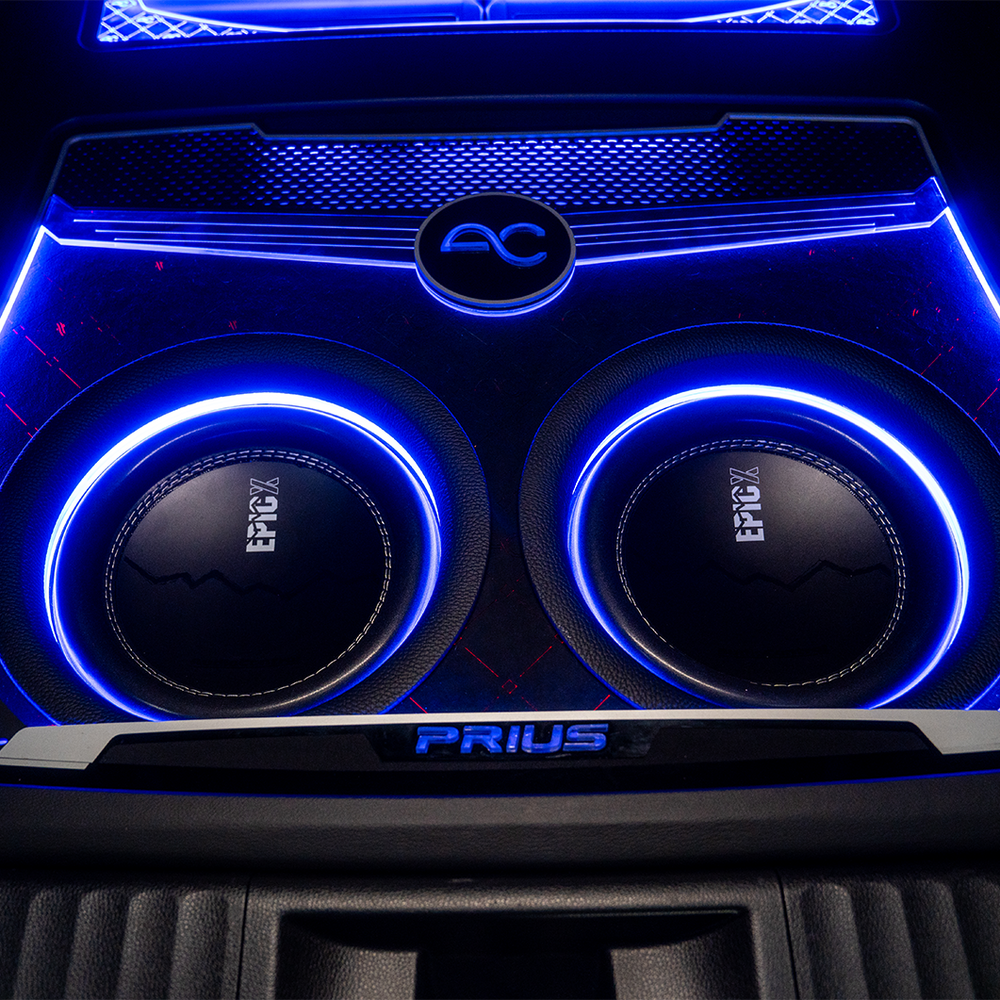

Car audio system with blue lighting and 'EPIC' branding on a dark background

Feel the Rush

A High-Temperature Lightweight Voice Coil enables lightning-fast bass response and reliability under extreme power to match your thrill-seeking lifestyle.

EPIC-lifestyle-jdm-tokyo-night

Pair with The EPICENTER

Unleash unmatched bass, as the EPICX Series is engineered to seamlessly integrate with AudioControl's legendary bass restoration processor for mind-blowing low frequencies.

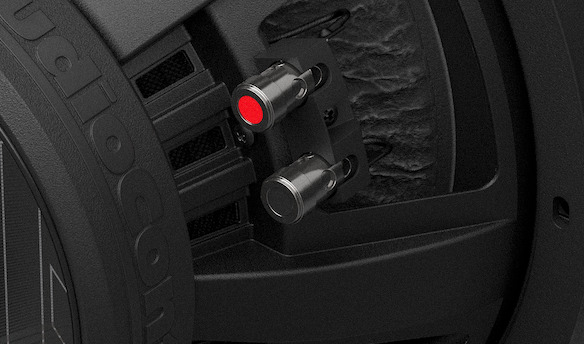

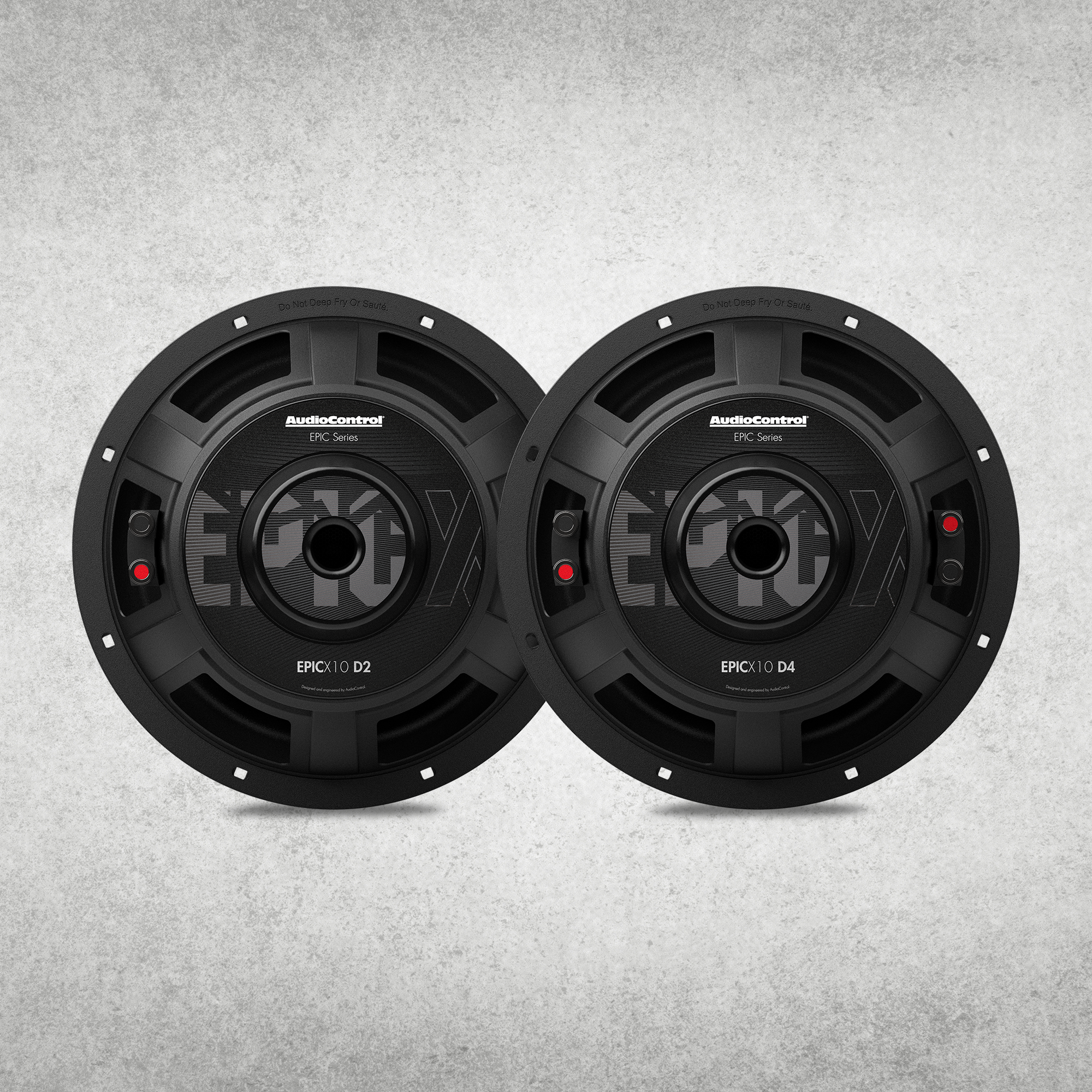

Dual Voice Coil

The flexible wiring allows you to match the subwoofer's impedance to any amplifier for peak performance.

What's in the box

EPICX10

(1) EPICX10D2 or EPICX10D4 Subwoofer, User Guide

Specs & installation

Product specs

Speaker Size 10 in / 250 mm
Power 500W RMS / 750W Max
Impedance 2 or 4 ohms
Voice Coil 2.38 in
Resonance Frequency 39.8 Hz
Efficiency 84.8 dB
Magnet Dimensions 6.14 x 2.95 x 0.98 in / 156 x 75 x 25 mm

Dimensions

Overall Diameter 10.5 in / 269 mm
Cut Out Diameter 9.25 in / 235 mm
Mounting Depth 5.3 in / 135.8 mm
Mounting Height 1 in / 24 mm
Motor Diameter (w/ Cover) 6.4 in / 162 mm

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you

Reviews

No Reviews Found

No reviews found for this product.

See how it stacks up

EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms

EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms

Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.

$149.00

Size

Dual 2-Ohms, Dual 4-Ohms

0

No reviews yet

Spike Series 10" High-Performance Subwoofer, 500W RMS, 2/4 Ohms

Spike Series 10" High-Performance Subwoofer, 500W RMS, 2/4 Ohms

We are proud to present the ultimate in versatility and durability with AudioControl's Spike Series Subwoofers. These high-performance subwoofers come in a variety of sizes and power ratings to suit your audio needs. Spike Series Subwoofers feature a 3-layer voice coil former to handle some serious power.

$209.00

Size

2-Ohms, 4-Ohms

0

No reviews yet

View product
EPICX Series 12" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms

EPICX Series 12" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms

Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.

$159.00

Size

Dual 2-Ohms, Dual 4-Ohms

0

No reviews yet

View product
EPICX Series 8" Dual Voice Coil Subwoofer, 400W RMS, Dual 2/4 Ohms

EPICX Series 8" Dual Voice Coil Subwoofer, 400W RMS, Dual 2/4 Ohms

Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.

$119.00

Size

Dual 2-Ohms, Dual 4-Ohms

4.3/5

Based on 3 reviews

View product

SHOW US YOUR BUILD

TAG #AUDIOCONTROL TO GET FEATURED.

FOLLOW US

Product Added to Cart:

EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms

Subwoofer

EPICX Series 10" Dual Voice Coil Subwoofer, 500W RMS, Dual 2/4 Ohms

Experience the perfect fusion of relentless output and refined audio...

Size:

$149.00

Checkout

Recommended additions:

Further improve your setup adding these compatible products

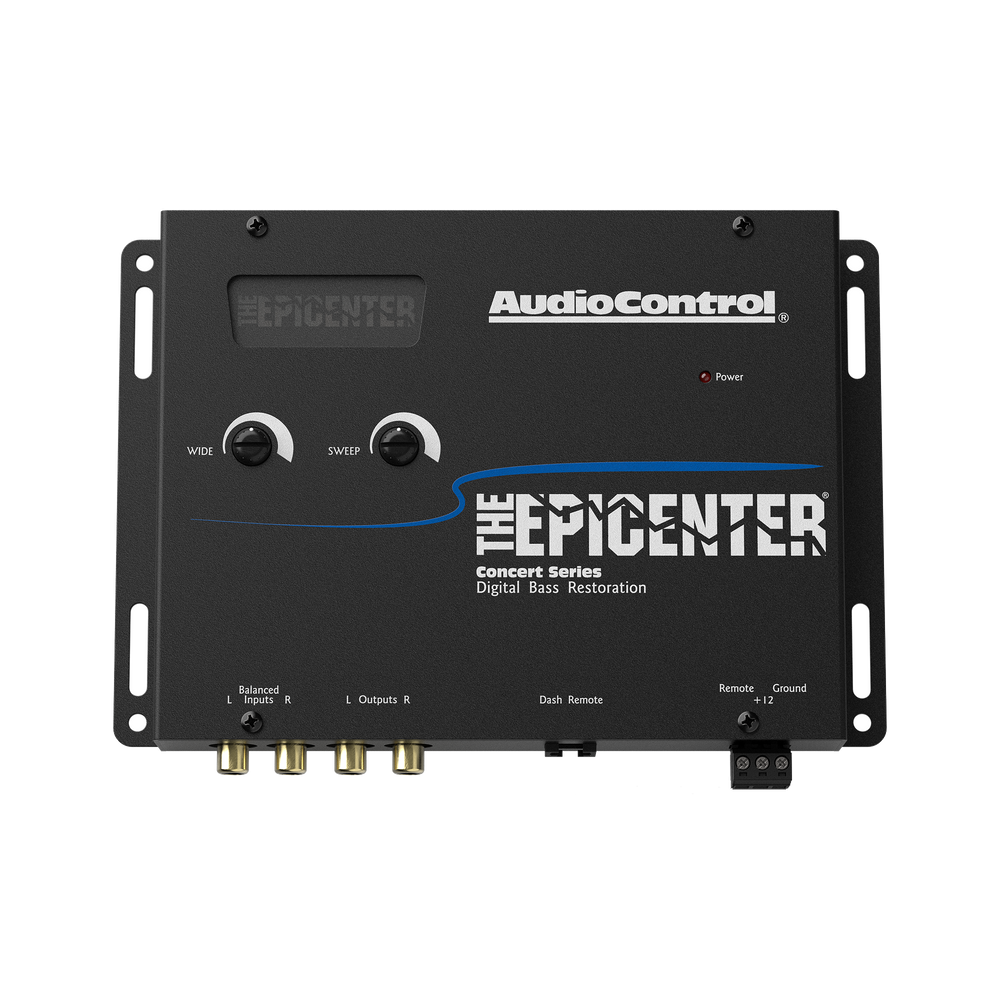

  • The EPICENTER Bass Restoration Processor
