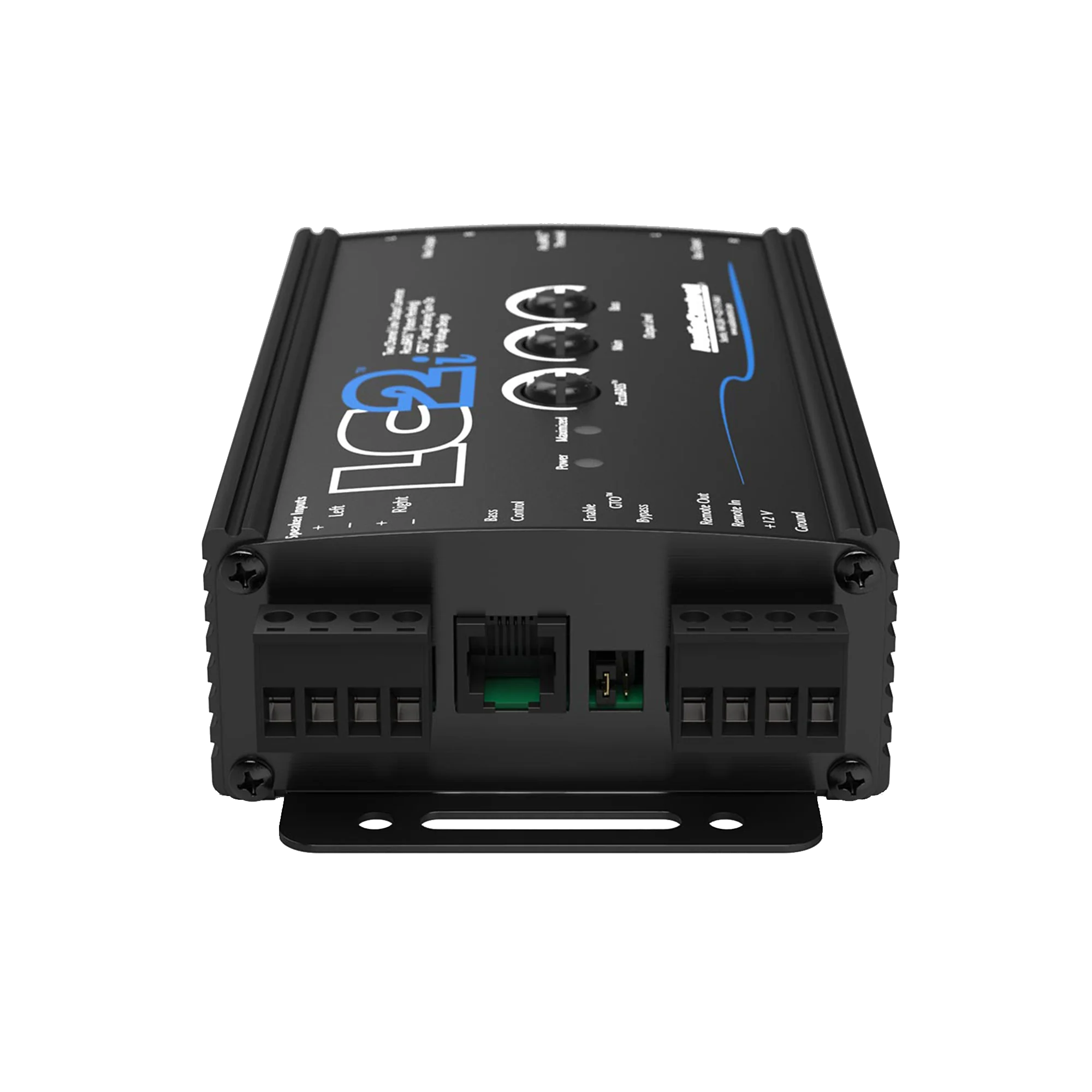

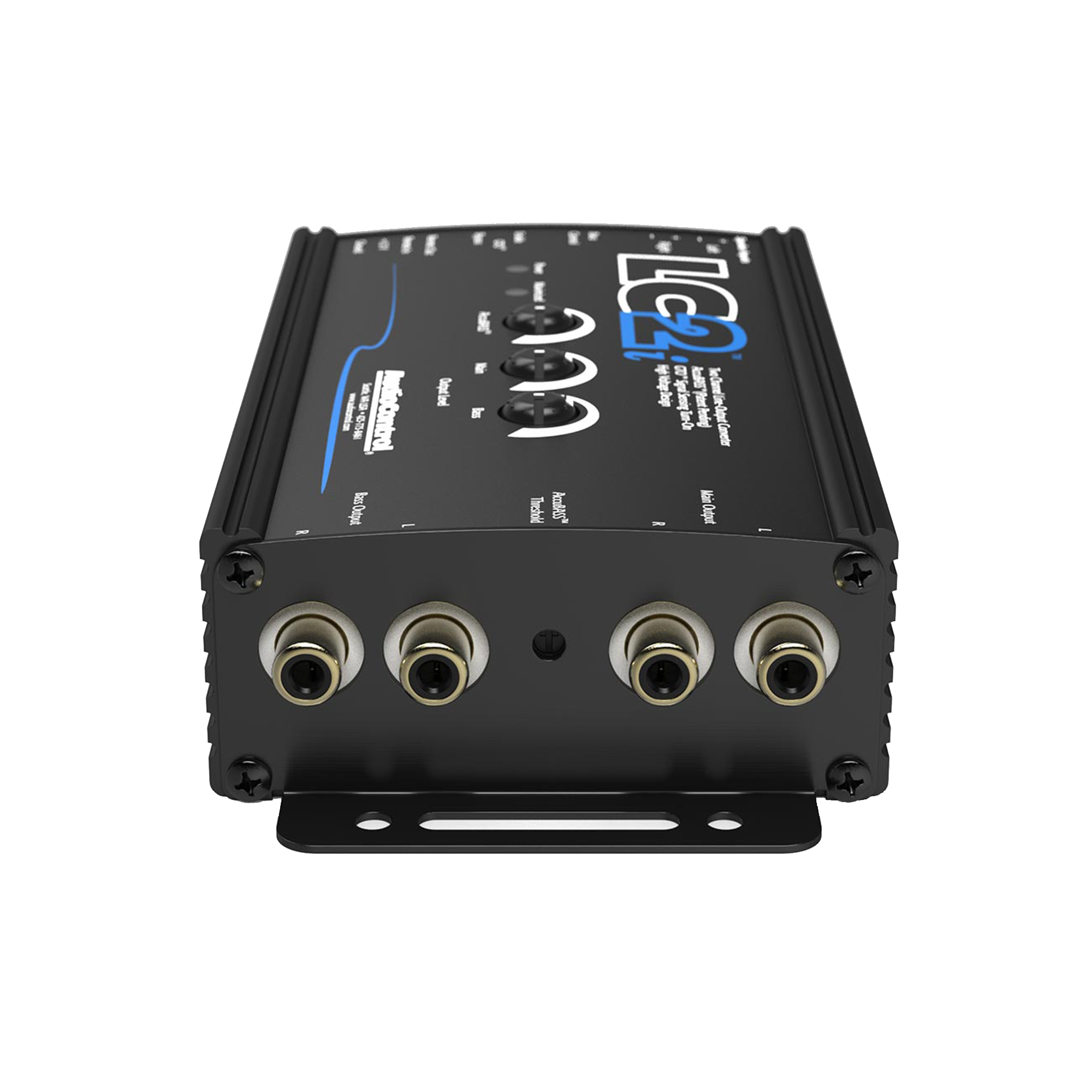

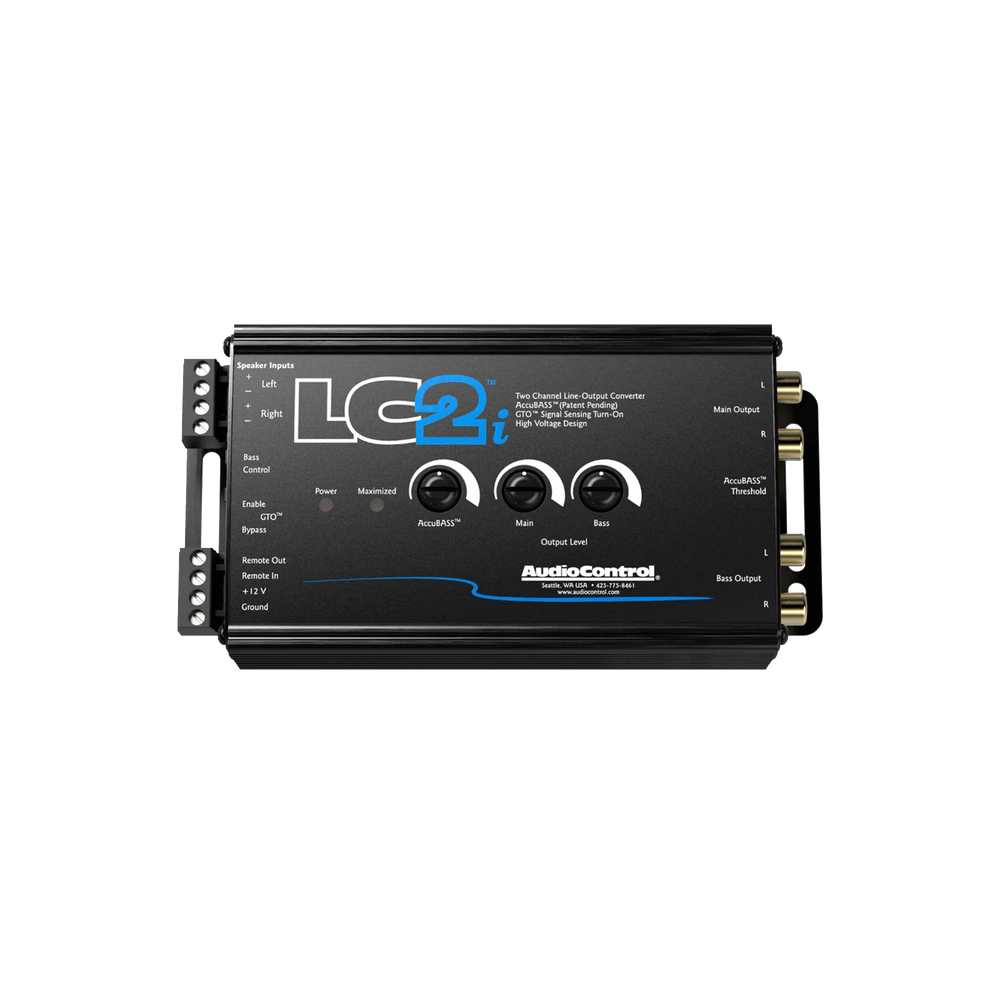

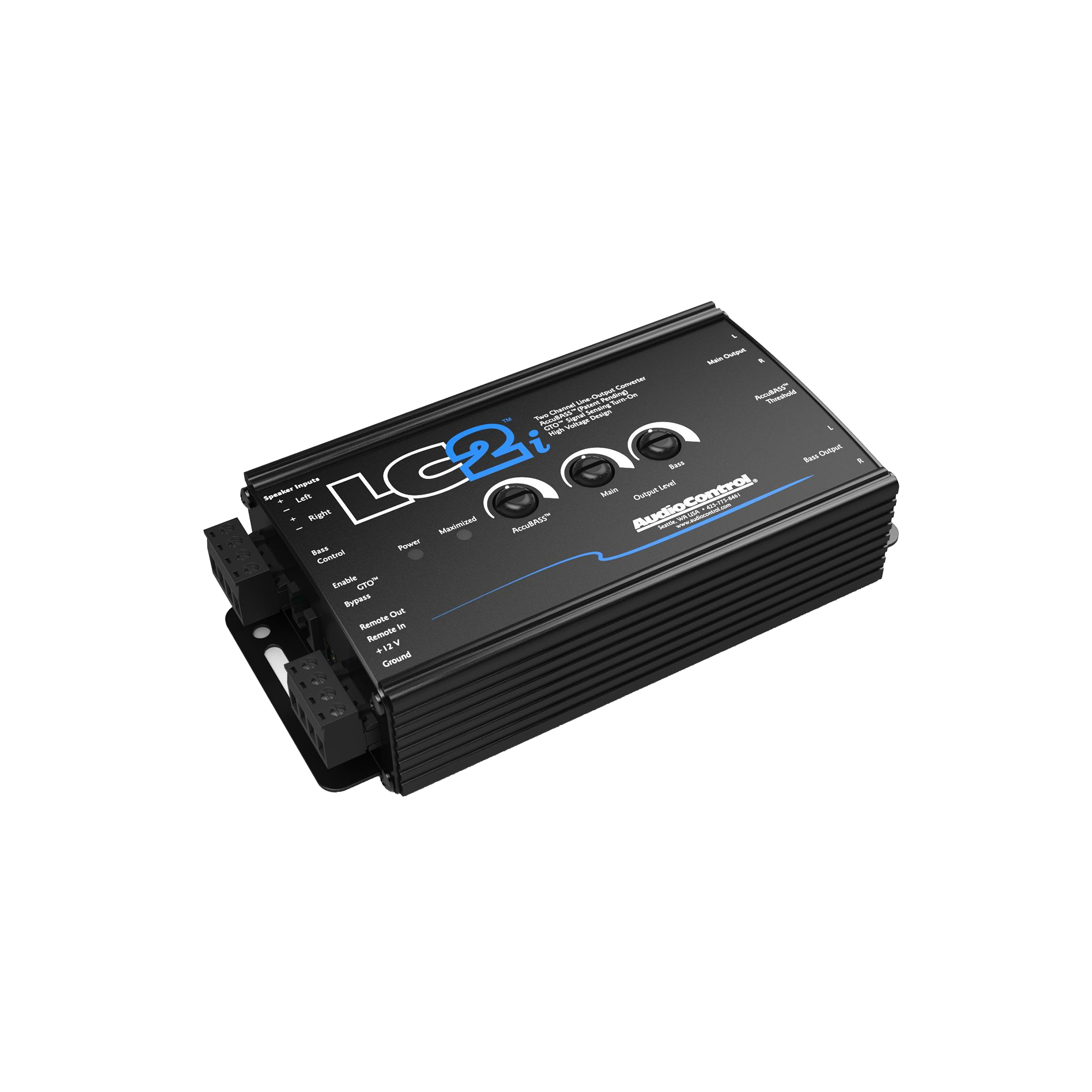

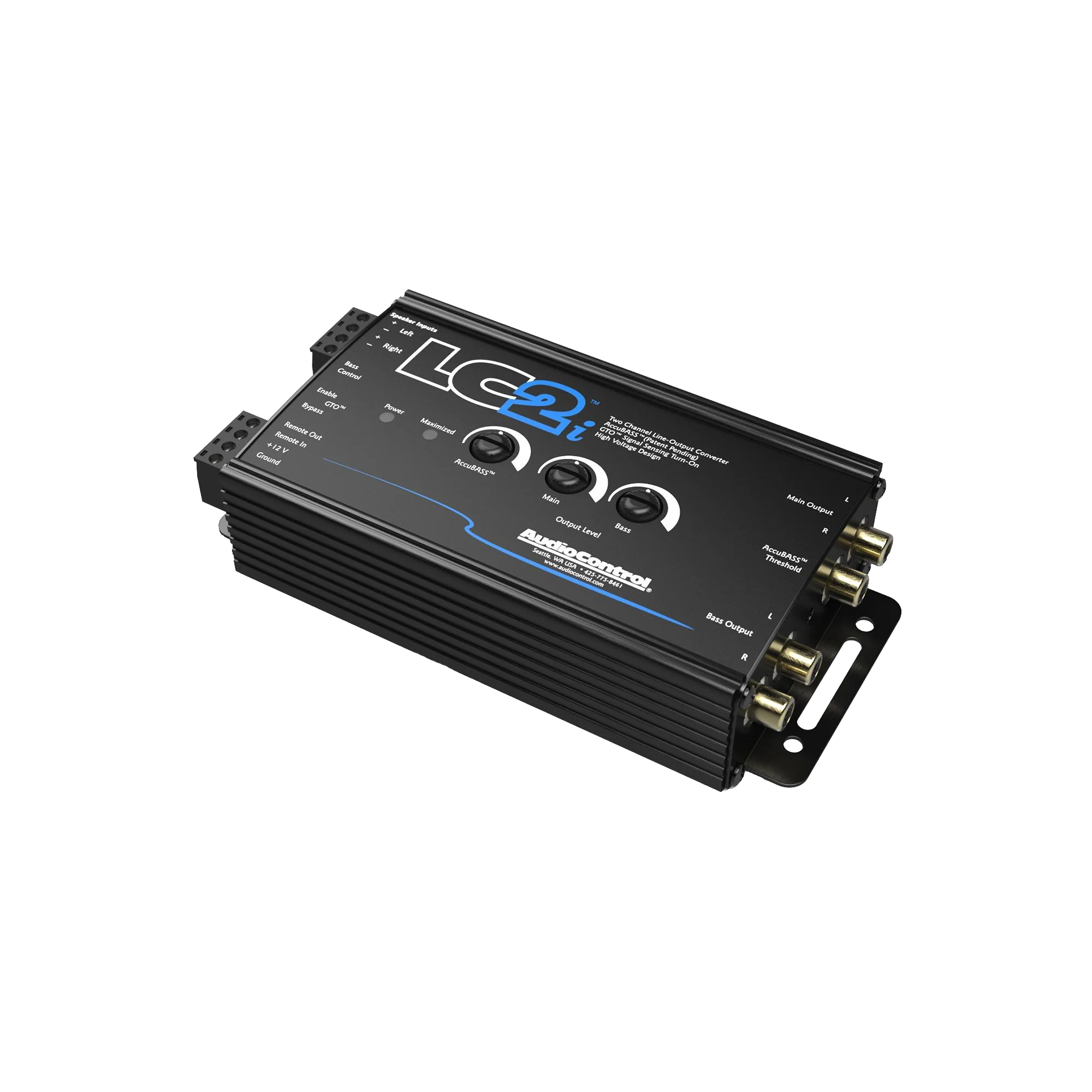

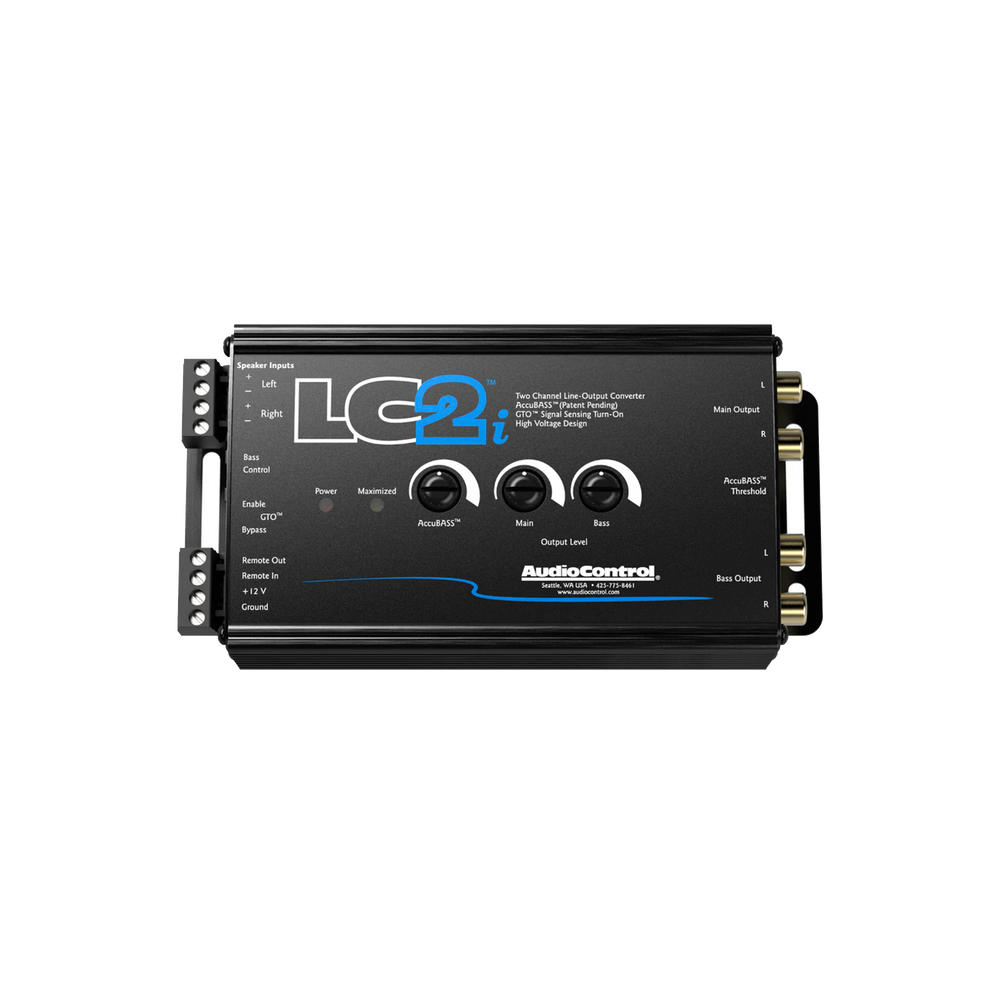

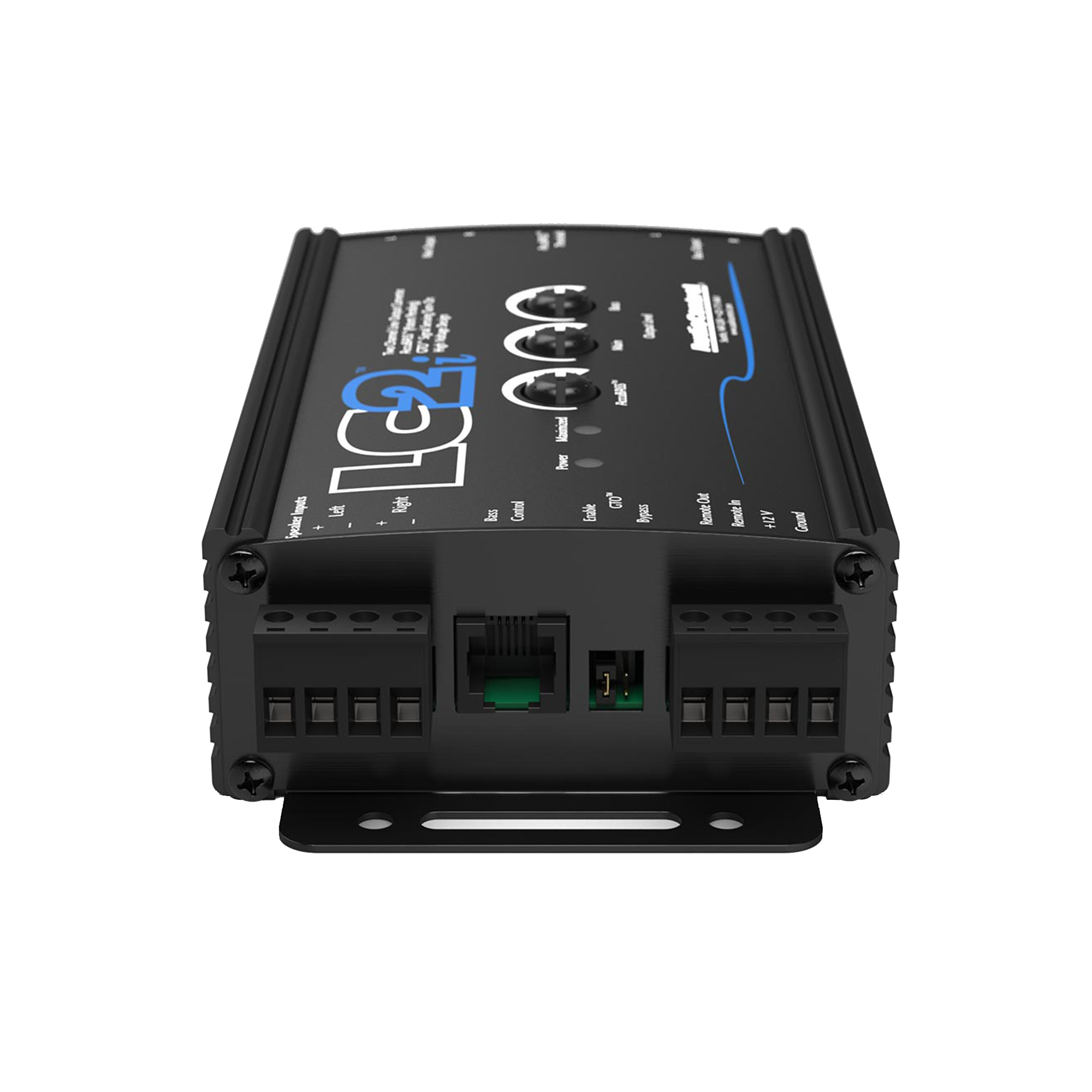

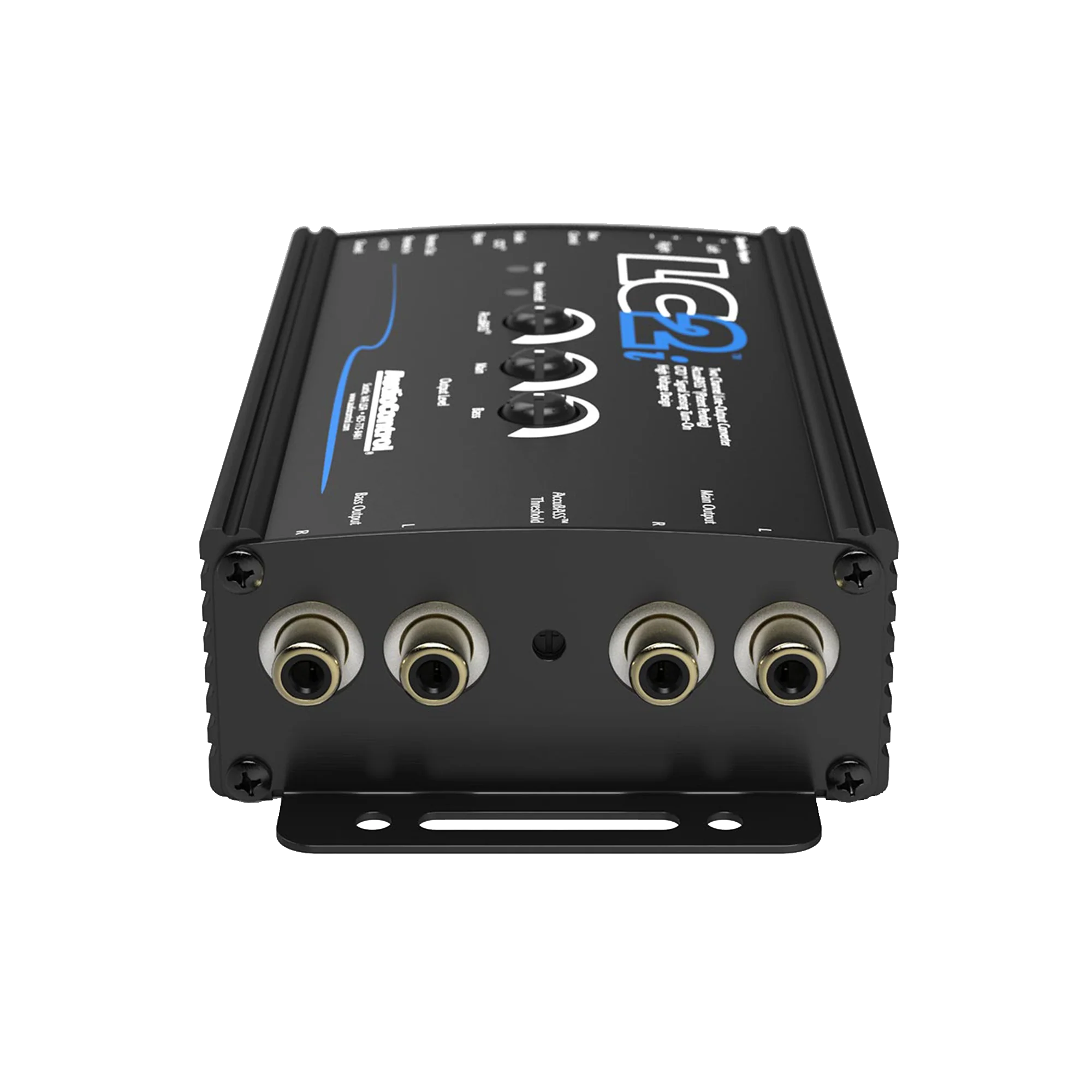

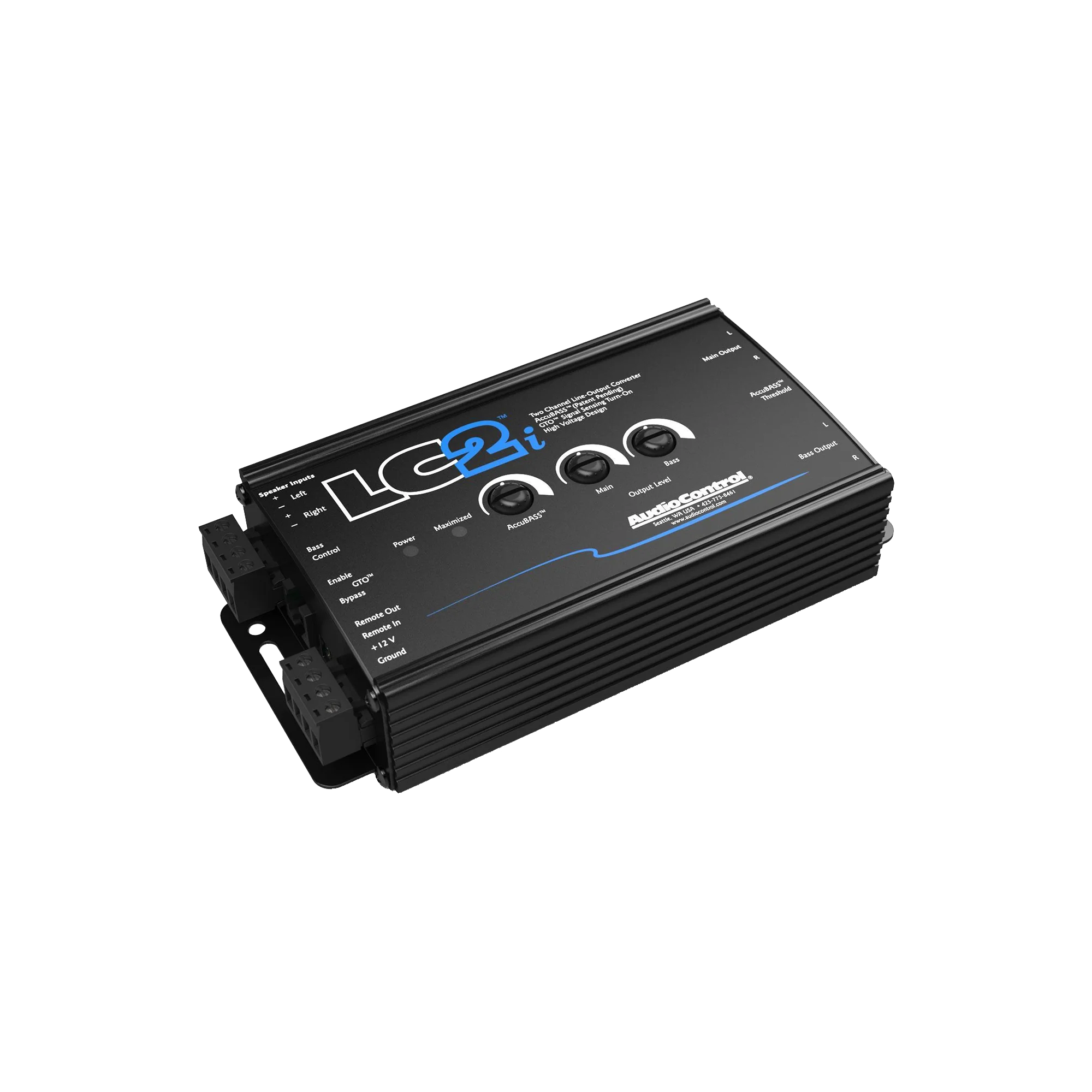

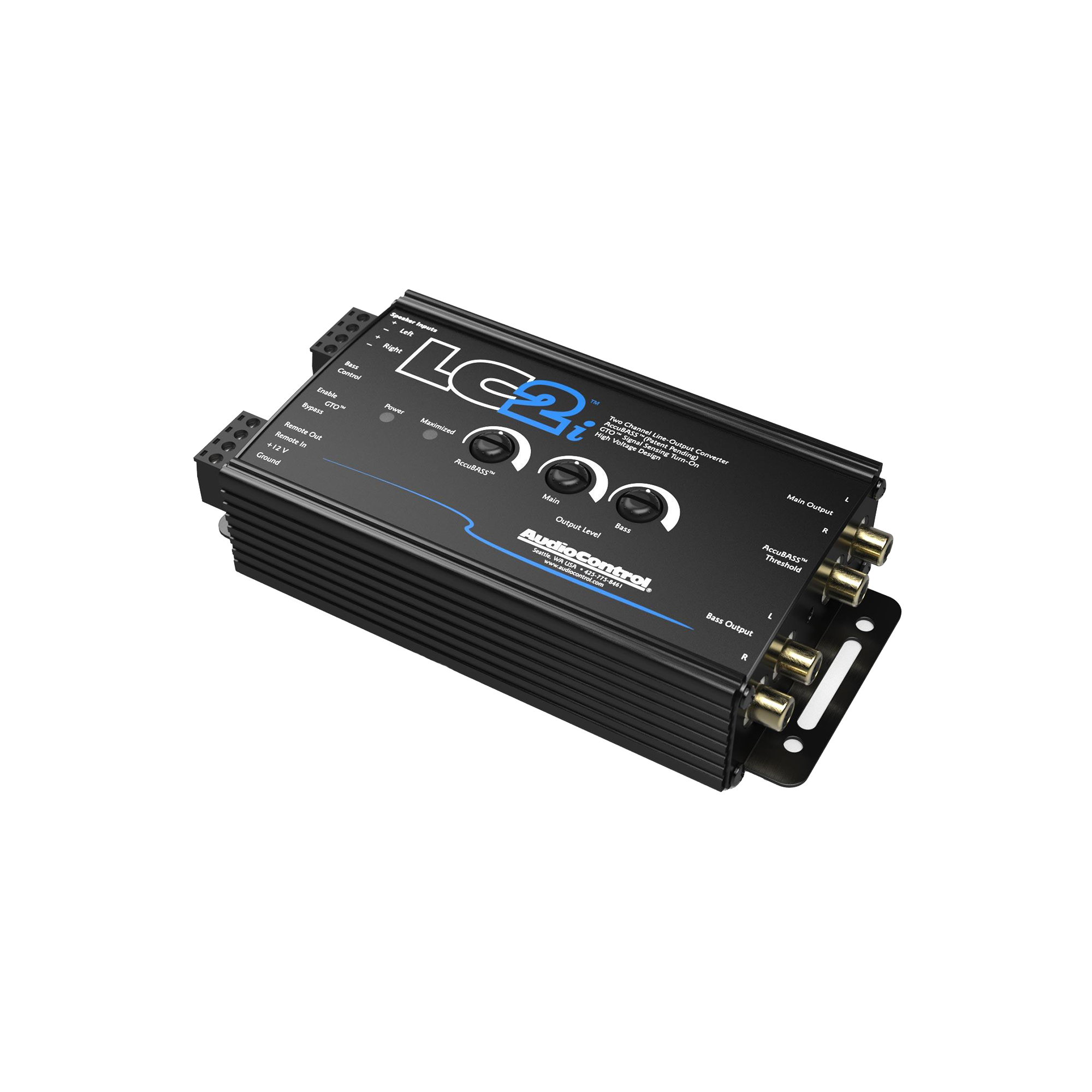

LC2i 2-Channel Line Output Converter w/AccuBASS

$96.00

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers.  It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

FEATURES

  • Two channels of Active speaker level inputs – Accept 400 watt signals per channel
  • Fixed and variable outputs with discrete level controls
  • AccuBASS® processing for correction of bass roll-off
  • GTOTM Signal Sensing
  • Input For Optional Remote Level Control
  • Compact design

SPECIFICATIONS

INPUTS

  • Speaker Level Input: 1 (2 channels)
  • Maximum Speaker Level Input: 400W per channel at 4Ω
  • Input Impedance: 20kΩ

OUTPUTS

  • Preamp Outputs: 2 (2 channels main, 2 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >110 dB
  • Frequency Response: 33 Hz – 100 kHz ±1 dB

CONTROL

  • Remote In
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Current Draw: 150mA
  • Recommended Fuse Rating: 1A

WEIGHTS & DIMENSIONS

  • Dimensions: 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets)
  • Weight: 1.0lbs (0.5kg)

IN THE BOX: LC2i, Speaker and Power connectors, Manual, Warranty

LC2i 2-Channel Line Output Converter w/AccuBASS
LC2i 2-Channel Line Output Converter w/AccuBASS
LC2i 2-Channel Line Output Converter w/AccuBASS
LC2i 2-Channel Line Output Converter w/AccuBASS
LC2i 2-Channel Line Output Converter w/AccuBASS

Shipping

In stock

Est. arrival October 05

Key features

Speaker Level Inputs

2 Channels

Fixed & Var Outputs

Preamp & bass

AccuBASS

Bass roll-off correction

GTO Signal Sensing

Auto turn on/off

Remote Control

Optional input

Compact Design

Fits discreetly

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Easily Upgrade your factory system with the LC2i.

Features

Path to an Elevated Audio Experience

Seamlessly upgrade your factory system with aftermarket audio components with AudioControl's line output converters.

Car subwoofers with blue LED lighting and 'EPICX' branding.

AccuBASS

Correct and maintain bass as volume increases for improved performance.

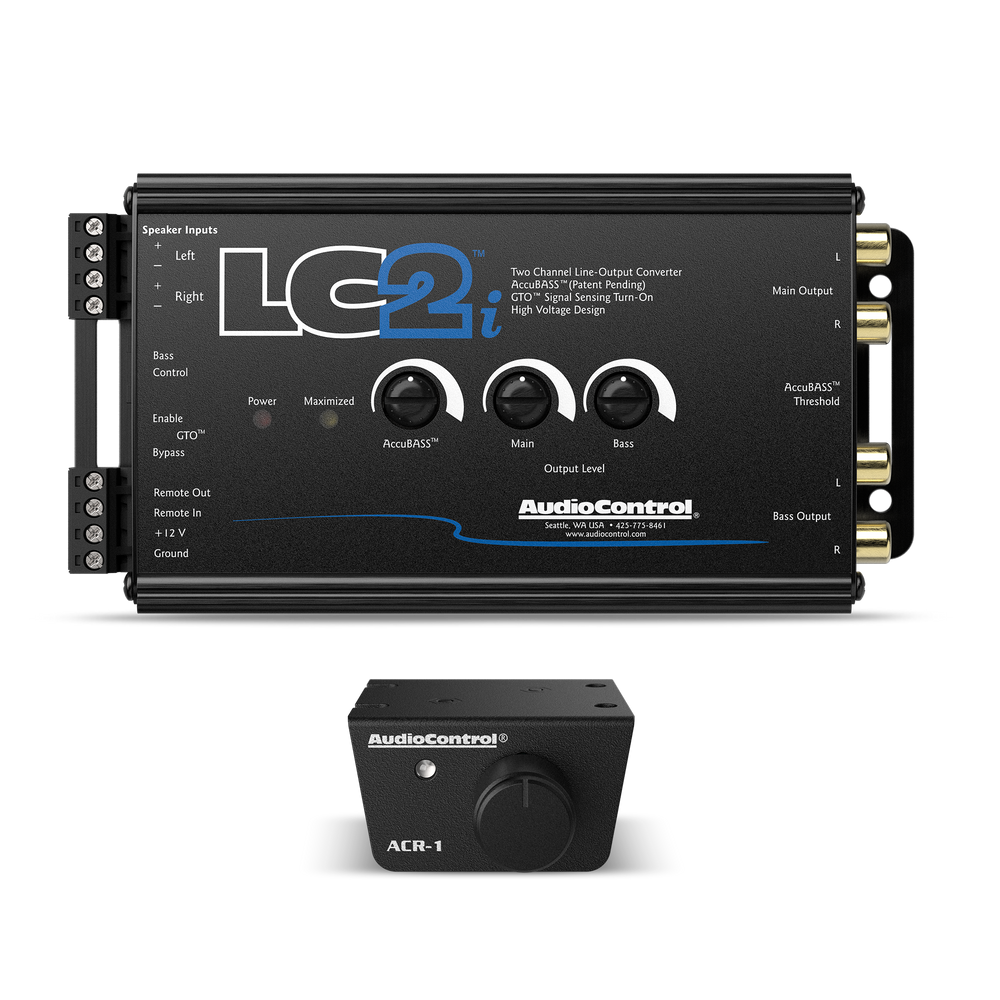

ACR-1 Dash Remote (Optional)

Adjust the bass output from the comfort of the driver's seat.

What's in the box

LC2i

LC2i, Speaker and Power connectors, Manual, Warranty

Specs & installation

Product specs

Speaker Level Input 1 (2 channels)
Maximum Speaker Level Input 400W per channel at 4Ω
Input Impedance 20kΩ
Preamp Outputs 2 (2 channels main, 2 channels bass)
Maximum Output Level 9.5Vrms/13V peak
Output Impedance 150Ω
Total Harmonic Distortion 0.01%
Signal to Noise >110 dB
Frequency Response 33 Hz – 100 kHz ±1 dB
Current Draw 150mA
Recommended Fuse Rating 1A

Dimensions

Dimensions 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets)
Weight 1.0lbs (0.5kg)

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you

Reviews

No Reviews Found

No reviews found for this product.

See how it stacks up

LC2i 2-Channel Line Output Converter w/AccuBASS

LC2i 2-Channel Line Output Converter w/AccuBASS

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

$96.00

0

No reviews yet

LC2i PRO 2-Channel Line Output Converter w/AccuBASS

LC2i PRO 2-Channel Line Output Converter w/AccuBASS

The LC2i PRO join ranks with AudioControl’s most popular active line output converter, the LC2i. Load selection switches mean OEM integration has never been easier and the LC2i PRO will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Compensate for factory bass roll-off with AudioContol’s patented AccuBASS® and control your sub with the included ACR-1 level control.

$159.00

0

No reviews yet

View product

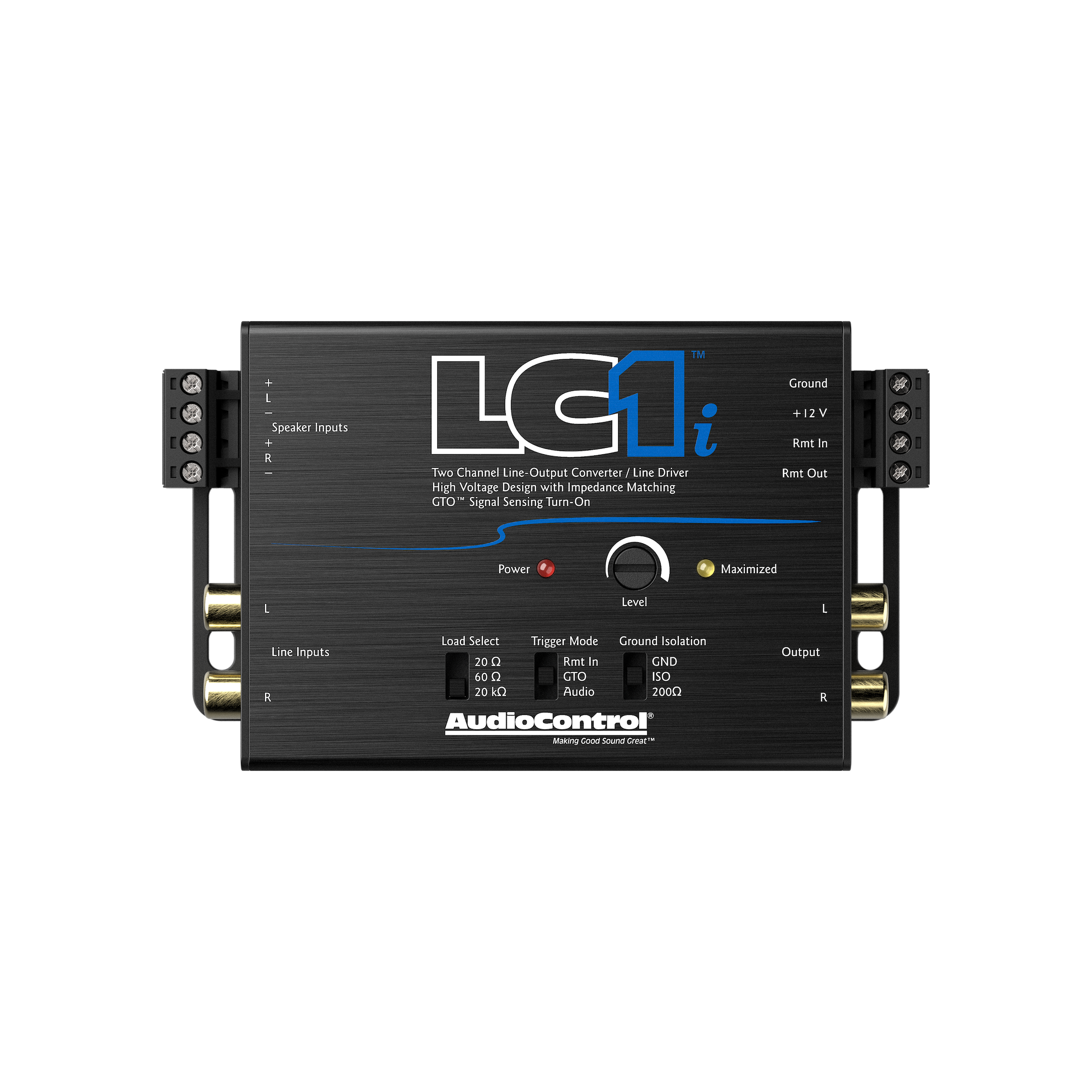

LC1i 2-Channel Line Output Converter & Line Driver
