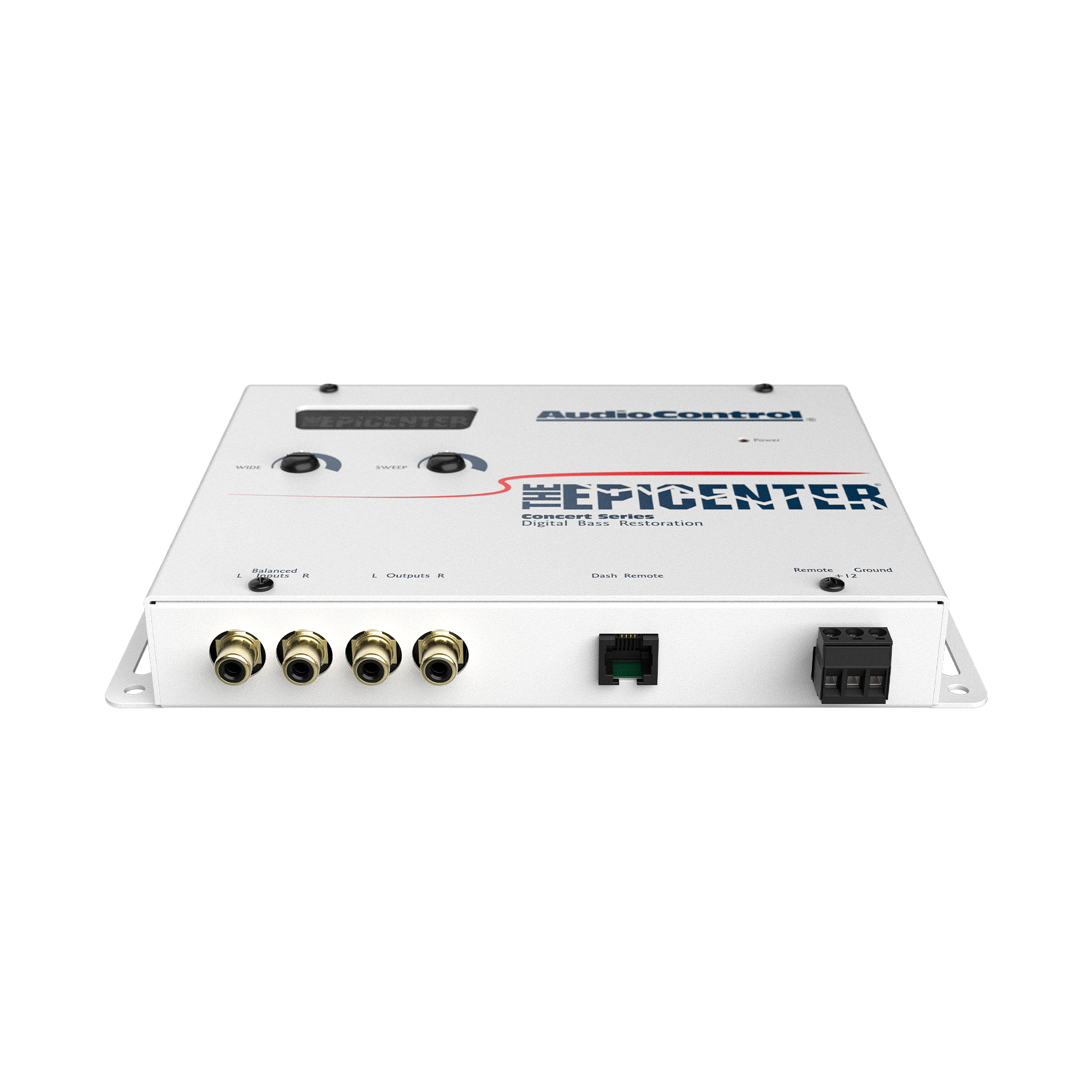

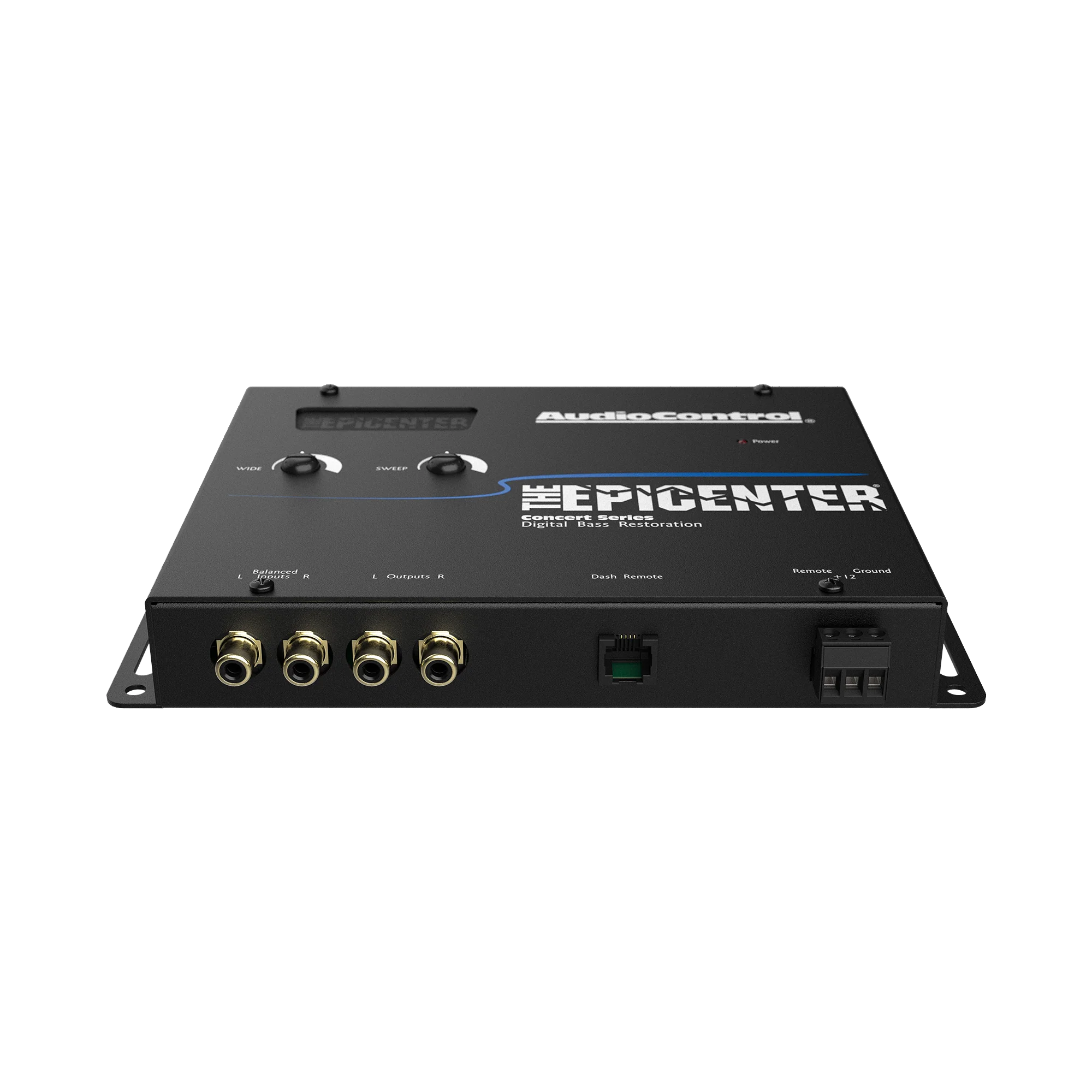

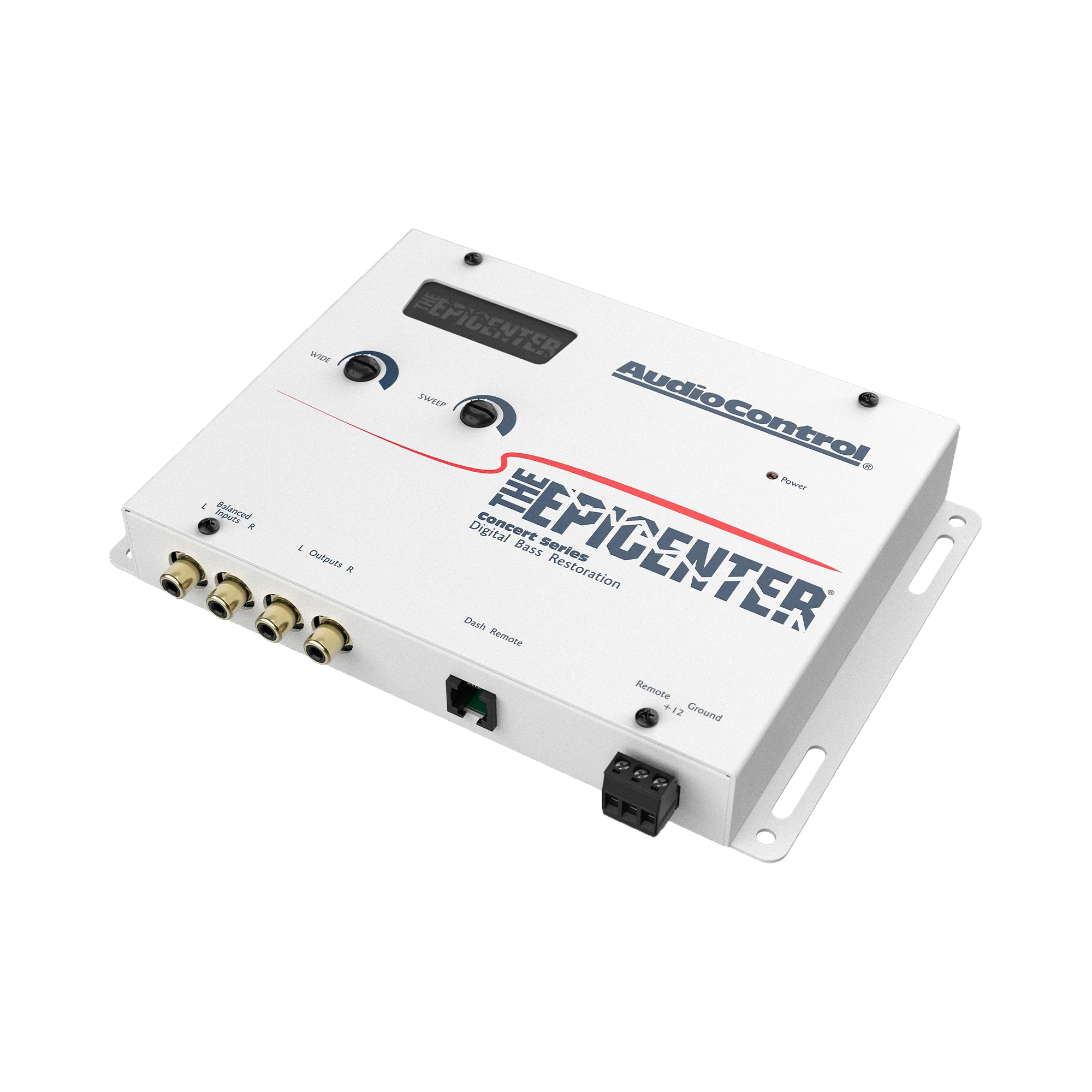

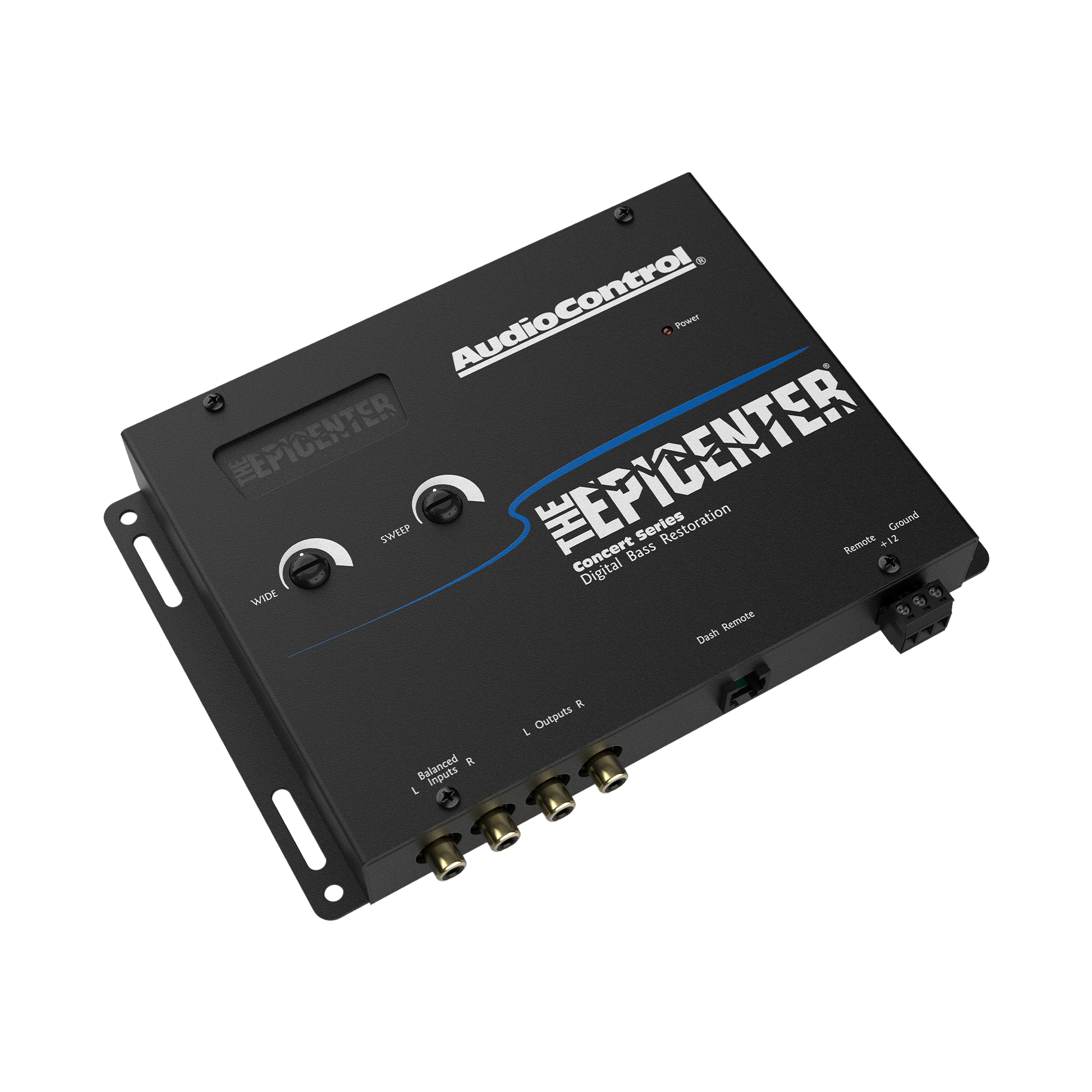

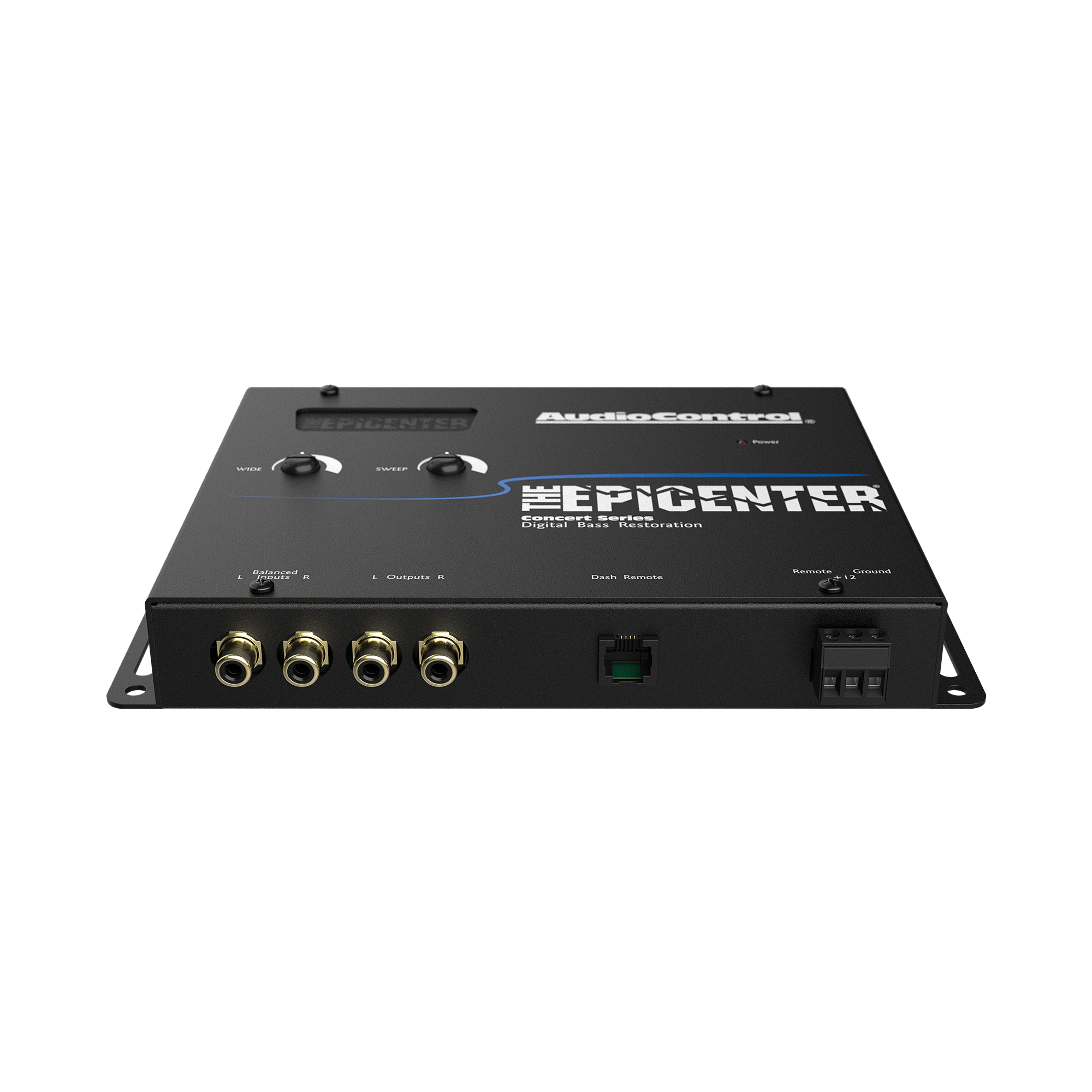

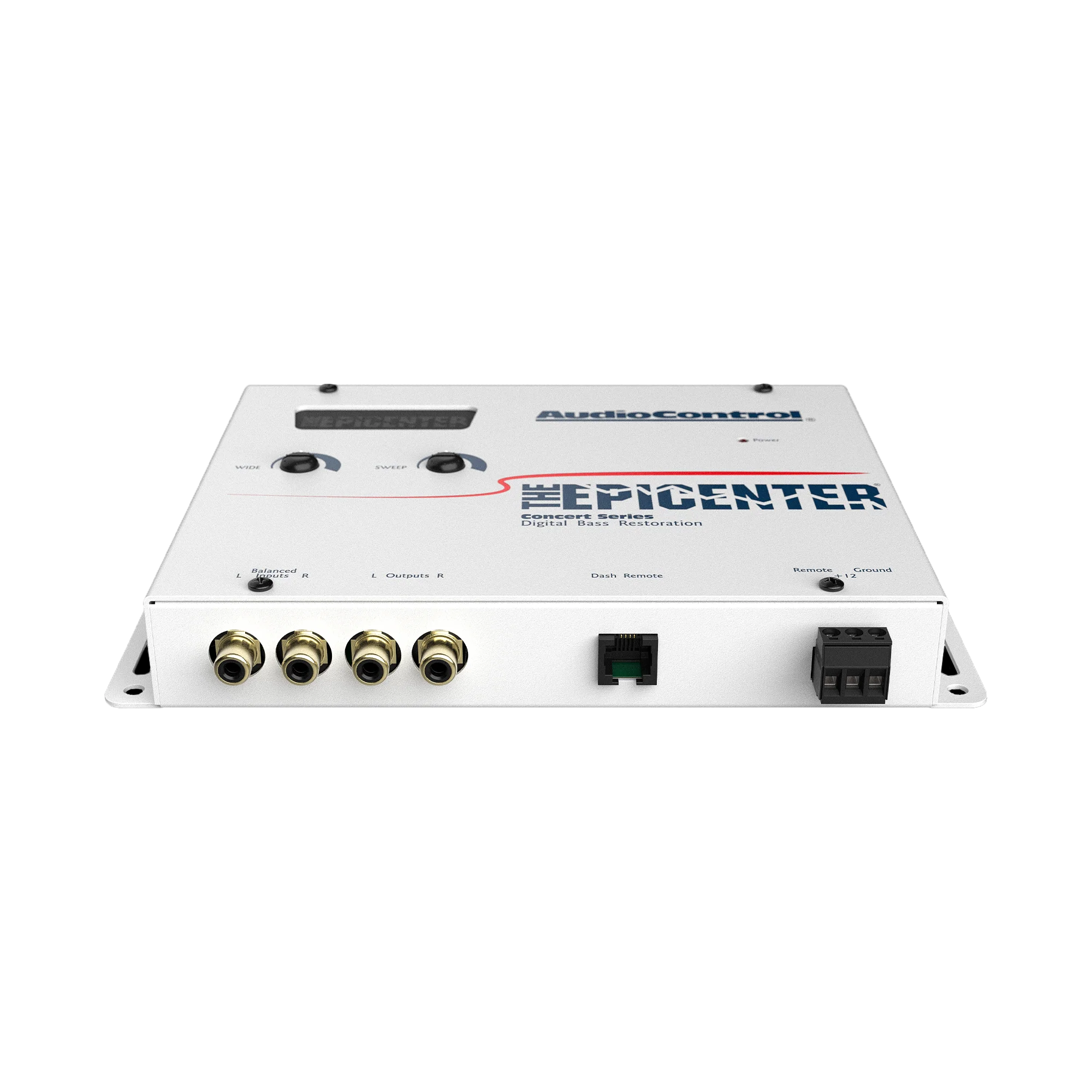

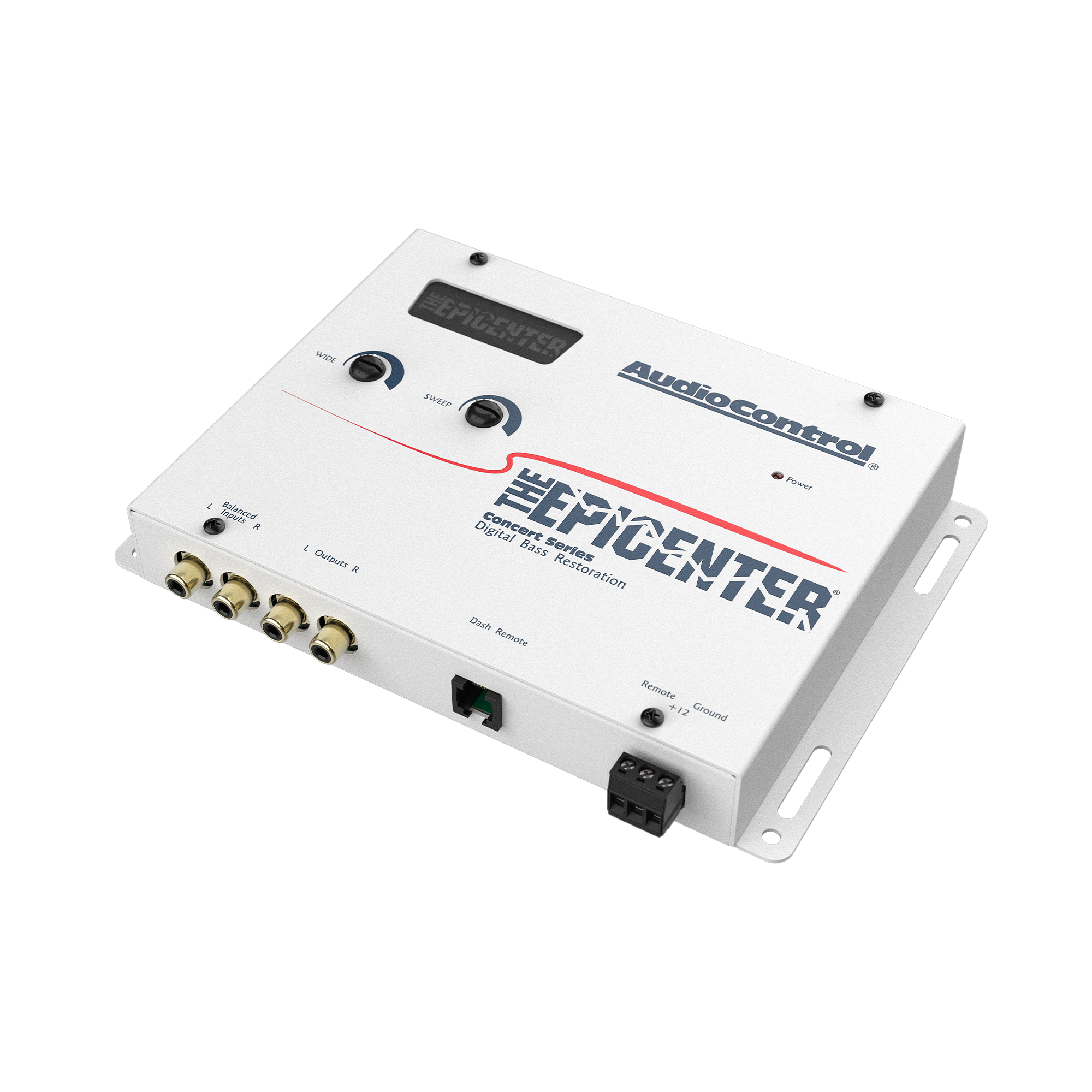

The EPICENTER Bass Restoration Processor

$169.00

Increase bass response from your vehicle’s audio system with The EPICENTER Concert Series Digital Bass Restoration Processor by AudioControl.

Color:

Increase bass response from your vehicle’s audio system with The EPICENTER Concert Series Digital Bass Restoration Processor by AudioControl. The EPICENTER contains patented bass maximization circuity that analyzes the incoming audio signal from your source unit, recreates missing bass tones, and transmits this low-frequency information back into the signal path to increase bass response. This digital bass restoration processor also features parametric bass control and a subsonic filter for fine tuning. Restore the earth-shaking power and heart-pounding bass your subwoofers crave!

FEATURES

  • Patented Bass Maximizer™
  • Dash mount control
  • Bass restoration lighted display
  • Parametric bass control
  • PFM Subsonic Filter
  • Balanced inputs
  • Bass Output Control

SPECIFICATIONS

INPUTS

  • Preamp Inputs: 1 (2 channels)
  • Maximum Input Level: 15Vrms
  • Input Impedance: 10kΩ

OUTPUTS

  • Preamp Outputs: 1 (2 channels)
  • Maximum Output Level: 13.5Vrms
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.003%
  • Frequency Response: 10Hz-100kHz
  • Signal to Noise: 110dB

CONTROL

  • Remote In

GENERAL

  • Power Supply: High Headroom PWM Switching
  • Current Draw: 150mA
  • Recommended Fuse Rating: 1A

WEIGHTS & DIMENSIONS

  • Dimensions: 8″W x 5.5″D x 1.2″H
  • Weight: 1.8 lbs (0.8 kg)

IN THE BOXThe Epicenter, ACR-1 Remote, Power Connector, Manual, Warranty

The EPICENTER Bass Restoration Processor
The EPICENTER Bass Restoration Processor
The EPICENTER Bass Restoration Processor
The EPICENTER Bass Restoration Processor
The EPICENTER Bass Restoration Processor
The EPICENTER Bass Restoration Processor

Shipping

In stock

Est. arrival October 05

Key features

Bass Enhancer

Restores low-end frequencies

Bass Maximizer

Adjust the frequency response

Para-Bass

Parametric equalizer for the bass output

PFM Subsonic Filter

Subwoofer protection

Balanced inputs

Reduce unwanted signal noise

Dash Mount Control

ACR-1 remote included

EPICENTER Link

Seamlessly connect to EPIC Amps

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Bass not hitting right? The EPICENTER is the OG Bass Enhancer.

Features

Bass in Your Face

The EPICENTER recreates missing bass tones and transmits this low-frequency information back into the signal path, letting your bass hit where you want it.

Car subwoofer with blue LED lighting and a visible brand EPICX logo.

EPICENTER Link

Seamlessly connect any EPICENTER with an EPIC Monoblock/EPICFIVE/EPICBIGFOUR amplifier for an unbeatable bass experience.

Para-Bass

Para-Bass is a parametric equalizer used to fine-tune bass response by allowing you to select a center frequency and adjust its width to sculpt the bass for your music and vehicle acoustics.

EpicX car subwoofer with 'Epic X' branding and blue LED light on a dark background

ACR-1 Dash Remote Control

Adjust the bass output from the comfort of your driver's seat.

What's in the box

EPICENTER Black/White

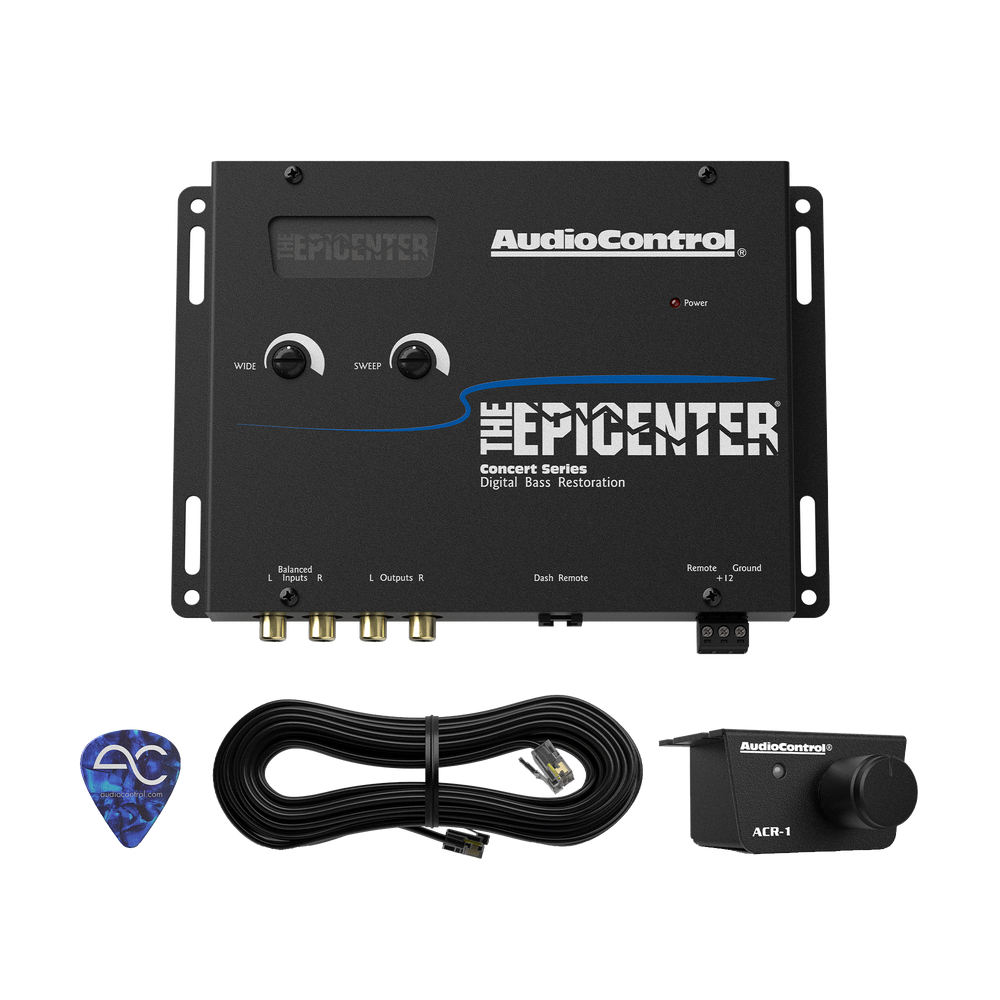

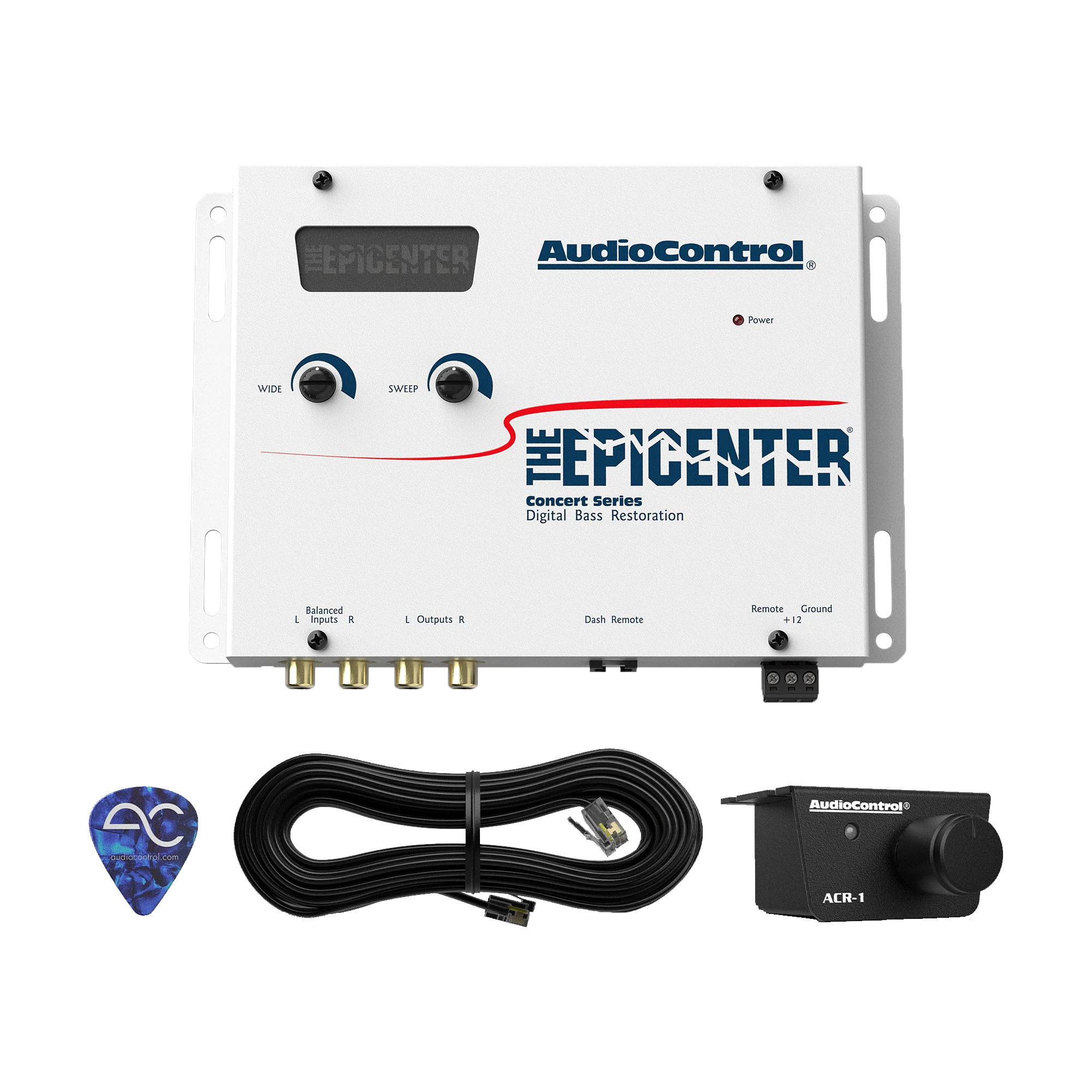

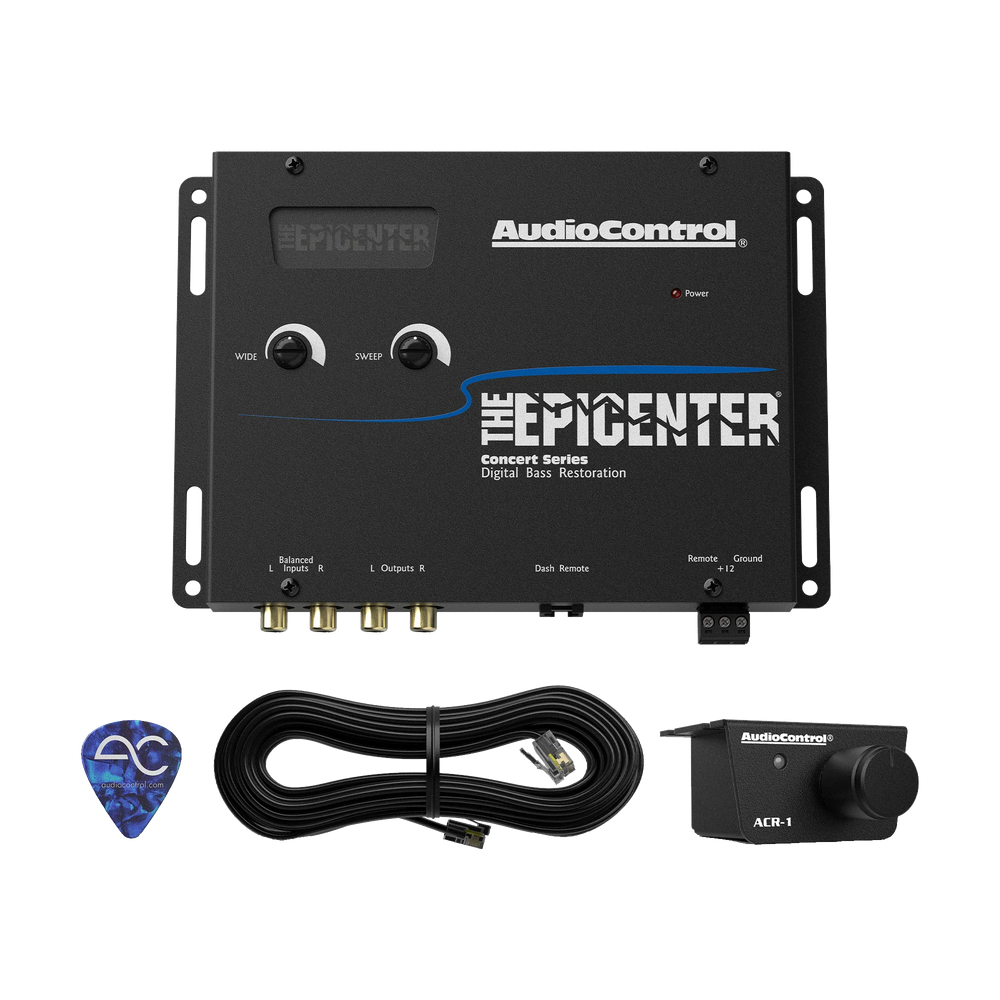

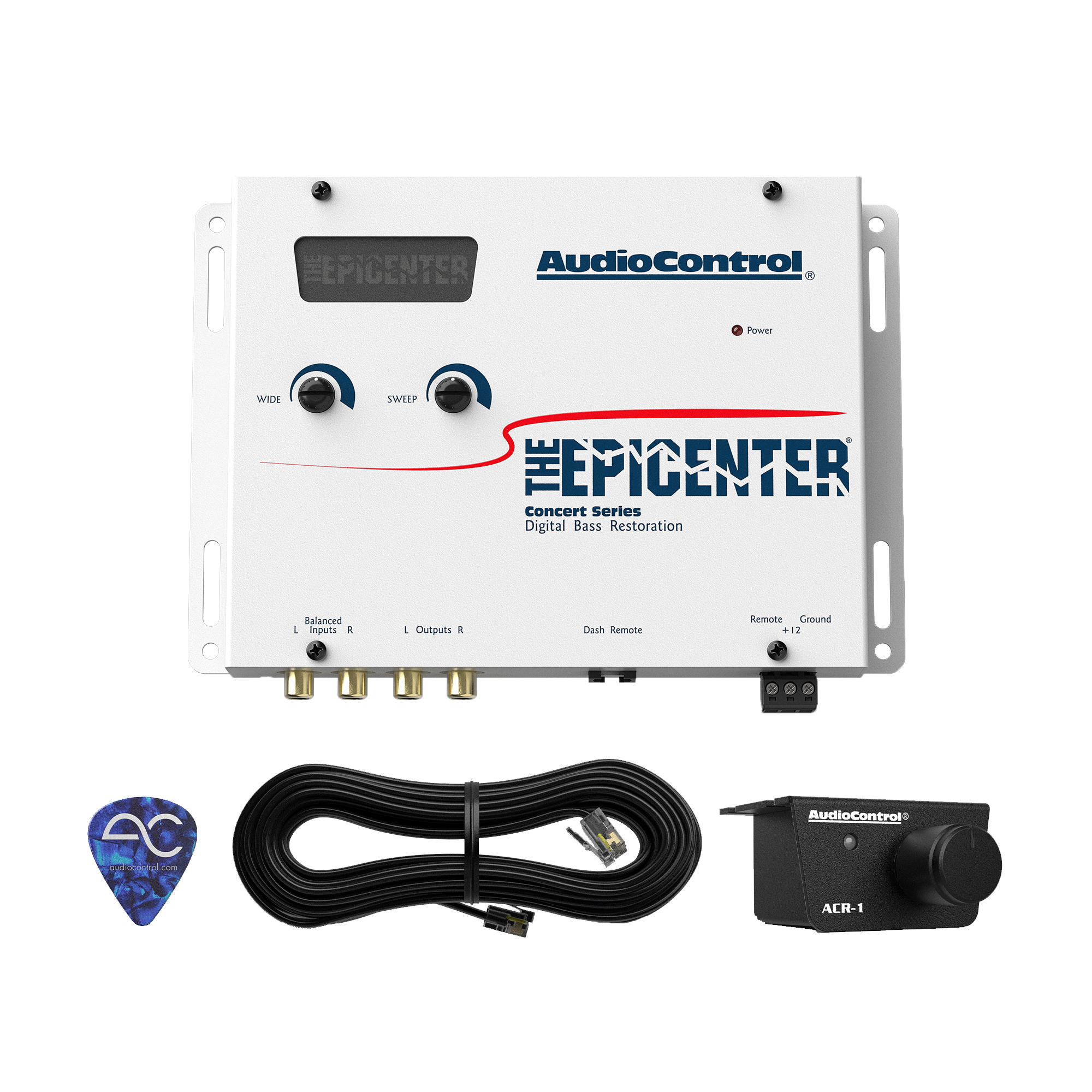

The Epicenter, ACR-1 Remote, Power Connector, Manual, Warranty

Specs & installation

Product specs

Preamp Inputs 1 (2 channels)
Maximum Input Level 15Vrms
Input Impedance 10kΩ
Preamp Outputs 1 (2 channels)
Maximum Output Level 13.5Vrms
Output Impedance 150Ω
Total Harmonic Distortion 0.003%
Frequency Response 10Hz-100kHz
Signal to Noise 110dB
Power Supply High Headroom PWM Switching
Current Draw 150mA
Recommended Fuse Rating 1A

Dimensions

Dimensions 8″W x 5.5″D x 1.2″H
Weight 1.8 lbs (0.8 kg)
