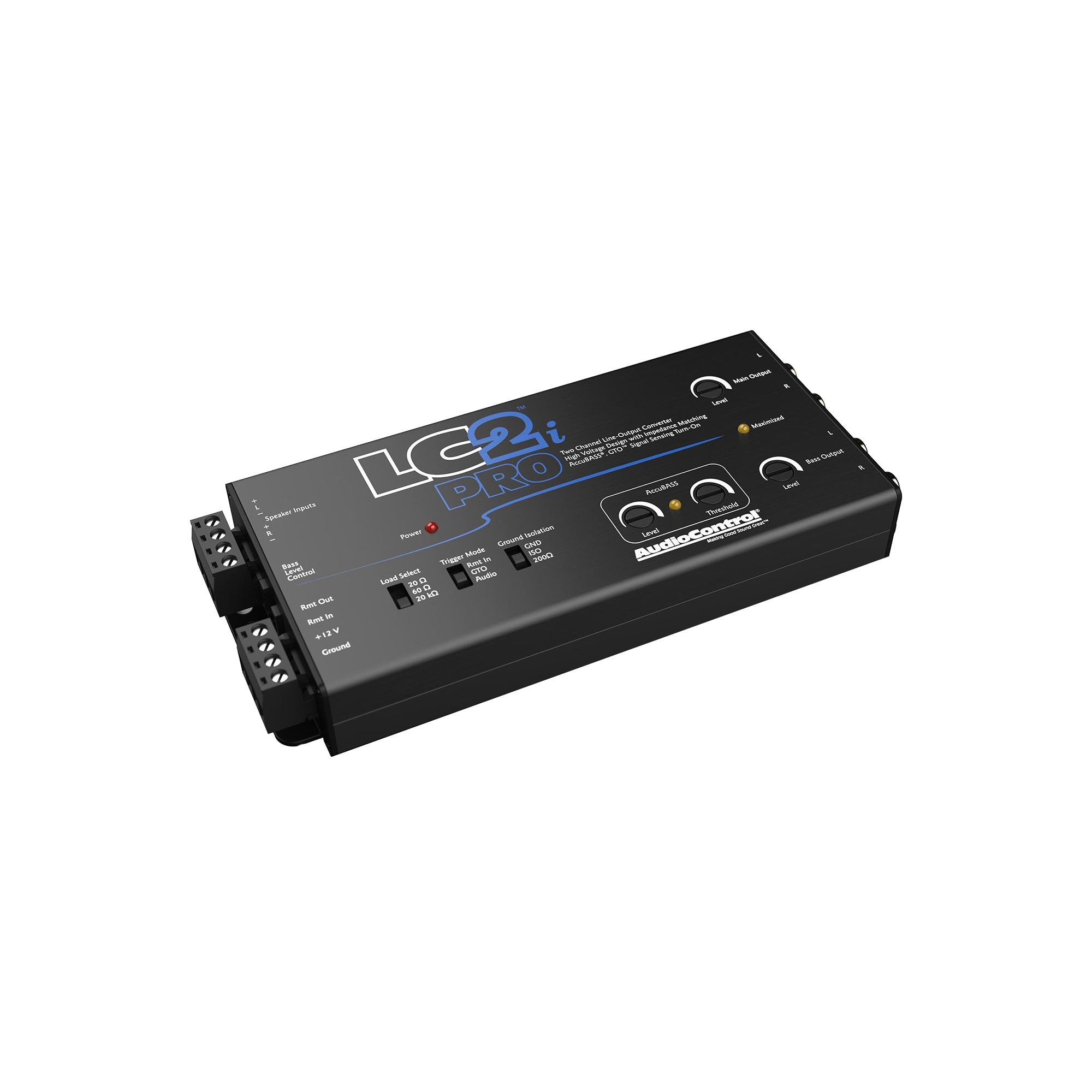

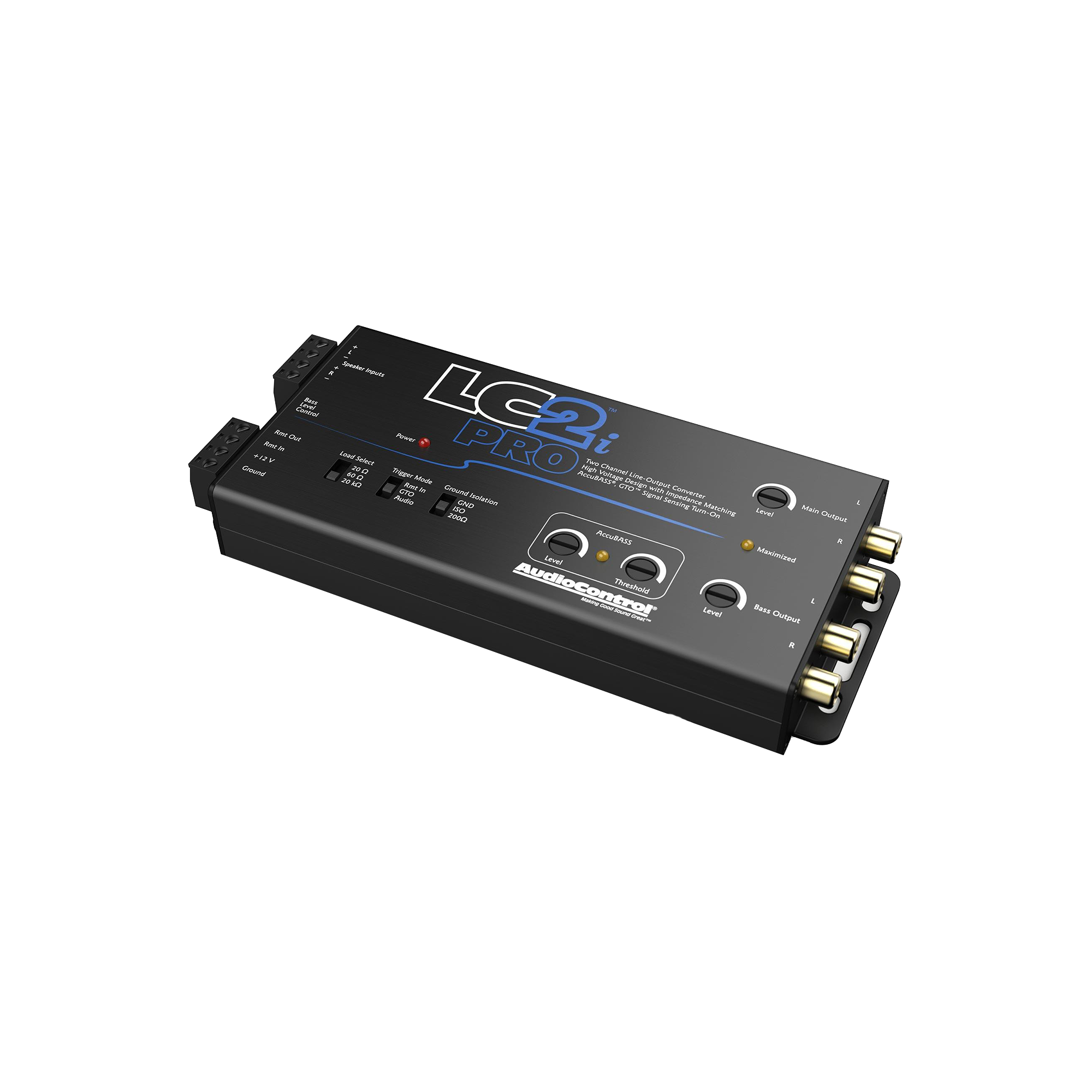

LC2i PRO 2-Channel Line Output Converter w/AccuBASS

$159.00

The LC2i PRO join ranks with AudioControl’s most popular active line output converter, the LC2i. Load selection switches mean OEM integration has never been easier and the LC2i PRO will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Compensate for factory bass roll-off with AudioContol’s patented AccuBASS® and control your sub with the included ACR-1 level control.

The LC2i PRO join ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC2i PRO will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Compensate for factory bass roll-off with AudioContol’s patented AccuBASS® and control your sub with the included ACR-1 level control.


FEATURES

  • Two channels of active speaker level inputs (up to 40V input handling)
  • Fixed and variable outputs with discrete level controls
  • AccuBASS® processing for correction of bass roll-off
  • Load Selection Switch
  • GTOTM Signal Sensing
  • Ground Isolation Switch
  • ACR-1 dash remote inluded
  • Compact design

SPECIFICATIONS

INPUTS

  • Speaker Level Input: 1 (2 channels)
  • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
  • Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

OUTPUTS

  • Preamp Outputs: 2 (2 channels main, 2 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Gain: +/- 12 dB
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >110 dB
  • Frequency Response: 20 Hz – 50 kHz ±1 dB

CONTROL

  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Current Draw: 200 mA
  • Recommended Fuse Rating: 1 A

WEIGHTS & DIMENSIONS

  • Dimensions: 6.9″L x 3″D x 1″H (including speaker connectors)
  • Weight: 0.75 lbs. (0.34 kg)

IN THE BOXLC2i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty

LC2i PRO 2-Channel Line Output Converter w/AccuBASS
LC2i PRO 2-Channel Line Output Converter w/AccuBASS
LC2i PRO 2-Channel Line Output Converter w/AccuBASS
LC2i PRO 2-Channel Line Output Converter w/AccuBASS
LC2i PRO 2-Channel Line Output Converter w/AccuBASS

Shipping

In stock

Est. arrival October 05

Key features

Speaker Level Inputs

2 Channels

Fixed & Var Outputs

Preamp & bass

AccuBASS

Bass roll-off correction

Trigger Modes

+12V rmt in, GTO, audio sense

Load Selection

Impedance matching

Ground Isolation

Eliminate noise

ACR-1 Remote Control

Included

Compact Design

Fits discreetly

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Easily Upgrade your factory system with the LC2i PRO.

Features

Path to an Elevated Audio Experience

Seamlessly upgrade your factory system with aftermarket audio components with AudioControl's line output converters.

Car subwoofers with blue LED lighting and 'EPICX' branding.

AccuBASS

Correct and maintain bass as volume increases for improved performance.

ACR-1 Dash Remote Control

Adjust the bass output from the comfort of your driver's seat.

What's in the box

LC2i PRO

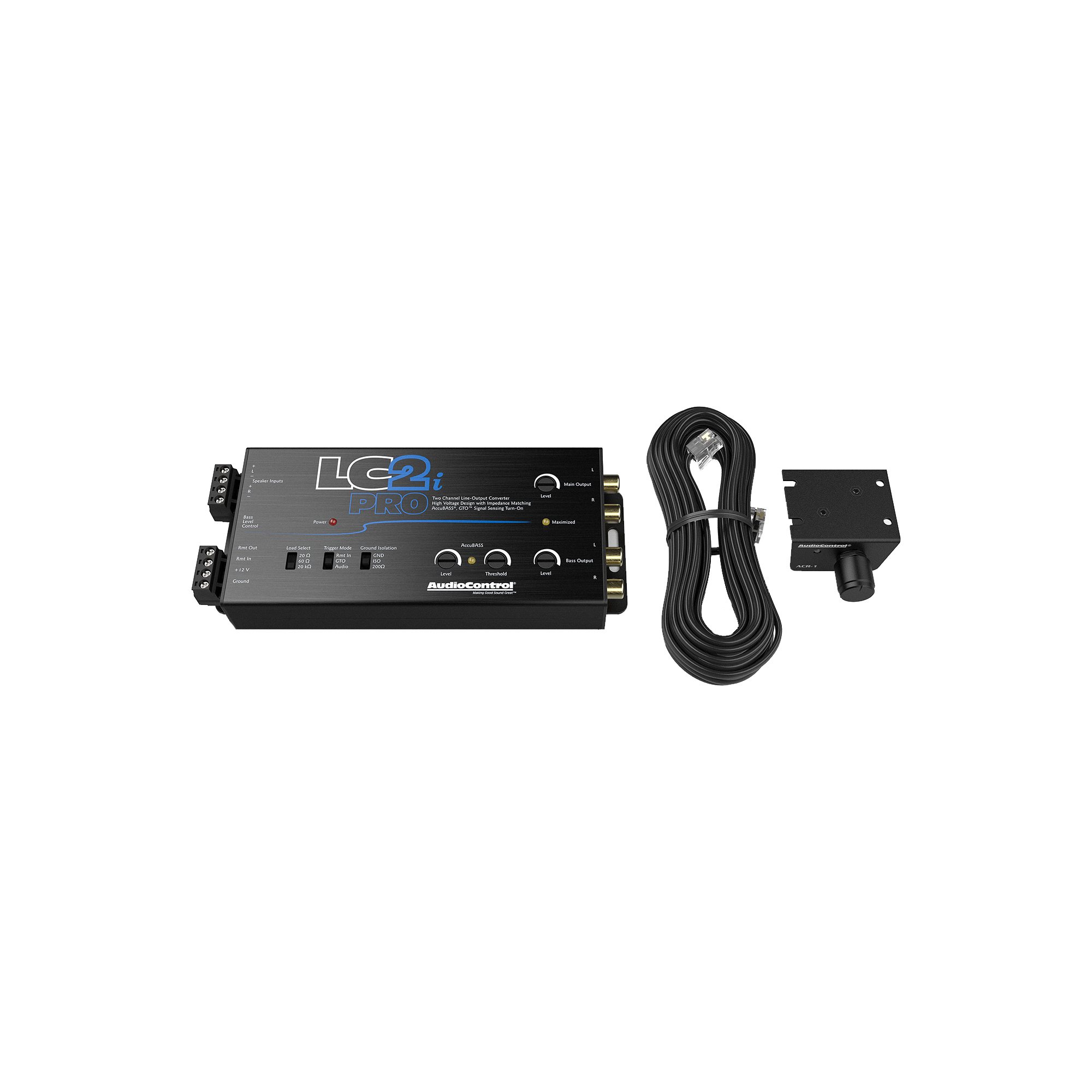

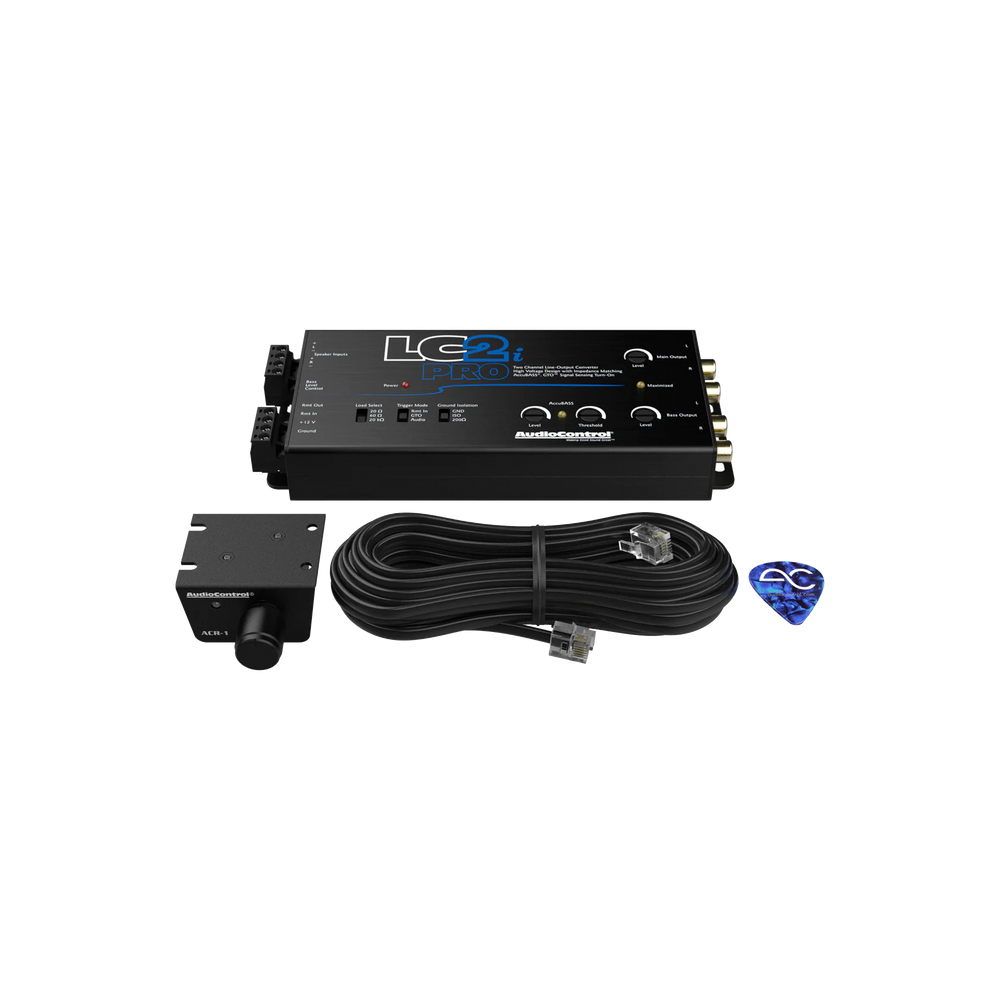

LC2i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty

Specs & installation

Product specs

Speaker Level Input 1 (2 channels)
Maximum Speaker Level Input 40 Vrms / 400 W (20kΩ setting)
Input Impedance 20Ω, 60Ω, 20kΩ
Preamp Outputs 2 (2 channels main, 2 channels bass)
Maximum Output Level 9.5Vrms/13V peak
Output Gain +/- 12 dB
Output Impedance 150Ω
Total Harmonic Distortion 0.01%
Signal to Noise >110 dB
Frequency Response 20 Hz – 50 kHz ±1 dB
Current Draw 200 mA
Recommended Fuse Rating 1 A

Dimensions

Dimensions 6.9″L x 3″D x 1″H (including speaker connectors)
Weight 0.75 lbs. (0.34 kg)

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.
