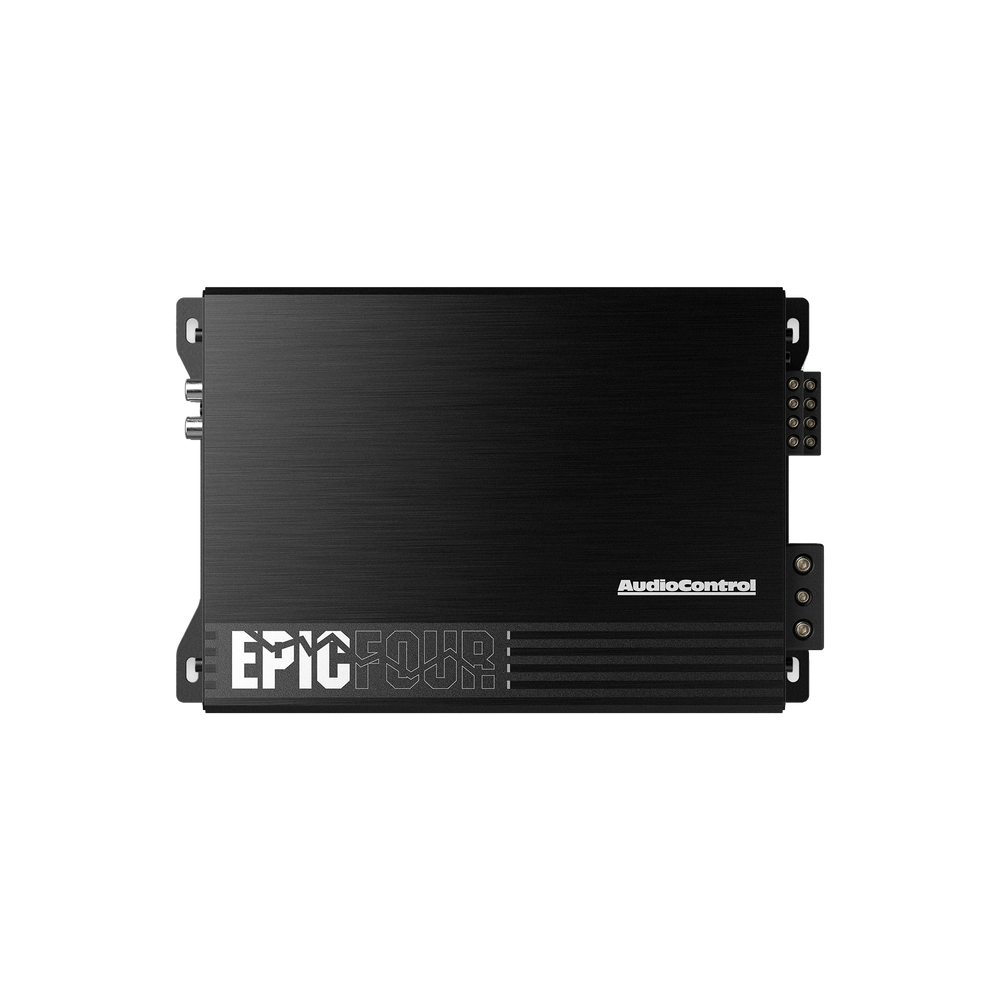

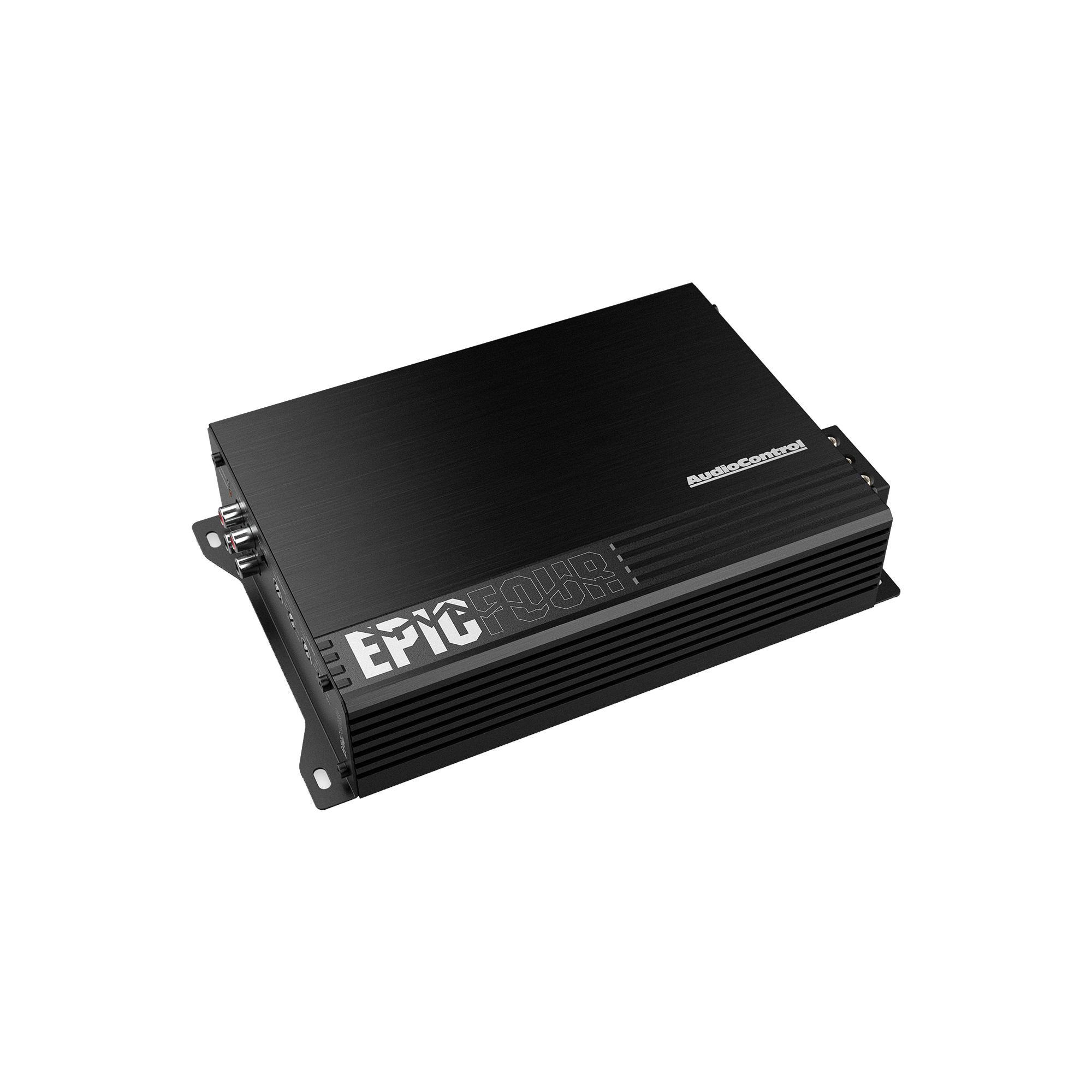

EPICFOUR 4-Channel Amplifier, 800W RMS

$199.00

The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package.

The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package.

  • Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.
  • Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.

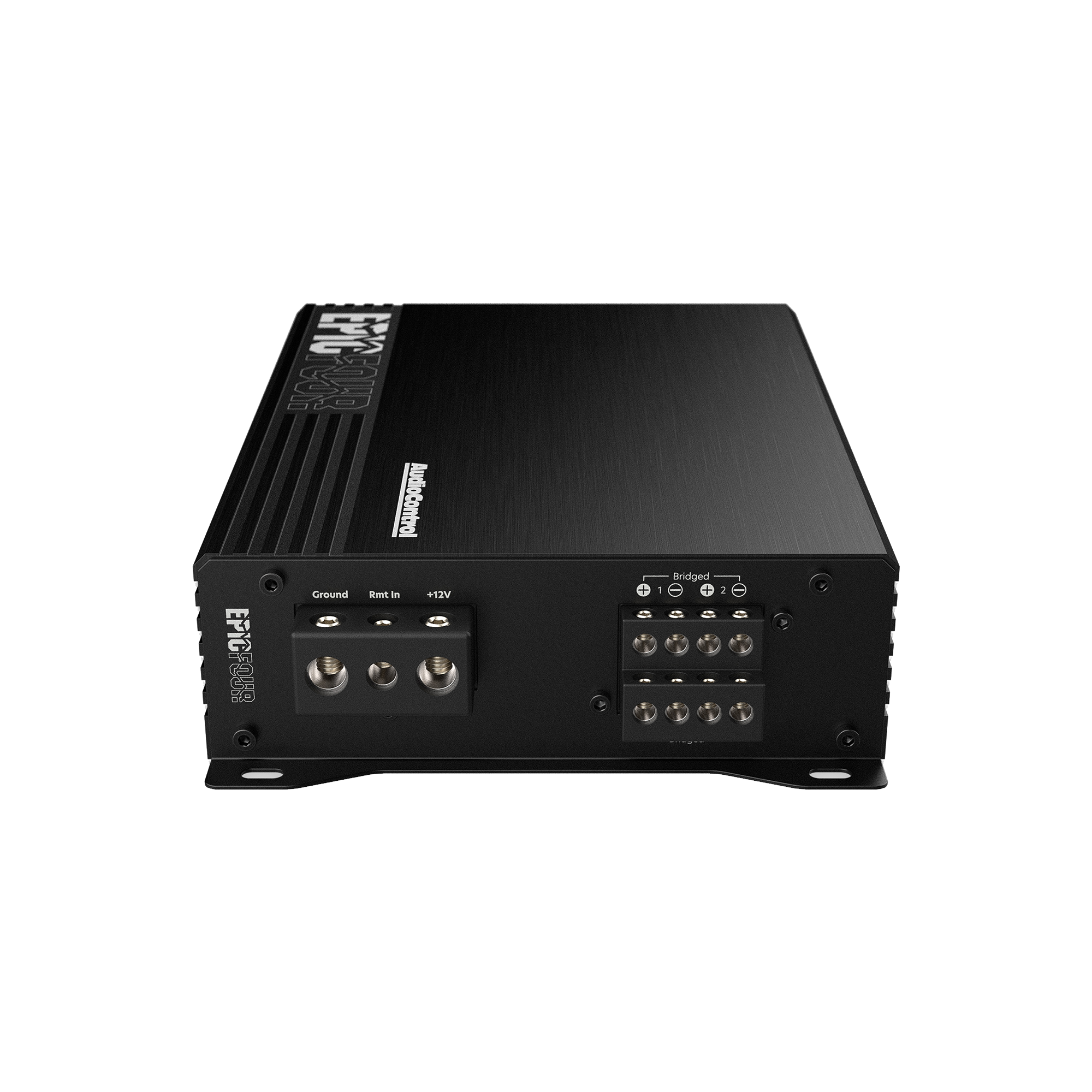

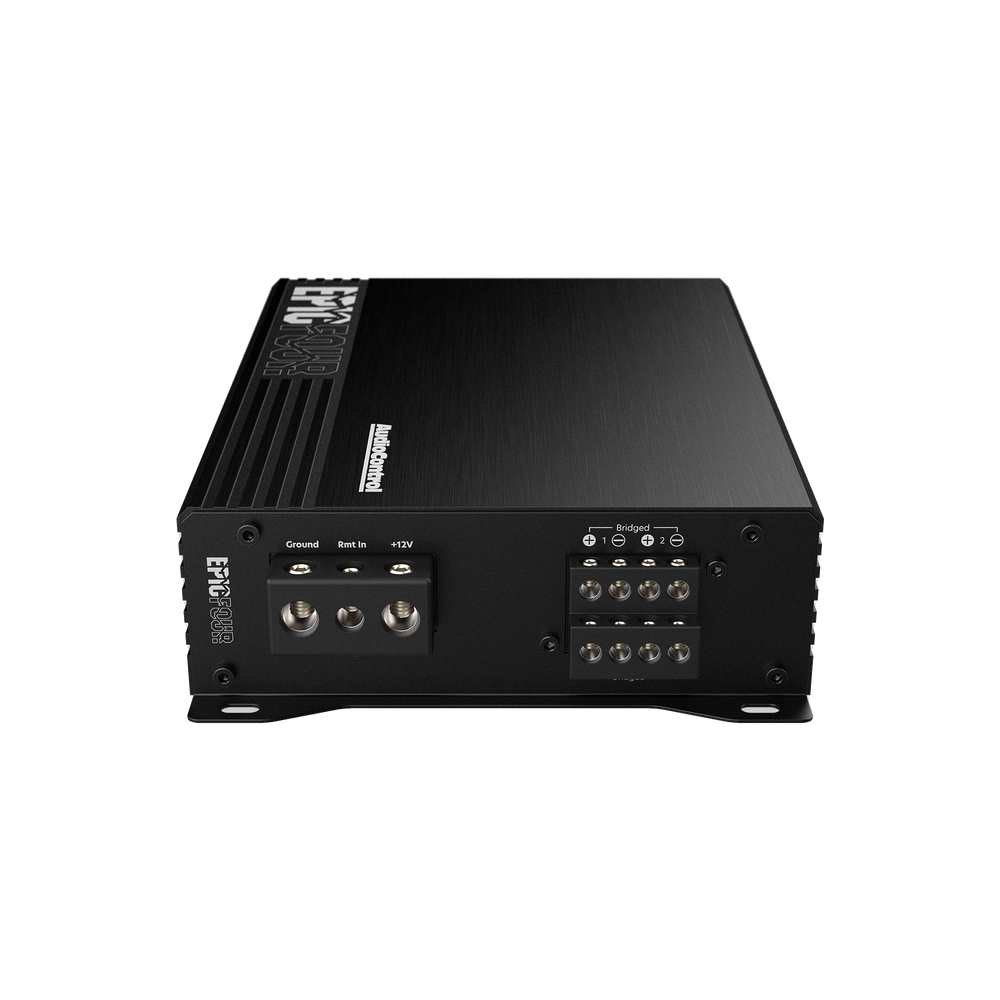

  • 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.
  • 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).
  • Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.
    • Output Over-Current Protection (OCP)
    • Input Over-Voltage Protection (OVP)
    • Input Under-Voltage Protection (UVP)
    • Output DC-Offset Protection (DCP)
    • Over-Temperature Protection (OTP)

FEATURES

• Compact High-Power Class D Amplifier

• High-Current Design – 2Ω Stable

• 4 x 100 Watts @ 4 ohms

• 4 x 200 Watts @ 2 ohms

• 2 x 400 Watts @ 4 ohms Bridged

• Smart Auto-Reset Protection Circuit

• 12 dB/octave Linkwitz-Riley Variable High Pass Filters

• Solid Power/Speaker Terminals with Hex Screws



SPECIFICATIONS

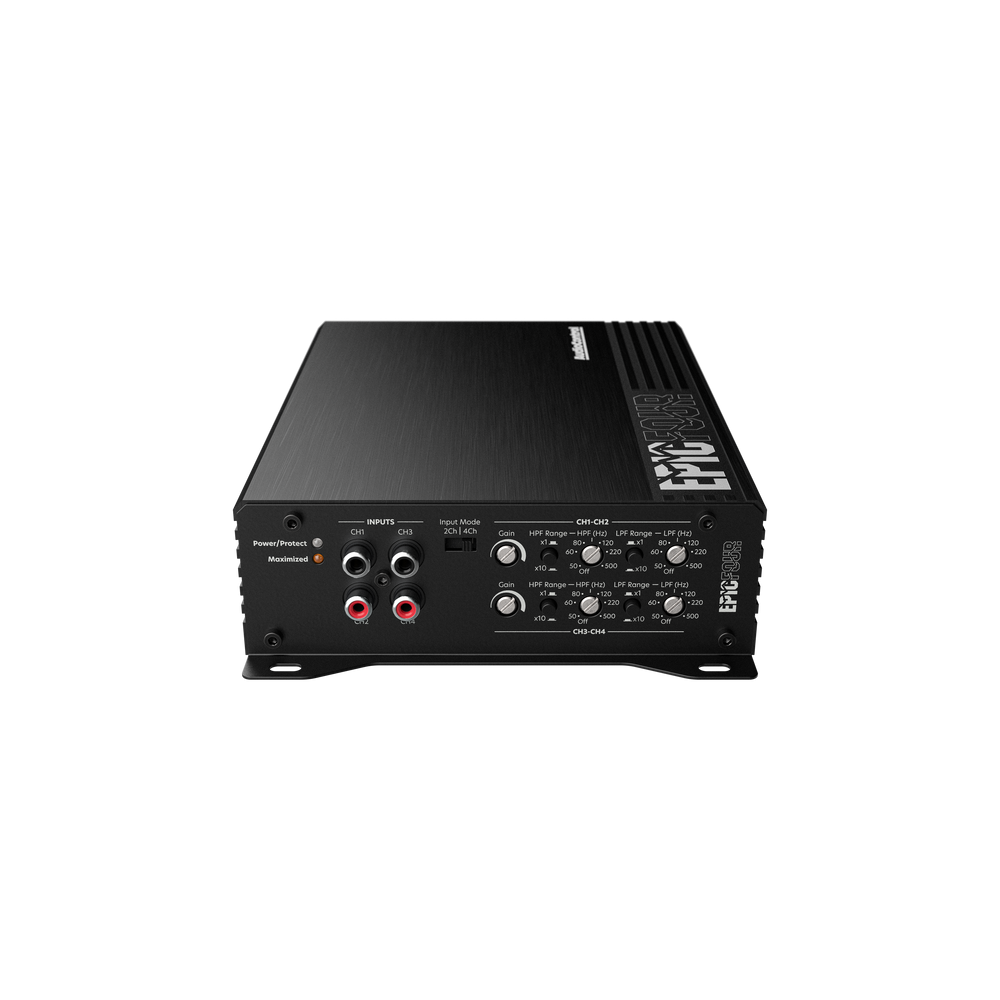

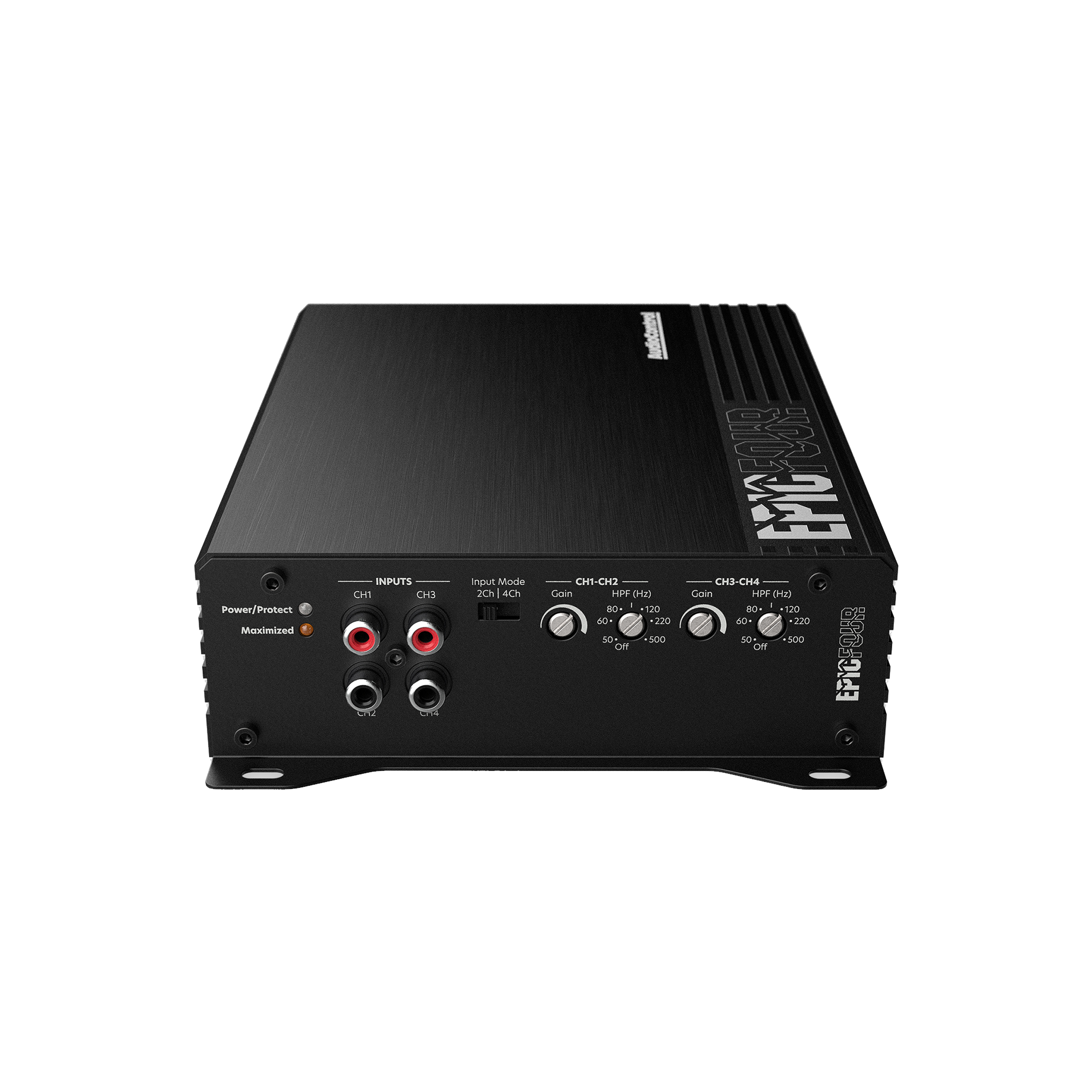

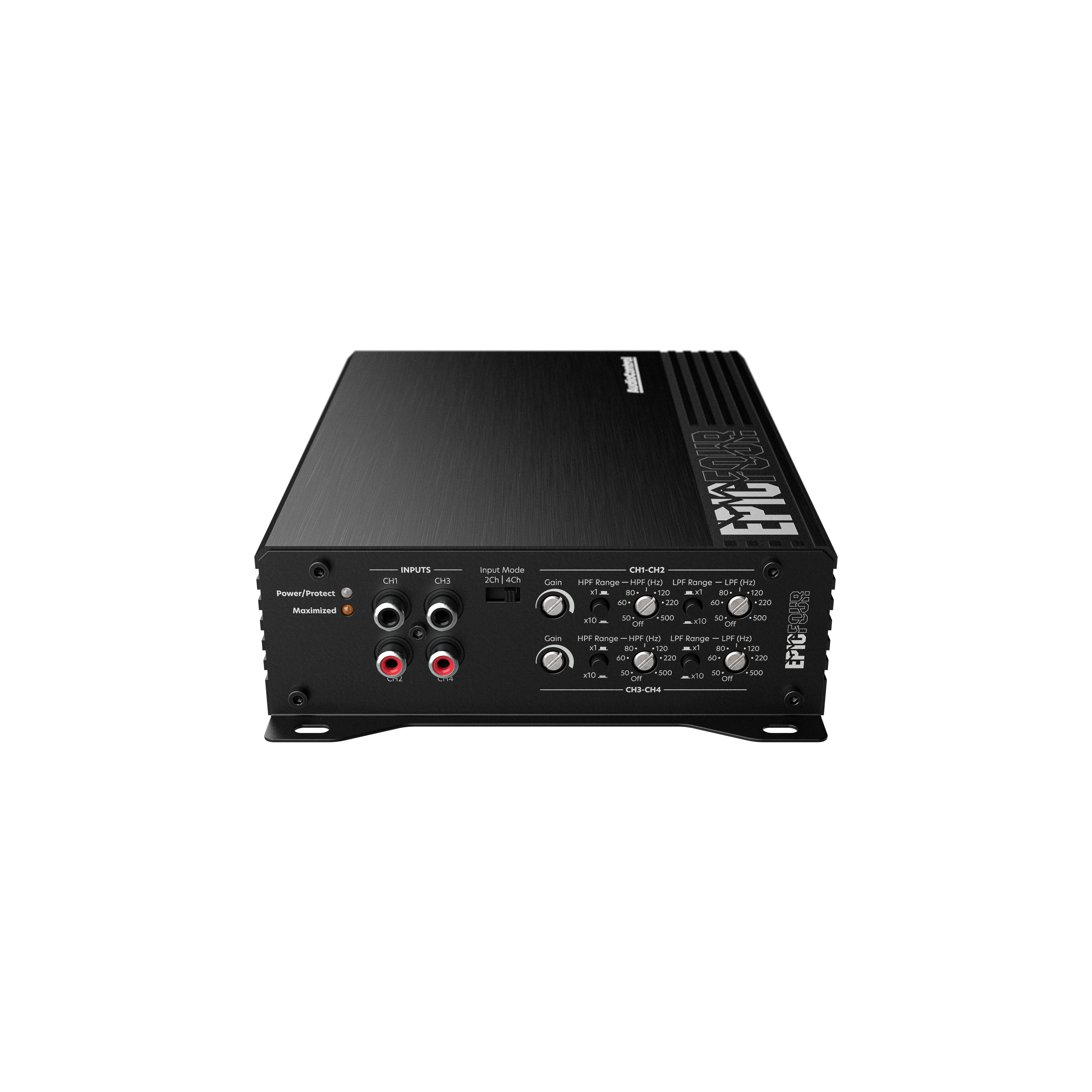

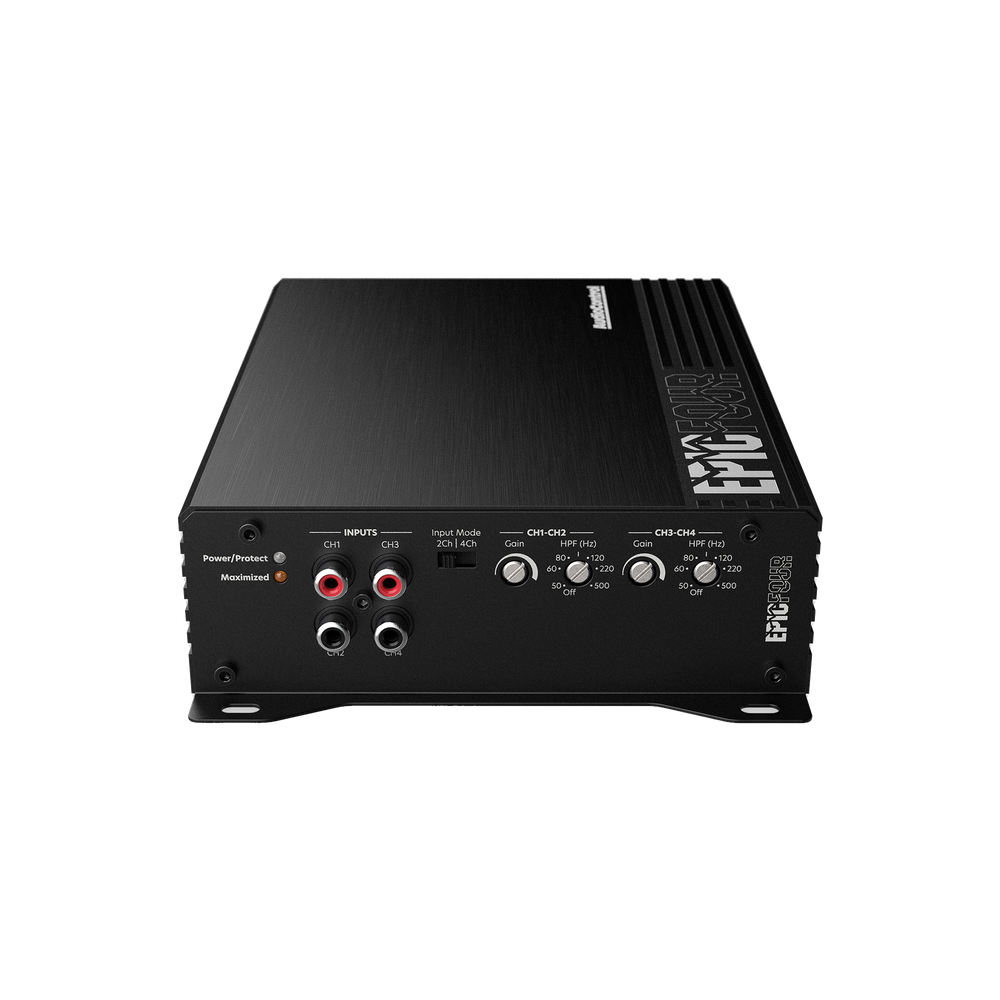

INPUTS

  • Line-Level Inputs: 500mV – 12V RMS

OUTPUTS

  • Continuous Power (RMS) @ 14.4V
    • 4 x 100 Watts @ 4 ohms

    • 4 x 200 Watts @ 2 ohms

    • 2 x 400 Watts @ 4 ohms Bridged

WEIGHTS & DIMENSIONS

  • DIMENSIONS: 6.1″ W x 9.41″ L x 2.01″ H

PERFORMANCE

  • Frequency Response (+/- 1 dB): 10 Hz – 22 kHz
  • S/N Ratio: 90.1 dBa, Ref 100 Watts @ 4 ohms
  • Power / Ground Wire Gauge: 4 AWG
  • Recommended Fuse Rating: 80 Amps
  • High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
  • Speaker Terminal Wire Gauge: 8 AWG

IN THE BOX: EPICFOUR, Wrench, Screws, Manual, Warranty

EPICFOUR 4-Channel Amplifier, 800W RMS
EPICFOUR 4-Channel Amplifier, 800W RMS
EPICFOUR 4-Channel Amplifier, 800W RMS
EPICFOUR 4-Channel Amplifier, 800W RMS

Shipping

In stock

Est. arrival October 05

Key features

Compact High-Power

Class D Amplifier

High-Current Design

2Ω Stable

4 x 100 Watts

@ 4 ohms

4 x 200 Watts

@ 2 ohms

2 x 400 Watts

@ 4 ohms Bridged

Smart Auto-Reset

Protection Circuit

12 dB/octave Linkwitz-Riley

High Pass Filters

Solid Power/Speaker Terminals

w/Hex Screws

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Unleash 800 Watts of Pure Epic Power

Features

Class D 4-Channel Amp

Powerful yet compact, designed to handle 2 ohm loads for high output at 800W RMS.

Smart Auto-Reset Protection Circuit

Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.

4-Gauge Power Terminal and 8-Gauge Speaker Terminal

Designed for maximum current flow.

What's in the box

EPICFOUR

EPICFOUR, Wrench, Screws, Manual, Warranty

Specs & installation

Product specs

Line Level Inputs 500mV – 12V RMS
Output RMS @ 14.4V 4x100W @ 4 ohms; 4x200W @ 2 ohms; 2x400W @ 4 ohms Bridged
Frequency Response 10 Hz – 22 kHz
S/N Ratio 90.1 dBa, Ref 100 Watts @ 4 ohms
Power/Ground Wire Gauge 4 AWG
Recommended Fuse Rating 80 Amps
High Pass Filter 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
Speaker Terminal Wire Gauge 8 AWG

Dimensions

Width 6.1″
Length 9.41″
Height 2.01″
