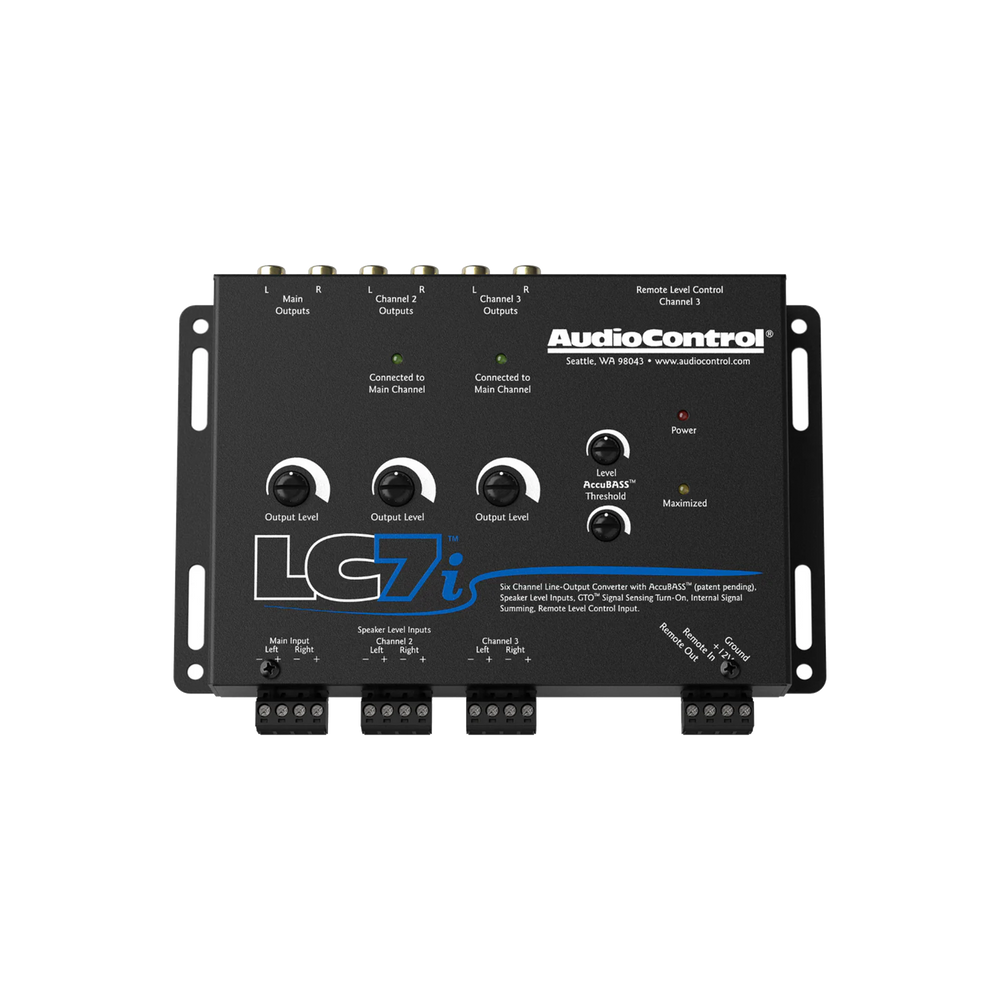

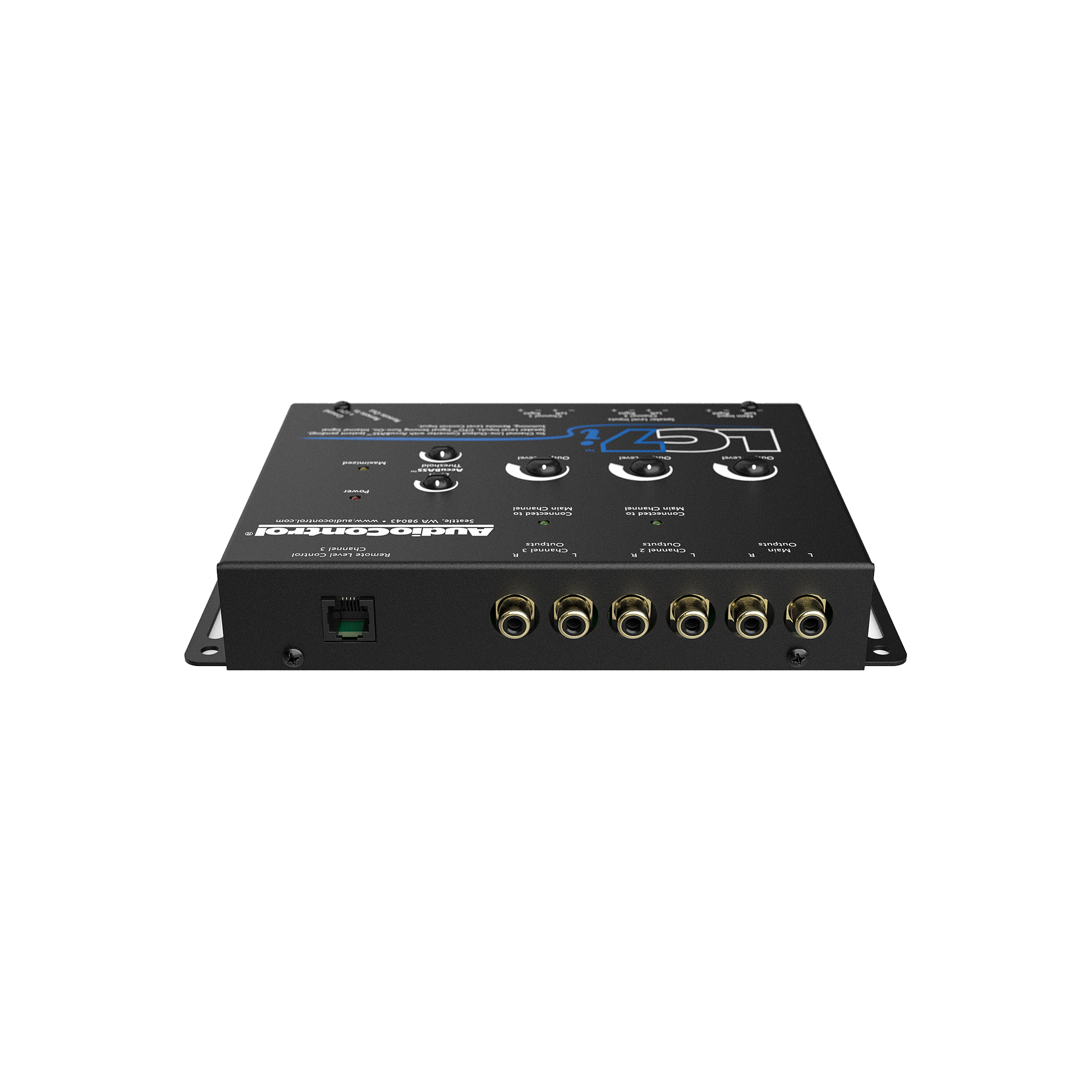

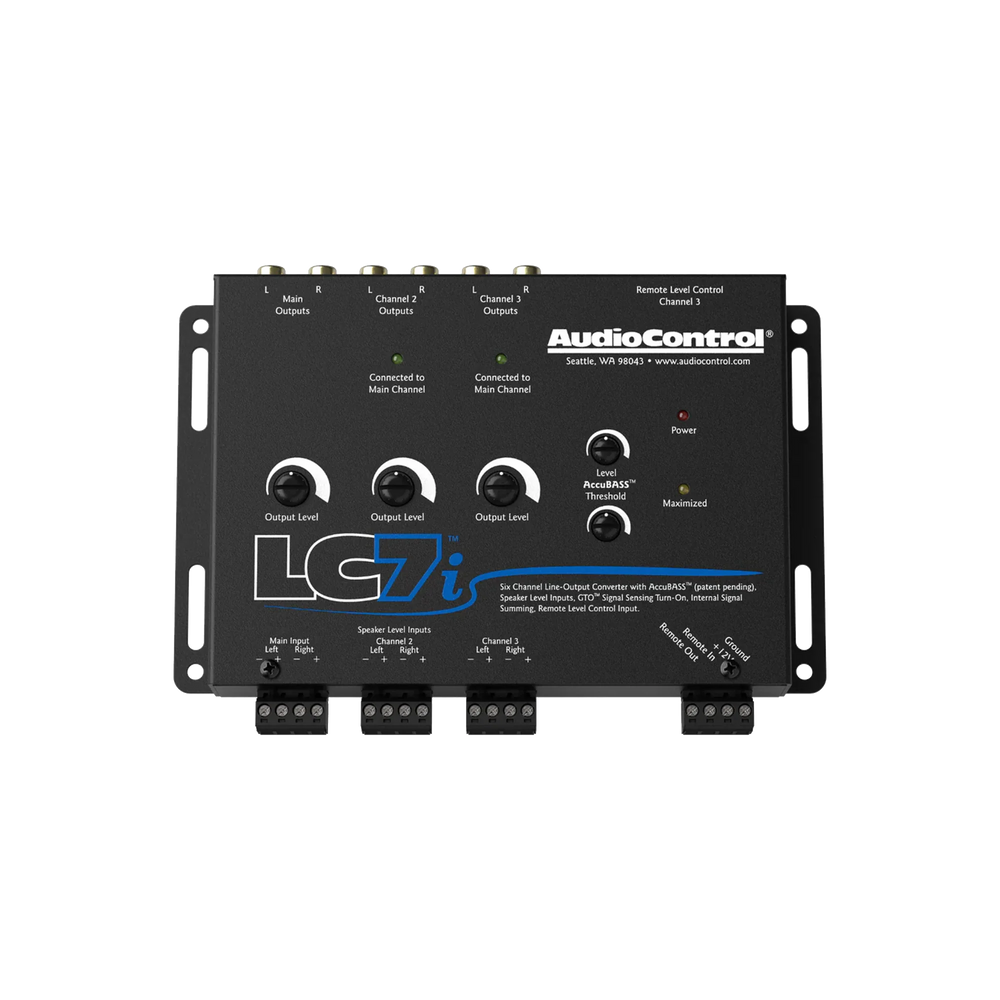

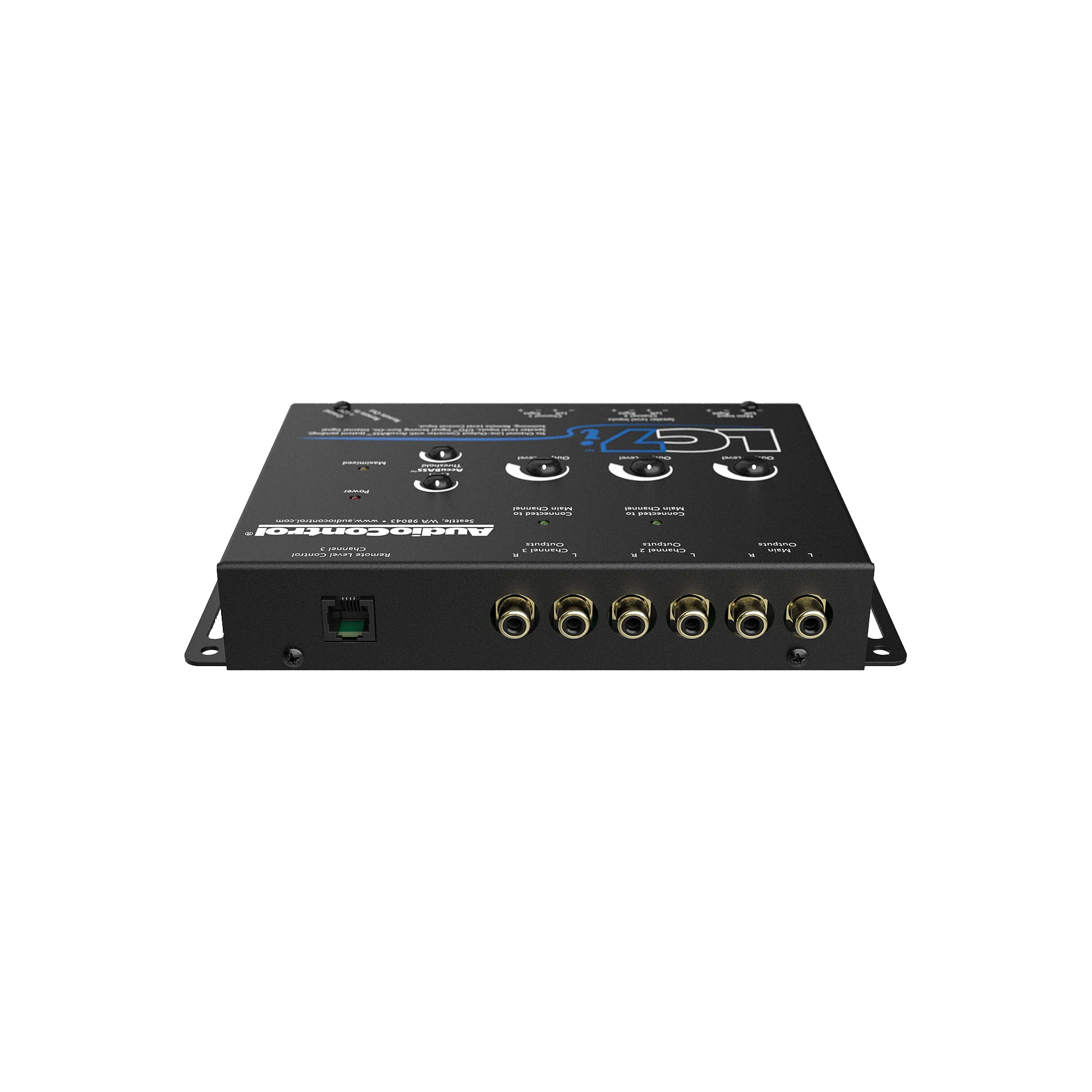

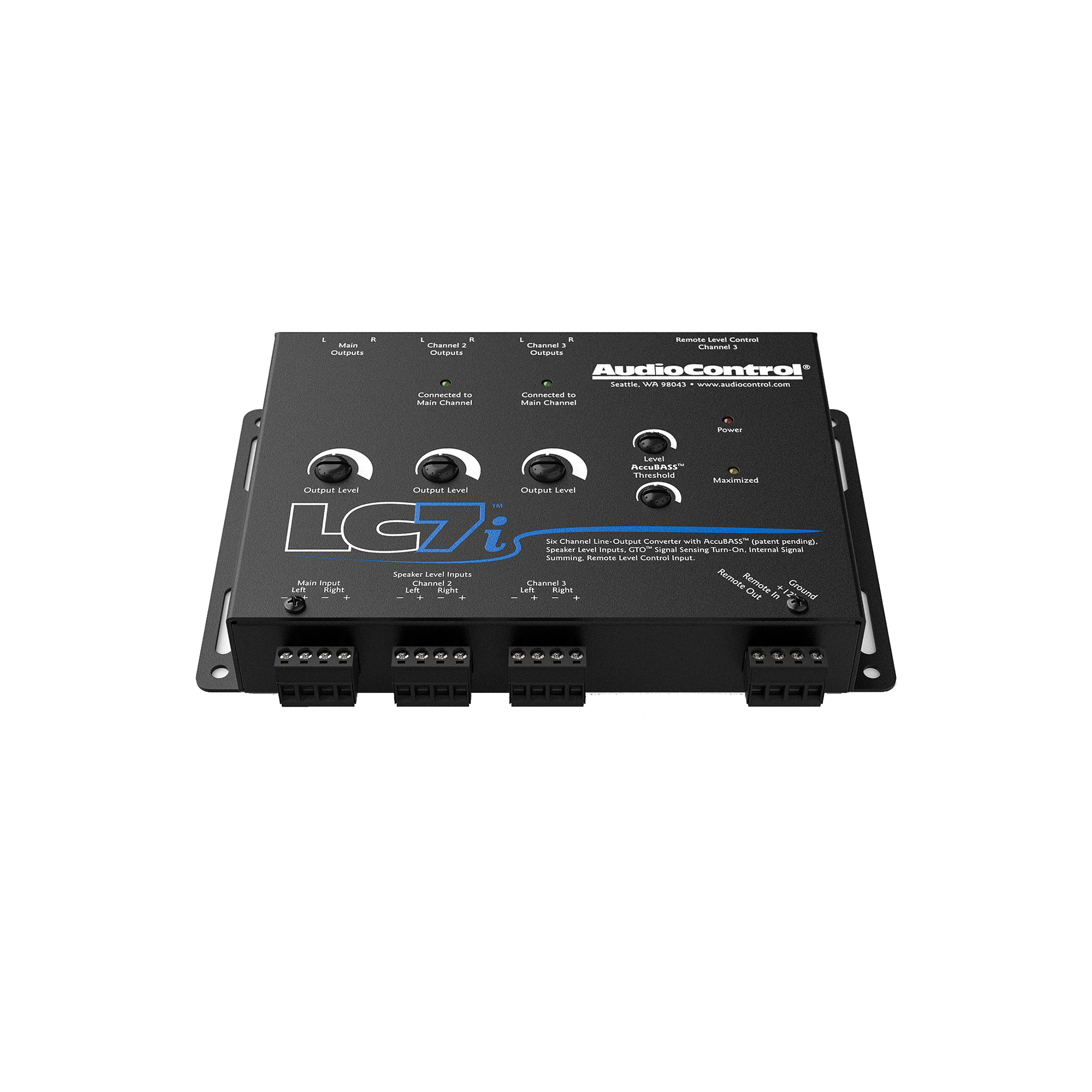

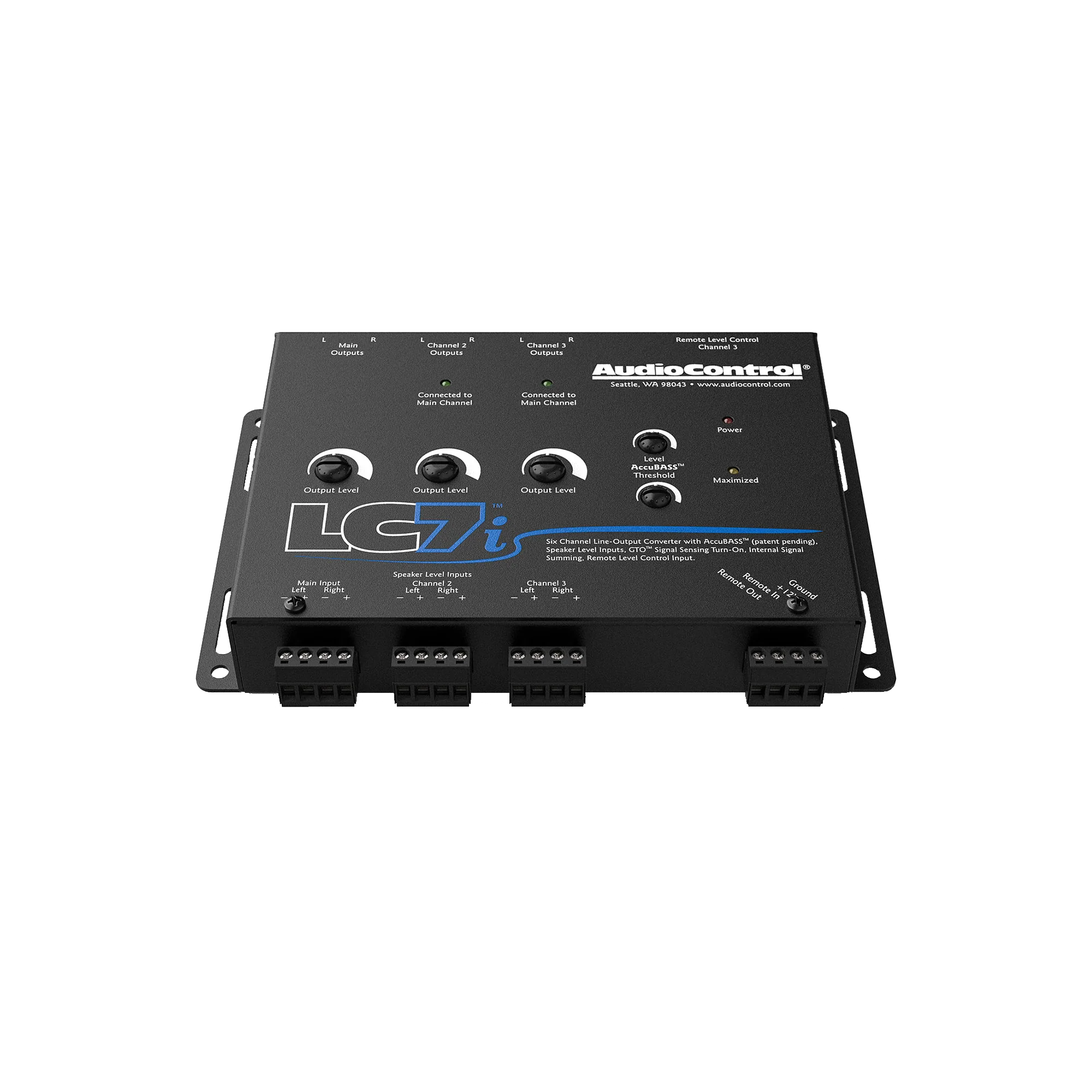

LC7i 6-Channel Line Output Converter w/AccuBASS

$139.00

The AudioControl LC7i, six channel active line converter, allows all music lovers, who want a great in-car audio experience, to keep their factory installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today’s factory systems, weak BASS!

The AudioControl LC7i, six channel active line converter, allows all music lovers, who want a great in-car audio experience, to keep their factory installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today’s factory systems, weak BASS!

Designed for maximum sound quality and enhanced audio performance, the LC7i incorporates AccuBASS™. This patented process automatically corrects for the bass roll-off that is common with many factory-installed audio systems and AudioControl’s unique and exclusive AccuBASS™ circuitry maintains and restores the Bass as the volume is turned up, improving the audio performance.

The LC7i allows the flexibility of powering the audio signals downstream to single or multiple factory amps maximizing sound quality & achieving high output at a great price. In addition, the LC7i is designed to fit into a compact chassis allowing an easy & flexible factory system upgrade in today’s space constrained vehicles. The ACR-1 dash remote (sold separately) allows the user to control the level of the low frequency output.

FEATURES

  • Six channels of active speaker level inputs – accepts up to 400 watts per channel
  • Patent Pending AccuBASS™ circuitry
  • Optional ACR-1 Remote allows for user control of the subwoofer level
  • Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
  • GTO™ (Great Turn-On) Circuit – Powers up the LC7i when it detects signal on the speaker level input
  • Output level control
  • Compact chassis allowing for ease of installation

SPECIFICATIONS

INPUTS

  • Speaker Level Inputs: 3 (6 channels)
  • Maximum Input (speaker level): 400W per channel at 4Ω
  • Input Impedance: 20kΩ

OUTPUTS

  • Preamp Outputs: 3 (6 channels)
  • Maximum Output Level: 8.5Vrms
  • Output Gain: ±12dB
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.01%
  • Frequency Response: 10Hz-22kHz

CONTROL

  • Remote In
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Power Supply: High Headroom PWM Switching
  • Current Draw: 350mA
  • Recommended Fuse Rating: 2A

WEIGHTS & DIMENSIONS

  • Dimensions: 7.5”W x 4.7”D x 1.2”H
  • Weight: 1.5 lbs (0.7 kg)

IN THE BOX: LC7i, Speaker and Power connectors, Manual, Warranty

LC7i 6-Channel Line Output Converter w/AccuBASS
LC7i 6-Channel Line Output Converter w/AccuBASS
LC7i 6-Channel Line Output Converter w/AccuBASS

Shipping

In stock

Est. arrival October 05

Key features

Speaker Level Inputs

6 Channels

AccuBASS

Bass roll-off correction

Internal Summing

Sum multiple input channels

GTO Circuit

Powers up when signal is detected

Output Level Control

Adjust signal output

ACR-1 Remote Control

Optional

Compact Chassis

Improves ease of installation

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Easily Upgrade your factory system with the LC7i.

Features

Path to an Elevated Audio Experience

Seamlessly upgrade your factory system with aftermarket audio components with AudioControl's line output converters.

Car subwoofers with blue LED lighting and 'EPICX' branding.

AccuBASS

Correct and maintain bass as volume increases for improved performance.

ACR-1 Dash Remote (Optional)

Adjust the bass output from the comfort of the driver's seat.

What's in the box

LC7i

LC7i, Speaker and Power connectors, Manual, Warranty

Specs & installation

Product specs

Speaker Level Inputs 3 (6 channels)
Maximum Input (speaker level) 400W per channel at 4Ω
Input Impedance 20kΩ
Preamp Outputs 3 (6 channels)
Maximum Output Level 8.5Vrms
Output Gain ±12dB
Output Impedance 150Ω
Total Harmonic Distortion 0.01%
Frequency Response 10Hz-22kHz
Power Supply High Headroom PWM Switching
Current Draw 350mA
Recommended Fuse Rating 2A

Dimensions

Dimensions 7.5”W x 4.7”D x 1.2”H
Weight 1.5 lbs (0.7 kg)

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
