PNW-69CS2 6x9" Component Speakers, 100W RMS, 3 Ohms (Pair)

$349.00

Designed to deliver premium sound quality and unmatched performance, the PNW series will impress you with their detail, clarity, and volume during every drive.

AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Worried about installation? Don’t be! Our speaker sets come with high-quality mounting hardware, so you can enjoy your new sound system hassle-free. The tweeter’s point source design even aligns the output of both drivers perfectly, resulting in better speaker alignment for amazing sound quality. Looking for the full package? Pair PNW with our Spike or Space series subwoofers for the ultimate in-vehicle listening experience. All of these features add up to a line of speakers that are not only impressive on paper but are sure to impress you with their detail, clarity, and volume every time you drive.

FEATURES

  • Edge-Enhanced Steel Frame for Added Structural Strength
  • Black Anodized Voice Coil Former for Superior Heat Dissipation
  • Linear Double-Roll Surround for Precision Cone Movement
  • Complex FEA designed high efficiency motor
  • Rigid Poly Mica-Coated Cone for Optimized Sound Reproduction
  • Rear dampened hybrid silk dome tweeter for extended frequency response
  • High-Quality Mounting Hardware Included

SPECIFICATIONS

Crossover Type                                    2nd order Linkwitz-Riley

Power                                                        100W RMS / 125W Max

DC Resistance (Re).                          2.6 ohms

Filter Type                                              HP / LP

Frequency Response                     50-20k Hz

XO Frequency                                      3.5kHz HP / LP

Slope (Octave)                                     -12 dB

Tweeter Voice Coil Diameter          25 mm

Midrange Voice Coil Diameter      35 mm



IN THE BOX: (2)PNW-69CS2, Manual, Warranty



DIMENSIONS

  • Overall Dimensions: 6 x 9 in / 167 x 235 mm
  • Overall Diameter (w/o Metal bracket): 7.2 x 10.43 in / 183 x 265 mm
  • Cut Out Diameter: 5.74 x 8.34 in / 146 x 212 mm
  • Mounting Depth: 2.95 in / 75 mm
  • Mounting Height (w/o Grille): .0.24 in / 6.3 mm
  • Mounting Height (w/ Grille): 0.98 in / 25 mm
  • Motor Diameter (w/ Cover): 4.6 in / 117 mm

DIMENSIONS FOR TWEETER

  • Overall Diameter (G): 2.13 in / 54 mm
  • Cut Out Diameter (H): 1.85 in / 47 mm
  • Mounting Depth: 0.63 in / 16 mm
PNW-69CS2 6x9" Component Speakers, 100W RMS, 3 Ohms (Pair)
PNW-69CS2 6x9" Component Speakers, 100W RMS, 3 Ohms (Pair)
PNW-69CS2 6x9" Component Speakers, 100W RMS, 3 Ohms (Pair)
PNW-69CS2 6x9" Component Speakers, 100W RMS, 3 Ohms (Pair)
PNW-69CS2 6x9" Component Speakers, 100W RMS, 3 Ohms (Pair)
PNW-69CS2 6x9" Component Speakers, 100W RMS, 3 Ohms (Pair)
PNW-69CS2 6x9" Component Speakers, 100W RMS, 3 Ohms (Pair)

Shipping

In stock

Est. arrival October 05

Key features

Edge-enhanced steel frame

for added structural strength

Black anodized voice coil

for superior heat dissipation

Linear double-roll surround

for precision cone movement

Complex FEA motor

for high efficiency sound

Rigid poly mica-coated cone

for optimized sound reproduction

Rear dampened hybrid silk dome tweeter

for extended frequency response

High/low pass filters

included

1" Silk dome tweeters

included

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Extraordinary sound quality for your high-fidelity life.

Features

High-Fidelity Audio

Born in the Pacific Northwest, the PNW Series speakers provide exceptional sound quality and unmatched performance.

Black Anodized Voice Coil

Allows for superior heat dissipation, increased power handling, and longer durability.

Edge-Enhanced Steel Frame

Adds structural strength, minimizing potential flexing or warping that could lead to sound distortion.

Complex FEA Motor

A high efficiency motor that produces maximum sound output.

What's in the box

pnw-69cs2

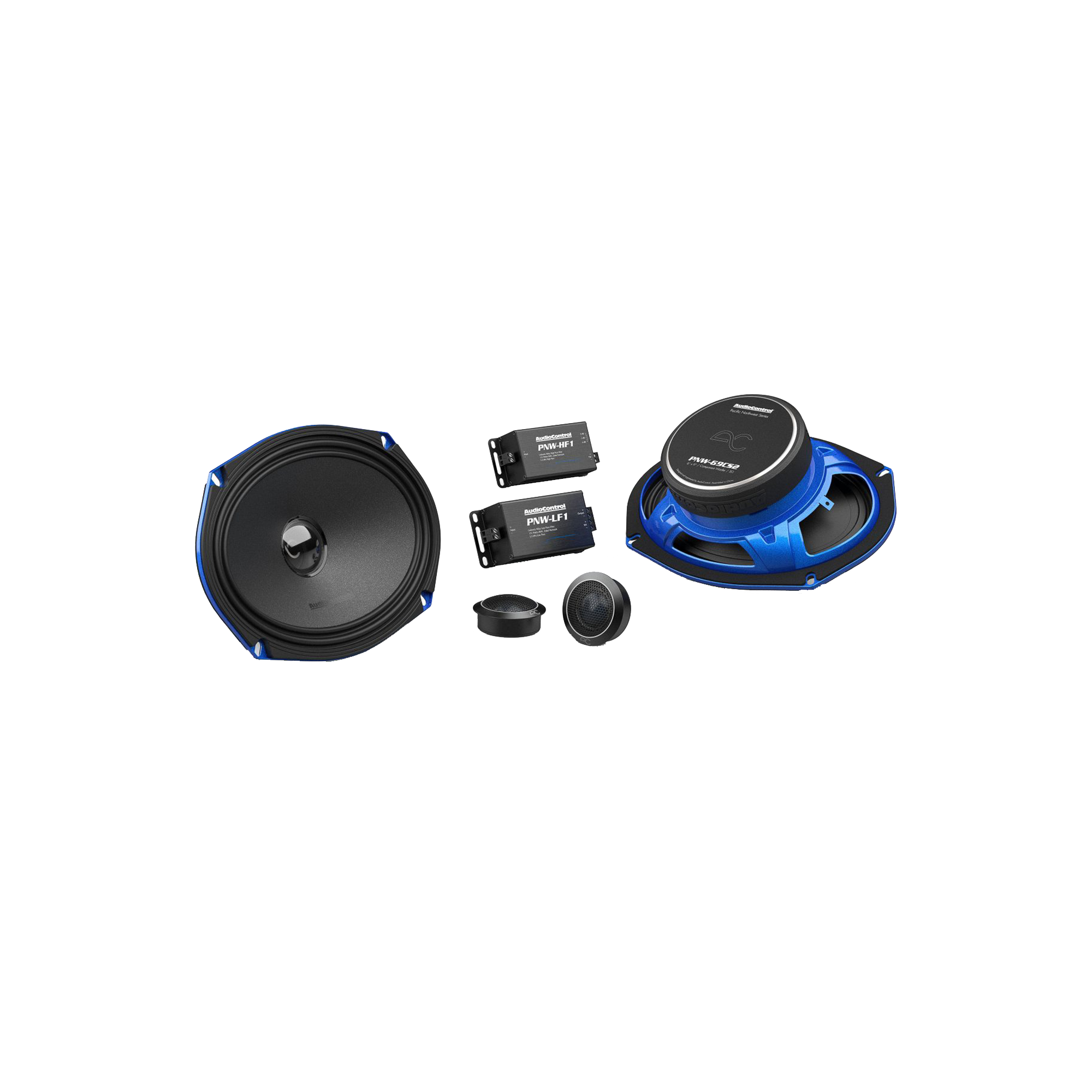

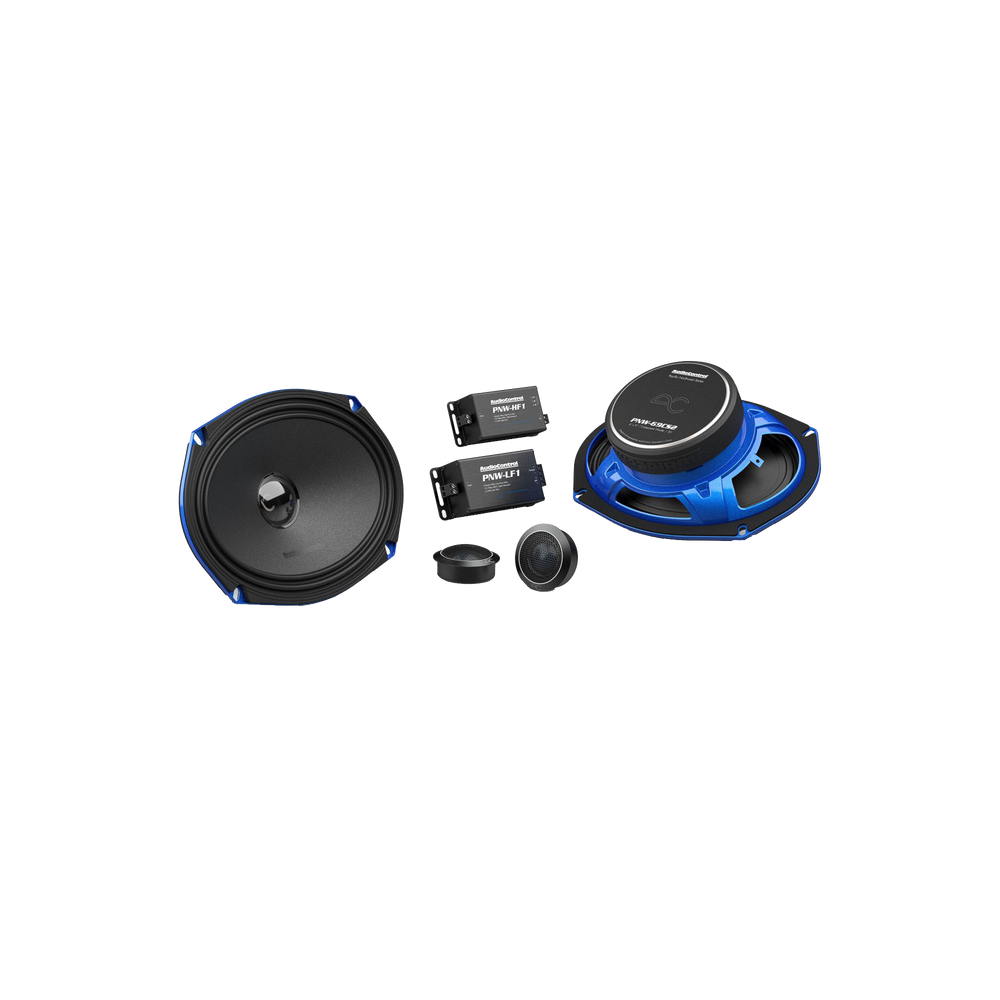

(2) 6x9" Component Speakers, (2) 1" Tweeters, (2) HP/LP Filters, Manual, Warranty

Specs & installation

Product specs

Crossover Type 2nd order Linkwitz-Riley
DC Resistance (Re) 2.6 ohms
Filter Type High Pass / Low Pass
System Frequency (Fs) Response 50-20k Hz
XO Frequency 3.5kHz HP / LP
Slope (Octave) -12 dB
Tweeter Voice Coil Diameter 20 mm
Midrange Voice Coil Diameter 35 mm

Dimensions

(6x9" Speaker) Overall Dimensions 6 x 9 in / 167 x 235 mm
Overall Diameter (w/o Metal bracket) 7.2 x 10.43 in / 183 x 265 mm
Cut Out Diameter 5.74 x 8.34 in / 146 x 212 mm
Mounting Depth 2.95 in / 75 mm
Mounting Height (w/o Grille) .0.24 in / 6.3 mm
Mounting Height (w/ Grille) 0.98 in / 25 mm
Motor Diameter (w/ Cover) 4.6 in / 117 mm
(1" Tweeter) Overall Diameter (G) 2.13 in / 54 mm
Cut Out Diameter (H) 1.85 in / 47 mm
Mounting Depth 0.63 in / 16 mm

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
