LC-5.1300 High-Power 5-Channel or 3-Channel Amplifier w/AccuBASS

$879.00

The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl.

The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.


FEATURES

  • Configurable as 5 or 3 channel amplifier
  • 4 x 200 watts + 1 x 500 watts @ 2 ohms
  • 4 x 100 watts + 1 x 300 watts @ 4 ohms
  • 400 watts @ 4 ohms bridged
  • AccuBASS® Processing
  • MILCTM Maximum Input Level Control (Patent Pending)
  • GTOTM Signal Sense
  • 3-way Independent Linkwitz-Riley Alignment crossovers
  • Summable active speaker-level inputs (8 channels) for OEM integration
  • 6 preamp inputs
  • PFM Subsonic Filter
  • Optional ACR-1 assignable remote control
  • Solid One-Piece Aluminum Chassis


SPECIFICATIONS

INPUTS

  • Preamp Inputs: 6 balanced
  • Preamp Input Voltage Range: 500 mV – 6 Vrms
  • Speaker Level Inputs: 8
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms

OUTPUTS

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 100 W x 4 + 300 W x 1
    • 2 Ω – 200 W x 4 + 500 W x 1
    • Bridged 4 Ω – 400 W

PERFORMANCE

  • Frequency Response: 20 Hz – 22 kHz
  • Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Minimum Power / Ground Wire Gauge: 3 AWG wire
  • Fuse Rating: 4 x 30 A
  • Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz

WEIGHT & DIMENSIONS

  • Dimensions: 12.0″W x 8.0″D x 2.1″H
  • Weight: 7.2lbs. (3.3kg)

IN THE BOX: LC-5.1300, Speaker Connectors, Fuses, Manual, Warranty

LC-5.1300 High-Power 5-Channel or 3-Channel Amplifier w/AccuBASS
LC-5.1300 High-Power 5-Channel or 3-Channel Amplifier w/AccuBASS
LC-5.1300 High-Power 5-Channel or 3-Channel Amplifier w/AccuBASS
LC-5.1300 High-Power 5-Channel or 3-Channel Amplifier w/AccuBASS
LC-5.1300 High-Power 5-Channel or 3-Channel Amplifier w/AccuBASS
LC-5.1300 High-Power 5-Channel or 3-Channel Amplifier w/AccuBASS

Shipping

In stock

Est. arrival October 05

Key features

Multi-Channel Flexibility

Configurable as 5 or 3 channel amplifier

AccuBASS Processing

Bass roll-off correction

Maximum Input Level Control (MILC)

Input signal monitoring for proper Gain adjustment.

GTO Signal Sense

Turns on the amp when it detects an audio signal.

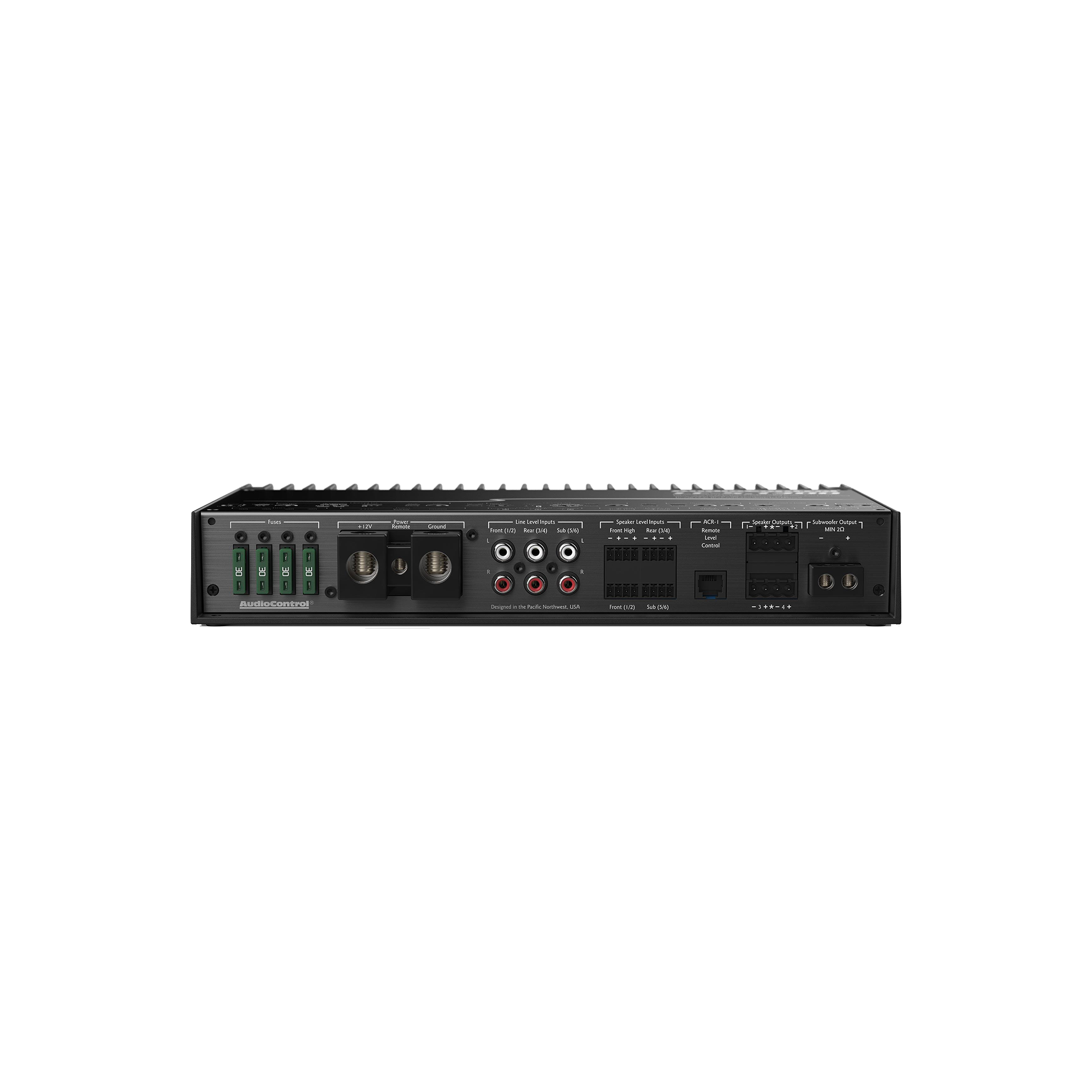

Connections

Connections for power, input/output, speaker level, and remote control

ACR-1 Remote (Optional)

Adjust output levels from the driver's seat.

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

LC Series Amps are designed for High Power Builds.

What's in the box

LC-5.1300

LC-5.1300 5-channel Amplifier ,Four 30-amp ATO fuses (installed), 4 Speaker level input Phoenix terminals (installed), 2 Speaker output Phoenix terminals (installed), 2.5 mm Allen wrench, User Guide

Specs & installation

Product specs

Power RMS 4 x 200 W + 1 x 500 W @ 2 ohms; 4 x 100 W + 1 x 300 W @ 4 ohms
Power Bridged 400 watts @ 4 ohms bridged
Minimum Impedance 2 ohms
Frequency Response 20-22k Hz
Signal-to-Noise Ratio 102 dB
THD 0.01%
Input Voltage 14.4v
HP Crossover Frequency 30-5000 Hz
LP Crossover Frequency 30-300 Hz

Dimensions

Width 12"
Height 2.13"
Depth 9.5"

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.
