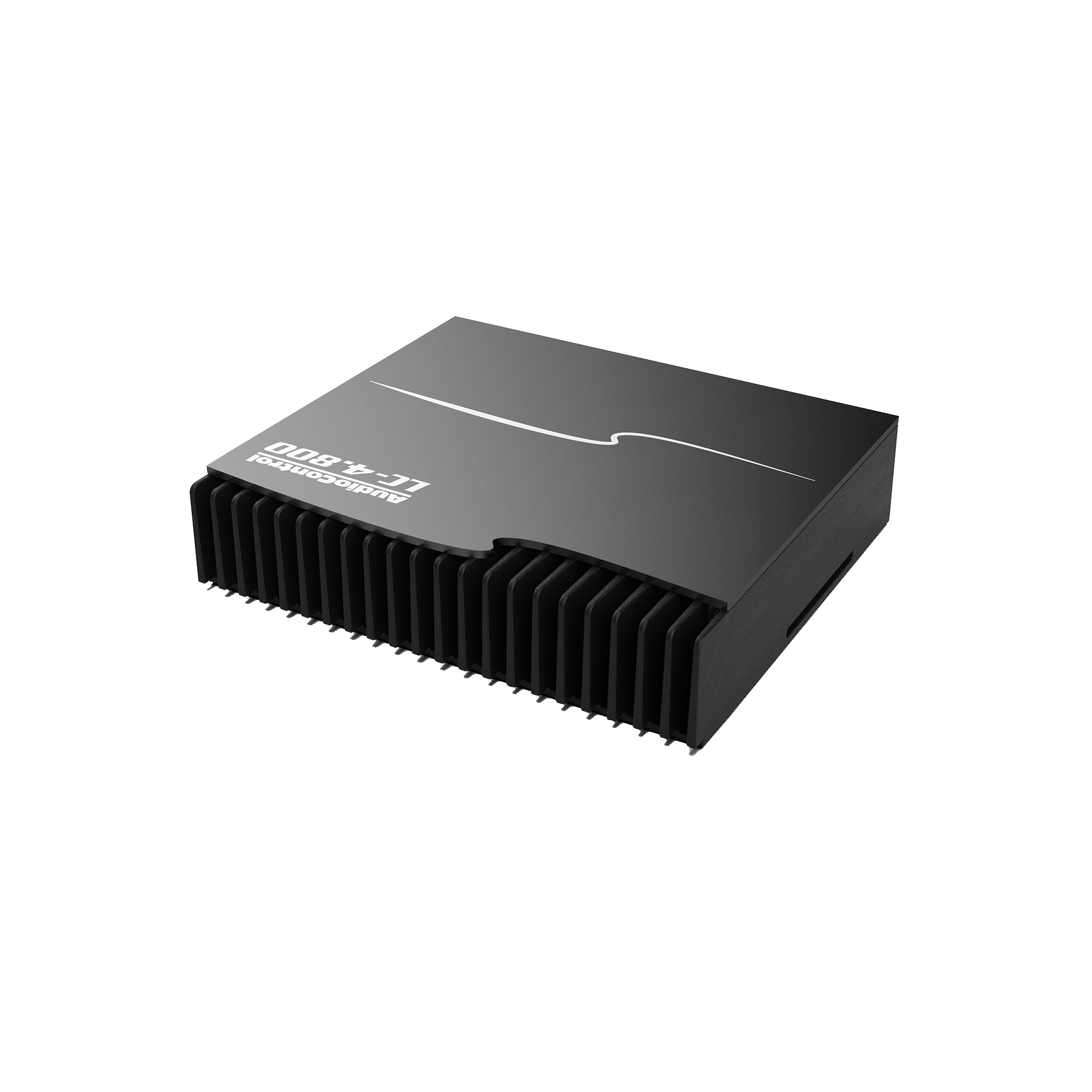

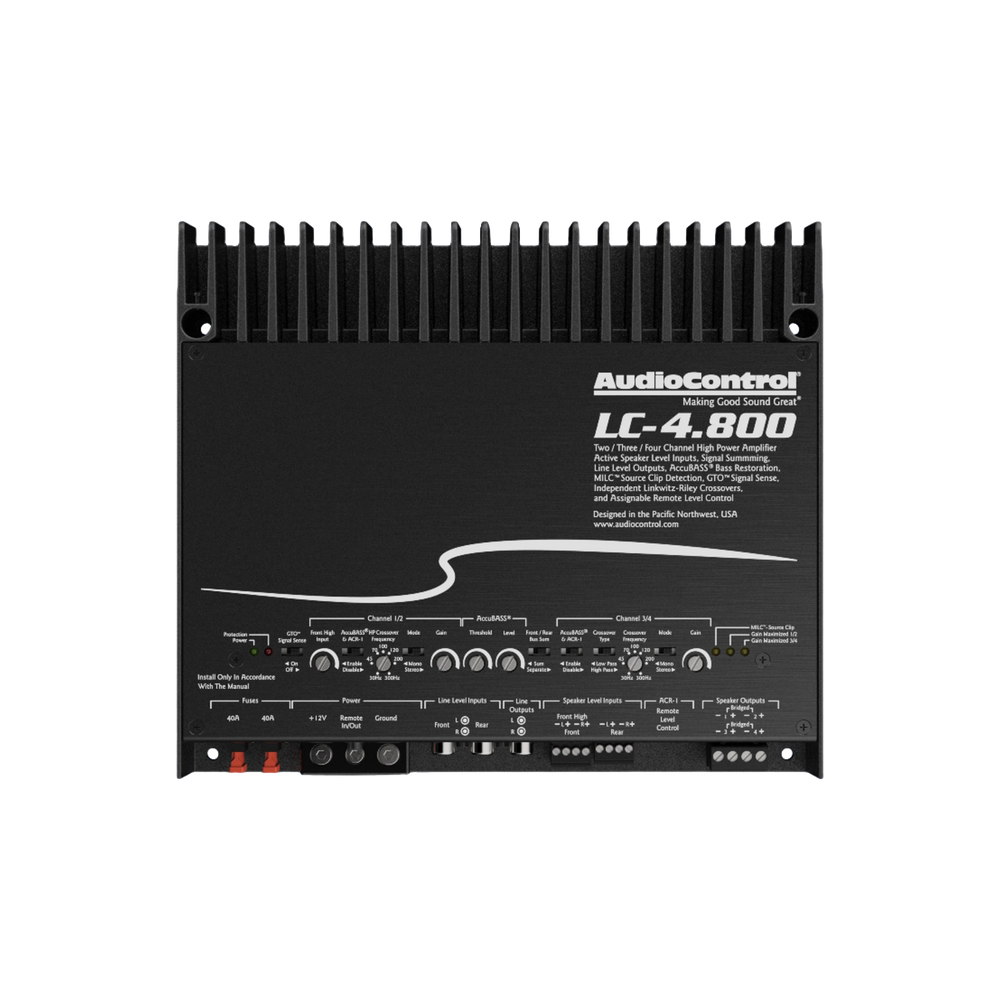

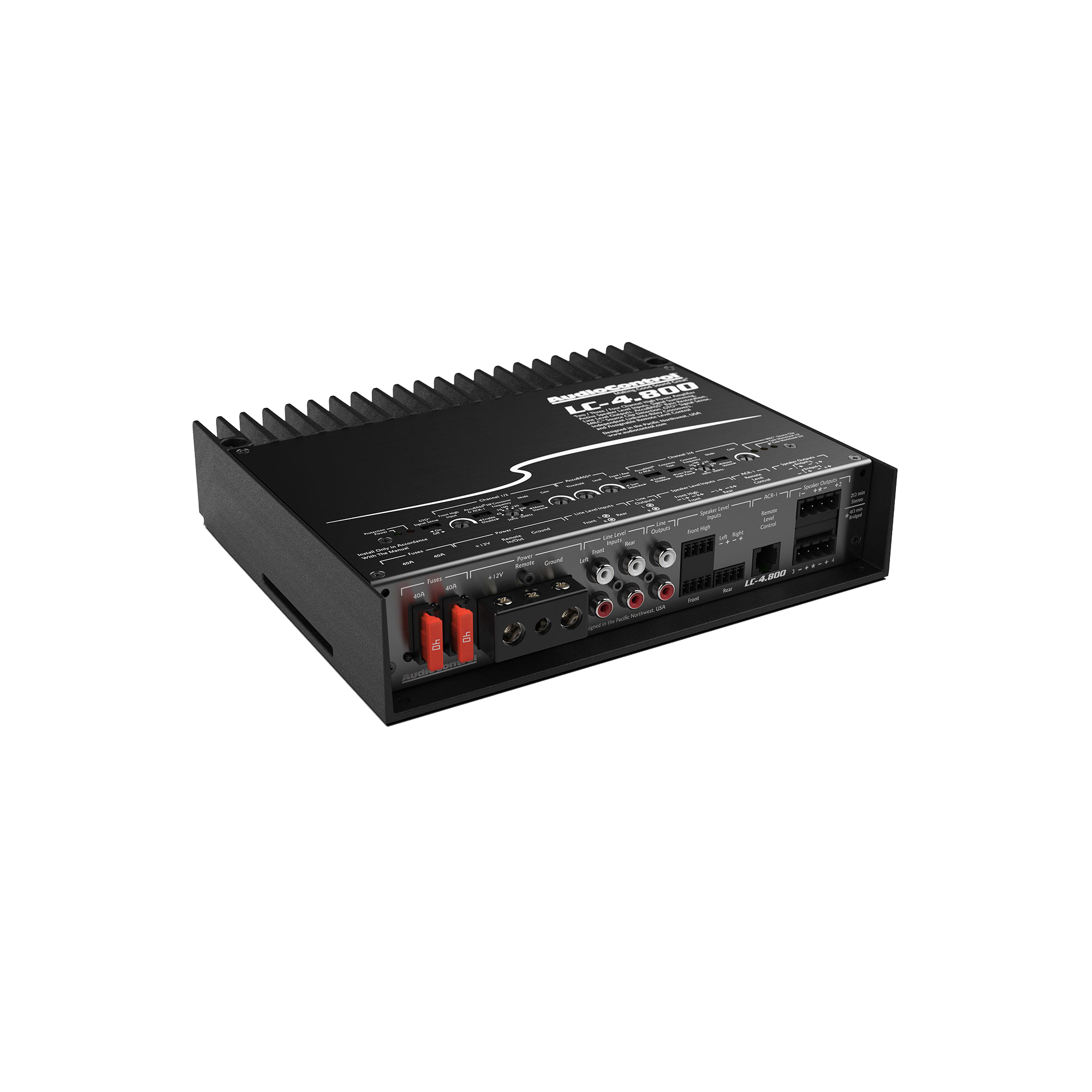

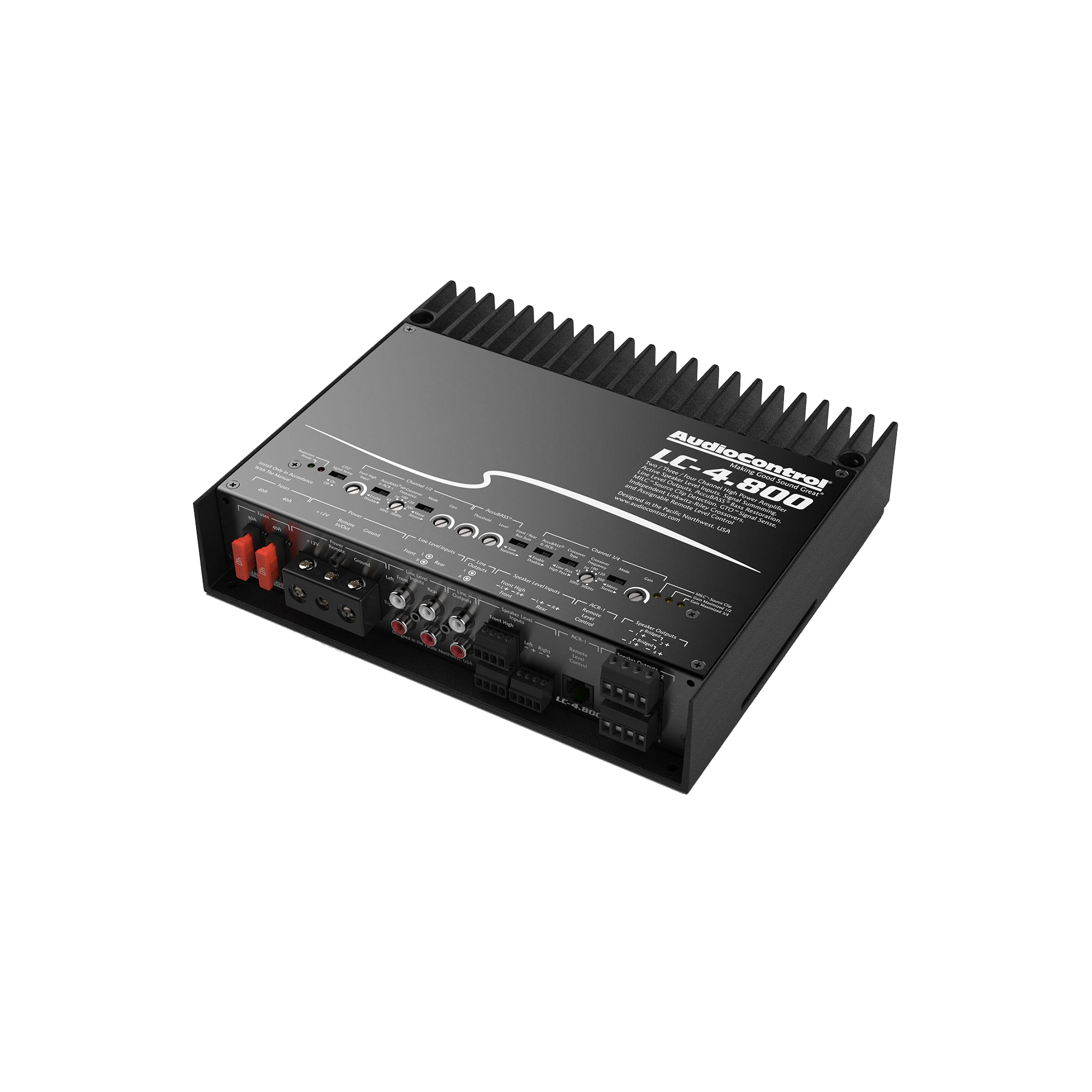

LC-4.800 High-Power 4-Channel Amplifier w/AccuBASS

$609.00

This unique high power design features six active speaker level inputs with summing allowing you to interface and integrate with most factory installed source units. The patent pending AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

“Making Good Sound Great” is our passion at AudioControl and that legacy continues with the LC-4.800 multi-channel amplifier.

This unique high power design features six active speaker level inputs with summing allowing you to interface and integrate with most factory installed source units. The patent pending AccuBASS® circuit compensates for  factory bass roll-off and provides maximum bass performance.

More control and features include our GTO signal Sense, Configurable Crossovers and assignable remote level control. We have incorporated years of technology into the LC-4.800 making this a perfect solution based amplifier.



FEATURES

  • Configurable as 4/3/2 channel amplifier
  • 4 x 200 watts @ 2 ohms
  • 4 x 125 watts @ 4 ohms
  • 400 watts @ 4 ohms bridged
  • AccuBASS® Processing
  • MILC™ Maximum Input Level Control (Patent Pending)
  • GTO™ Signal Sense
  • Independent Linkwitz-Riley Alignment crossovers
  • Summable active speaker-level inputs (6 channels) for OEM integration
  • 4 preamp inputs
  • 2 assignable preamp outputs
  • PFM Subsonic Filter
  • Optional ACR-1 assignable remote control
  • Solid One-Piece Aluminum Chassis



SPECIFICATIONS

INPUTS

  • Preamp Inputs: 4 balanced
  • Input Voltage Range: 250 mV – 8 Vrms
  • Speaker Level Inputs: 6
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms

OUTPUTS

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 125 W x 4 RMS
    • 2 Ω – 200 W x 4 RMS
    • Bridged 4 Ω – 400 W RMS
  • Preamp Outputs: 2
  • Maximum Preamp Output: 8.5 V RMS

PERFORMANCE

  • Frequency Response: 10 Hz – 30 kHz
  • Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Minimum Power / Ground Wire Gauge: 3 AWG wire
  • Fuse Rating: 2 x 40 A
  • Crossover: Linkwitz-Riley, Adjustable From 30 Hz – 300 Hz

WEIGHT & DIMENSIONS

  • Dimensions: 9″W x 7.95″D x 2.1″H
  • Weight: 5.0lbs (2.0kg)

IN THE BOX: LC-4.800, Speaker connectors, Fuses, Manual, Warranty

LC-4.800 High-Power 4-Channel Amplifier w/AccuBASS
LC-4.800 High-Power 4-Channel Amplifier w/AccuBASS
LC-4.800 High-Power 4-Channel Amplifier w/AccuBASS
LC-4.800 High-Power 4-Channel Amplifier w/AccuBASS
LC-4.800 High-Power 4-Channel Amplifier w/AccuBASS

Shipping

In stock

Est. arrival October 05

Key features

Multi-Channel Flexibility

Configurable as 4/3/2 channel amplifier

AccuBASS Processing

Bass roll-off correction

Maximum Input Level Control (MILC)

Input signal monitoring for proper Gain adjustment.

GTO Signal Sense

Turns on the amp when it detects an audio signal.

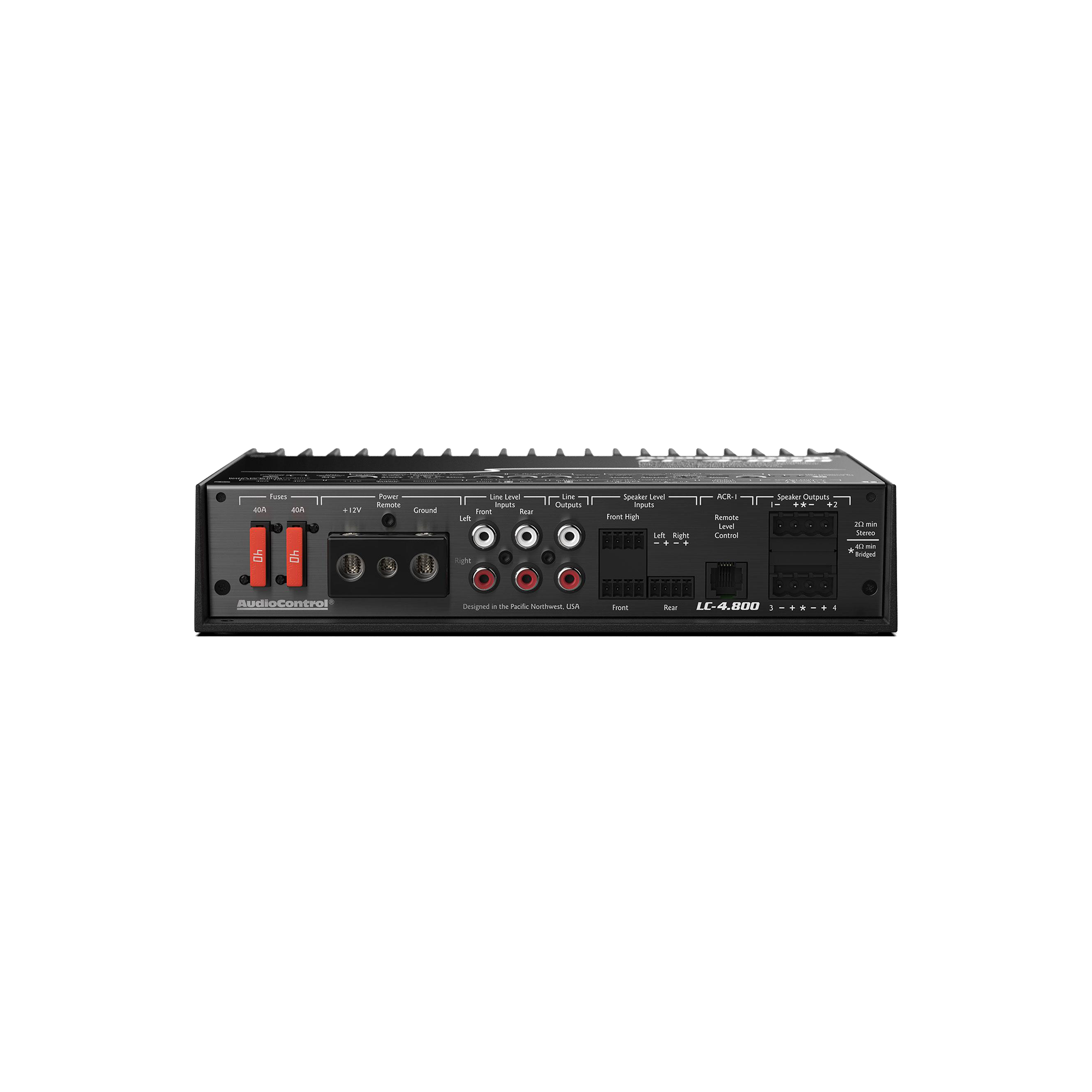

Connections

Connections for power, input/output, speaker level, and remote control

ACR-1 Remote (Optional)

Adjust output levels and recall memory presets from the driver's seat.

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

LC Series Amps are designed for High Power Builds.

What's in the box

LC-4.800

4-Channel Amplifier, Two 40-amp ATO fuses (installed), 2 Large Phoenix connectors (installed), 3 Small Phoenix connectors (installed), 2.5mm Allen wrench, User Guide

Specs & installation

Product specs

Power RMS 4 x 200 W @ 2 ohms; 4 x 125 W @ 4 ohms; 400 W @ 4 ohms bridged
Minimum Impedance 2 ohms
Frequency Response 10 Hz – 30 kHz
Signal-to-Noise Ratio 102 dB
THD 0.01%
Input Voltage 14.4v
Crossover Linkwitz-Riley, Adjustable From 30 Hz – 300 Hz

Dimensions

Width 9"
Height 2.13"
Depth 7.81"

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
