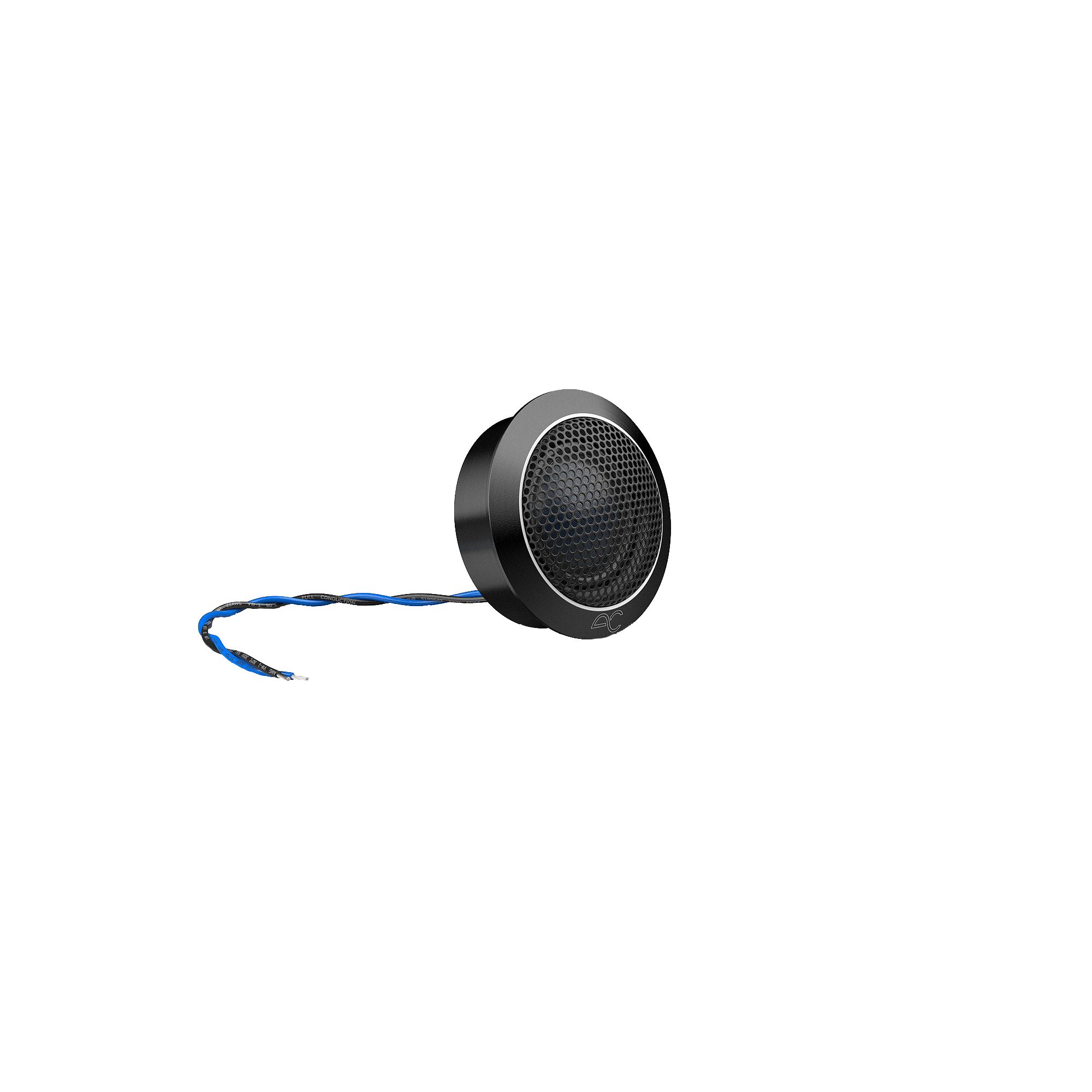

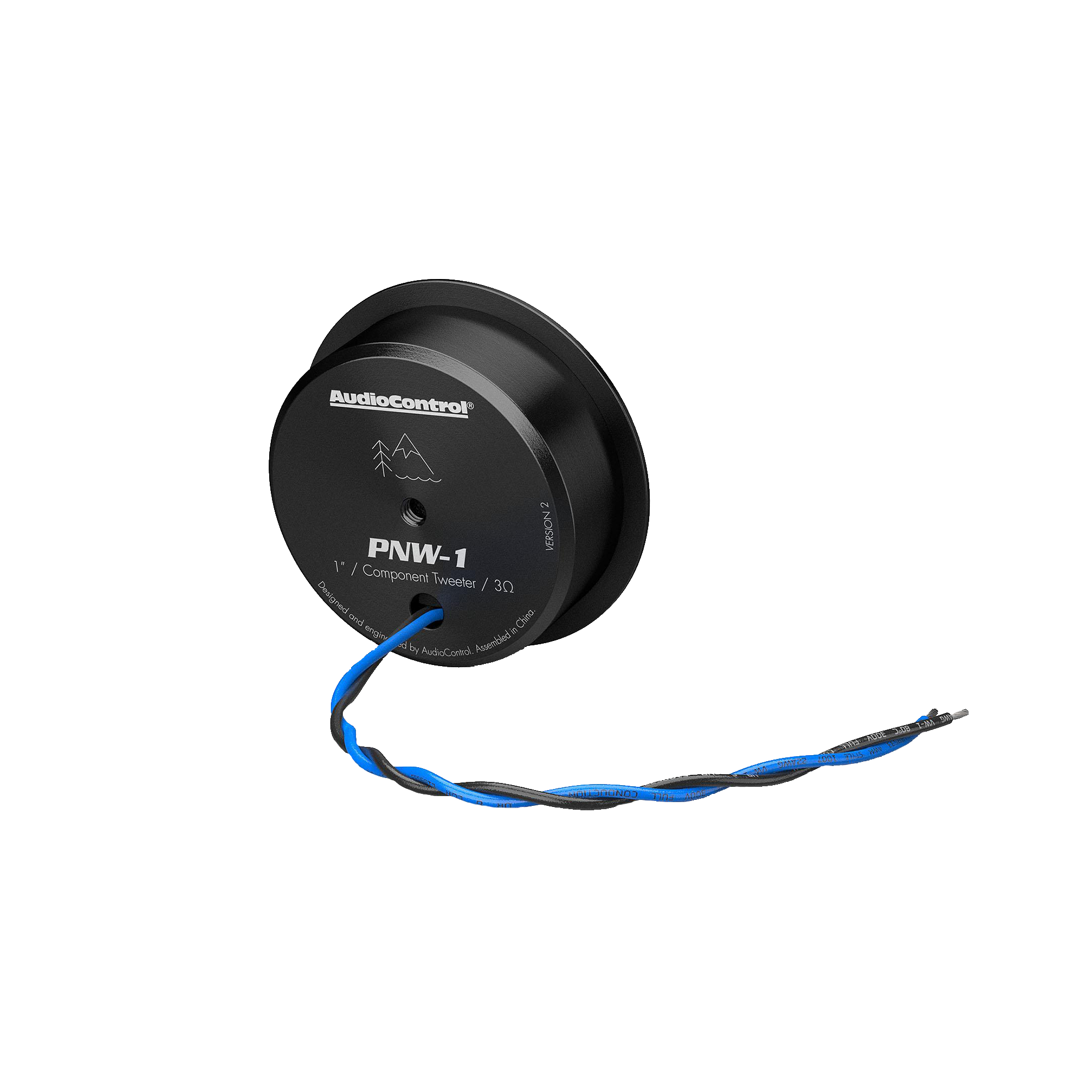

PNW-1 1" Tweeters, 100W RMS, 3 Ohms (Pair)

$135.00

Designed to deliver premium sound quality and unmatched performance, the PNW series will impress you with their detail, clarity, and volume during every drive.

Take your audio experience to the next level with the PNW-1 high-fidelity tweeters from AudioControl! The PNW-1 features a hybrid silk dome tweeter, silk dome diaphragm and aluminum housing so you can experience accurate sound reproduction without distortion.

The detachable housing and versatile mounting accessories simplify installation, accommodating various applications seamlessly. The included in-line high-pass filters ensure only the desired frequencies reach the tweeter to maximize your sound and minimize distortion.

Pair PNW-1 tweeters with any of the AudioControl PNW speaker line-up for a truly immersive audio experience!



FEATURES

  • High-Fidelity Silk Dome Diaphragm: Delivers accurate sound reproduction.
  • Precision Machined Aluminum Housing: Adds durability and longevity.
  • Embedded Sonic Damping Pad: Enables improved audio performance.
  • Neodymium Magnet: Provides enhanced efficiency in a compact design.
  • Detachable Assembly: Allows flexibility in OE (Original Equipment) applications.
  • Extended Frequency Response: Supported by a rear dampened hybrid silk dome tweeter.
  • Multiple Mounting Accessories: For easy installation.
  • Included In-Line High-Pass Filters: Ensure only desired frequencies reach the tweeter, minimizing distortion.
  • Umbrella not included



SPECIFICATIONS

DC Resistance (Re).                              2.3 Ohms

Power                                                  100W RMS / 125W Max

Nominal Impedance (Z)                      3 Ohms

Resonance Freq. (Fs)                           1.621 kHz

Mechanical Q Factor (Qms)                 6.92

Electrical Q Factor (Qes)                      2.3091

Total Q Factor (Qts)                             1.7314

Frequency Response                           1k-20kHz

Tweeter Voice Coil Diameter               25 mm



IN THE BOX: (2) PNW-1, Manual, Warranty



IN-LINE CROSSOVER SPECIFICATIONS

Crossover Type                                     1st Order Butterworth

Crossover Frequency                          3.5 kHz HP

Slope (Octave)                                      -6 dB



DIMENSIONS

  • Overall Diameter (w Grille): 2.13 in/ 54 mm
  • Cut Out Diameter: 1.85 in/ 47 mm
  • Mounting Depth: 0.63 in/ 16 mm





California Proposition 65

  • To our California customers: Please view your Proposition 65 warning here.

Reviews

0/5

Based on 0 reviews

Shipping

In stock

Estimated to arrive on or before November 20

Key features

Silk Dome Diaphragm

Accurate, high-fidelity sound reproduction.

Precision Machined Aluminum Housing

Adds durability and longevity.

Embedded Sonic Damping Pad

For improved audio performance.

Neodymium Magnet

Enhanced efficiency in a compact design.

Detachable Assembly

For OE (Original Equipment) applications.

Extended Frequency Response

Supported by a rear dampened hybrid silk dome tweeter.

Multiple Mounting Accessories

For easy installation.

Included In-Line High-Pass Filters

Minimizes distortion.

Installation

Map with location icons and a prominent AC logo in the center

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Extraordinary sound quality for your high-fidelity life.

Features

High-Fidelity Audio

Born in the Pacific Northwest, the PNW Series speakers provide exceptional sound quality and unmatched performance.

Close-up of AudioControl Pacific Northwest Series car audio subwoofer with blue casing.

Detachable Housing

The detachable housing assembly and multiple mounting accessories allow the tweeters to fit into most modern OEM locations.

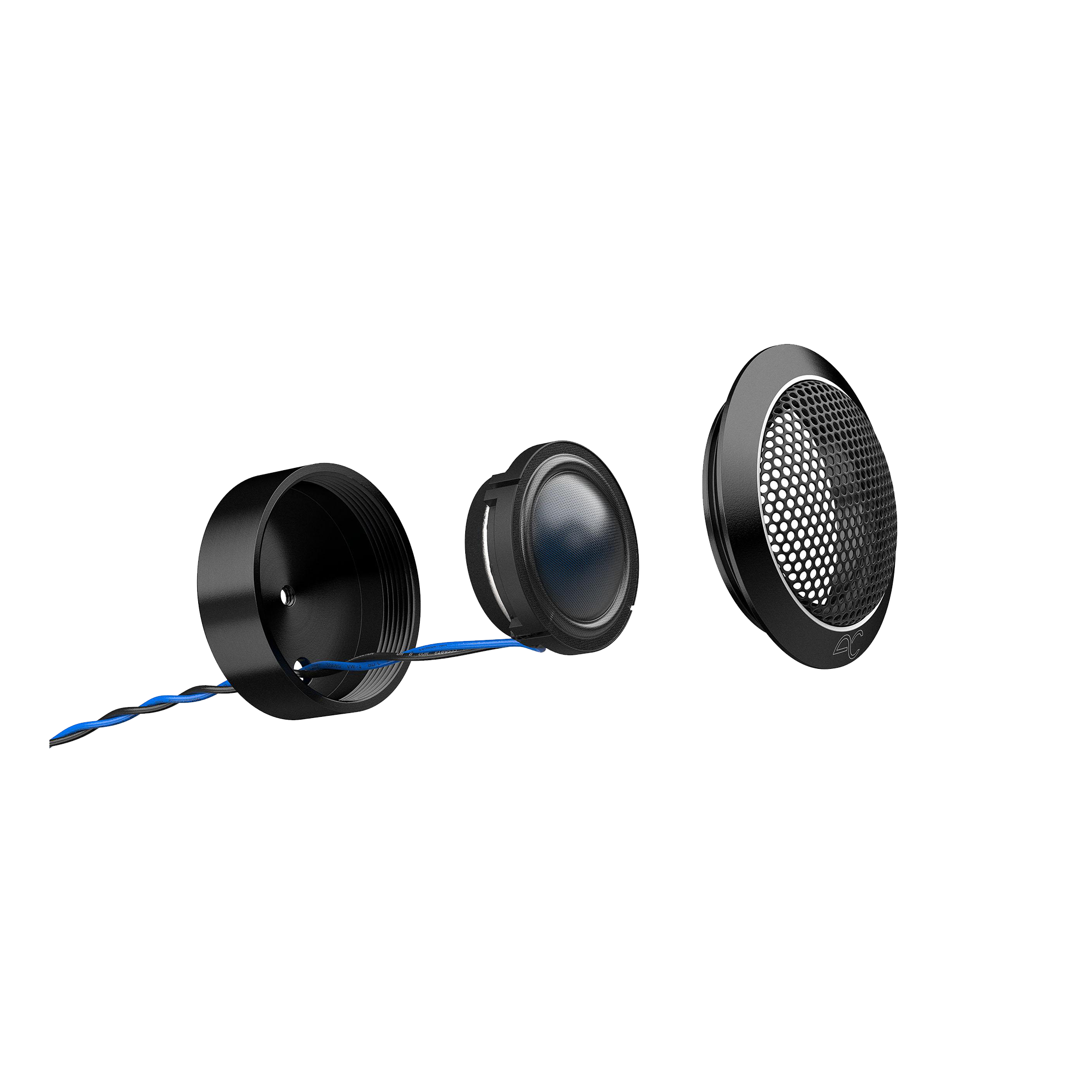

Exploded view of the PNW-1 1" tweeter with included mounting brackets.

Precision-Machined Housing

Provides durability, added structural strength, and increased longevity for unmatched performance drive after drive.

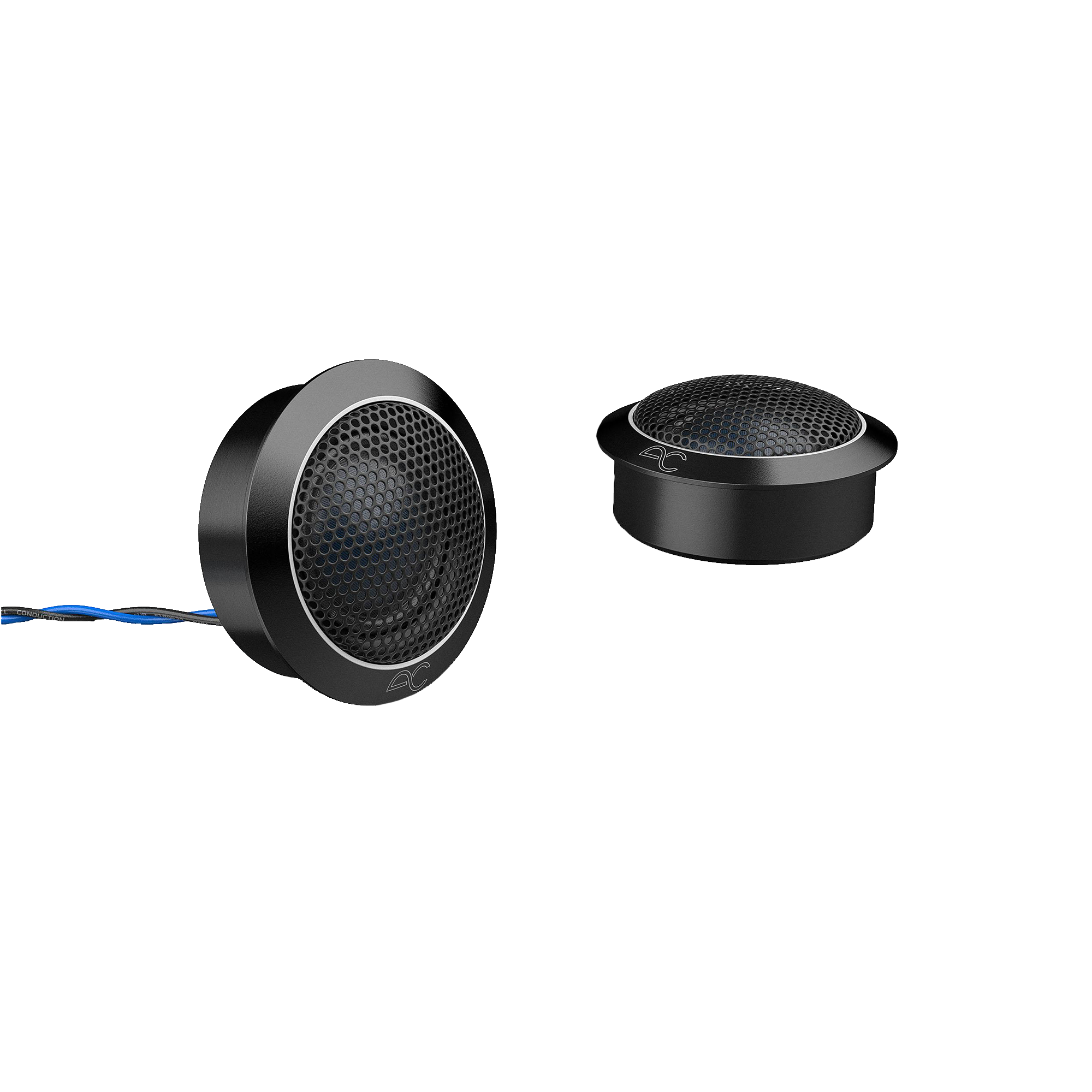

Side and angle views of the PNW-1 1-inch tweeter with included grilles.

What's in the box

Two black speaker tweeters on a white background

PNW-1 Box Contents

(2) PNW-1 Tweeters, Mounting Bracket and Hardware, Manual, Warranty

Specs & installation

Product specs

Crossover Type Butterworth
Crossover Frequency 3.5 kHz HP
Crossover Slope -6 dB
Nominal Impedance 3 ohms
Resonance Frequency 1.621 kHz
Sensitivity SPL 92dB
Nominal Power 100W RMS
Frequency Response 1K-20 kHz
Mounting Depth 16 mm

Dimensions

Overall Diameter (with grille): 2.13 in (54 mm) Overall Diameter (with grille): 2.13 in (54 mm)
Cut Out Diameter: 1.85 in (47 mm) Cut Out Diameter: 1.85 in (47 mm)
Mounting Depth: 0.63 in (16 mm) Mounting Depth: 0.63 in (16 mm)

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you

Reviews

0 (0 Reviews)

No Reviews Found

No reviews found for this product.
