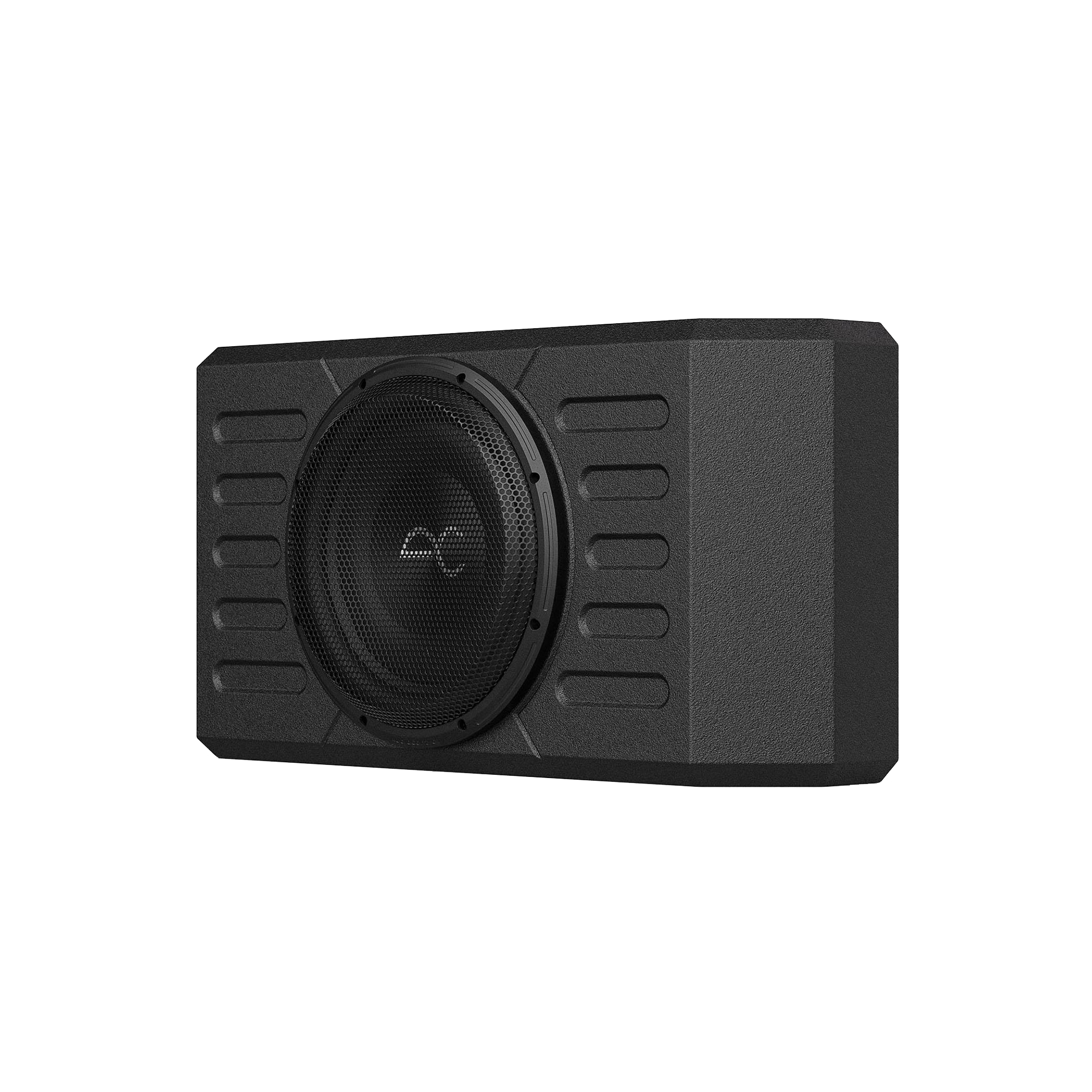

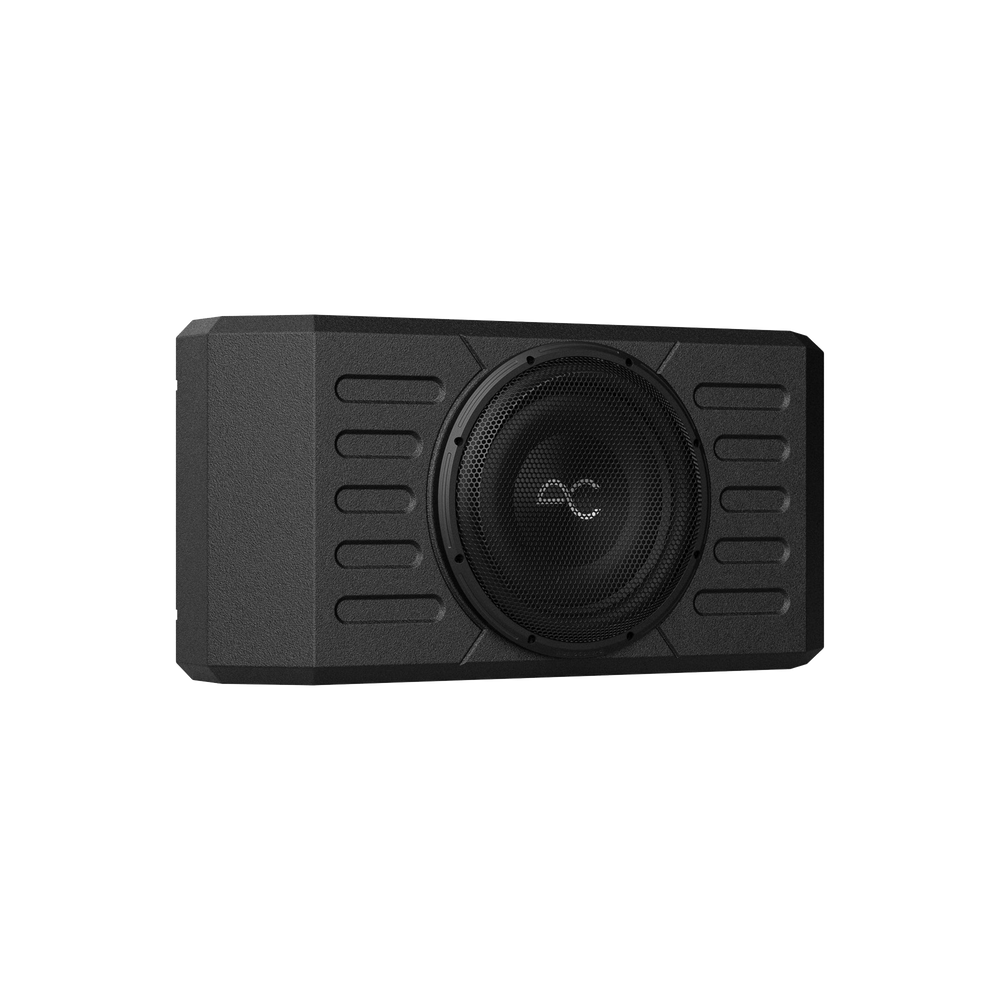

TXJWB12 Jeep Wrangler JK/JL (2007-23) 12" Swing Gate Loaded Sealed Subwoofer Enclosure

$629.00

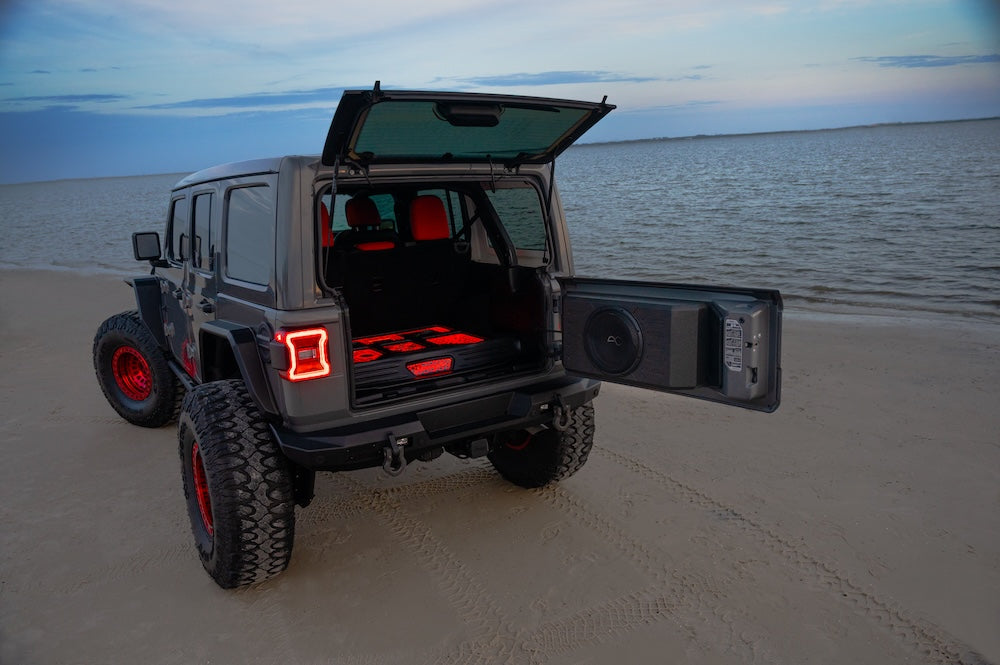

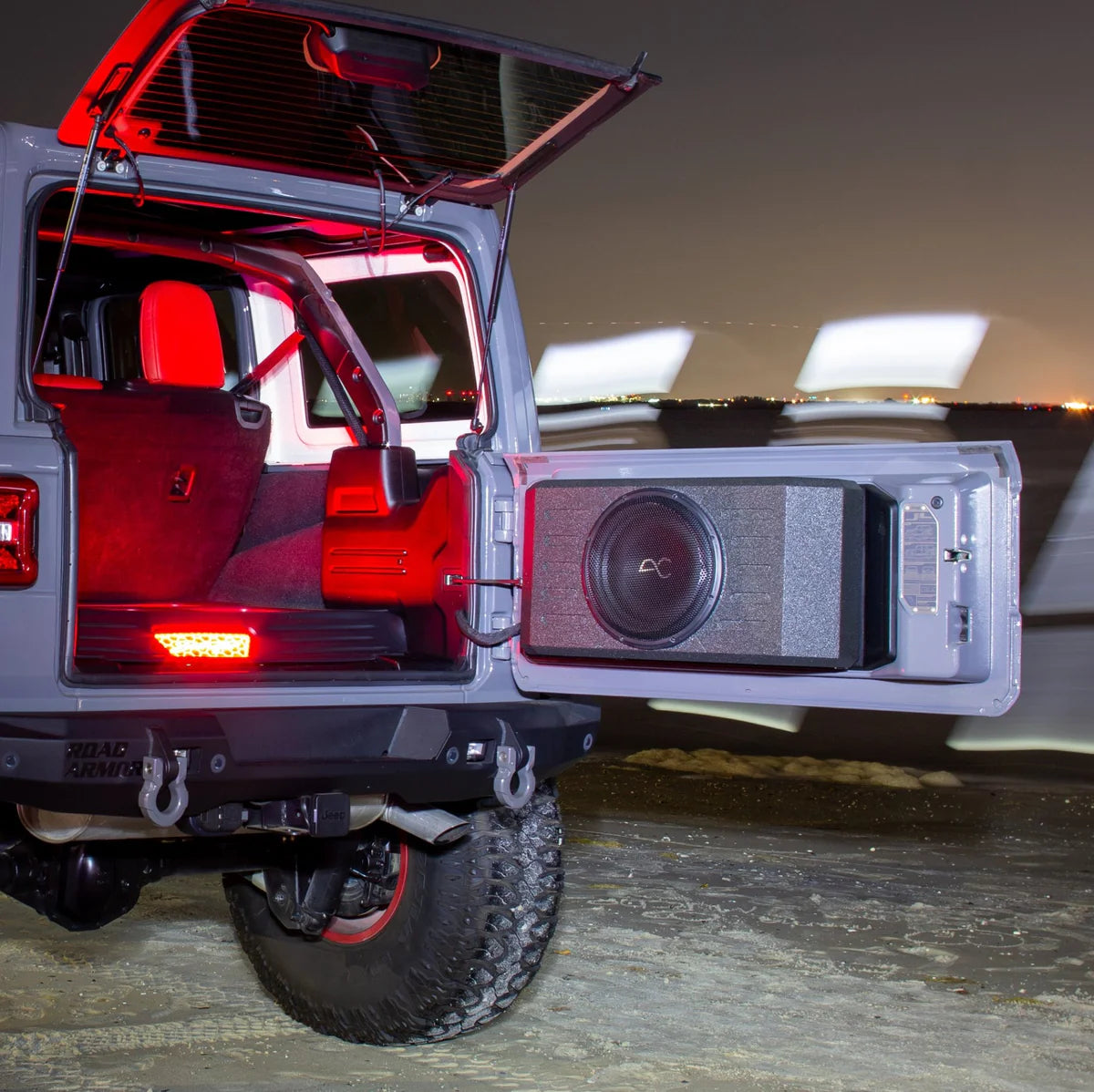

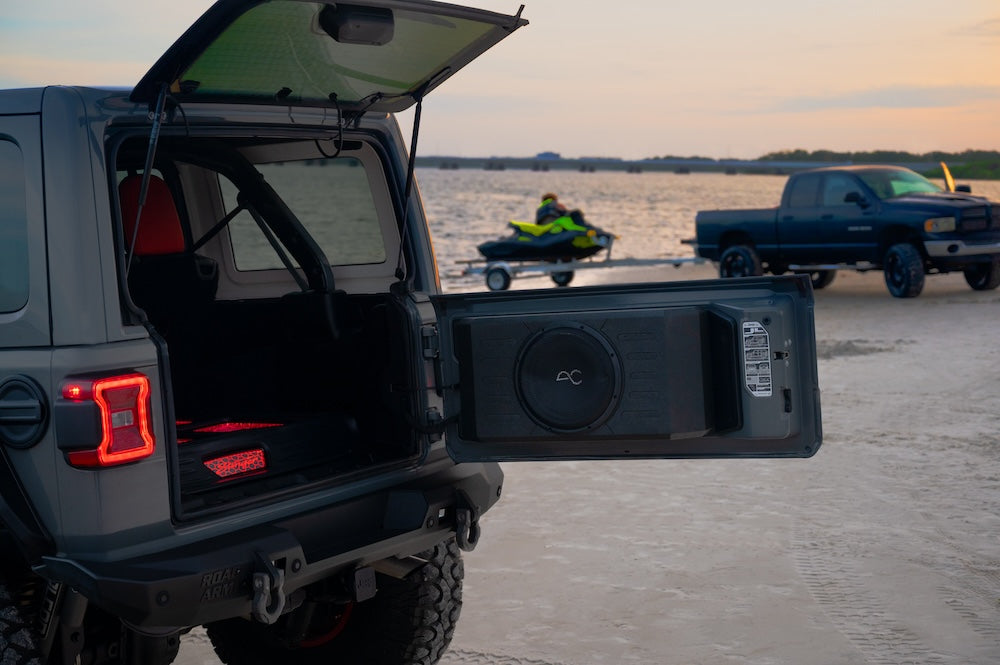

Crafted with durability in mind and meticulously engineered to match your Jeep Wrangler tailgate perfectly, this 12" Swing Gate Loaded Subwoofer Enclosure presents a convenient and effortless method to incorporate a high-performance subwoofer into your audio setup. *Amplifier not included.

For Jeep Wrangler 2-Door and 4-Door JK/JL Models 2007-2023. Built tough and made to fit your Jeep Wrangler’s tailgate, this 12” bass enclosure offers a quick and easy way to add a high-powered subwoofer to your audio system. The subwoofer enclosure utilizes the tailgate for mounting, saving space while also being rugged and weatherproof. AudioControl designed a subwoofer specifically for this enclosure to maximize performance and deliver deep, accurate bass. Get ready to enhance your next adventure with the addition of this custom subwoofer solution.

*For JK/JKU vehicles with factory subwoofer, remove the factory subwoofer for clearance. Once removed, two OEM replacement subwoofer delete panels can be ordered online or acquired from a local Jeep dealer to retain the OEM look.

400 Watt RMS / 800 Watt Max.  User Manual.



ENCLOSURE FEATURES

  • Roadkill-Armor Coat
  • Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
  • Weather-Resistant for Harsh Outdoor Environments
  • Sound Dampening Properties for Resonance Reduction
  • Scratch, Crack, and Peel-Resistant
  • Chemical and Stain-Resistant
  • Impact Absorption
  • UV Protection
  • Provides Leak and Corrosion Prevention
  • Heavy Duty 11-Layer High-Density Plywood Construction
  • Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
  • Durable, Coated Steel Subwoofer Grille for Extra Protection


SUBWOOFER FEATURES

  • 12” 2Ω Space Series Subwoofer
  • 200W-600W Power Range (400W Ideal)
  • Weather-Resistant Design
  • Fiber Matrix Injection Molded Polypropylene Cone for Optimum Sound Reproduction
  • Durable Isoprene Polymer Surround
  • Powder-Coated Frame
  • Wrap-Sealed Rubber Gasket to Protect Enclosure Interior

Thermal & Mechanical Elements

  • 2.5” Black Anodized Voice Coil Former for Superior Heat Dissipation
  • Air-Cooled Ventilated Motor Topology for Providing Optimal Thermal Efficiency
  • High Tension Stitched Lead Wires for Increased Flexibility at High Excursion
  • Shallow Cone Design
  • Efficient Motor Design via Magentic FEA Technology
  • Micro Level Bonding Adhesive for Increased Strength
  • High-Density Ferrite Magnet
  • Push Type Terminals Provide Consistent Tension For a Reliable Connection
  • Grille Included
  • High-Quality Mounting Hardware


SPECS

Speaker Model                          SPC-12S2

Subwoofer Size                          12”

Voice Coil                                    Single 2 ohm

DC Resistance (Re)                   2 ohm

Sensitivity 1W/M (SPL)             87 dB

Frequency Response               20Hz – 250Hz

RMS Power                                 400 watts

Speaker Displacement            0.06 cu ft / 1.82 Ltr

Speaker Weight                         12.5 lbs


ENCLOSURE DIMENSIONS

Internal Volume                         0.87 cu ft. / 24.7 Ltr

Enclosure Weight                     17.5 lbs

Height                                           14in / 35.56cm

Width                                            28.5in / 72.39cm

Depth                                             6.1in / 15.5cm

Depth (w. Speaker & Grill)   7.3in / 18.59cm

TXJWB12 Jeep Wrangler JK/JL (2007-23) 12" Swing Gate Loaded Sealed Subwoofer Enclosure
TXJWB12 Jeep Wrangler JK/JL (2007-23) 12" Swing Gate Loaded Sealed Subwoofer Enclosure
TXJWB12 Jeep Wrangler JK/JL (2007-23) 12" Swing Gate Loaded Sealed Subwoofer Enclosure
TXJWB12 Jeep Wrangler JK/JL (2007-23) 12" Swing Gate Loaded Sealed Subwoofer Enclosure

Shipping

In stock

Est. arrival October 05

Key features

Intense Bass

Enjoy crisp, precise, spine-tingling bass

3-Layer High Temp Voice Coil

Consistent High Power Output

Optimal Thermal Efficiency

Less Input for More Output

Compact Fit

Engineered to conquer space constraints

Weather-Resistant

Built to withstand harsh outdoor conditions

Jeep Wrangler

Expertly crafted subwoofer for the Jeep Wrangler JK or JL.

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Bring the bass wherever life takes you.

Features

Take the Party Anywhere

Built to withstand harsh outdoor conditions, such as water, dirt, dust, and debris.

Bass on Another Level

Take your Jeep Wrangler's bass to the extreme with AudioControl's Space Series subwoofer.

Space-Saving Design

Engineered to conquer space constraints without sacrificing power and audio excellence.

What's in the box

TXJWB12

12" Loaded Subwoofer Enclosure (Comes Assembled), Mounting Hardware, User Guide

Specs & installation

Product specs

Subwoofer Size 12"
Voice Coil Single 2 Ohm
DC Resistance (Re) 2 Ohm
Sensitivity 1W/M (SPL) 87 db
Frequency Response 20Hz – 250Hz
Power 400W RMS / 600W Max
Speaker Displacement 0.06 cu ft / 1.82 Ltr

Dimensions

Internal Volume 0.87 cu ft. / 24.7 Ltr
Enclosure Weight 17.5 lbs
Height 14in / 35.56cm
Width 28.5in / 72.39cm
Depth 6.1in / 15.5cm
Depth (w. Speaker & Grill) 7.3in / 18.59cm

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you

Reviews

No Reviews Found

No reviews found for this product.

See how it stacks up

TXJWB12 Jeep Wrangler JK/JL (2007-23) 12" Swing Gate Loaded Sealed Subwoofer Enclosure

TXJWB12 Jeep Wrangler JK/JL (2007-23) 12" Swing Gate Loaded Sealed Subwoofer Enclosure

Crafted with durability in mind and meticulously engineered to match your Jeep Wrangler tailgate perfectly, this 12" Swing Gate Loaded Subwoofer Enclosure presents a convenient and effortless method to incorporate a high-performance subwoofer into your audio setup. *Amplifier not included.

$629.00

0

No reviews yet

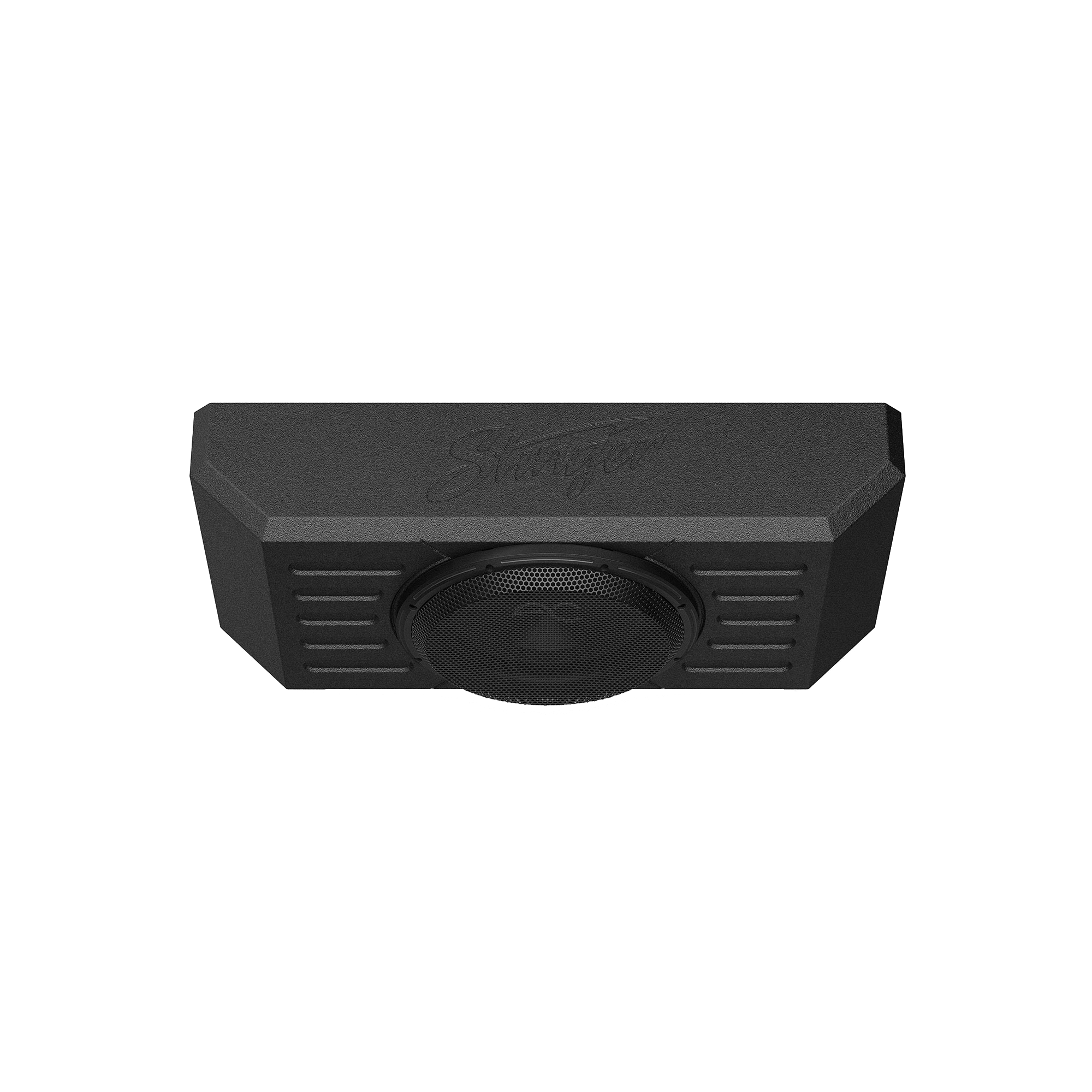

Space Series Sealed Wedge Subwoofer Enclosure, 400W RMS | 10" 12"

Space Series Sealed Wedge Subwoofer Enclosure, 400W RMS | 10" 12"

The Space Series Sealed Loaded Subwoofer Enclosure is a durable and stable powerhouse designed to withstand intense audio output and fit snugly into vehicles with limited space.

$479.00

Size

12", 10"

0

No reviews yet

View product
Spike Series Vented Subwoofer Enclosure, 350W/500W RMS | 8" 10" 12"

Spike Series Vented Subwoofer Enclosure, 350W/500W RMS | 8" 10" 12"

Designed to handle intense audio output, these premium vented loaded enclosures are built to last with internal bracing and a roadkill-armor coated surface that provides exceptional protection against wear and tear.

$479.00

Size

12", 10", 8"

0

No reviews yet

View product

SHOW US YOUR BUILD

TAG #AUDIOCONTROL TO GET FEATURED.

FOLLOW US

Product Added to Cart:

TXJWB12 Jeep Wrangler JK/JL (2007-23) 12" Swing Gate Loaded Sealed Subwoofer Enclosure

Subwoofer

TXJWB12 Jeep Wrangler JK/JL (2007-23) 12" Swing Gate Loaded Sealed Subwoofer Enclosure

Crafted with durability in mind and meticulously engineered to match...

$629.00

Checkout

Recommended additions:

Further improve your setup adding these compatible products

  • The EPICENTER Bass Restoration Processor

    Digital Signal Processor

    The EPICENTER Bass Restoration Processor

    Increase bass response from your vehicle’s audio system with The EPICENTER Concert Series Digital Bass Restoration Processor by AudioControl.

    $169.00

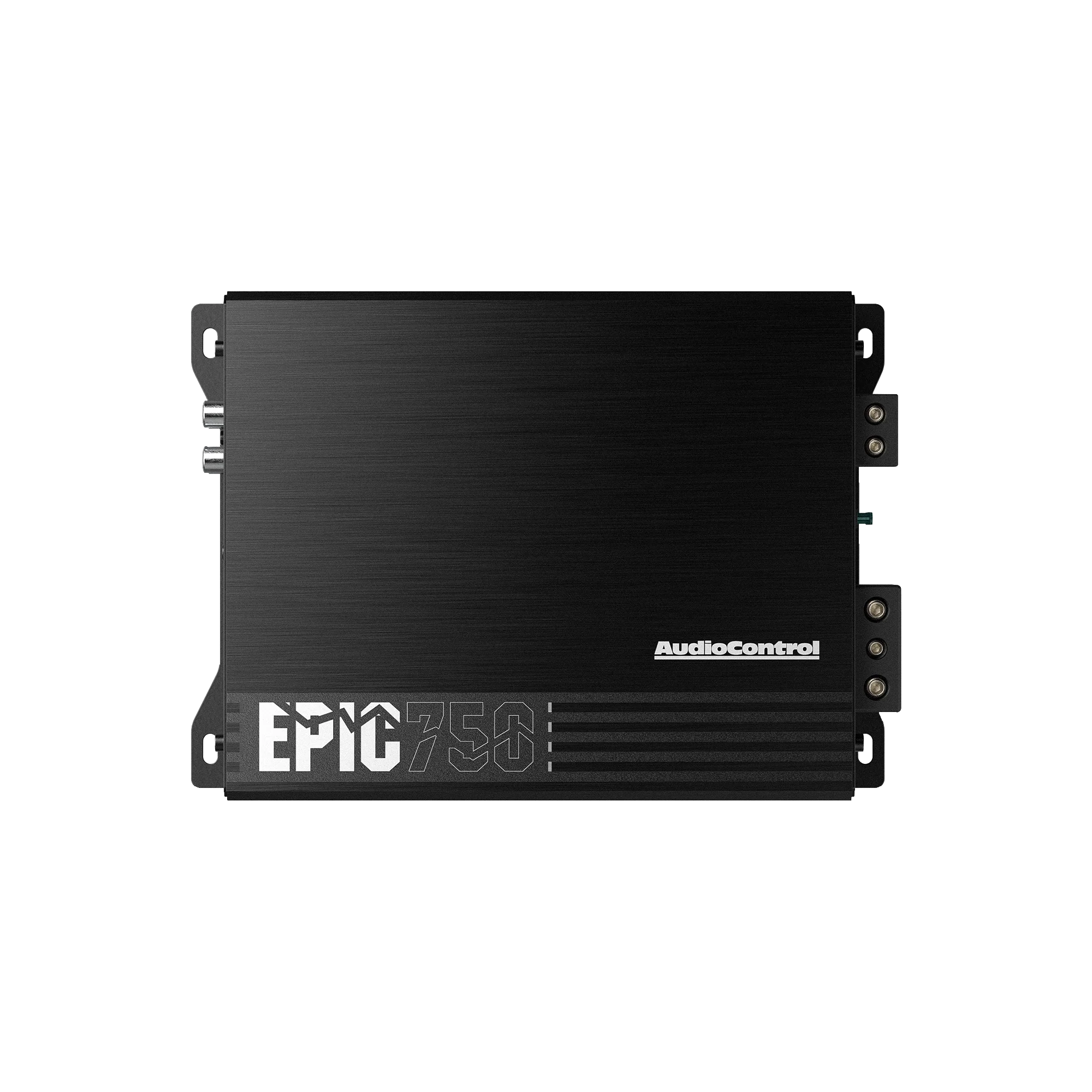

  • EPIC750 Monoblock Amplifier, 750W RMS
