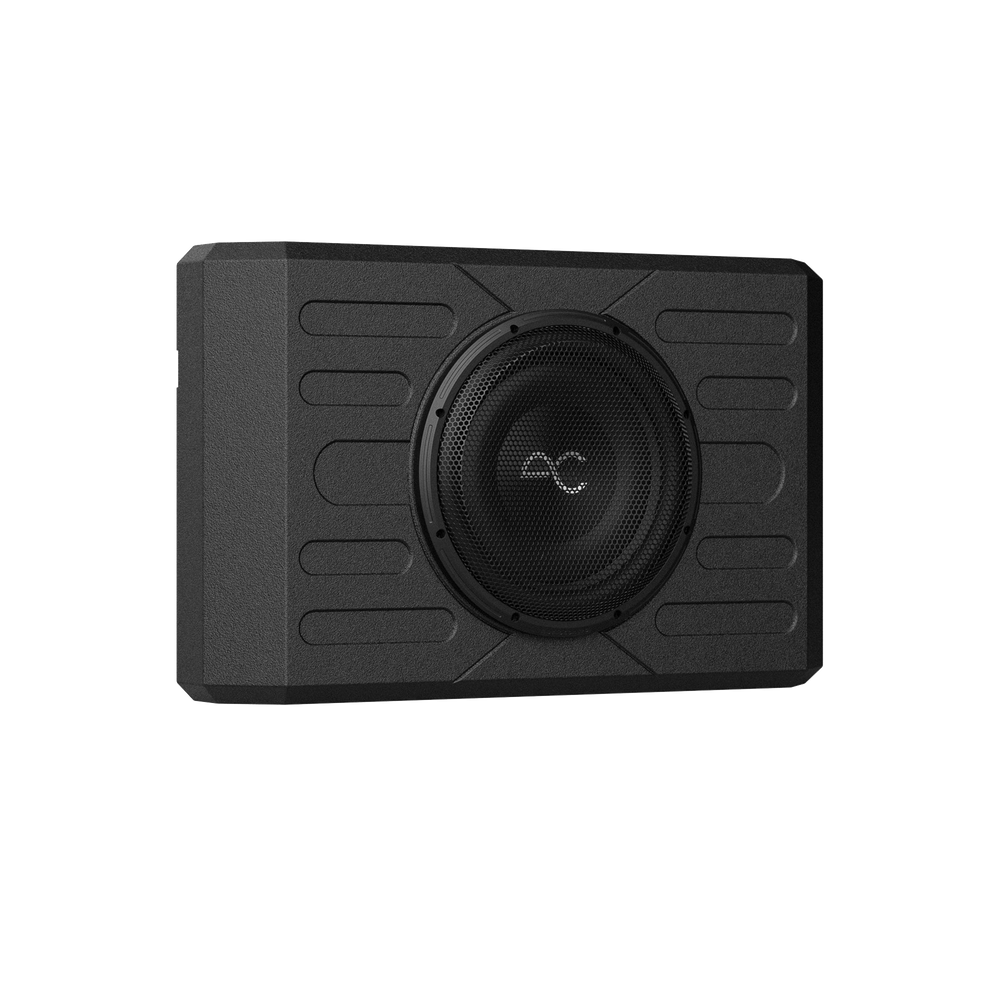

TXFBB12 Ford Bronco (2021-2023) 12" Swing Gate Loaded Sealed Subwoofer Enclosure

$629.00

The Ford Bronco Swing Gate Loaded Subwoofer Enclosure is designed to integrate into your vehicle's tailgate, bringing powerful, immersive sound to your audio setup. With durability in mind, this enclosure is optimized for space utilization and protects against the harshest weather conditions. *Amplifier is not included. Does not fit Sport model.*

For 2021-2023 Ford Bronco 2-Door and 4-Door Model. Built tough and made to fit your Bronco’s tailgate, this 12” bass enclosure offers a quick and easy way to add a high-powered subwoofer to your audio system. The subwoofer enclosure utilizes the tailgate for mounting, saving space while also being rugged and weatherproof. AudioControl designed a subwoofer specifically for this enclosure to maximize performance and deliver deep, accurate bass. Get ready to enhance your next adventure with the addition of this custom subwoofer solution.

All mounting hardware is included. *Does not fit Sport Model

400 Watt RMS / 800 Watt Max

ENCLOSURE FEATURES

  • Roadkill-Armor Coat

  • Permanent Heat Bonded EPM Enclosure Coating (Elastomeric Polyurethane Molecule)

  • Weather-Resistant for Harsh Outdoor Environments

  • Sound Dampening Properties for Resonance Reduction

  • Scratch, Crack, and Peel-Resistant

  • Chemical and Stain-Resistant

  • Impact Absorption

  • UV Protection

  • Provides Leak and Corrosion Prevention

  • Heavy-Duty 11-Layer High-Density Plywood Construction

  • Durable, Coated Steel Subwoofer Grill for Extra Protection

SUBWOOFER FEATURES

  • Low-Profile Shallow Mount Subwoofer
  • Fiber Matrix Injection Molded Polypropylene Cone
  • Weather-Resistant Design
  • 3-Layer High Temp Voice Coil Former
  • Optimal Thermal Efficiency
  • Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
  • Removable Subwoofer Grille Included


SPECS

THIELE/SMALL PARAMETERS

Nominal Impedance (Z)                2 ohms

DC Resistance (Re) ]]                    1.8 ohms

Resonance Frequency (Fs)          27.8430 Hz

Piston Area (Sd)                            0.0511 m2

Force Factor (BL)                          10.3379 T.m

Mechanical Q Factor (Qms)         4.0762

Electrical Q Factor (Qes)              0.4073

Total Q Factor (Qts)                      0.4216

Sensitivity 1W/M (SPL)                 87.3655

Mechanical Comp (Cms)              0.2047 mm/N

Moving Mass (Mms)                    159.6086 g

Linear Excursion (Xmax) .           9 mm

Volume Acoustic Comp (Vas)    74.5578 Ltr/2.632984 cu ft

Reference Efficiency (NO.)         0.33% RMS

Power (Pe)                                     400 Watts

Frequency Response                   20-250 Hz

Voice Coil Diameter                    2.5 in/63.5 mm

Displacement                              0.0619 cu ft/1.752 Ltr



IN THE BOX: TXFBB12 Subwoofer, Manual, Warranty



ENCLOSURE DIMENSIONS

Internal Volume              0.706 cu ft. / 19.99 Ltr

Enclosure Weight           16.25 lbs

Height                               17in / 43.2cm

Width                                27.5in / 69.9cm

Depth                                 4.6in / 11.7cm

TXFBB12 Ford Bronco (2021-2023) 12" Swing Gate Loaded Sealed Subwoofer Enclosure
TXFBB12 Ford Bronco (2021-2023) 12" Swing Gate Loaded Sealed Subwoofer Enclosure

Shipping

In stock

Est. arrival October 05

Key features

Intense Bass

Enjoy crisp, precise, spine-tingling bass

3-Layer High Temp Voice Coil

Consistent High Power Output

Optimal Thermal Efficiency

Less Input for More Output

Compact Fit

Engineered to conquer space constraints

Weather Resistant

Built to withstand the outdoor elements

Ford Bronco

Expertly crafted specifically for the Ford Bronco.

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Bring the bass wherever life takes you.

Features

Space-Saving Design

Engineered to conquer space constraints without sacrificing power and audio excellence.

Take the Party Anywhere

Built to withstand harsh outdoor conditions, such as water, dirt, dust, and debris.

Bass for Days

Take your Ford Bronco's bass to the extreme with AudioControl's Space Series subwoofer.

What's in the box

TXFBB12

TXFBB12 Subwoofer, Manual, Warranty

Specs & installation

Product specs

Subwoofer Size 12"
DC Resistance (Re) 2 ohm
Sensitivity 1W/M (SPL) 87 db
Frequency Response 20Hz - 250Hz
Power 400W RMS / 600W Max
Speaker Displacement 0.06 cu ft / 1.82 Ltr
Speaker Weight 12.5 lbs

Dimensions

Internal Volume 0.706 cu ft. / 19.99 Ltr
Enclosure Weight 16.25 lbs
Height 17in / 43.2cm
Width 27.5in / 69.9cm
Depth 4.6in / 11.7cm

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
