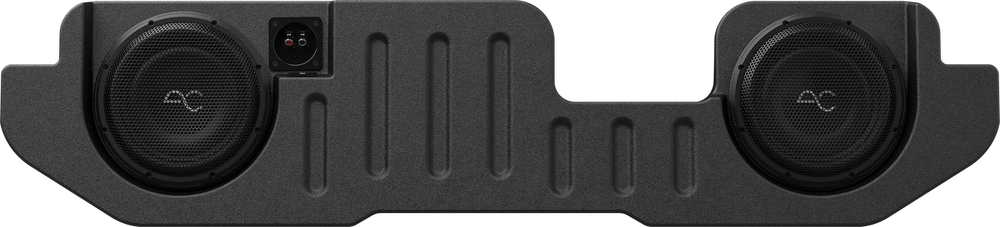

TXRM02D10 RAM Truck (2002-2025) Under Seat Dual 10" Sealed Loaded Subwoofer Enclosure

$1,199.00

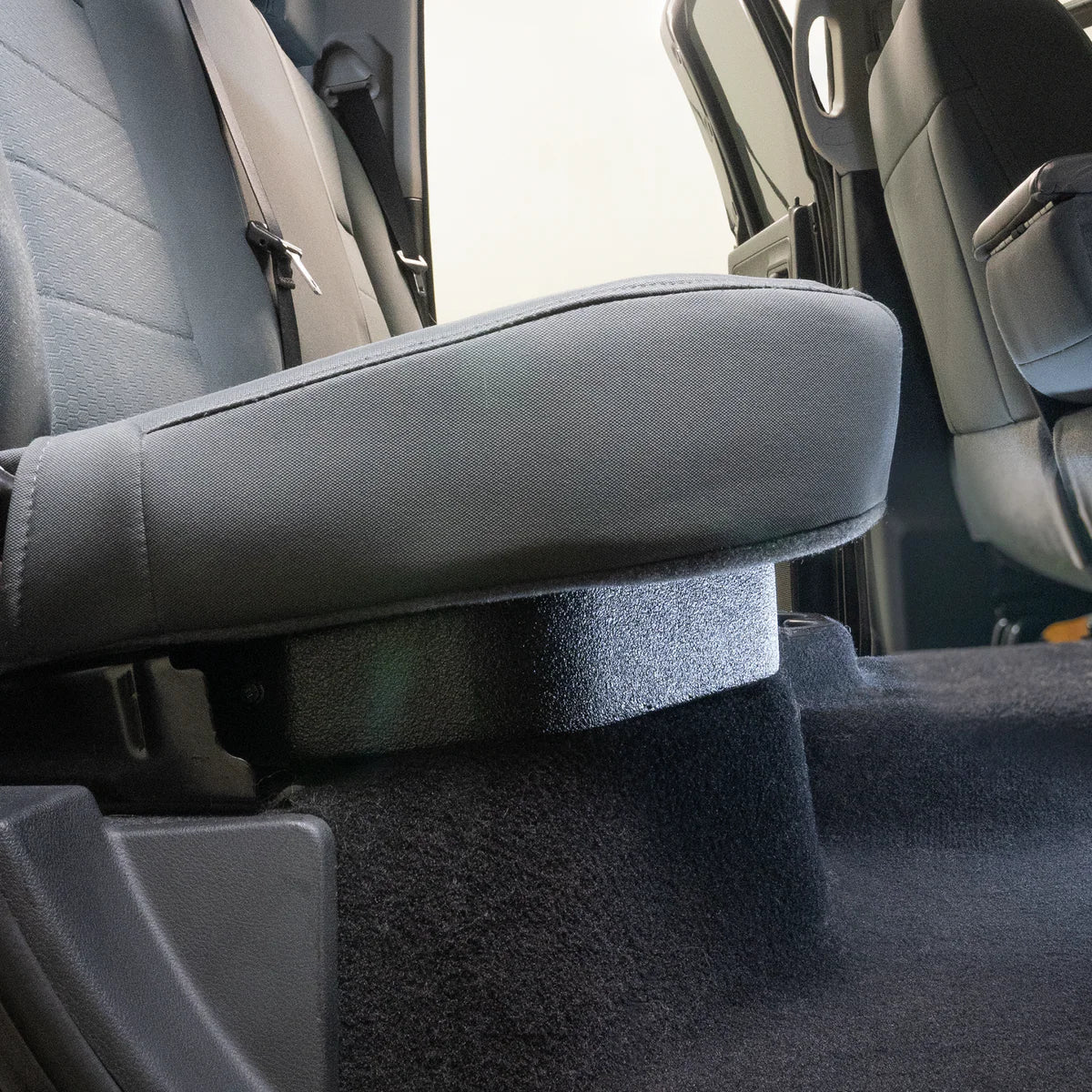

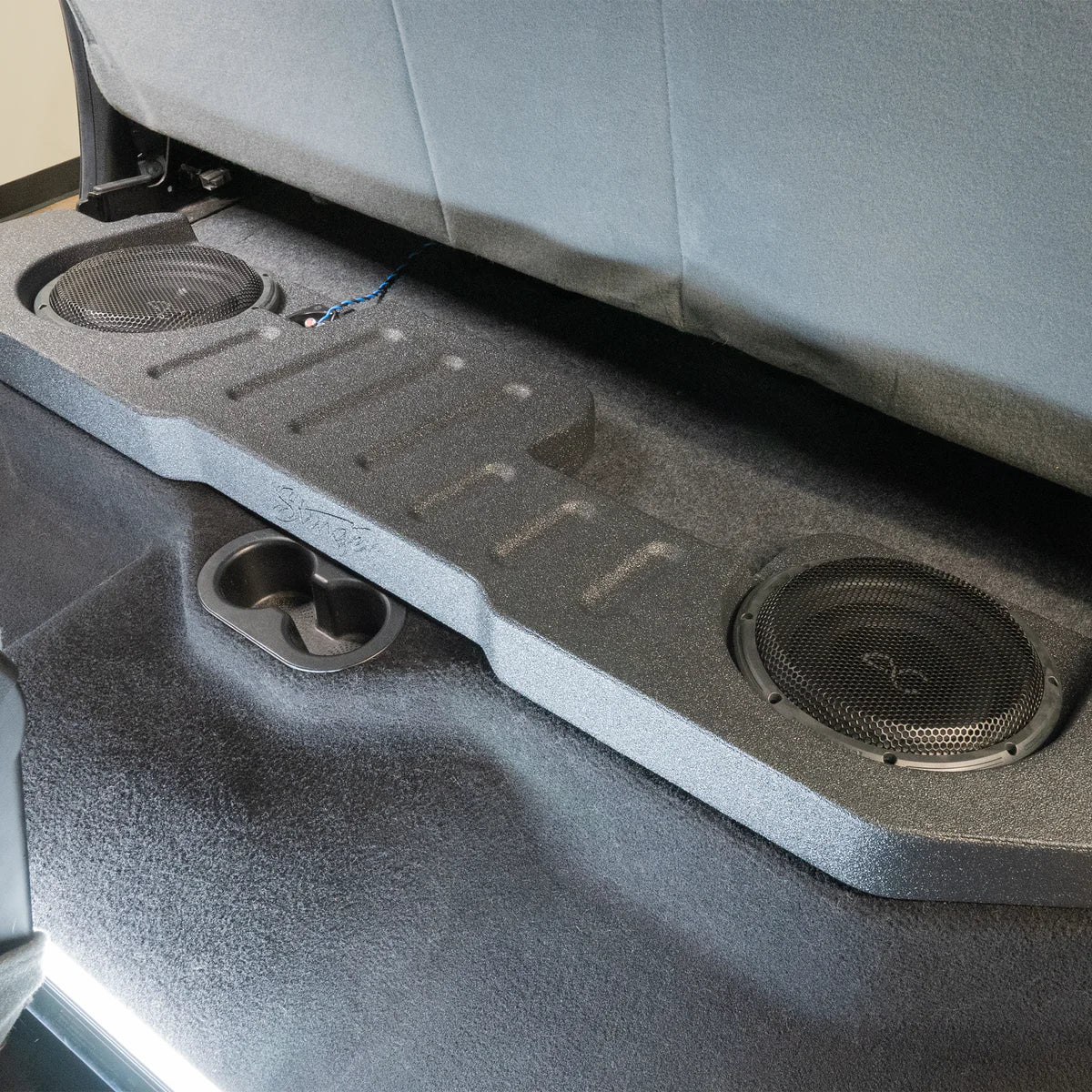

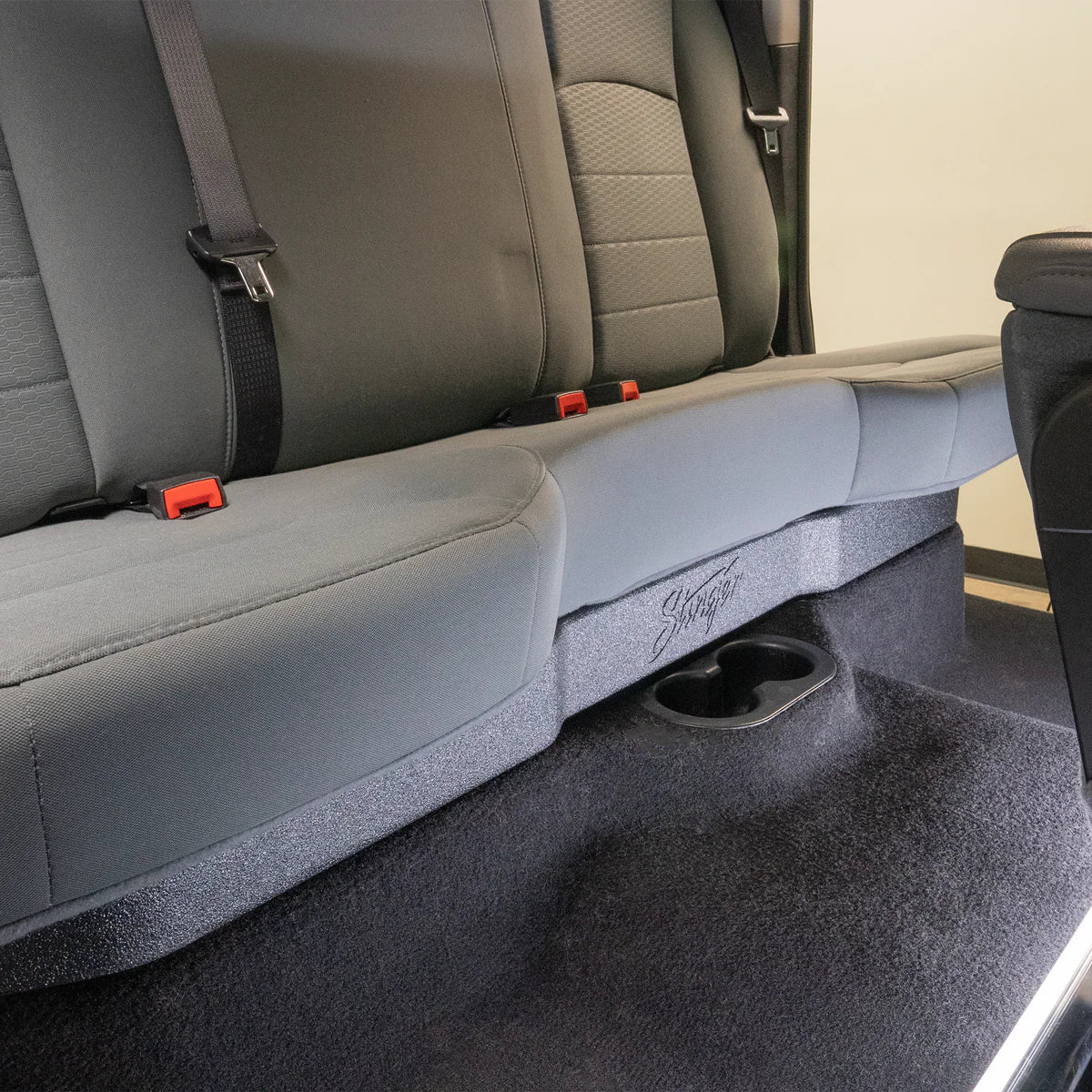

Designed for seamless integration beneath your RAM truck’s rear seat, our Dual 10” Sealed Subwoofer Enclosure offers a convenient and efficient method to augment your audio system with powerful AudioControl Space Series subwoofers.

Designed for seamless integration beneath your RAM truck’s rear seat, our Dual 10” Sealed Subwoofer Enclosure offers a convenient and efficient method to augment your audio system with powerful AudioControl Space Series subwoofers. Engineered with durability in mind, this fiberglass enclosure is built to withstand challenging conditions, boasting rugged & weather-resistant features.

800 Watt RMS / 1200 Watt Max. Install Guide.

*NOTE: Under seat storage must be removed for this enclosure to be installed.

COMPATIBILITY

Year

 Make

Model

Submodel

2002-2018 RAM
1500
QUAD CAB
2009-2018 RAM 1500 CREW CAB
2003-2025 RAM 2500/3500 QUAD CAB
2009-2025 RAM 2500/3500 CREW CAB
2019-2025 RAM 1500 CLASSIC QUAD/CREW CAB



ENCLOSURE FEATURES

  • Roadkill-Armor Coat
  • Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
  • Weather-Resistant Enclosure for Harsh Outdoor Environments
  • Sound Dampening Properties for Resonance Reduction
  • Scratch, Crack, and Peel-Resistant
  • Chemical and Stain-Resistant
  • Impact Absorption
  • UV Protection
  • Provides Leak and Corrosion Prevention
  • Heavy Duty Fiberglass with Internal Bracing
  • Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
  • Durable, Coated Steel Subwoofer Grille for Extra Protection
  • XT-90 Connector Option for quick disconnect


SUBWOOFER FEATURES

  • 10” 4Ω Space Series Subwoofers (wired @ 2Ω)
  • 400W-1200W Enclosure Power Range (800W Ideal)
  • Weather-Resistant Design
  • Fiber Matrix Injection Molded Polypropylene Cone for Optimum Sound Reproduction
  • Durable Isoprene Polymer Surround
  • Powder-Coated Frame
  • Wrap-Sealed Rubber Gasket to Protect Enclosure Interior

THERMAL & MECHANICAL ELEMENTS

  • 2.5” Black Anodized Voice Coil Former for Superior Heat Dissipation
  • Air-Cooled Ventilated Motor Topology for Providing Optimal Thermal Efficiency
  • High Tension Stitched Lead Wires for Increased Flexibility at High Excursion
  • Shallow Cone Design
  • Efficient Motor Design via Magentic FEA Technology
  • Micro Level Bonding Adhesive for Increased Strength
  • High Density Ferrite Magnet
  • Push Style Terminals Provide Consistent Tension For a Reliable Connection
  • Grilles Included
  • High-Quality Mounting Hardware


SPECS

Speaker Model                          SPC-10S4 (x2)



Subwoofer Size                         Dual 10”

Voice Coil                                   Single 4 ohm

DC Resistance (Re)                   2 ohm

Sensitivity 1W/M (SPL)            86dB

Frequency Response              20Hz – 250Hz

RMS Power                              Min 400 watts – Ideal 800 watts

Peak Power                              1,200 watts



ENCLOSURE DIMENSIONS

Total Weight                           45.6 lbs

Height                                      9.93 in

Width                                       57.87 in

Depth                                       13.44 in

TXRM02D10 RAM Truck (2002-2025) Under Seat Dual 10" Sealed Loaded Subwoofer Enclosure
TXRM02D10 RAM Truck (2002-2025) Under Seat Dual 10" Sealed Loaded Subwoofer Enclosure
TXRM02D10 RAM Truck (2002-2025) Under Seat Dual 10" Sealed Loaded Subwoofer Enclosure
TXRM02D10 RAM Truck (2002-2025) Under Seat Dual 10" Sealed Loaded Subwoofer Enclosure

Shipping

In stock

Est. arrival October 05

Key features

Durable Armor Coat

Shields against scratches, cracks, and peels.

Weather-Resistant Design

Built tough for outdoor use.

Reduced Resonance

Minimizes unwanted vibrations for clearer sound.

Stain & Chemical Protection

Guards against spills and stains.

Enriched Low-Frequency Response

Deep, powerful sounds for a more immersive experience.

Heavy-Duty Voice Coil

Experience superior sound quality and tight bass response.

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Drop the bass with Space Series underseat subwoofers.

Features

Take Your Bass Anywhere

Built to withstand harsh outdoor conditions so you can enjoy your outings anywhere.

Space-Saving Design

Engineered to fit flush under the rear seat without sacrificing power and audio excellence.

Dual 10" Space Series Subwoofers

Made to receive 800 Watts RMS input, this sealed, custom-fit enclosure integrates seamlessly into your truck's interior, providing deep bass.

What's in the box

TXRM02D10

(2) Loaded AudioControl 10" Subwoofers (SPC-10S4), Pre-Assembled Subwoofer Enclosure, Mounting Hardware, Installation Guide

Specs & installation

Product specs

Subwoofer Size Dual 10" Space Series Subwoofers
Voice Coil Single 4 ohm
Sensitivity 1W/M (SPL) 86 dB
Frequency Response 20Hz - 250Hz
Power 800W RMS / 1,200W Max

Dimensions

Total Weight 45.6 lbs
Height 9.93 in
Width 57.87 in
Depth 13.44 in

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
