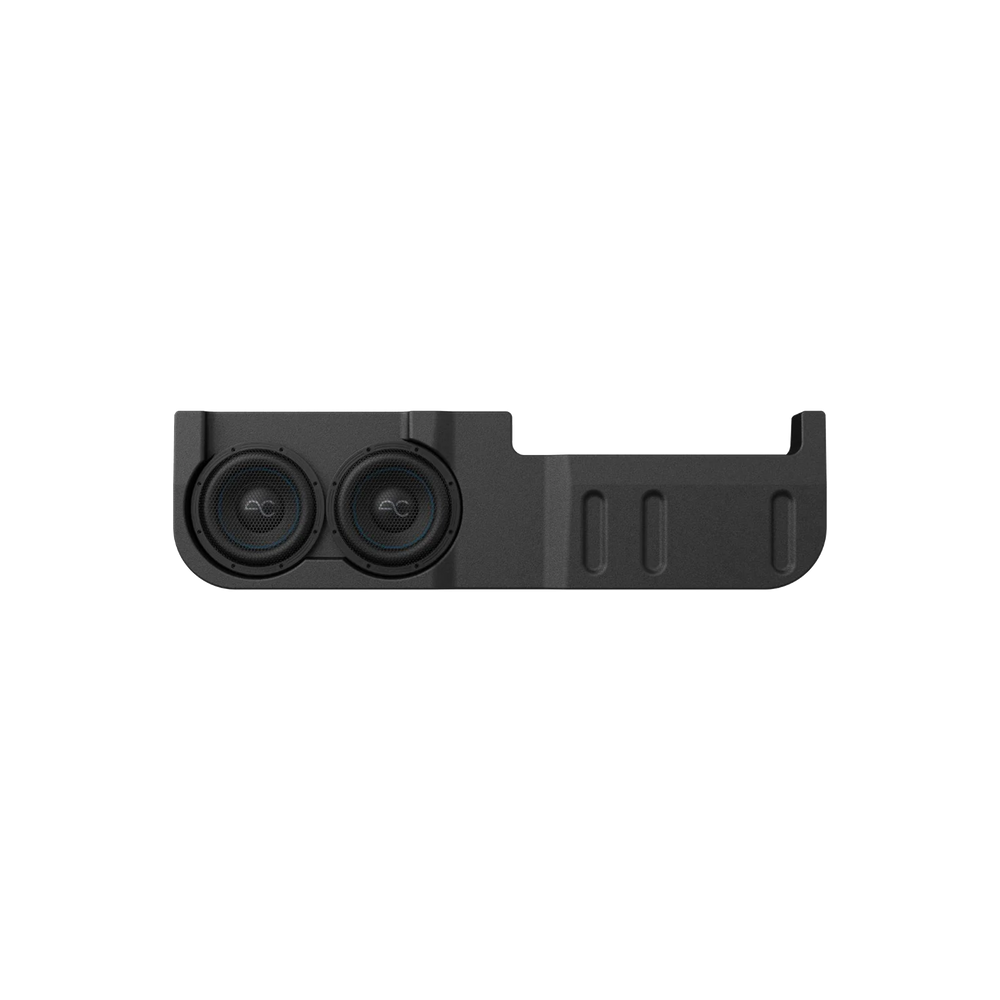

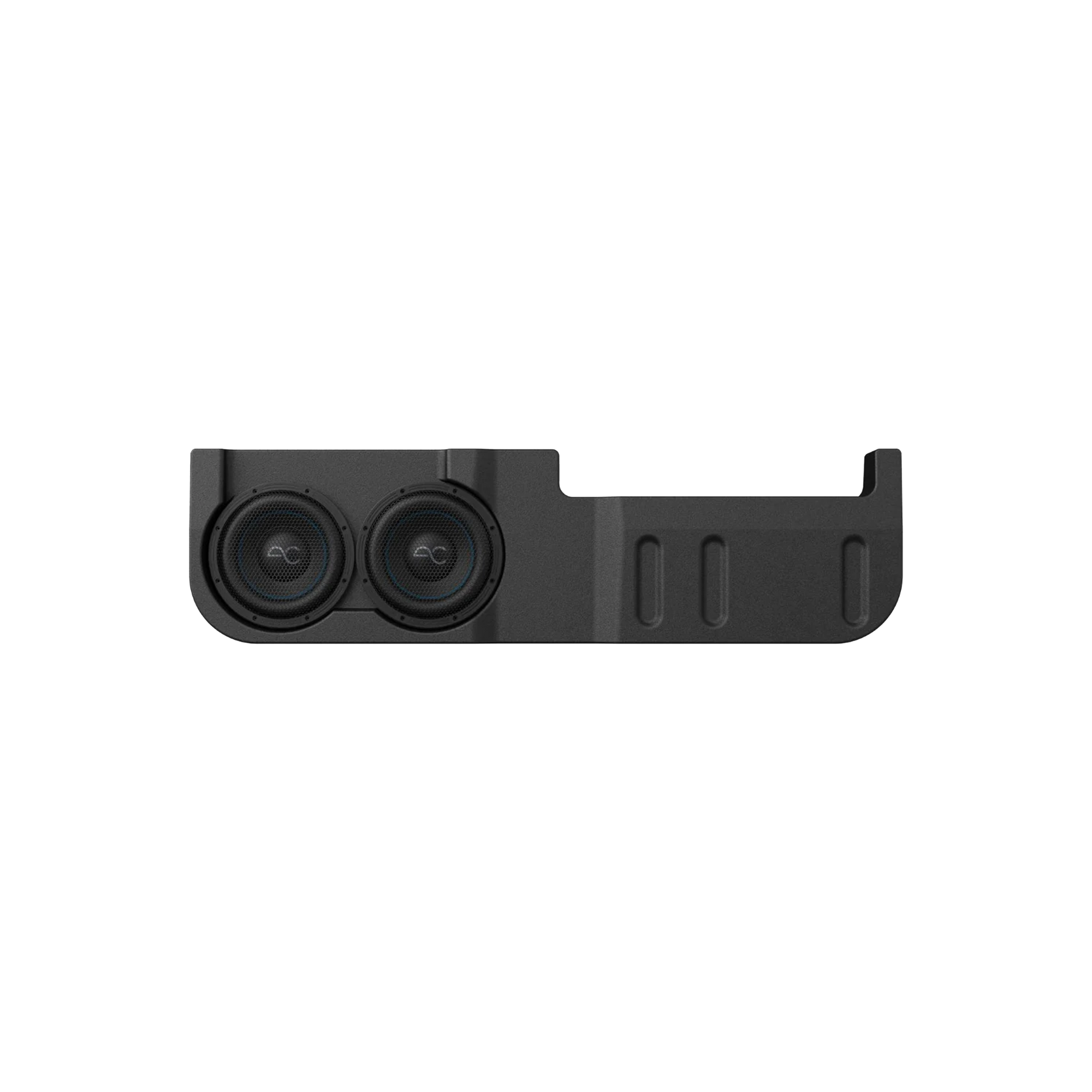

TXGM19D10 Chevy Silverado/GMC Sierra 1500 (2019+) | 2500/3500 Crew Cab (2020+) Under Seat Dual 10" Ported Loaded Subwoofer Enclosure

$1,299.00

Designed to fit perfectly beneath the rear seat of your Chevy Silverado or GMC Sierra, our Dual 10” Vented Subwoofer Enclosure provides a powerful and effortless upgrade to your audio system with high-performance AudioControl Spike Series subwoofers. This enclosure is crafted from durable fiberglass and engineered to endure rough conditions while maintaining rugged, weather-resistant protection, ensuring long-lasting performance and exceptional sound quality on every drive.

Designed to fit perfectly beneath the rear seat of your Chevy Silverado or GMC Sierra, our Dual 10” Vented Subwoofer Enclosure provides a powerful and effortless upgrade to your audio system with high-performance AudioControl Spike Series subwoofers. This enclosure is crafted from durable fiberglass and engineered to endure rough conditions while maintaining rugged, weather-resistant protection, ensuring long-lasting performance and exceptional sound quality on every drive.

1000 Watt RMS / 1400 Watt Max. Install Guide.

Chevy Silverado/GMC Sierra 1500 (2019+)

Chevy Silverado/GMC Sierra 2500/3500 Crew Cab (2020+)

ENCLOSURE FEATURES

  • Roadkill-Armor Coat
  • Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
  • Weather-Resistant Enclosure for Harsh Outdoor Environments
  • Sound Dampening Properties for Resonance Reduction
  • Scratch, Crack, and Peel-Resistant
  • Chemical and Stain-Resistant
  • Impact Absorption
  • UV Protection
  • Provides Leak and Corrosion Prevention
  • Heavy Duty Fiberglass with Internal Bracing
  • Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
  • Durable, Coated Steel Subwoofer Grille for Extra Protection
  • XT-90 Connector Option for quick disconnect


SUBWOOFER FEATURES

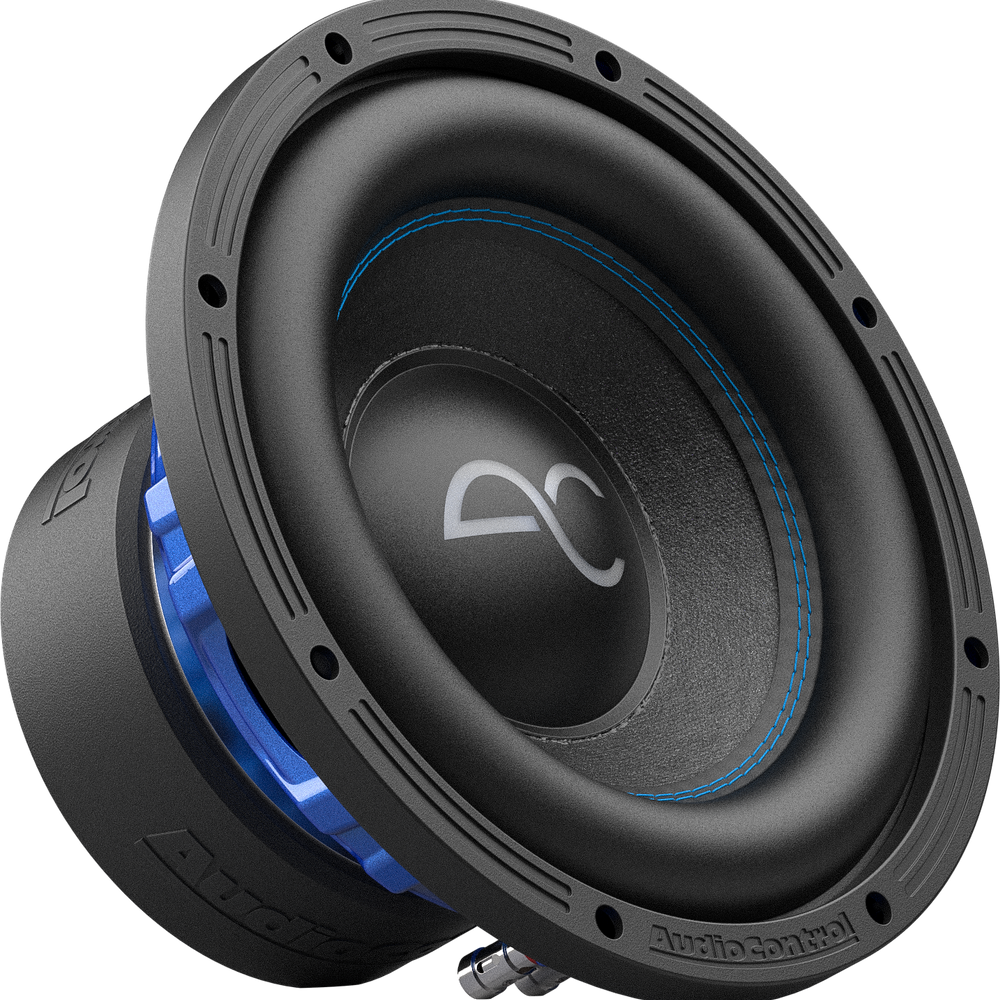

  • 10” 4Ω Spike Series Subwoofers (wired @ 2Ω)
  • 600W-1400W Enclosure Power Range (1000W Ideal)
  • Fiber Matrix Paper Cone with Mica Coating for Optimum Sound Reproduction
  • Dual Damping System for Linear Bass Reproduction
  • High Excursion Design for Ultra Low Bass

THERMAL & MECHANICAL ELEMENTS

  • 2.5” Black Anodized Voice Coil Former for Superior Heat Dissipation
  • Dual Dust Cap System for Enclosure Compression Control
  • Efficient Motor Design via Magentic FEA Technology
  • Micro Level Bonding Adhesive for Increased Strength
  • High Density Ferrite Magnet
  • Push Style Terminals Provide Consistent Tension For a Reliable Connection
  • Grilles Included
  • High-Quality Mounting Hardware


SPECS

Speaker Model                          SPK-10S4 (x2)

Subwoofer Size                         Dual 10”

Voice Coil                                   Single 4 ohm

DC Resistance (Re)                   2 ohm

Sensitivity 1W/M (SPL)            88dB

Frequency Response              20Hz – 250Hz

RMS Power                              Min 600 watts – Ideal 1000 watts

Peak Power                              1,400 watts



ENCLOSURE DIMENSIONS

Enclosure Tuning                    34 Hz

Subsonic Filter Setting           26 Hz

Total Weight                           58 lbs

Height                                      10.25in / 26.035cm

Width                                       52in / 132.08cm

Depth                                       14.25in / 36.195cm

TXGM19D10 Chevy Silverado/GMC Sierra 1500 (2019+) | 2500/3500 Crew Cab (2020+) Under Seat Dual 10" Ported Loaded Subwoofer Enclosure
TXGM19D10 Chevy Silverado/GMC Sierra 1500 (2019+) | 2500/3500 Crew Cab (2020+) Under Seat Dual 10" Ported Loaded Subwoofer Enclosure
TXGM19D10 Chevy Silverado/GMC Sierra 1500 (2019+) | 2500/3500 Crew Cab (2020+) Under Seat Dual 10" Ported Loaded Subwoofer Enclosure
TXGM19D10 Chevy Silverado/GMC Sierra 1500 (2019+) | 2500/3500 Crew Cab (2020+) Under Seat Dual 10" Ported Loaded Subwoofer Enclosure

Shipping

In stock

Est. arrival October 05

Key features

Durable Armor Coat

Shields against scratches, cracks, and peels.

Weather-Resistant Design

Built tough for outdoor use.

Reduced Resonance

Minimizes unwanted vibrations for clearer sound.

Stain & Chemical Protection

Guards against spills and stains.

Enriched Low-Frequency Response

Deep, powerful sounds for a more immersive experience.

3-Layer Voice Coil

Experience superior sound quality and tight bass response.

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Drop the bass with down-firing underseat subwoofers.

Features

Space-Saving Design

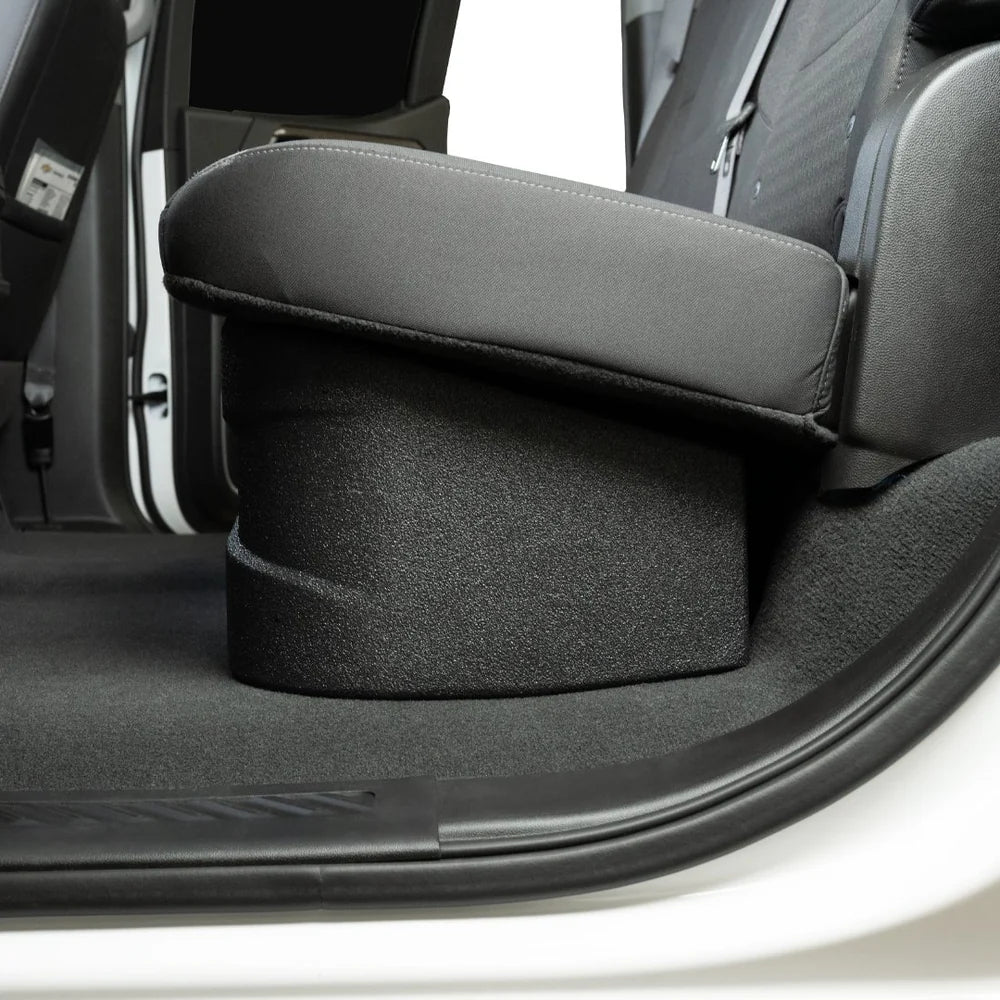

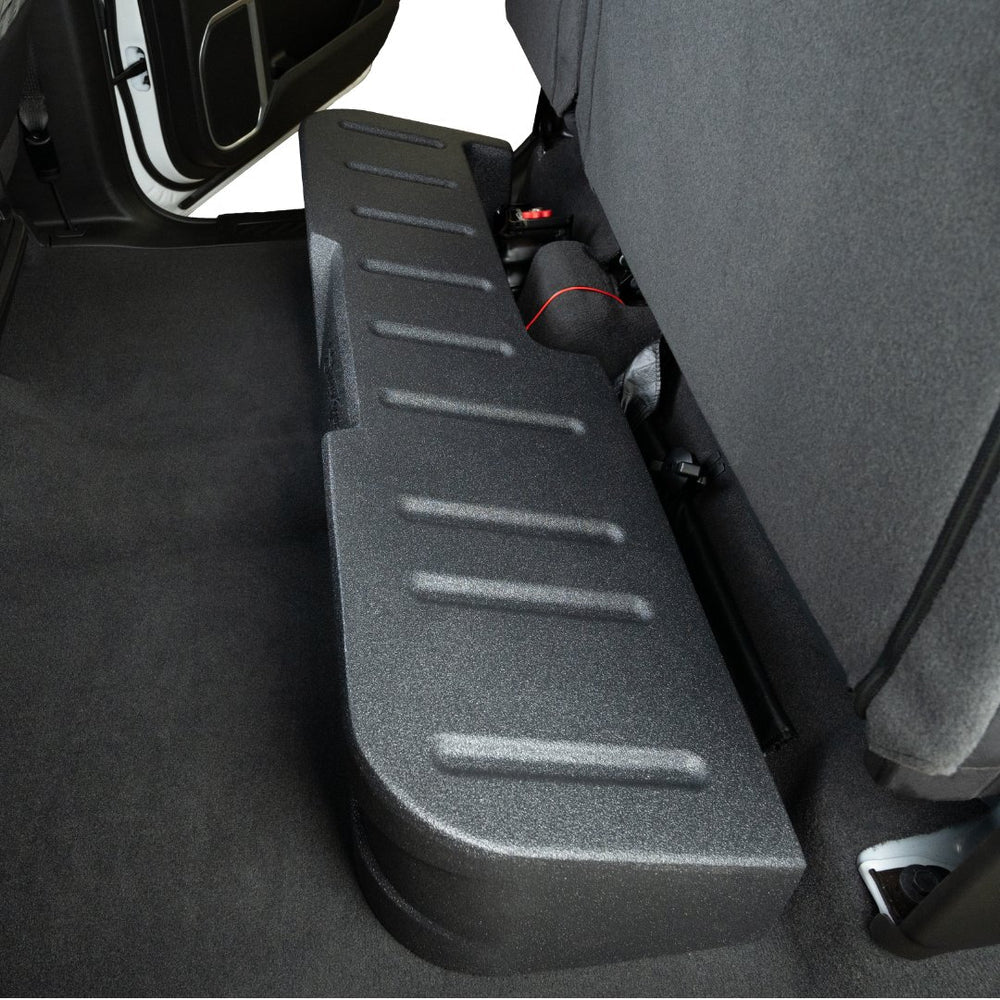

Engineered to fit flush under the rear seat without sacrificing power and audio excellence.

Turn up the Bass

Featuring Dual 10" Spike Series subwoofers that punch in the bass with low distortion.

Bring Bass to your Outings

Built to withstand harsh outdoor conditions so you can enjoy your party anywhere.

What's in the box

TXGM19D10

(2) Loaded AudioControl 10" Subwoofers (SPK-10S4), Pre-Assembled Subwoofer Enclosure, Mounting Hardware, Installation Guide

Specs & installation

Product specs

Subwoofer Size Dual 10” Spike Subwoofers
Voice Coil Single 4 ohm
Sensitivity 1W/M (SPL) 88 dB
Frequency Response 20Hz - 200Hz
Power 1,000W RMS / 1,400W Max

Dimensions

Total Weight 58 lbs
Height 10.25 in
Width 52 in
Depth 14.25 in

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
