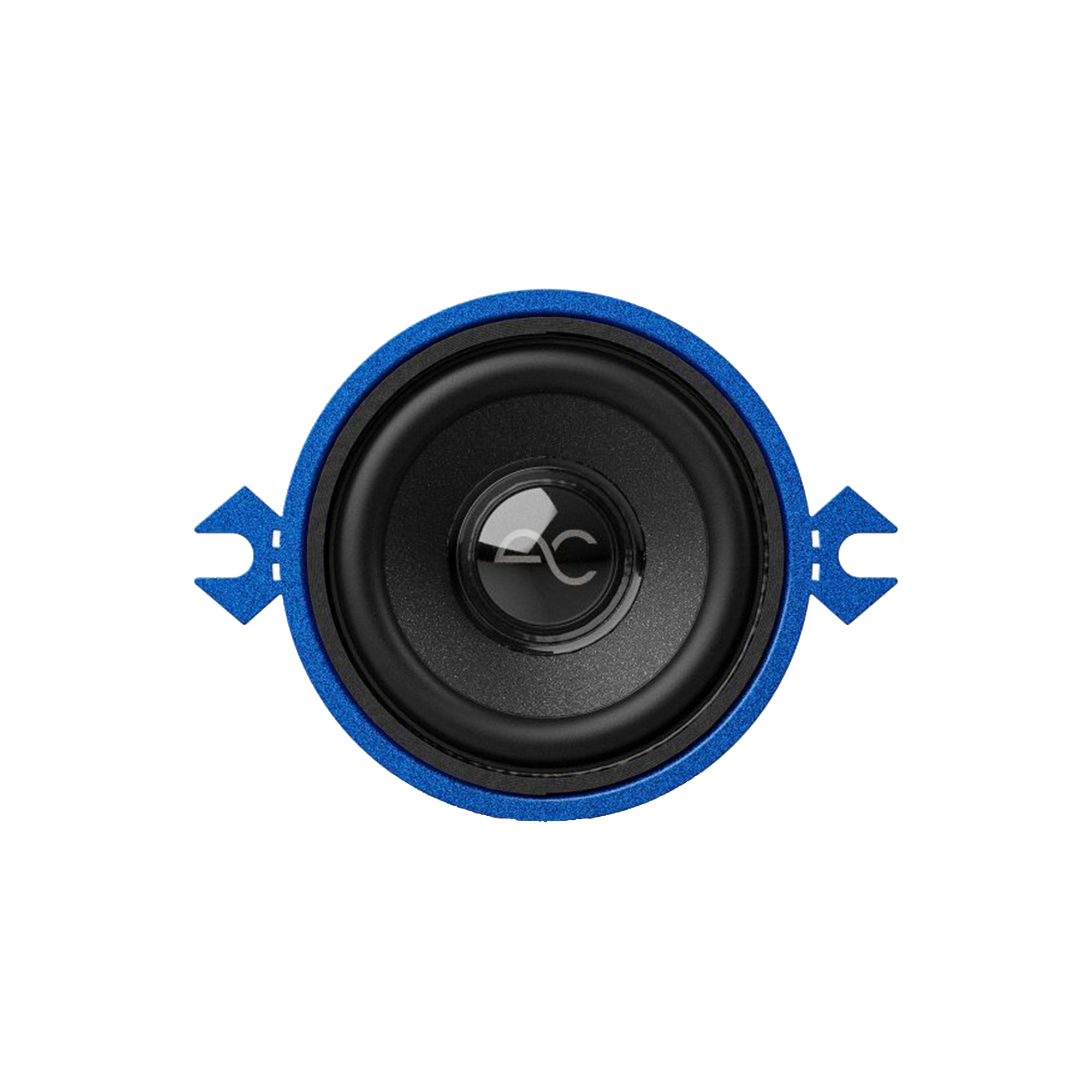

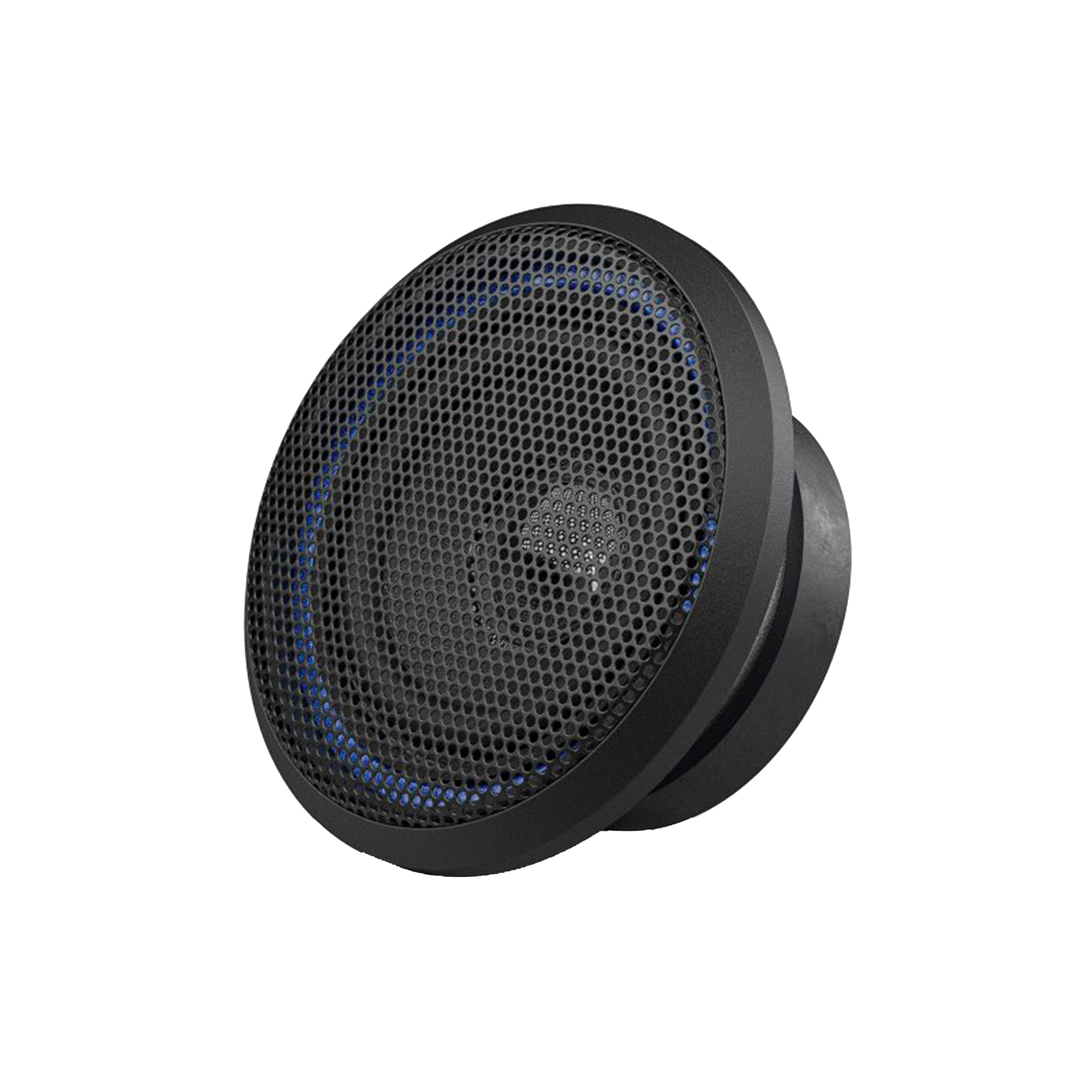

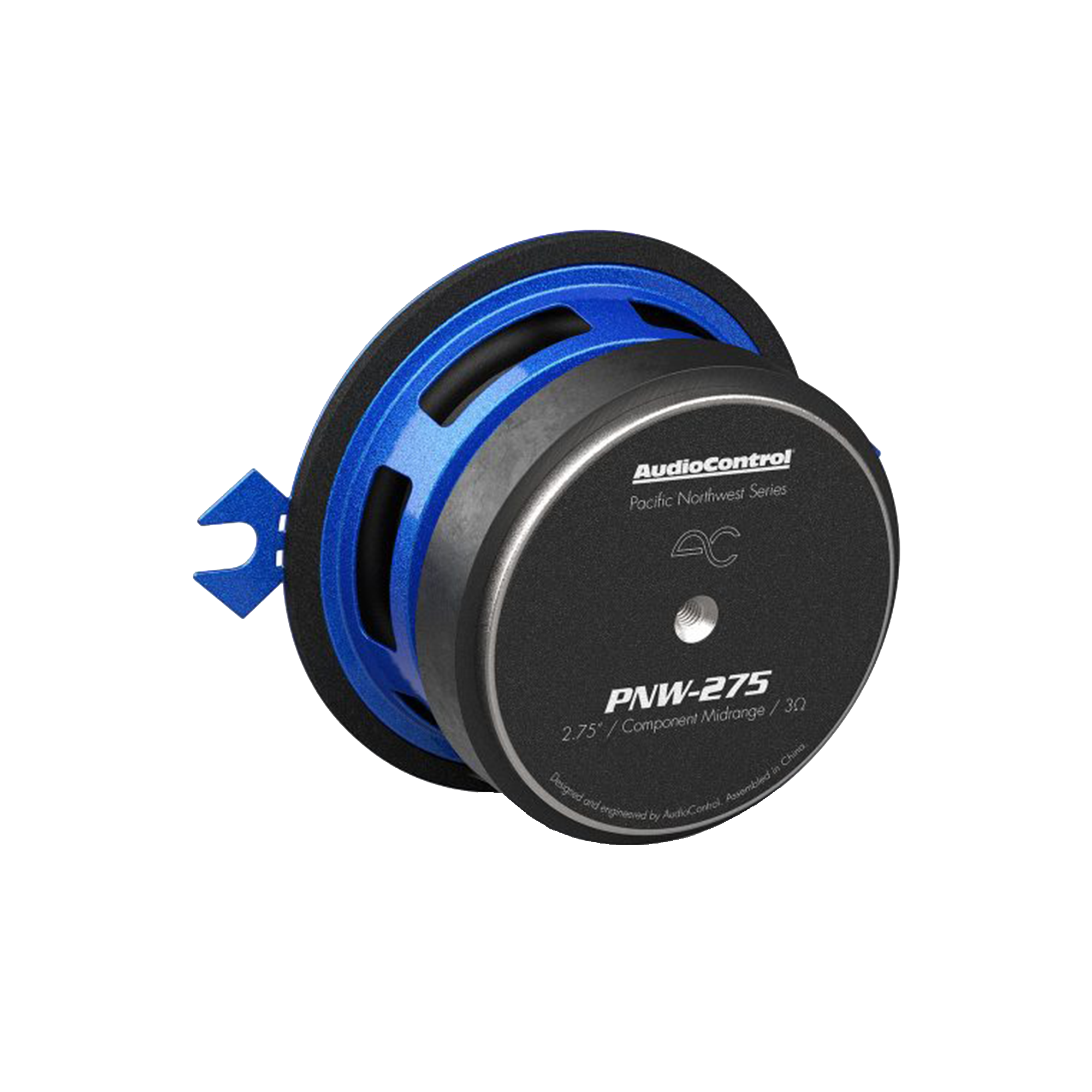

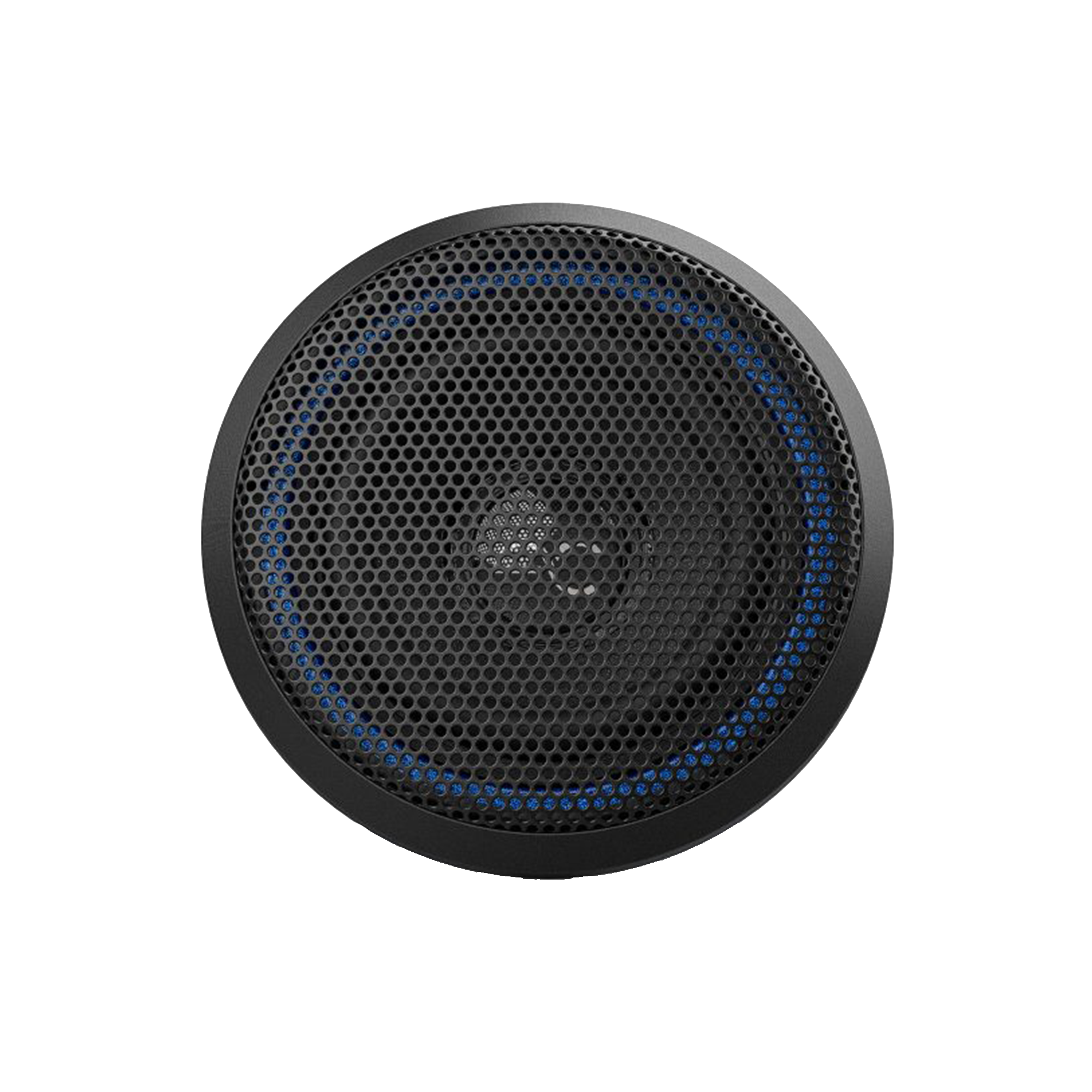

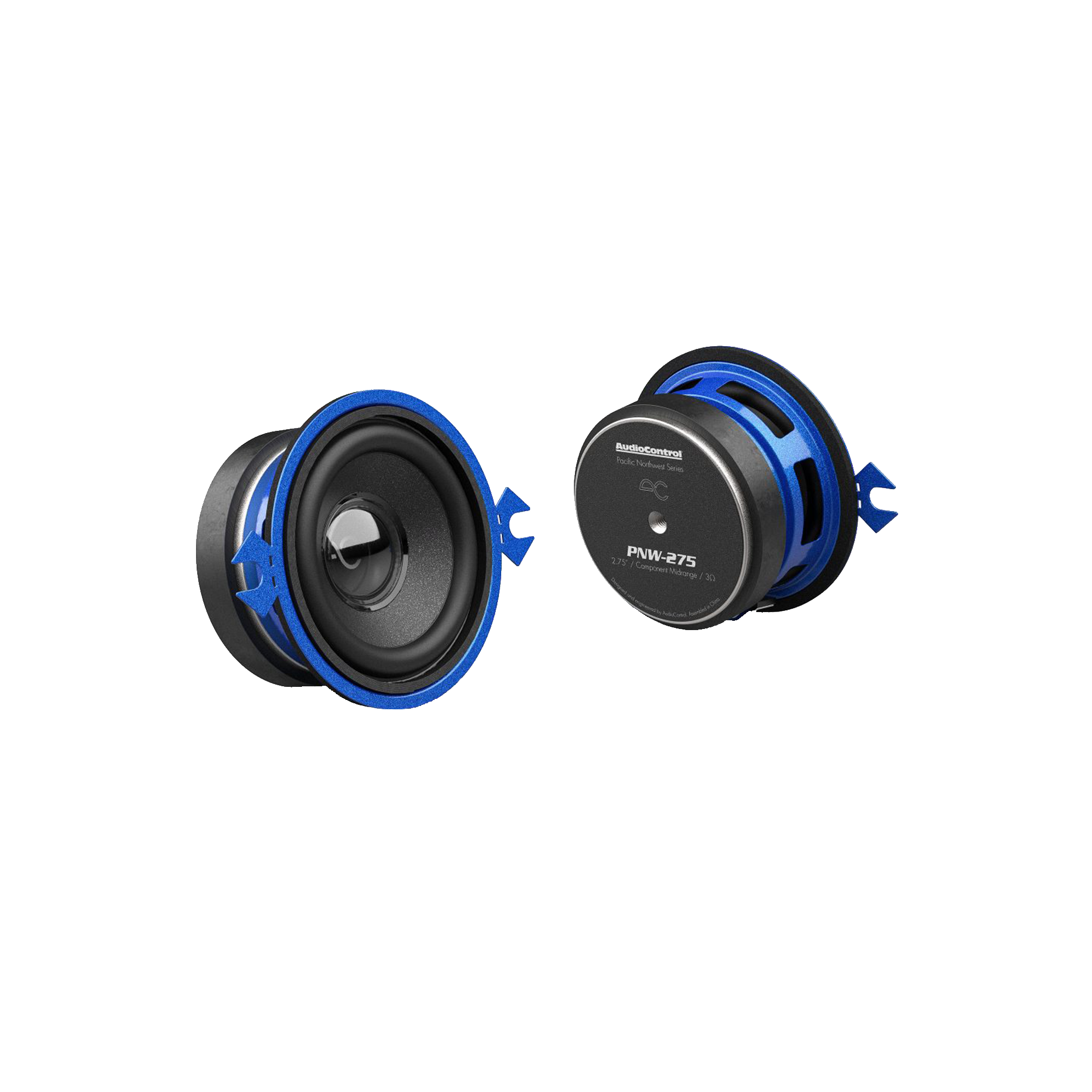

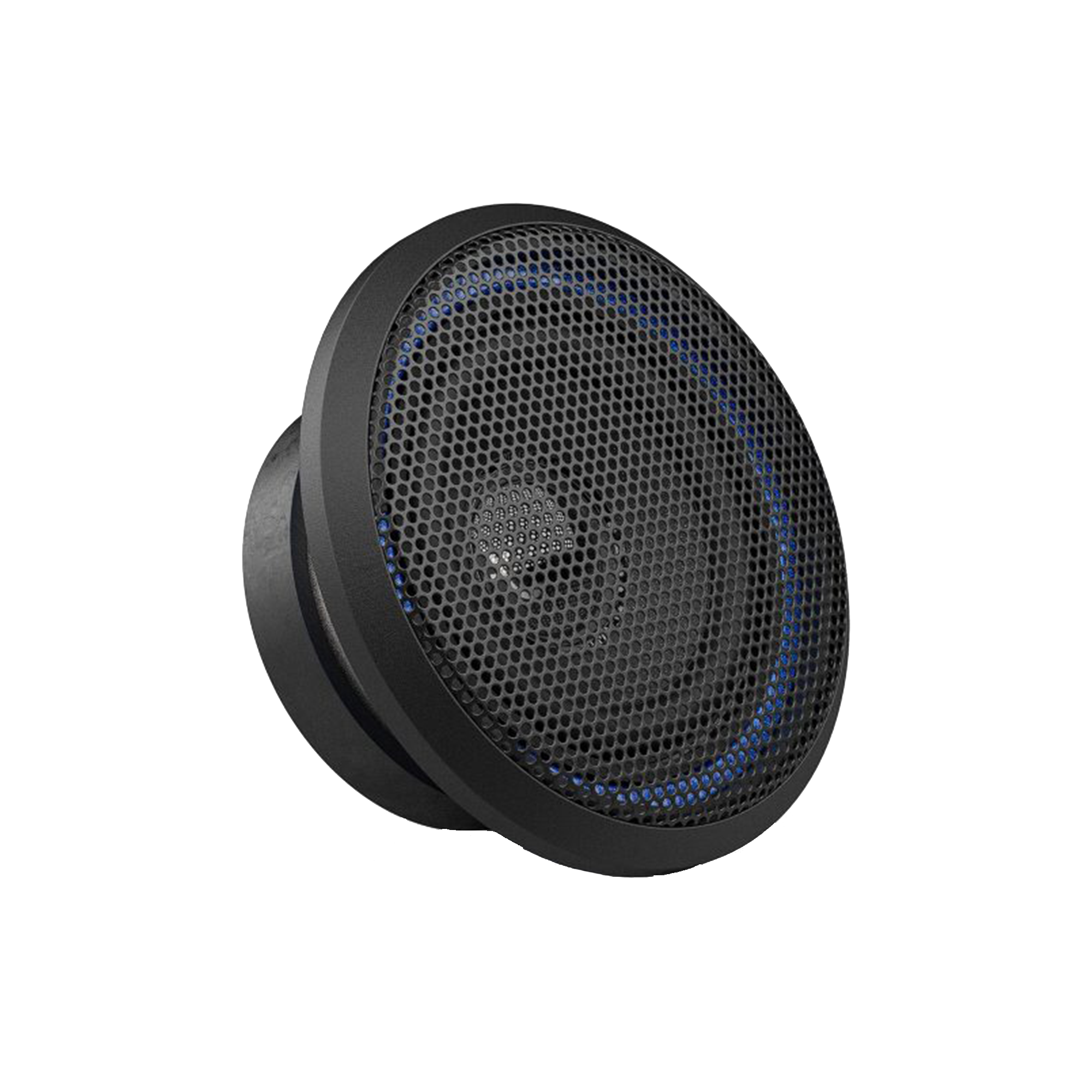

PNW-275 2.75" Component Midrange Speakers, 25W RMS, 3 Ohms (Pair)

$99.00

AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific...

AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Worried about installation? Don’t be! Our speaker sets come with high-quality mounting hardware, so you can enjoy your new sound system hassle-free. The tweeter’s point source design even aligns the output of both drivers perfectly, resulting in better speaker alignment for amazing sound quality. Looking for the full package? Pair PNW with our Spike or Space series subwoofers for the ultimate in-vehicle listening experience. All of these features add up to a line of speakers that are not only impressive on paper but are sure to impress you with their detail, clarity, and volume every time you drive.

FEATURES

  • Edge-enhanced steel frame for added structural strength
  • Black anodized voice coil former for superior heat dissipation
  • Linear surround for precision cone movement
  • Complex FEA-designed high-efficiency motor
  • Paper fiber matrix cone with mica coating for optimized sound reproduction
  • Transparent thermal-polymer dust cap for superior fidelity
  • High-quality mounting hardware included

SPECIFICATIONS

Crossover Type                                     Butterworth

Power                                                         25W RMS / 50W Max

DC Resistance (Re).                            2.45 ohms

Filter Type                                               HP

Frequency Response                       100-20k Hz

XO Frequency                                      250 Hz

BP Frequency Range                          200-4k Hz

Slope (Octave)                                      -6 dB

Midrange Voice Coil Diameter       20 mm



IN THE BOX: (2) PNW-275, Manual, Warranty


DIMENSIONS

  • Overall Dimensions: 3.74 in/ 95 mm
  • Overall Diameter(w/o Metal bracket): 2.83 in / 72 mm
  • Cut Out Diameter: 2.63 in/ 67 mm
  • Mounting Depth: 1.37 in/ 35 mm
  • Mounting Height (w/o Grille): 0.05 in / 1.5 mm
  • Mounting Height (w/ Grille): 0.48 in / 12.4 mm
  • Motor Diameter (w/ Cover): 2.36 in / 60 mm
  • Grille Overall Diameter: 3.42 in / 87 mm



California Proposition 65

  • To our California customers: Please view your Proposition 65 warning here.

Reviews

0/5

Based on 0 reviews

Shipping

In stock

Est. arrival March 16

Key features

Edge-enhanced steel frame

for added structural strength

Black anodized voice coil

for superior heat dissipation

Linear double-roll surround

for precision cone movement

Complex FEA motor

for high efficiency sound

Rigid poly mica-coated cone

for optimized sound reproduction

Sonic diffuser & radiant collar

for better off-axis frequency response

Transparent thermal-polymer dust cap

for superior fidelity

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Features

High-Fidelity Audio

Born in the Pacific Northwest, the PNW Series speakers provide exceptional sound quality and unmatched performance.

Black Anodized Voice Coil

Allows for superior heat dissipation, increased power handling, and longer durability.

Edge-Enhanced Steel Frame

Adds structural strength, minimizing potential flexing or warping that could lead to sound distortion.

Complex FEA Motor

A high efficiency motor that produces maximum sound output.

Specs & installation

Product specs

Crossover Type Butterworth
DC Resistance 2.45 ohms
Filter Type HP
System Frequency Reesponse 100 - 20k Hz
XO Frequency Range 250 Hz
BP Frequency Range 200 - 4k Hz
Slope (Octave) -6 dB
Midrange Voice Coil Diameter 20 mm

Dimensions

Overall Diameter (w/ metal bracket) 3.74 in / 95 mm
Overall Diameter (w/o metal bracket) 2.83 in / 72 mm
Cut Out Diameter 2.63 in / 67 mm
Mounting Depth 1.37 in / 35 mm
Height (w/o Grille) 0.05 in / 1.5 mm
Height (w/ Grille) 0.48 in / 12.4 mm
Motor Diameter (w/ Cover) 2.36 in / 60 mm
Grille Overall Diameter 3.24 in/ 87mm

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.
