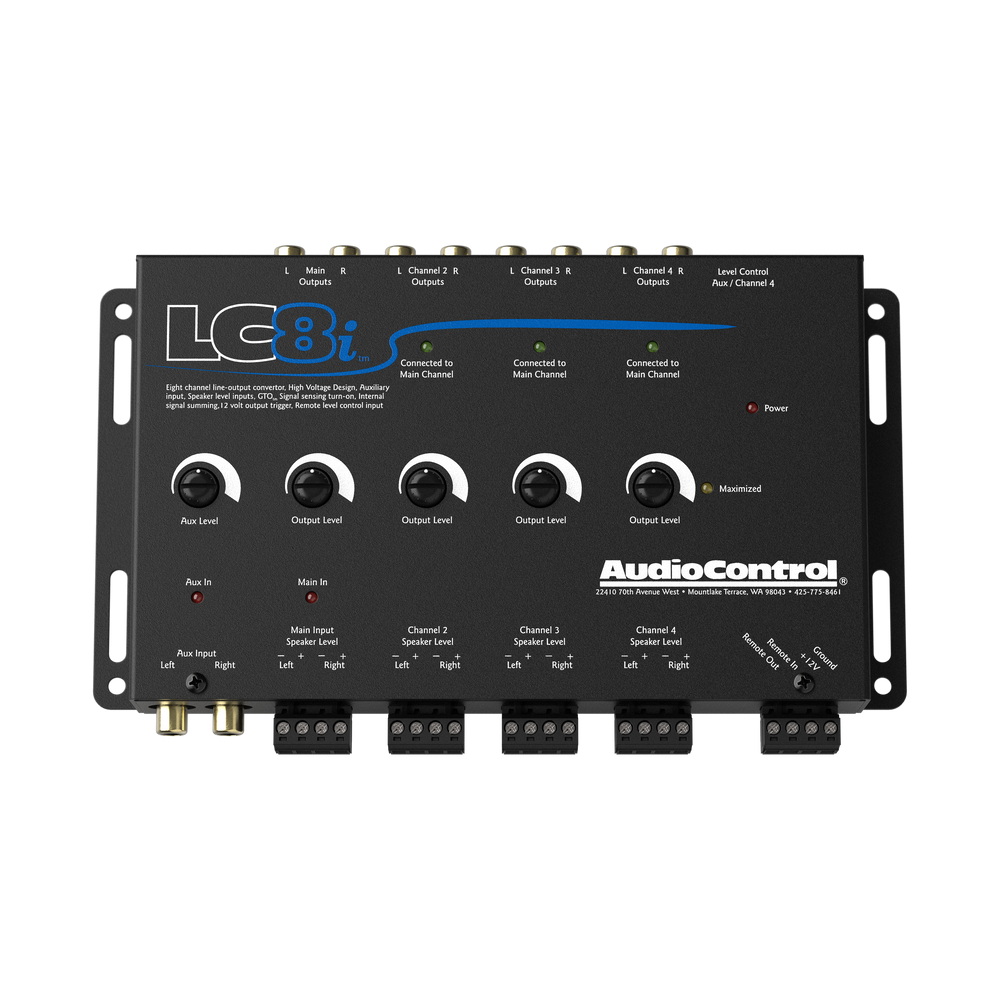

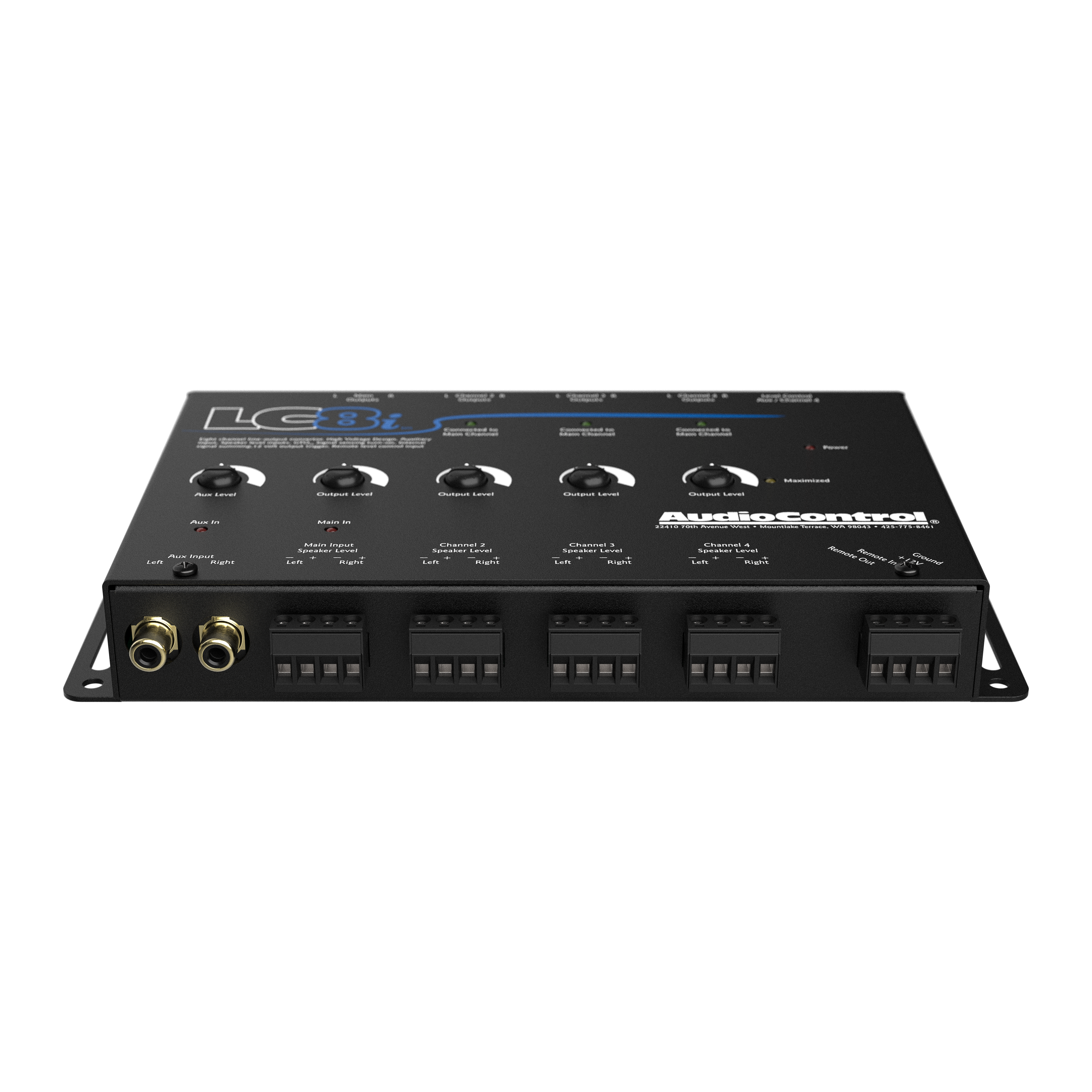

LC8i Black 8-Channel Line Output Converter with Auxiliary Input

$179.00

The LC8i is a highly flexible eight-channel signal processor with active input circuitry that accepts speaker-level inputs, of up to 400 watts per channel, from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to aftermarket processors and/or amplifiers. This means users will enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

Experience audio excellence from your existing factory audio system with the AudioControl LC8i 8-Channel Line Output Converter. This powerful converter is the ultimate solution for upgrading your car's audio system. It features channel summing for an immersive audio experience and is compatible with almost any factory stereo. With RCA auxiliary input jacks and a wired remote for complete control, connecting external audio sources has never been easier. Built to last and easy to install, this converter ensures you have the best audio quality possible. Upgrade your sound today with the AudioControl LC8i 8-Channel Line Output Converter.

FEATURES

  • Speaker Input: Compatible with most factory stereo systems, four pairs of inputs handling up to 400 watts per channel.

  • Channel Summing: Sum together multiple input channels (4, 6, or 8) for a high-quality, full-range pre-amp signal without additional cables or hardware.

  • AutoMode Inputs: Channel 3 input automatically feeds channel three and channel 4 outputs when there is no signal at the channel four input.

  • Auxiliary Input: Pair of RCA auxiliary input jacks for connecting secondary sources like iPod or satellite radio, controlled using the wired remote.

  • Output Level: +/- 12 dB adjustment for each RCA output, allowing you to match the level of speaker level inputs. Separate output level control for auxiliary input.

  • Auto Turn-on: Signal sensing circuit turns on the unit when there's a speaker-level input signal and turns off when the signal disappears.

  • Remote Output: +12 volt DC remote output triggers the amp to turn on when LC8i is on, with a maximum current output of 1 amp.

  • Remote: The wired remote allows easy source selection, auxiliary input volume adjustment, and output level control for channel 4/subwoofer.

  • Ground Isolation: Switchable power supply ground for eliminating ground loop noise.

  • Terminal Blocks: Removable terminal blocks for power/ground/remote connections and speaker level inputs, accommodating wire up to 12 gauge.

SPECIFICATIONS

INPUTS

  • Maximum Speaker Level Input
  • Maximum Output Voltage
  • Output Gain
  • Frequency response
  • THD
  • Input Impedance
  • Output Impedance
  • Dimensions: 8.6”W x 4.75”D x 1.2”H
  • Weight: 3.0lbs (1.4kg)


IN THE BOX: LC8i, ACR-3 RemoteSpeaker and Power connectors, Manual, Warranty

LC8i Black 8-Channel Line Output Converter with Auxiliary Input
LC8i Black 8-Channel Line Output Converter with Auxiliary Input
LC8i Black 8-Channel Line Output Converter with Auxiliary Input
LC8i Black 8-Channel Line Output Converter with Auxiliary Input
LC8i Black 8-Channel Line Output Converter with Auxiliary Input

Shipping

In stock

Est. arrival October 05

Key features

Speaker Level Inputs

8 Channels

Internal Summing

Sum multiple input channels

Auxiliary Input

Pair of RCA auxiliary inputs

Output Level Control

Adjust signal output

AutoMode Inputs

Automatic signal routing

ACR-3 Remote Control

Included

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

Easily Upgrade your factory system with the LC8i.

Features

Path to an Elevated Audio Experience

Seamlessly upgrade your factory system with aftermarket audio components with AudioControl's line output converters.

Car subwoofers with blue LED lighting and 'EPICX' branding.

Highly Versatile

Designed for maximum flexibility, the LC8i is equipped with 8 channels and auxiliary input that allows the addition of secondary source units.

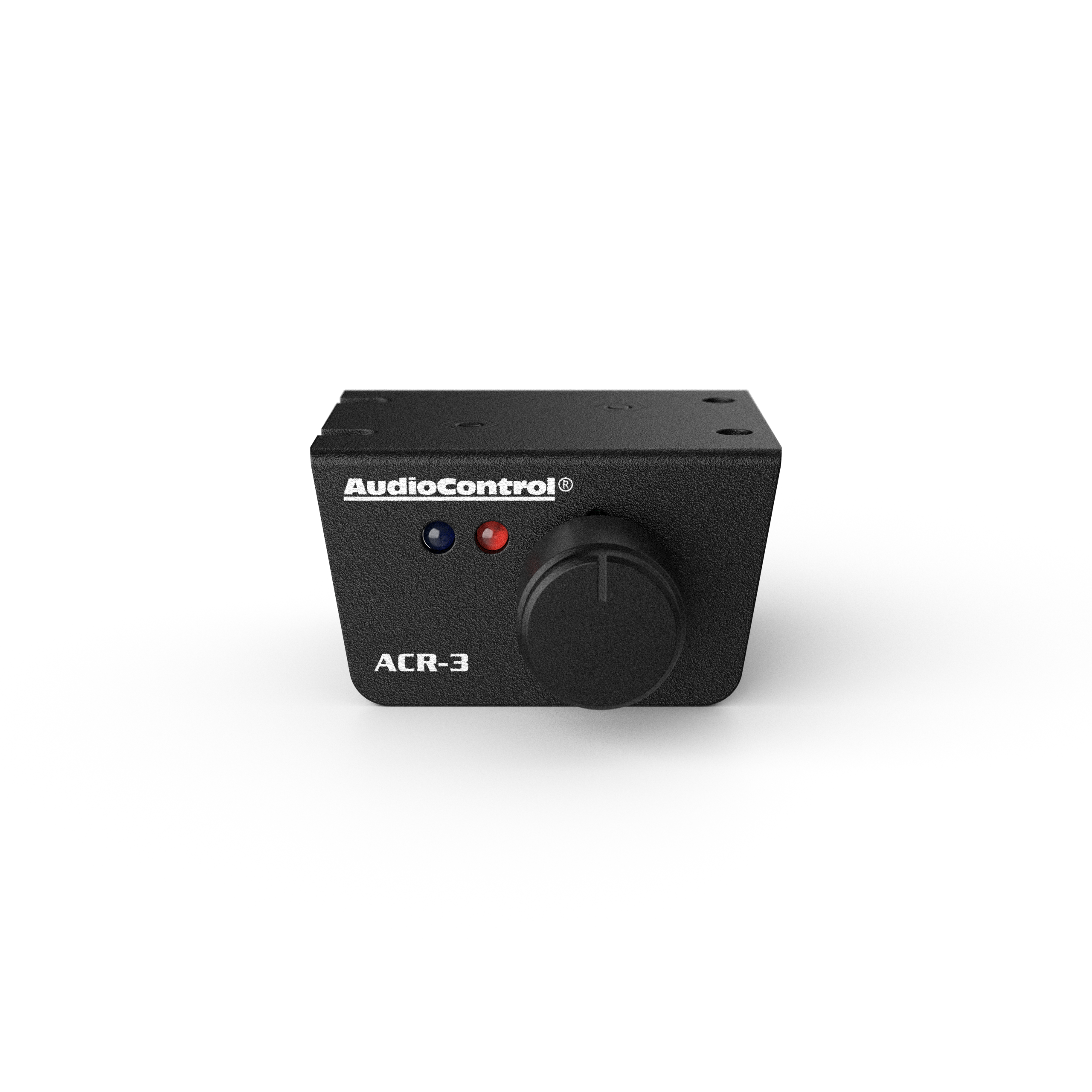

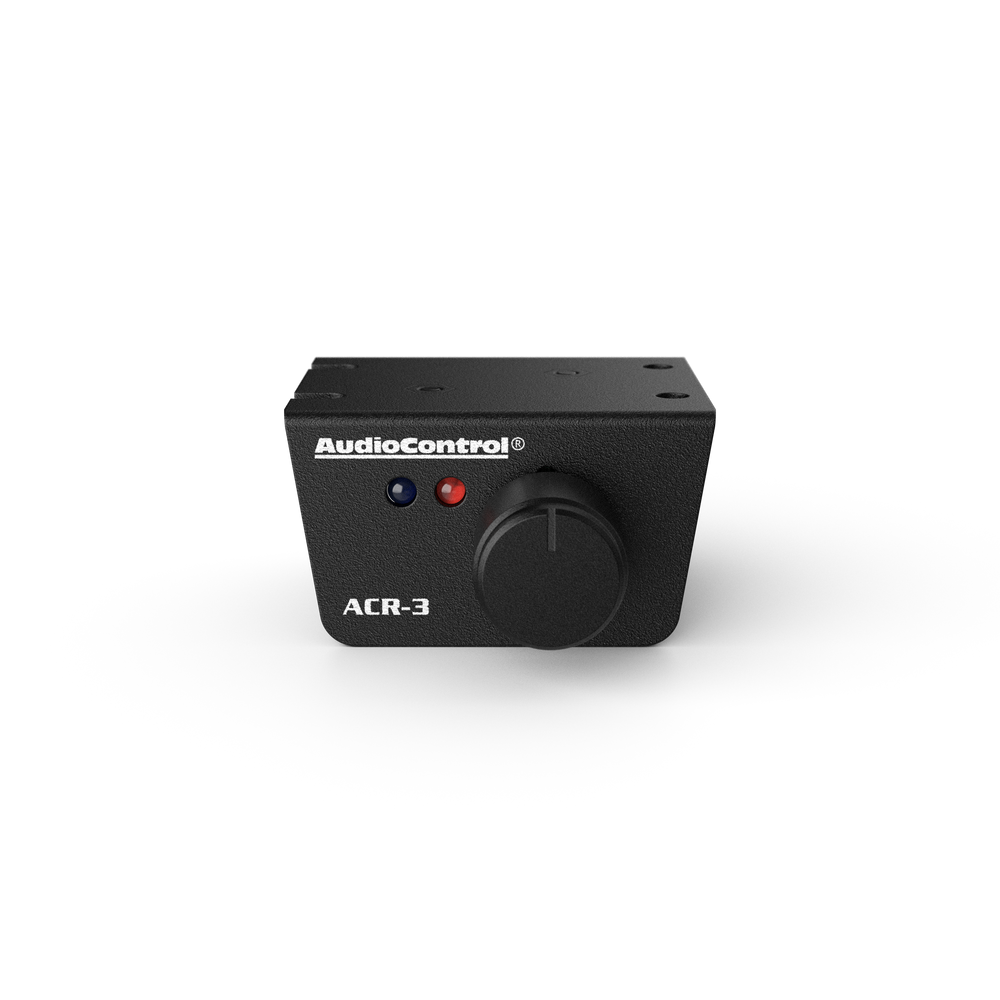

ACR-3 Dash Remote Control

Remote level control & function switch designed to be surface or custom-mounted to add level control, or total system volume control, and more to your audio system.

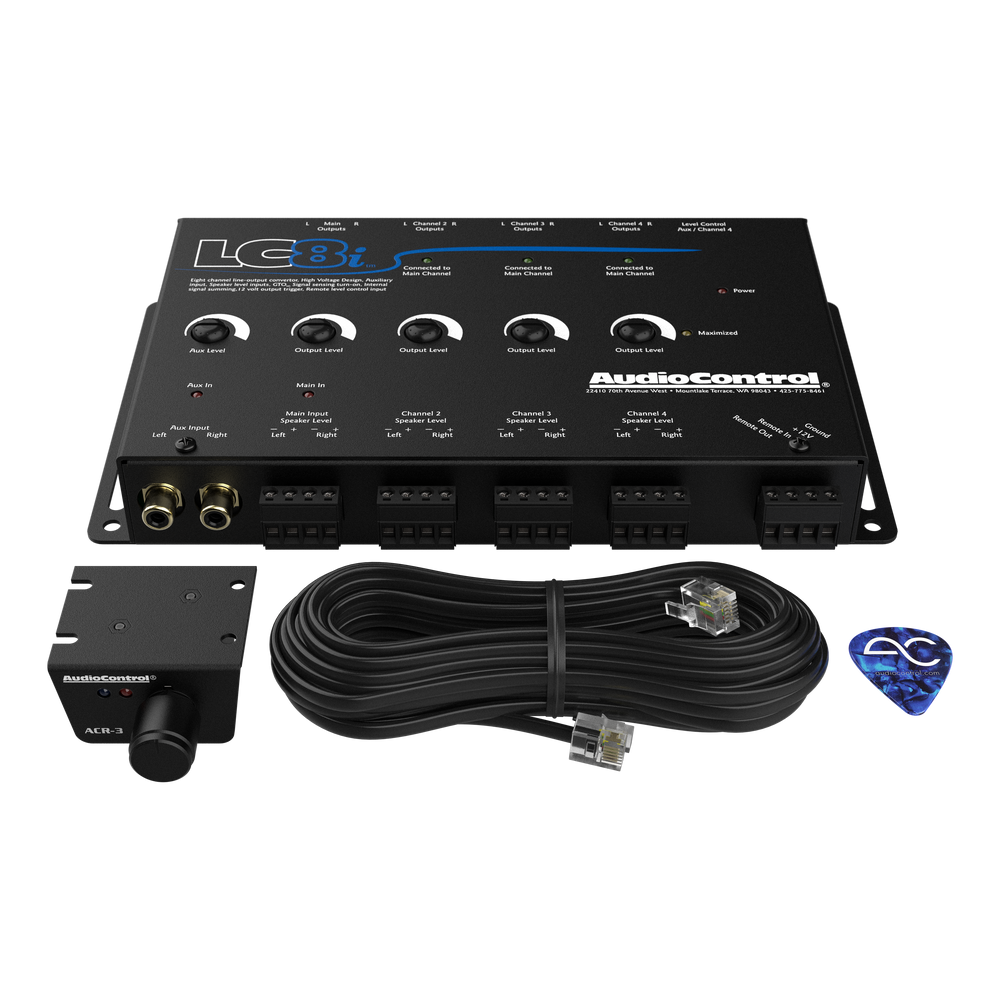

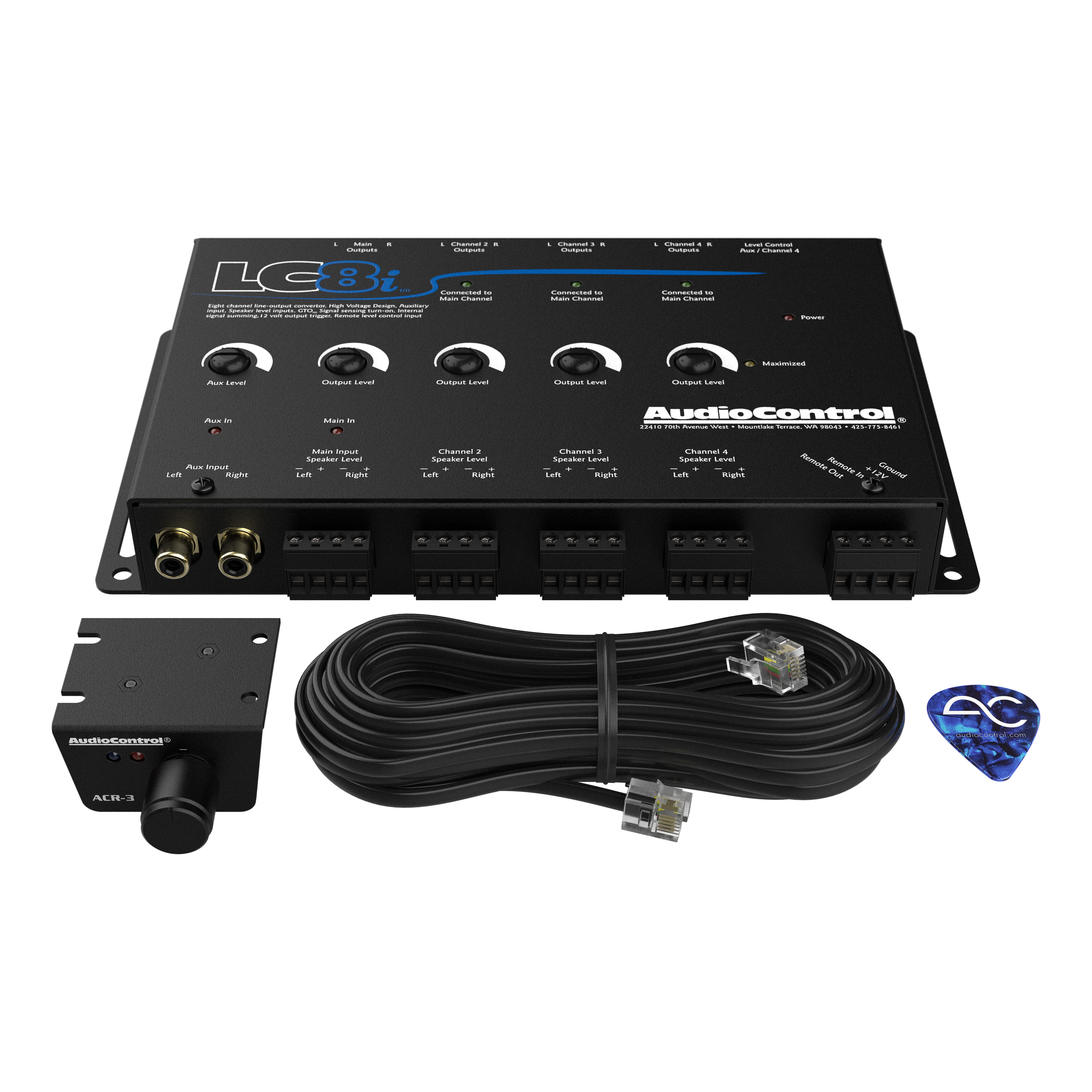

What's in the box

LC8i

LC8i, ACR-3 Remote, Speaker and Power connectors, Manual, Warranty

Specs & installation

Product specs

Speaker Level Inputs 4 (8 channels)
Maximum Input (speaker level) 400W per channel at 4Ω
Preamp Inputs (Aux) 1 (2 channels)
Input Impedance 20kΩ
Preamp Outputs 4 (8 channels)
Maximum Output Level 8.5Vrms
Output Gain ±12dB
Output Impedance 150Ω
Total Harmonic Distortion 0.01%
Frequency Response 10Hz-22kHz
Power Supply High Headroom PWM Switching
Current Draw 350mA
Recommended Fuse Rating 2A

Dimensions

Dimensions 8.6”W x 4.75”D x 1.2”H
Weight 3.0lbs (1.4kg)

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.

Download user guide

Find an installer

Let us hook you up with your local AudioControl installation expert. Just enter your location to see approved installers in your neighborhood.

Find installers near you
