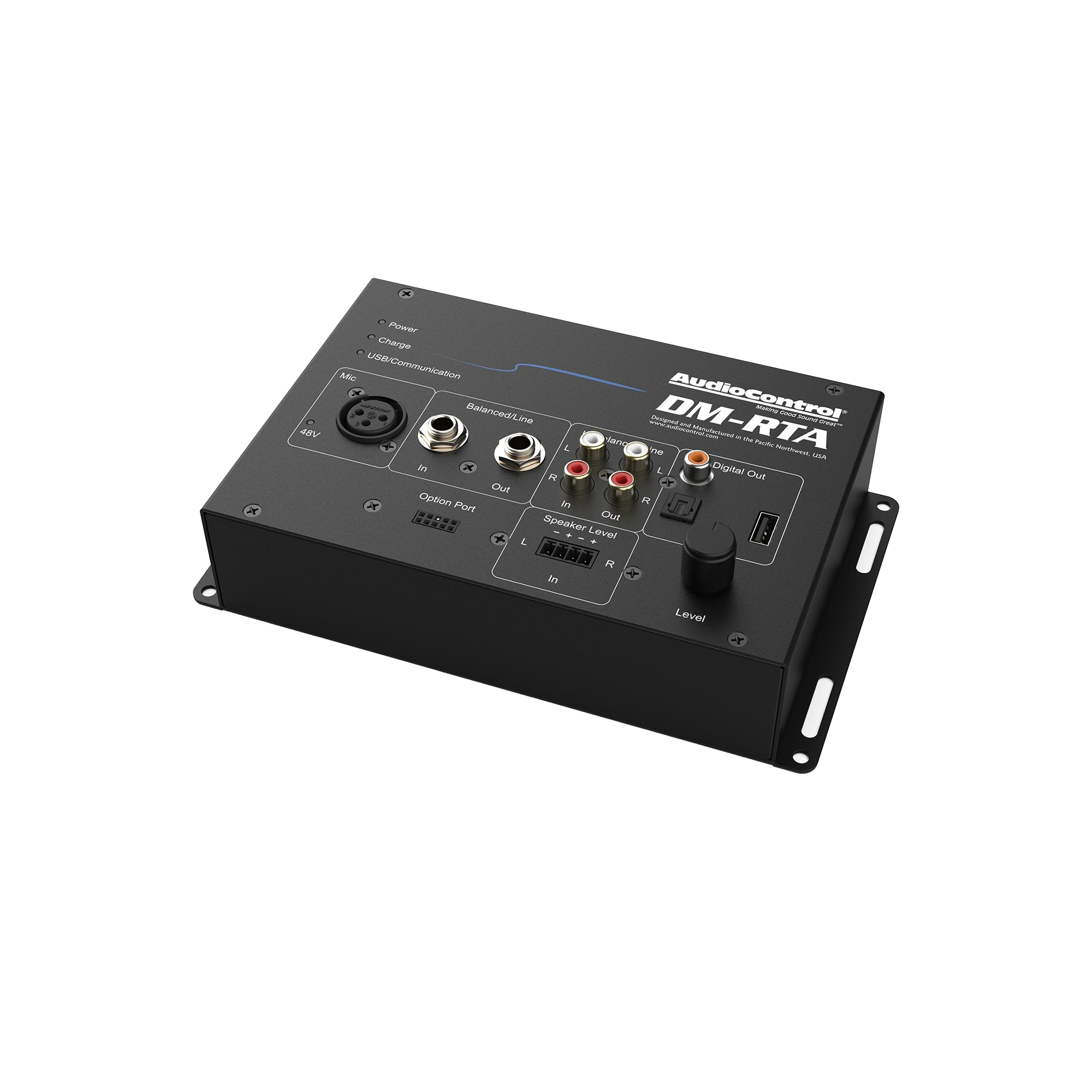

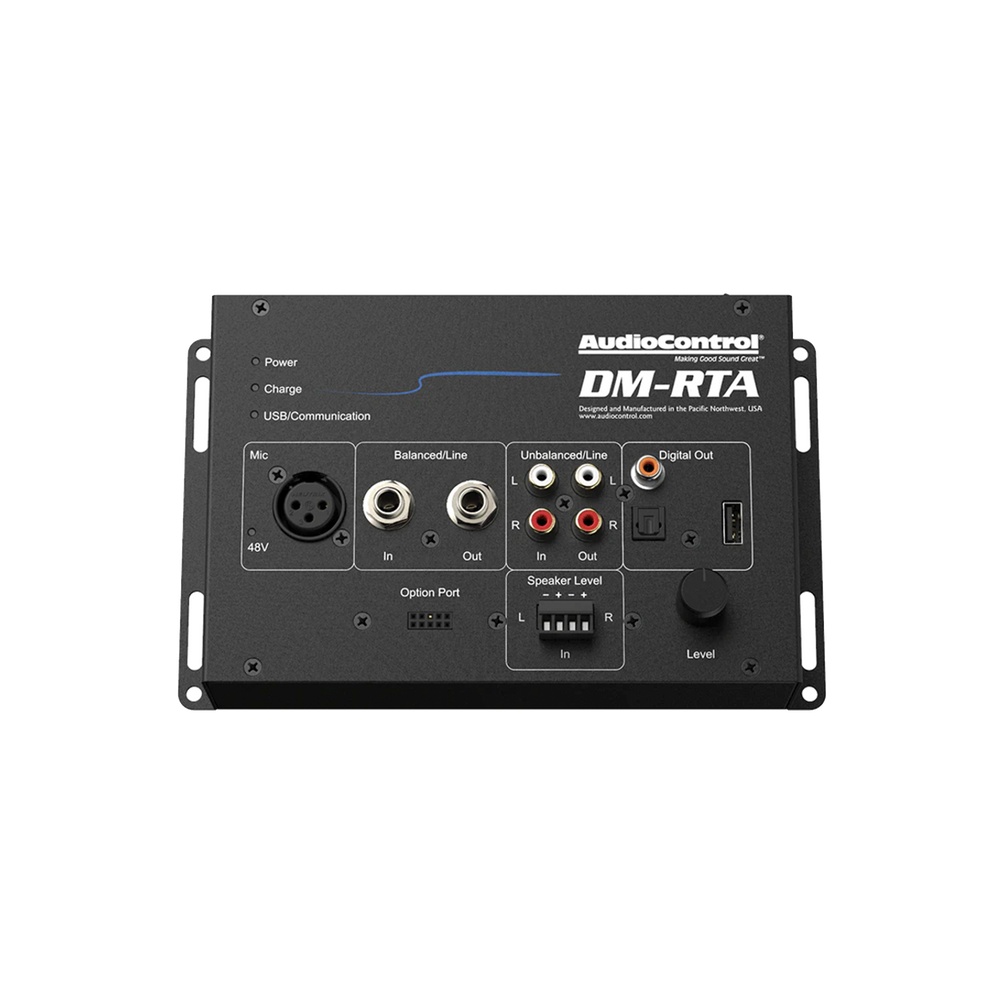

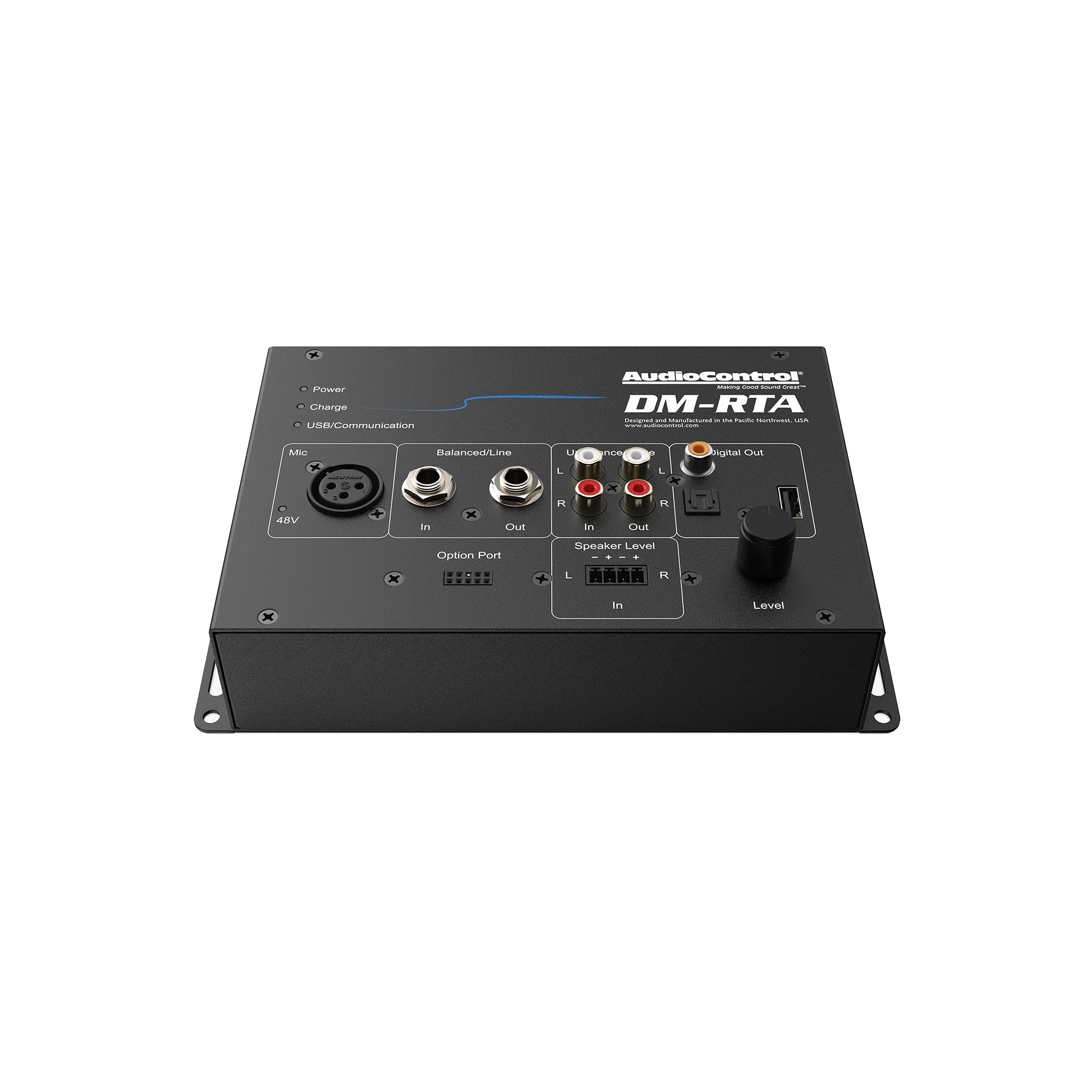

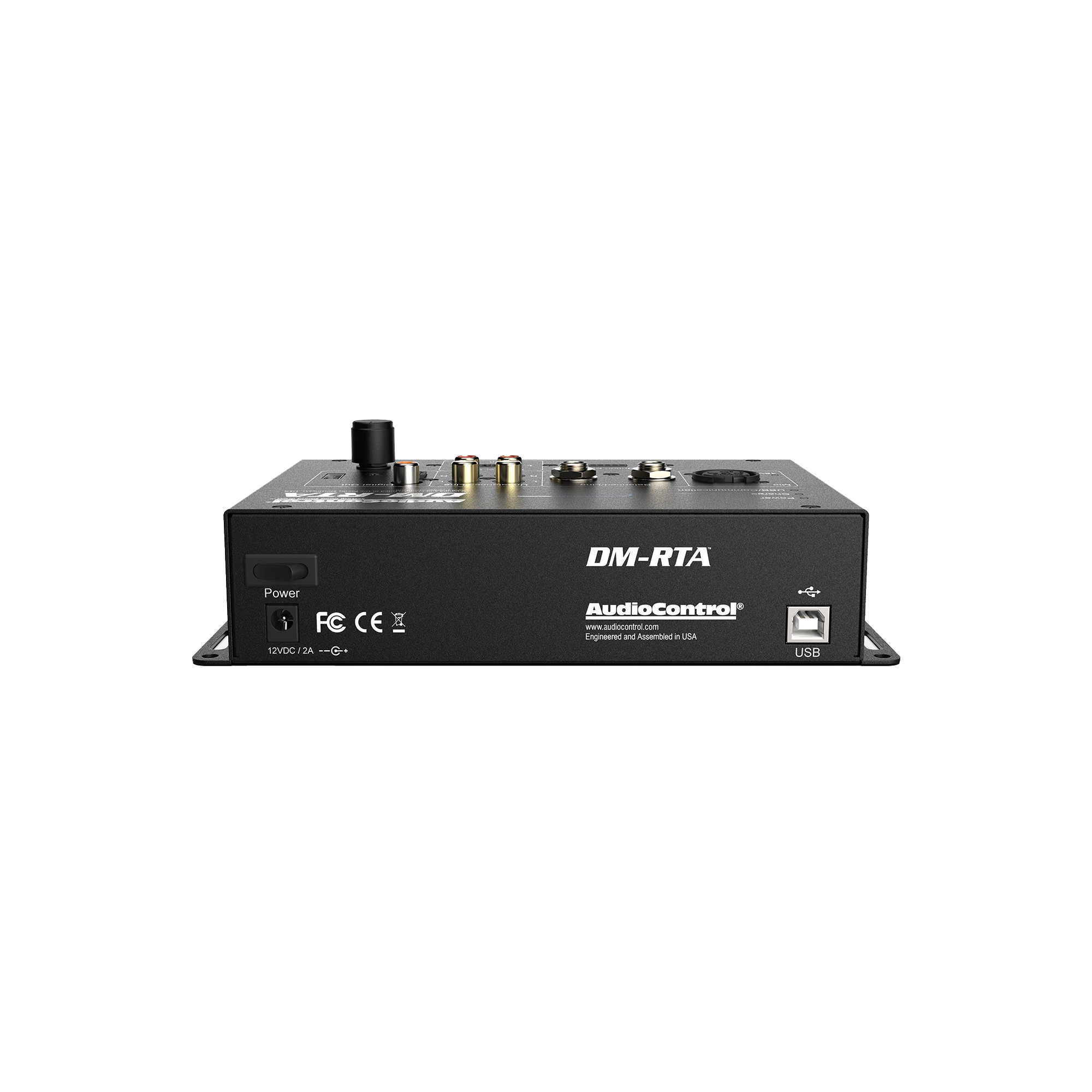

DM-RTA Real Time Analyzer Multi-Test Tool

$949.00

DM-RTA Real Time Analyzer Multi-Test Tool is a cutting-edge device designed to revolutionize audio testing and optimization.

Building from a legacy of trusted professional audio measurement products, the DM-RTA™ brings the vital tools you rely on to one indispensable interface. Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl’s DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control.

The DM-RTA connects to a Mac or PC via USB, or to a phone or tablet via Bluetooth using the AC-BT24 Bluetooth Streamer/Programmer (available separately).

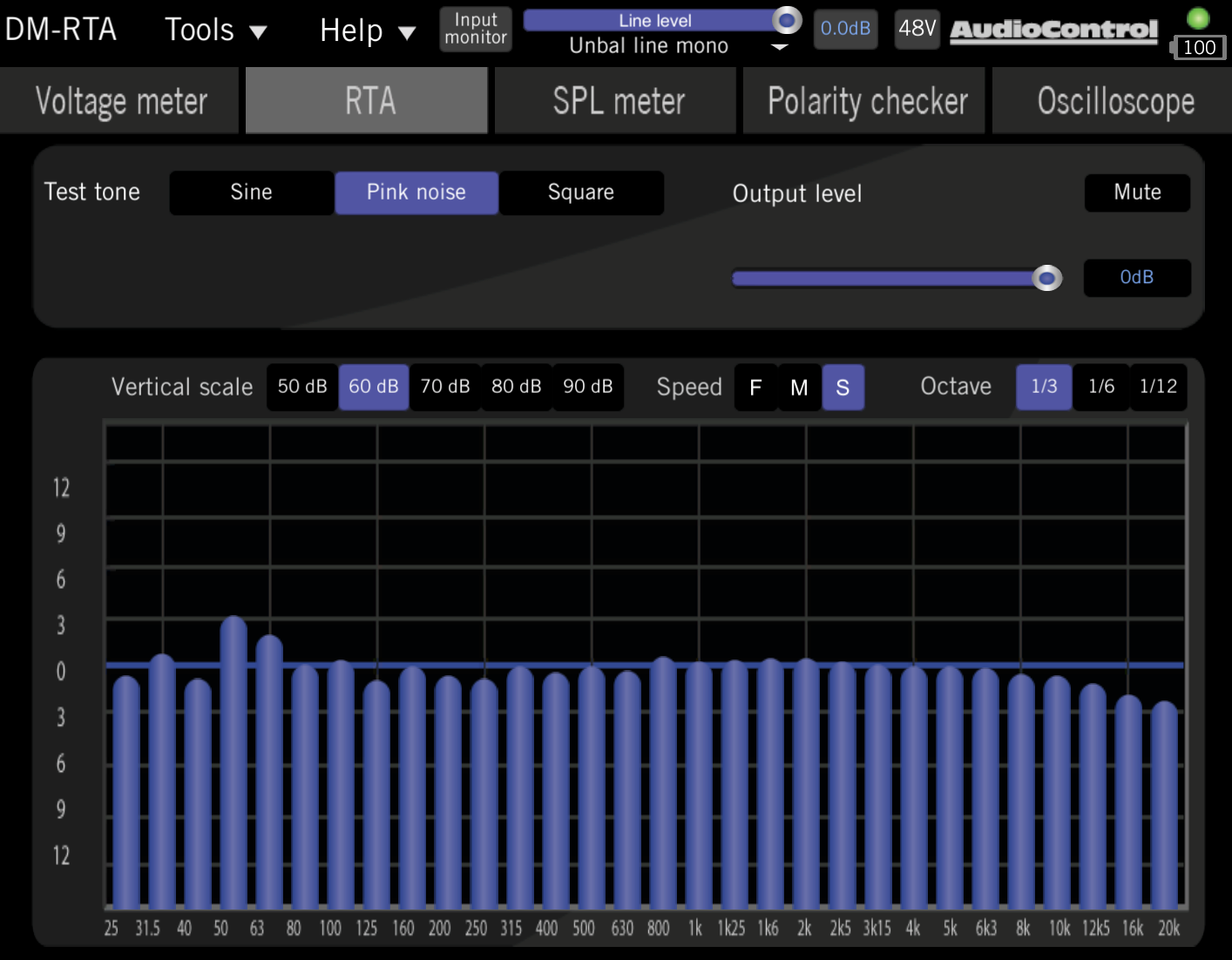

The RTA (real-time analyzer) takes electrical and acoustical measurements. This will let you know how much equalization is needed to smooth out the frequency response of a vehicle.

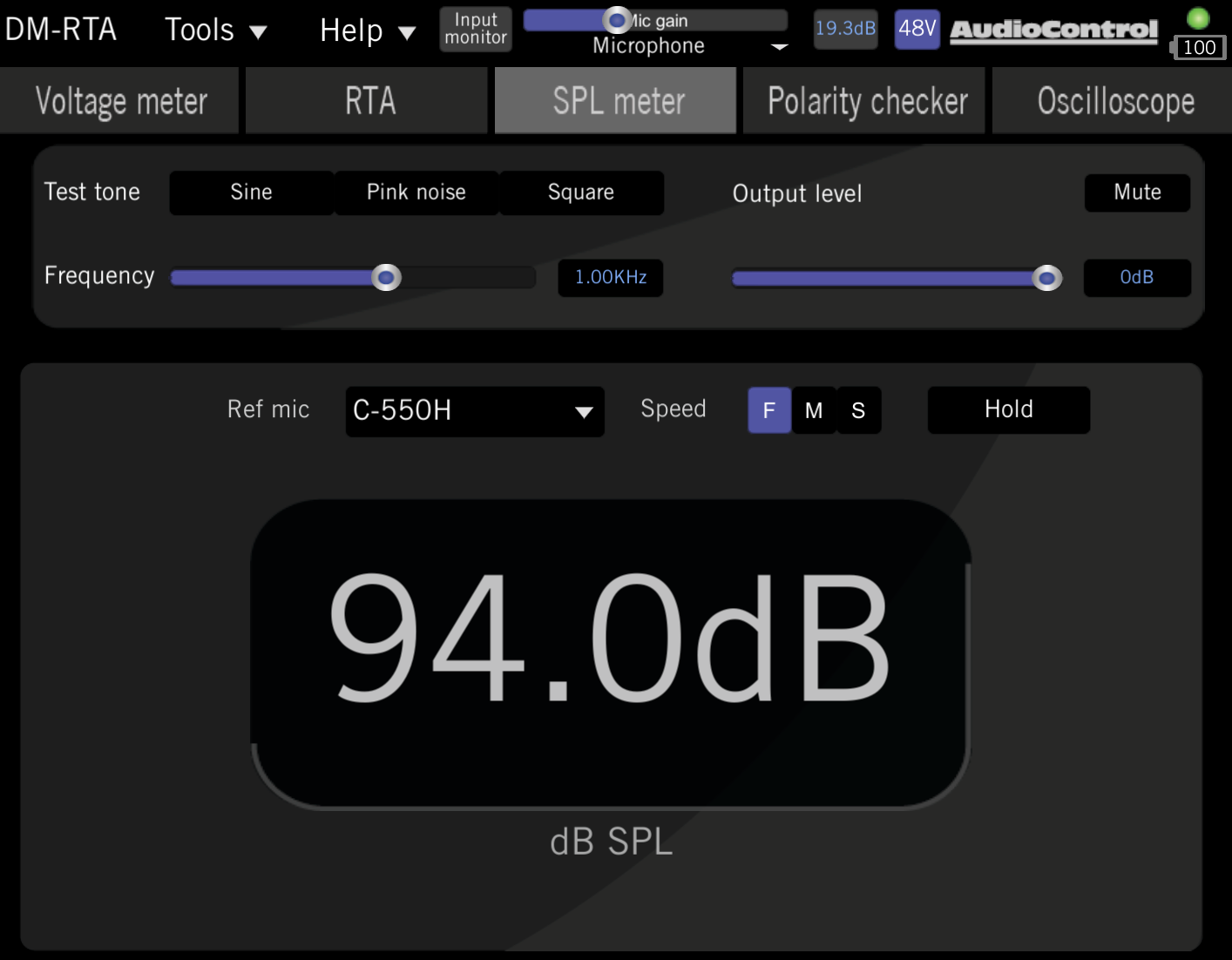

The sound pressure level (SPL) is used to show how loud the audio system can perform. This is something every customer would love to know and a way to test the before and after performance of a system.

DM-RTA APP

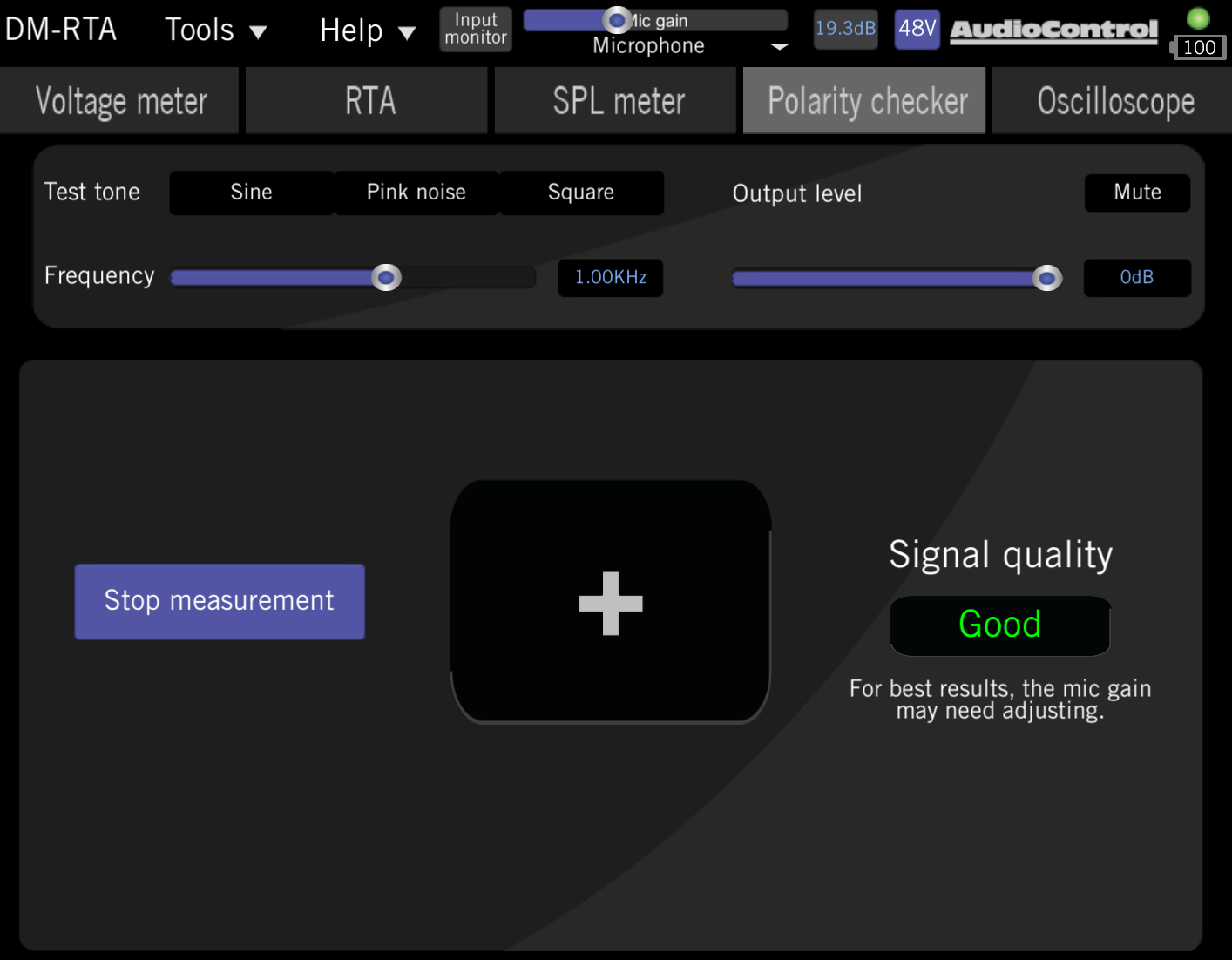

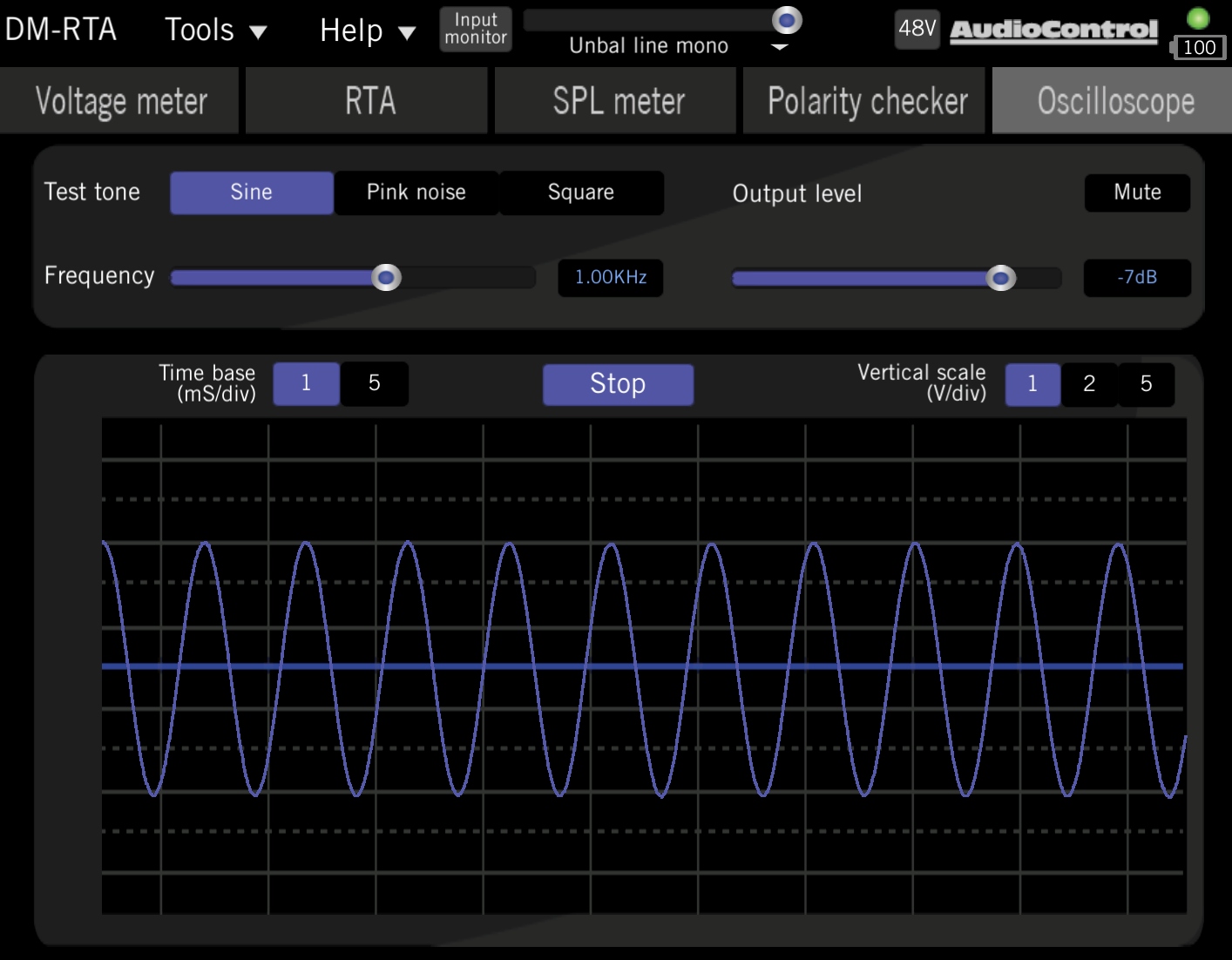

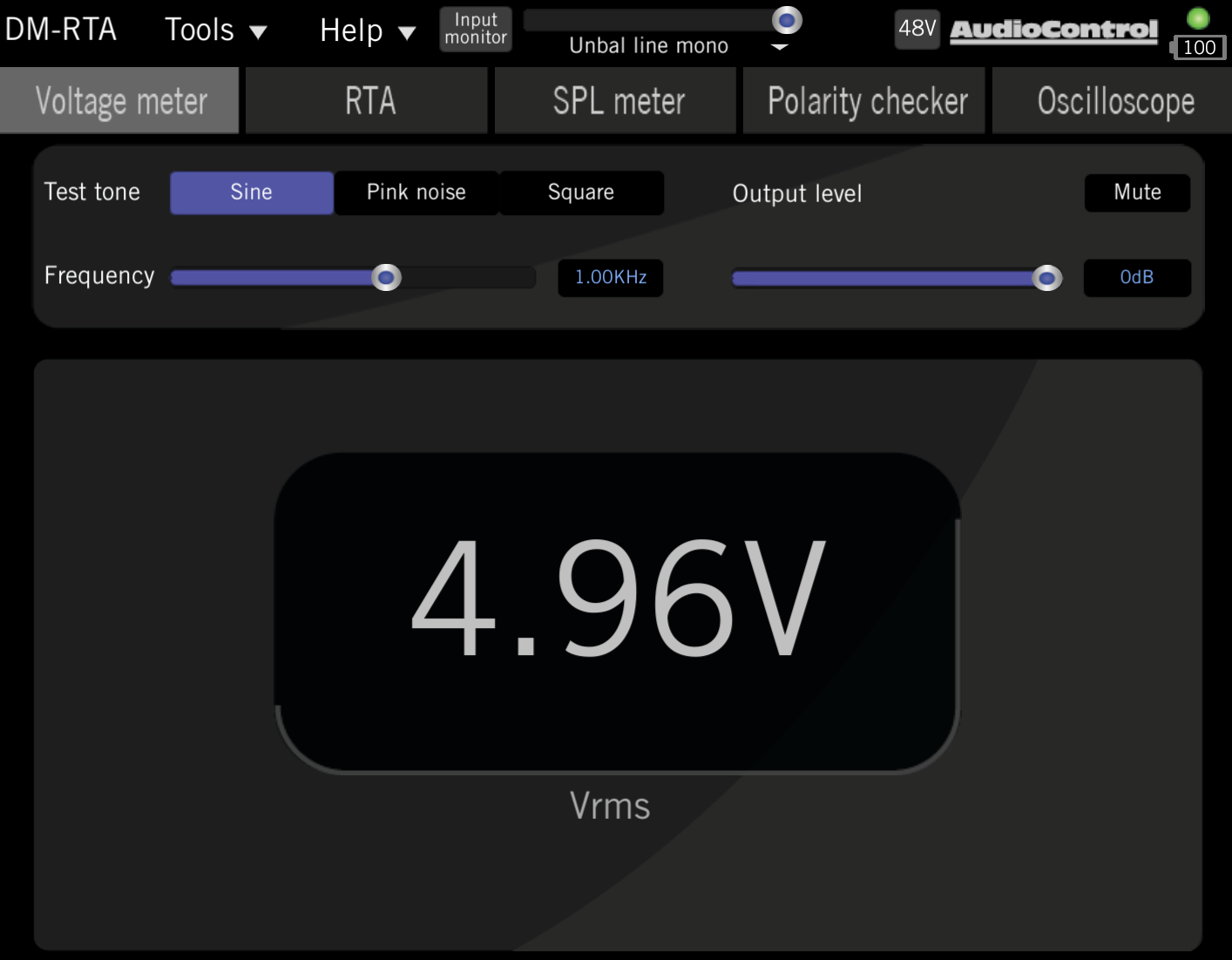

The DM-RTA isn’t just an RTA. Accessible from the DM-RTA app are five modules, including Voltage Meter, RTA (1/3, 1/6, and 1/12 octave), SPL Meter, Polarity Checker and a fully functional Oscilloscope. Test and measure nearly every signal imaginable from acoustical, to line level, and speaker level. Balanced and unbalanced line level inputs allow the DM-RTA to be inserted into your signal chain to verify optimal signal from source to speakers. This is the last test tool you’ll ever need.

DM-RTA App for Mac & PC

DM-RTA App via App store for iOS & Android

User Manual

FEATURES

  • Test and Measure Any Signal
  • Balanced Line Level Inputs and Outputs
  • Unbalanced Line Level Inputs and Outputs
  • Speaker Level Inputs (handles up to 400 watts)
  • Microphone Input with 48V Phantom Power (microphone sold separately)
  • Microphone presets (for CM-20, CM-10 & C550H)
  • Digital and USB Outputs
  • Connect to PC/Mac, Phone or Tablet
  • Option Port for Bluetooth Connectivity
  • Battery Powered and Compact for Portability
  • DM-RTA app available in downloads for Mac/PC

SPECIFICATIONS

INPUTS

  • 1 x Balanced (Input Impedance 3.24kΩ)
  • 1 x Unbalanced (Input Impedance 3.24kΩ)
  • 1 x Microphone (Input Impedance 10kΩ)
  • 1 x Speaker Level (Input Impedance 16.24kΩ)
  • Max Low Level Input Voltage: 8 Vrms
  • Max High Level Input Voltage: 40 Vrms

OUTPUTS

  • 1 x Balanced (Output Impedance: 51Ω)
  • 1 x Unbalanced (Output Impedance: 51Ω)
  • 1 x Coax Digital (Output Impedance: 75Ω)
  • 1 x Toslink
  • 1 x USB
  • Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

GENERAL

  • Battery Life: ~5 Hours

WEIGHTS & DIMENSIONS

  • Dimensions: 8”W x 4.8”D x 2.4”H
  • Weight: 2.6lbs (1.2kg)

IN THE BOX: DM-RTA, USB Cable, Power Supply, Manual, Warranty

DM-RTA Real Time Analyzer Multi-Test Tool
DM-RTA Real Time Analyzer Multi-Test Tool
DM-RTA Real Time Analyzer Multi-Test Tool
DM-RTA Real Time Analyzer Multi-Test Tool
DM-RTA Real Time Analyzer Multi-Test Tool
DM-RTA Real Time Analyzer Multi-Test Tool
DM-RTA Real Time Analyzer Multi-Test Tool
DM-RTA Real Time Analyzer Multi-Test Tool
DM-RTA Real Time Analyzer Multi-Test Tool

Shipping

In stock

Est. arrival October 05

Key features

Test and Measure Any Signal

handles a wide range of signal types

Balanced Line Level Inputs and Outputs

enjoy clean, clear, and noise-free audio signals

Unbalanced Line Level Inputs and Outputs

use standard RCA cables

Speaker Level Inputs (Up to 400 watts)

connect your amplifier or receiver directly to your speakers

Mic Input w/ 48V Phantom Power (Sold Separately)

superior sensitivity and sound quality

Mic Presets (for CM-20, CM-10 & C550H)

enhance your recordings by adjusting the mic's sensitivity

App Control

designed to work with a connected computer or laptop

Installation

Get help with your install

Leave the installation to an authorized AudioControl expert.

Find installers near you

More info

1 year manufacturer warranty

Please contact us to request a return. We deal with return requests on a case by case basis after we have had a chance to troubleshoot the issue. If we are unable to resolve your issue over the phone, you will be given an RA (Return Authorization) number. The RA number will need to be written clearly on the outside of the box you are shipping the product in. Product sent back to AudioControl without an RA number will be refused. Please ensure that the RA number is clearly indicated on the outside of the box so we can efficiently process the authorized return.

About this product

  • Analyze your audio with fine detail .

What's in the box

DM-RTA

DM-RTA, USB Cable, Power Supply, User Guide

Dimensions

Weight 8"
Height 2.4"
Depth 4.8"
Weight 2.6lbs

User guide

Our products are built for easy installation. As long as your vehicle is compatible, you'll have everything you need to get started, right there in the box.
