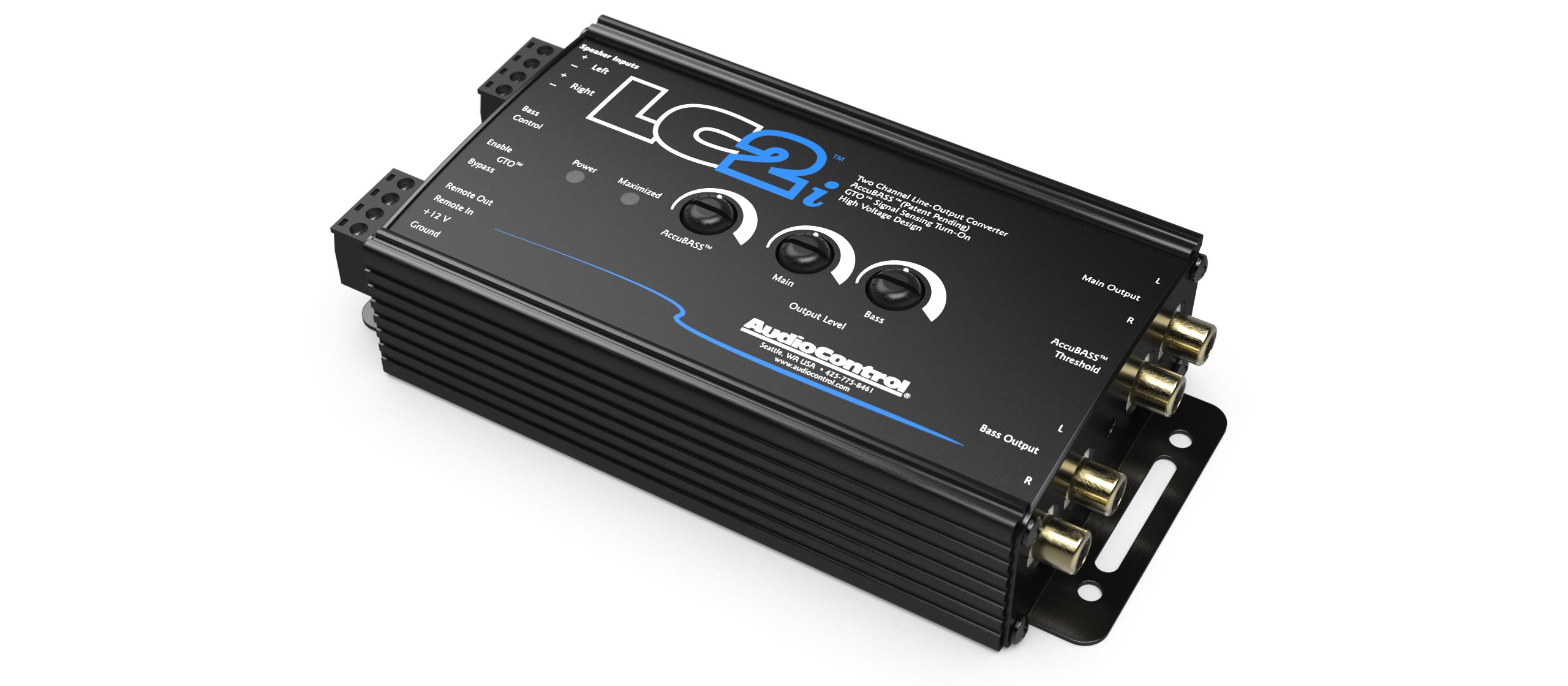

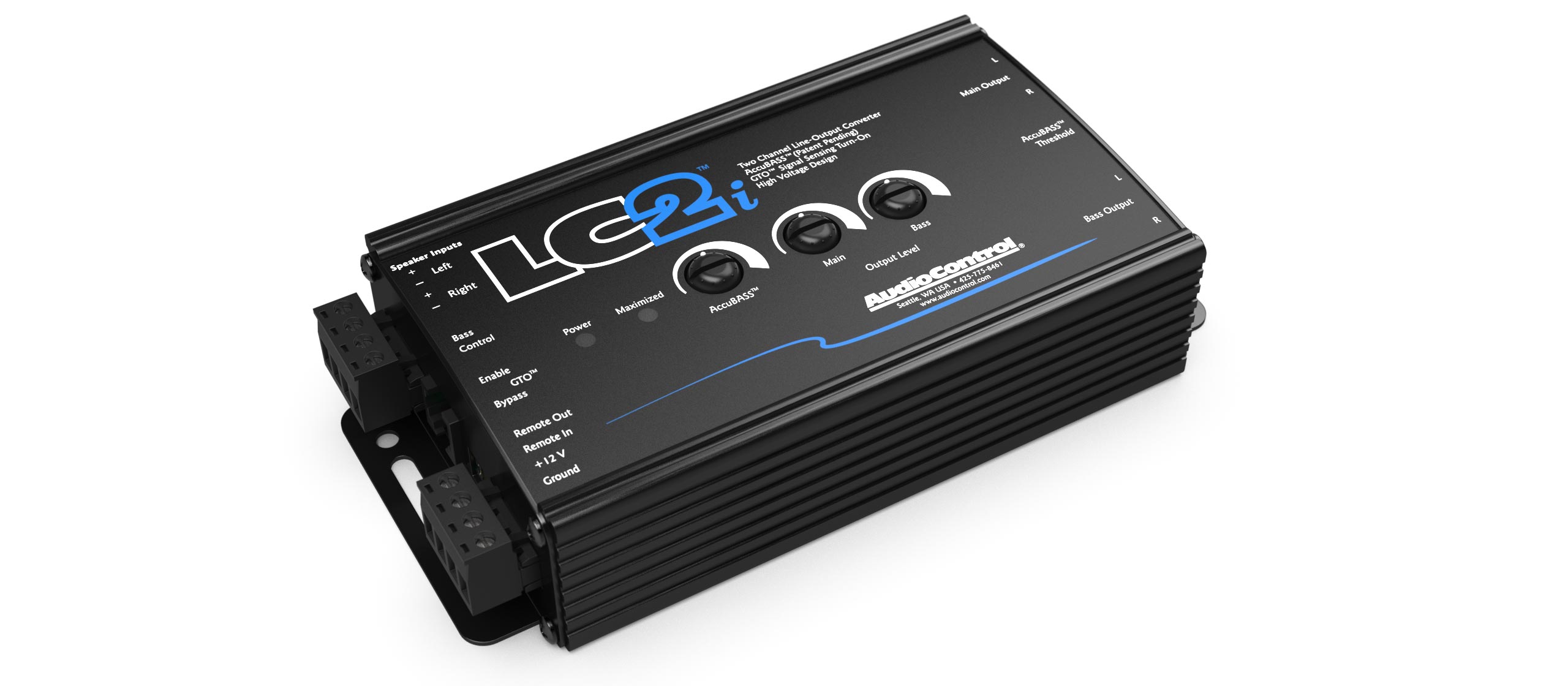

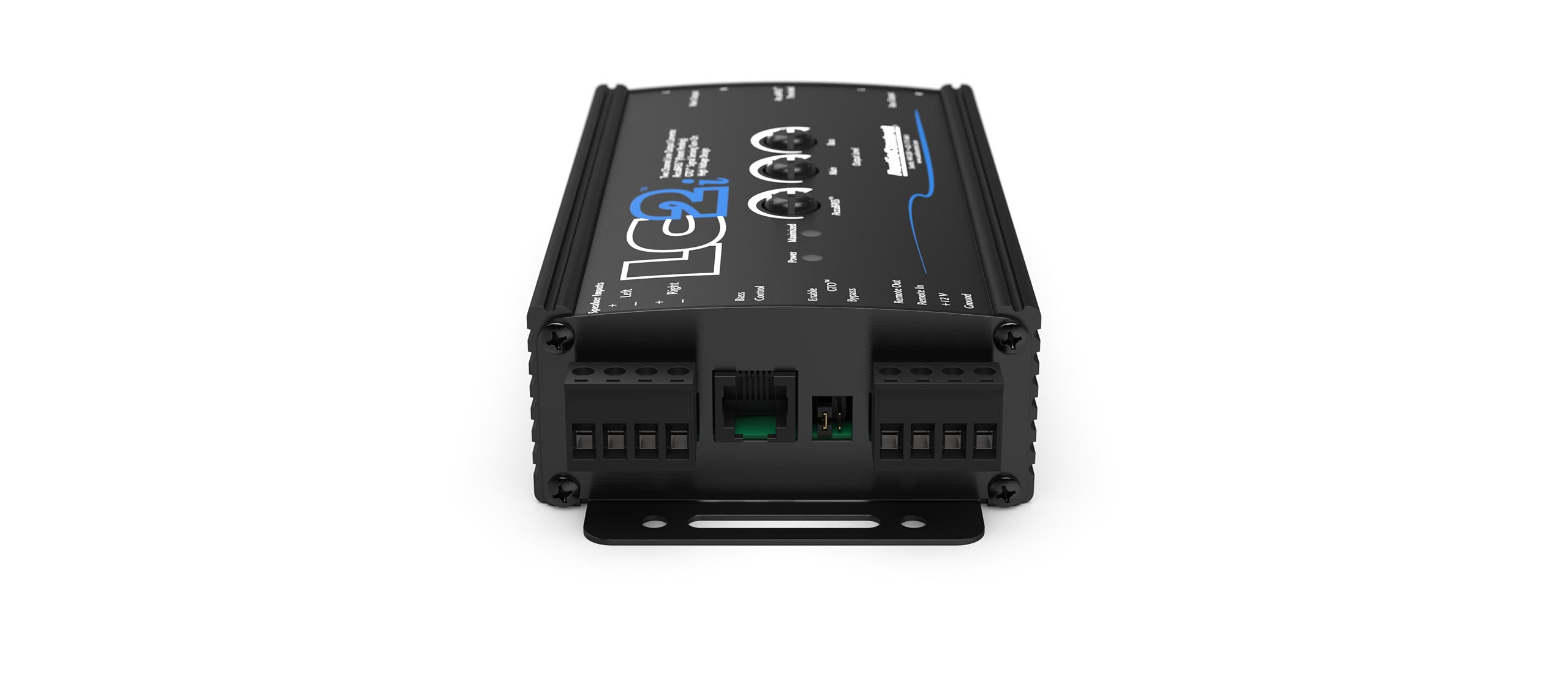

LC2i

2 CHANNEL LINE OUT CONVERTER WITH ACCUBASS®

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers.  It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

FEATURES

  • Two channels of Active speaker level inputs – Accept 400 watt signals per channel
  • Fixed and variable outputs with discrete level controls
  • AccuBASS® processing for correction of bass roll-off
  • GTOTM Signal Sensing
  • Input For Optional Remote Level Control
  • Compact design

SPECIFICATIONS

INPUTS

  • Speaker Level Input: 1 (2 channels)
  • Maximum Speaker Level Input: 400W per channel at 4Ω
  • Input Impedance: 20kΩ

OUTPUTS

  • Preamp Outputs: 2 (2 channels main, 2 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >110 dB
  • Frequency Response: 33 Hz – 100 kHz ±1 dB

CONTROL

  • Remote In
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Current Draw: 150mA
  • Recommended Fuse Rating: 1A

WEIGHTS & DIMENSIONS

  • Dimensions: 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets)
  • Weight: 1.0lbs (0.5kg)

IN THE BOX: LC2i, Speaker and Power connectors, Manual, Warranty
