SPK-V12

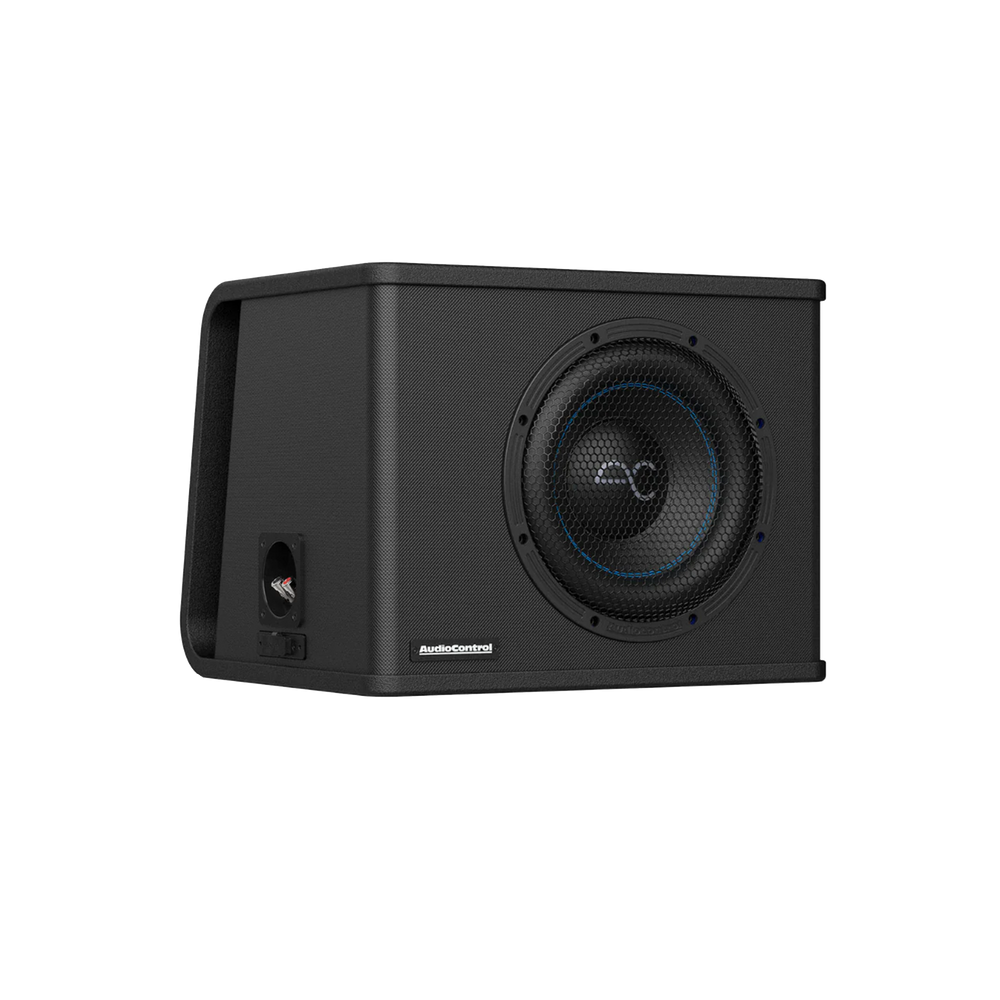

SPIKE SERIES 12″ VENTED ENCLOSURE

Upgrade your audio experience with our premium loaded subwoofer enclosures! Introducing our vented enclosures loaded with an AudioControl Spike Series Subwoofer. Built to last and delivering superior sound quality, these enclosures are crafted with precision from high-density wood fiberboard.

To ensure maximum durability and resonance control, our enclosures are coated with Roadkill Armor and wrapped in marine-grade vinyl for a sleek finish. Inside, internal support and bracing enhance the performance and longevity of your subwoofer. Say goodbye to distortion and hello to clean, powerful bass.

The dual front mounting baffle design ensures optimal speaker placement for an immersive and powerful audio experience. And with precision-filled poly-fiber material, you’ll enjoy controlled sound dispersion and tight, accurate bass response.

Not only do these enclosures come with a sturdy, powder coated steel grille for added protection, but they also include a versatile multi-secure mounting system. Installation is a breeze with our quick disconnect harness and connector that offer an easy and alternative connection option.

Pair these high-quality enclosures with an AudioControl amplifier for the perfect match. Available in 8″, 10″, and 12″ sizes, get ready to hear and feel you favorite tracks like never before.

FEATURES

  • High-Quality Vented Enclosure
  • Element-Resistant Enclosure Design
  • Optional Quick-Plug Connector for Convenience
  • Designed for Maximum Bass Output
  • Spike Series Enclosures Available in 8″, 10″ and 12″
  • Structurally Rigid Heavy-Duty Voice Coil
  • Fiber Matrix Paper Cone with Mica Coating
  • Grille Included for Added Protection

SPECIFICATIONS

Woofer Size                                             12 in

Subwoofer Model                                  SPK-12S2

Final Impedance                                2 OHMS

Frequency Response                             20-150 Hz

Sensitivity                                               84.6 dB

Enclosure Type                                      Ported

Subsonic Filter Setting                         26 Hz

Enclosure Tuning Frequency.             34 Hz

F3 Frequency @-3dB                            29 Hz

Terminal Wire acceptance.                 12-8 Gauge



IN THE BOX:

SPK-V12, Manual, Warranty

DIMENSIONS

  • Enclosure Width (A)                                  19.88 in
  • Enclosure Height (B)                                 15.75 in
  • Enclosure Depth (top) (C)                        16.02 in
  • Enclosure Depth (bottom) (D)                 18.43 in
  • Enclosure Weight                                      53.05 lbs
