dm-rta PRO KIT

REAL TIMe ANALYZER AND MULTI-TEST TOOL KIT

Order now!

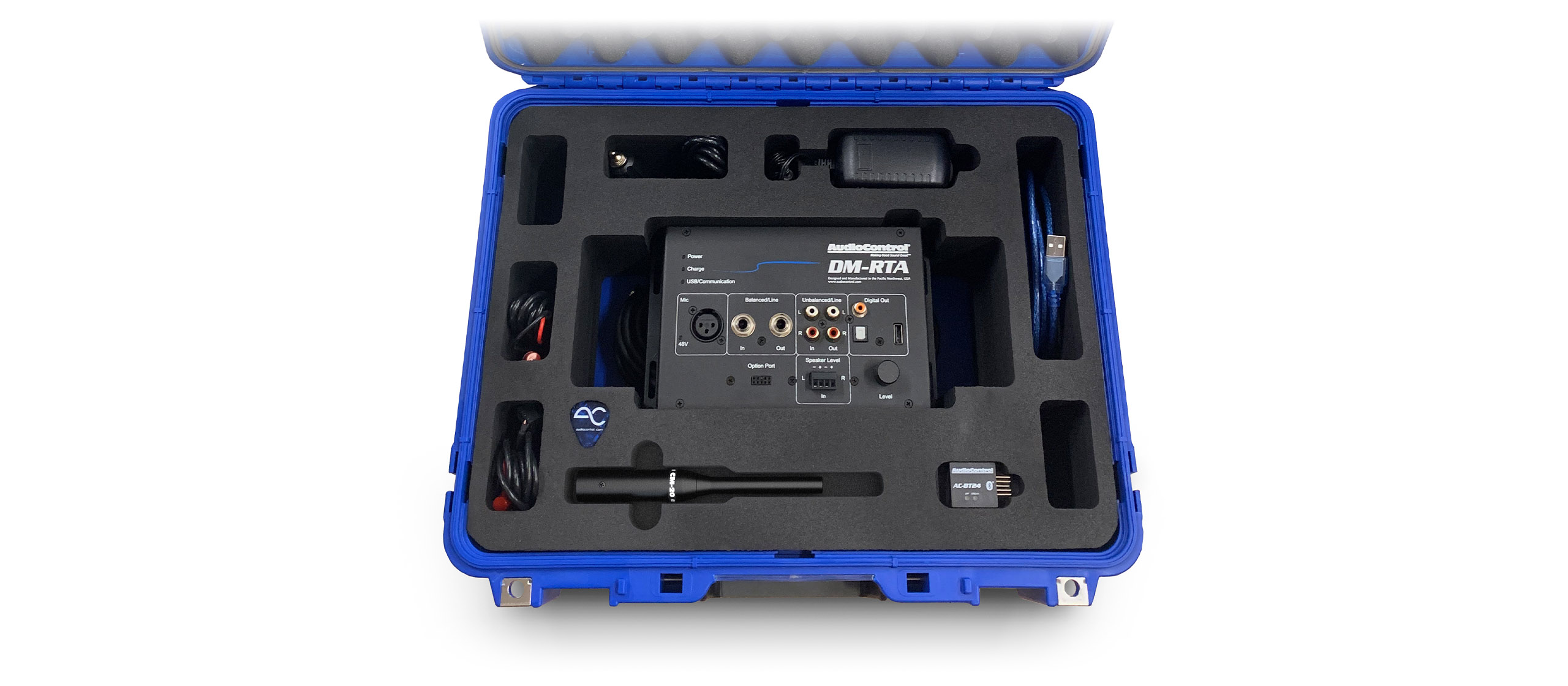

The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution. Nestled snuggly in the fetching blue hard case, you will find a DM-RTA, AC power supply, the CM-30 measurement microphone, all of the required interconnects, and custom test leads for line-level and speaker-level measurements.

included in kit

  • DM-RTA Real Time Analyzer
  • 110V AC power supply/charging adapter (DM-RTA)
  • 12V DC power supply/charging adapter (DM-RTA)
  • USB A to B cable
  • USB A to A cable
  • CM-30 measurement microphone
  • XLR microphone cable
  • Speaker input to spring-loaded test leads cable
  • RCA input to spring-loaded test leads cable
  • AudioControl tuning pick (looks a lot like a guitar pick)
  • Blue hard case with laser-cut foam

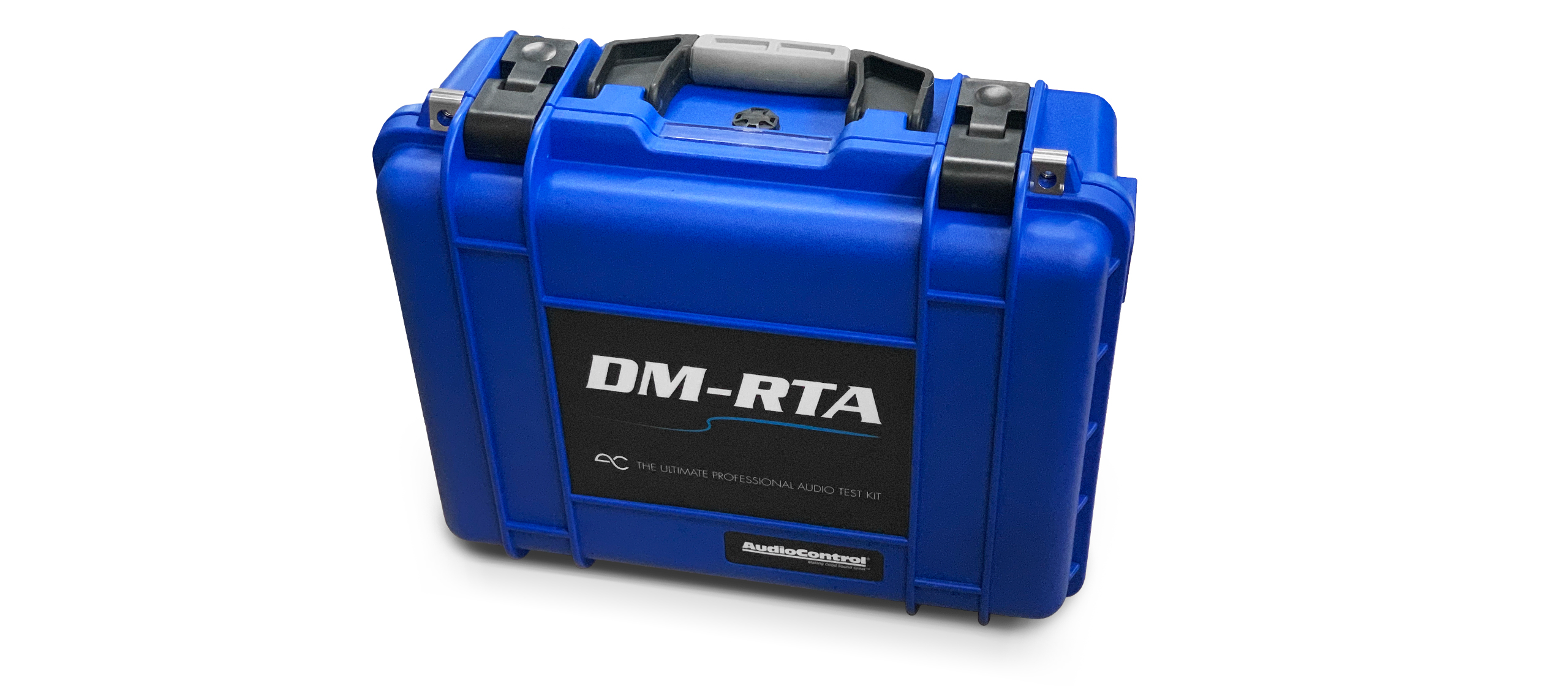

HARD CASE

LINE LEVEL TEST LEADS

SPEAKER LEVEL TEST LEADS

USB A TO A

XLR CABLE

GUITAR PICK

POWER SUPPLY (DM-RTA)

12V DC POWER SUPPLY (DM-RTA)

USB CABLE (DM-RTA)

SPECIFICATIONS

INPUTS

  • 1 x Balanced (Input Impedance 3.24kΩ)
  • 1 x Unbalanced (Input Impedance 3.24kΩ)
  • 1 x Microphone (Input Impedance 10kΩ)
  • 1 x Speaker Level (Input Impedance 16.24kΩ)
  • Max Low Level Input Voltage: 8 Vrms
  • Max High Level Input Voltage: 40 Vrms

OUTPUTS

  • 1 x Balanced (Output Impedance: 51Ω)
  • 1 x Unbalanced (Output Impedance: 51Ω)
  • 1 x Coax Digital (Output Impedance: 75Ω)
  • 1 x Toslink
  • 1 x USB
  • Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

GENERAL

  • Power Supply:
  • Battery Life: ~5 Hours

WEIGHTS & DIMENSIONS

  • Dimensions: 8”W x 4.8”D x 2.4”H
  • Weight: 2.6lbs (1.2kg)

IN THE BOX: DM-RTA, USB Cable, Power Supply, Manual, Warranty

performance

  • Frequency Response: 20Hz – 20kHz
  • Sensitivy: -32 dB ± 2 dB (0 dB = 1V/Pa at 1 kHz)
  • Max SPL: 138 dB SPL
  • Connector: 3 pin XLR, pin 2 positive

WEIGHTS & DIMENSIONS

  • Dimensions: 16.5”W x 16”D x 7”H
  • Weight (with included product): 13.0 lbs. (5.9 kg)

INPUTS

  • 1 x Balanced (Input Impedance 3.24kΩ)
  • 1 x Unbalanced (Input Impedance 3.24kΩ)
  • 1 x Microphone (Input Impedance 10kΩ)
  • 1 x Speaker Level (Input Impedance 16.24kΩ)
  • Max Low Level Input Voltage: 8 Vrms
  • Max High Level Input Voltage: 40 Vrms

OUTPUTS

  • 1 x Balanced (Output Impedance: 51Ω)
  • 1 x Unbalanced (Output Impedance: 51Ω)
  • 1 x Coax Digital (Output Impedance: 75Ω)
  • 1 x Toslink
  • 1 x USB
  • Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

GENERAL

  • Power Supply:
  • Battery Life: ~5 Hours

WEIGHTS & DIMENSIONS

  • Dimensions: 8”W x 4.8”D x 2.4”H
  • Weight: 2.6lbs (1.2kg)

IN THE BOX: DM-RTA, USB Cable, Power Supply, Manual, Warranty

bluetooth

  • Version: 4.2
  • aptX HD Compatible
  • UART Interface

output

  • Dual Differential Class AB Output Stage

performance

  • Signal to Noise Ratio: 96 dB
  • Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
  • Operating Range: 10+ meters (depending on environment)

general

  • Power Requirements: Provided by Option Port

weights & dimensions

  • Dimensions: 1.4”L x 1.0”W x 0.5”H
  • Weight: 0.3 oz (9 g)

in the box: AC-BT24, Quick Start Card, Warranty

performance

  • Frequency Response: 20Hz – 20kHz
  • Sensitivy: -32 dB ± 2 dB (0 dB = 1V/Pa at 1 kHz)
  • Max SPL: 138 dB SPL
  • Connector: 3 pin XLR, pin 2 positive

WEIGHTS & DIMENSIONS

  • Dimensions: 16.5”W x 16”D x 7”H
  • Weight (with included product): 13.0 lbs. (5.9 kg)
