THE EPICENTER® 1200 (DISCONTINUED)
HIGH-POWER SUBWOOFER AMPLIFIER

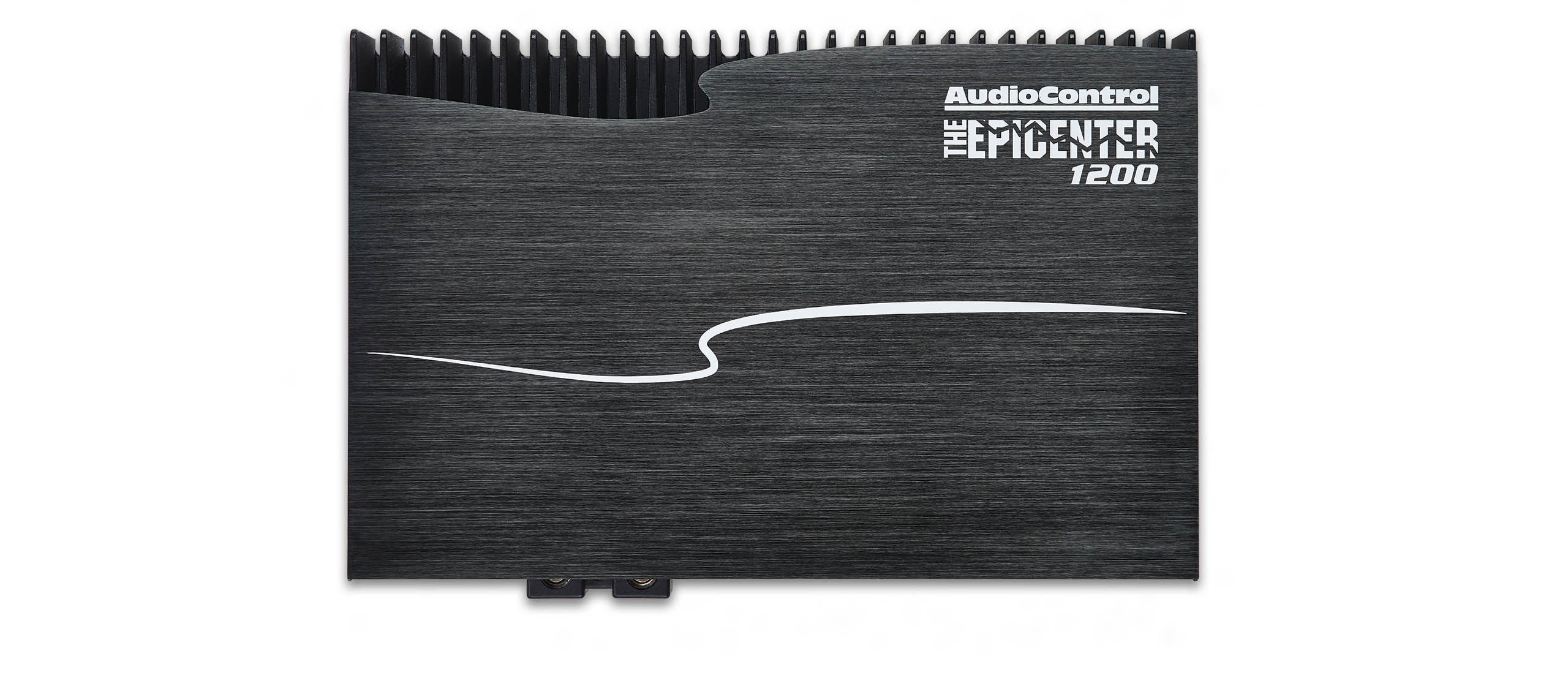

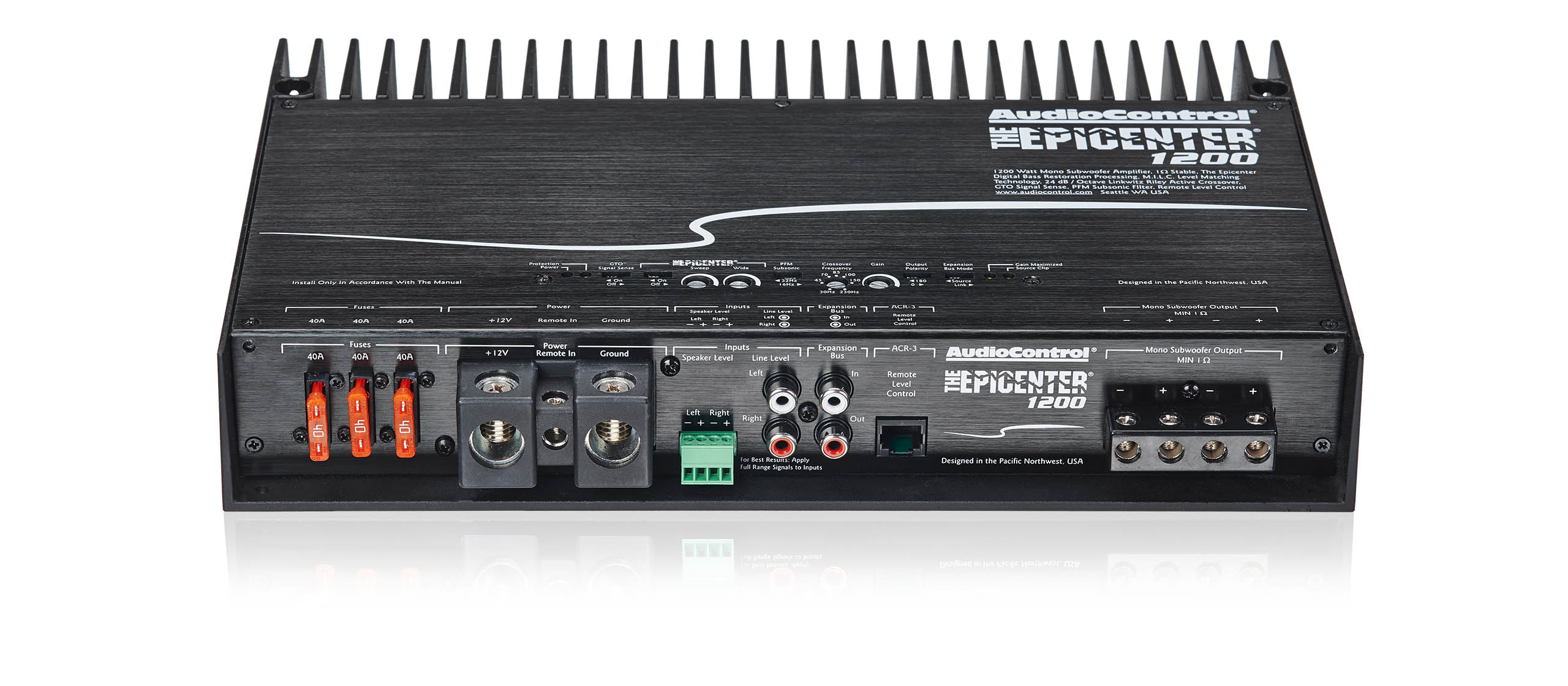

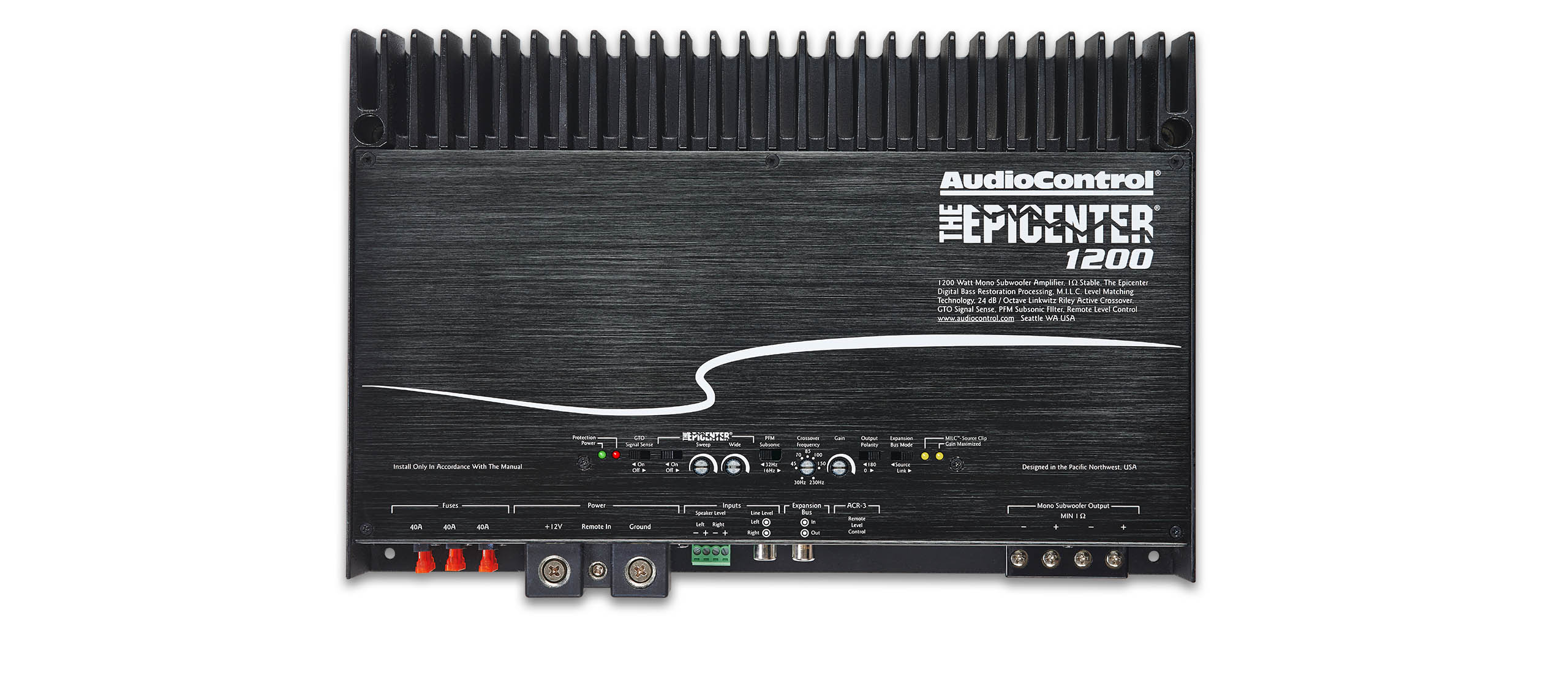

When car audio systems demand high levels of subwoofer power output into difficult loads, and a wide range of adjustment to optimize the subwoofer performance within the system, the AudioControl EPICENTER® 600 and 1200 power amplifiers are the ideal solutions. Each model delivers high current, stable down to 1 Ohm, and each has a removable top cover that allows access to controls for THE EPICENTER® effect, crossover frequency, gain, polarity, subsonic filter, signal sense and expansion bus mode.
FEATURES
- High Current Design – 1 Ohm Stable
- 1200 watts at 1 Ohm
- THE EPICENTER® Digital Bass Restoration
- MILC™ Maximum Input Level Control (Patent Pending)
- 24 dB/octave Linkwitz-Riley Alignment Crossover
- GTO Signal Sense
- PFM Subsonic Filter
- Line-Level RCA Inputs and Active Speaker-Level Inputs
- Solid One-Piece Aluminum Chassis
- Remote Control for Subwoofer Level and THE EPICENTER® effect
- Expansion Bus
SPECIFICATIONS
INPUTS
- Preamp Inputs: 1 Main, 1 Expansion Bus
- Input Voltage Range: 200 mV – 6 V RMS
OUTPUTS
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 400 W x 1 RMS
- 2 Ω – 750 W x 1 RMS
- 1 Ω – 1200 W x 1 RMS
- Expansion Bus Output: Buffered, post-processing
PERFORMANCE
- Frequency Response: 16 Hz – 250 Hz
- Signal to Noise: 107 dBa, Ref 1200 W at 1 Ohm
- Damping Factor: 770 at 10 V, 4 Ohm Output, 100 Hz
- THD+N: < 0.1%
- Bass Processing: The Epicenter®
- Minimum Power / Ground Wire Gauge: 0 AWG wire
- Fuse Rating: 3 x 40 A
- Low-Pass Filter: 24dB/Octave Linkwitz-Riley, Adjustable From 30 Hz – 250 Hz
- PFM Subsonic Filter: 18dB/Octave, Selectable 16 Hz or 32 Hz
- Output Polarity Switch: Yes
WEIGHTS & DIMENSIONS
- Dimensions: 12″W x 7.95″D x 2.1″H
- Weight: 6.6lbs (3.0kg)
IN THE BOX: THE EPICENTER® 1200, ACR-3 Remote, Speaker connector, Fuses, Manual, Warranty
